My new design for a subwoofer enclusure
I have been thinking about this for a while. I was not too sure as too how to add better sound to my X. and to also do this without sacraficing too much space. I have decided to go with 2 JL Audio 8W3V3 subs. They will be mounted in an enclosure in the trunk that is mounted to the rear deck lid. They will be firing up into the parcel shelf. I will have to dynomat the entire rear parcel shelf so i can prevent as much rattles as possible. I figire i would go with 8" sub for 2 reason: 1- they are a good size so i can still keep most of my trunk space, 2- they are large enough to give me some decient bass. Thie will all be done in the next month or so. I will follow up with a complete how too, and lots of pictures.

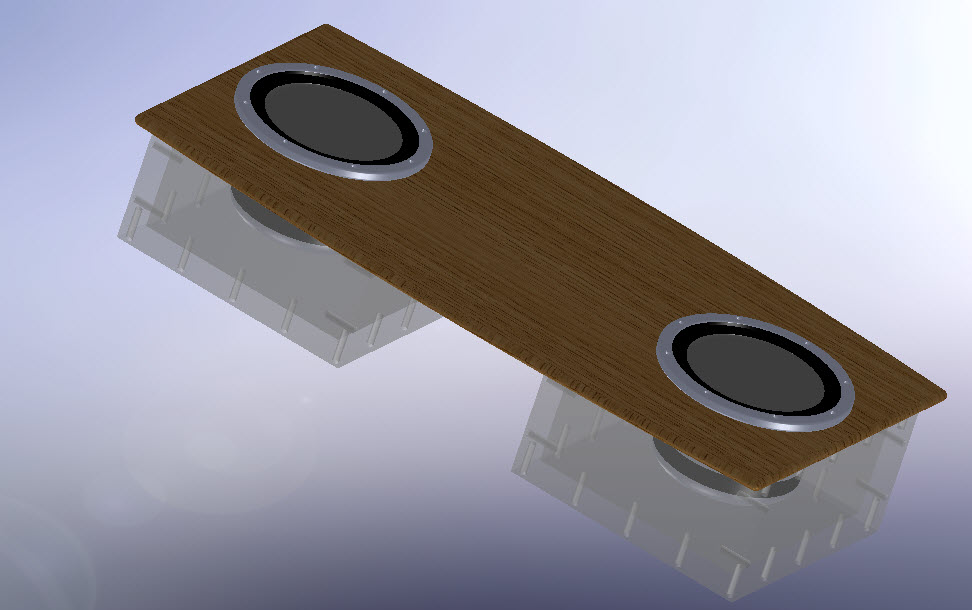

I have attach a 3D file so everyone gets the idea. Remember the subs will be firing up into the rear deck, hence the reaseon why i went with an acrylic/plexi type enclosure, so it will all look good when i am done.
I have attach a 3D file so everyone gets the idea. Remember the subs will be firing up into the rear deck, hence the reaseon why i went with an acrylic/plexi type enclosure, so it will all look good when i am done.
#3
ive done this many times over the years. Have fun. One of the bigest challenges is making sure the front "wave" of the woofer is not loading under the rear deck. Meaning if your putting it behind say a 6inch metal hole, you need to direct the "wave" to that hole, dont let the subs play directly under the rear deck with space in between. It easier to show you than tell you. LOL Anyway, AS A SUGGESTION, take 3 inch foam from say a seat cushion, cut this out to match the enclosure on top. Cut out the speakers too. Now when you goto mount this unit to the rear deck, you will compress the foam to the rear deck and will save yourself from having to deal with cancelation of frequencies. Wow i could write about the do and dont's of this type of install for over an hour.........he he he. Anyway if you need more info, simply ask
#4
#6
#7
I am going to use a AudioControl LC7 (http://www.audiocontrol.com/t34/1761...ut----LC7.html). Is is a line level converter that will boost the signal for the amp as well as give me an AUX input for my MP3 player. There are other solution you can go with but this does have a signal summing interface, meaning you would only have to input the front and rear channel and the unit will "infer" a 3rd set of preamp outputs for you. Makes hooking up the whole system a lot easier, consider i will be replacing all of the speakers and adding subs. I will be connecting these to Infinity Kappa amps (the Kappa One, and Kappa Four). However you could buy a $20 line level converter @ best buy, or even buy an amp with speaker level inputs.
I have also decided to go with Second Skin's (http://www.secondskinaudio.com/) Damplifier Pro sound isolation material. It is a lot better. (did i spell that right??????)
I have also decided to go with Second Skin's (http://www.secondskinaudio.com/) Damplifier Pro sound isolation material. It is a lot better. (did i spell that right??????)
Trending Topics
#8
#9
thats a nice job..I'd like to hear how you make out so that I can install it to with my jeep grand cherokee parts..
Last edited by kurtdaniel; 06-22-2009 at 08:19 PM.
#11
So after many months of not updating this thread i am ready for the final installation of my car audio equipment.
I have changed the original plan a bit and have decided to do 2 12" inverted DIYMA R12's. these are SQ (sound quality) oriented subwoofers. I will be running these with an Infinity Kappa ONE (800WRMS).
i am replacing the fronts with Focal 165Vr with custom tweeter pods on the dash. i am removing the rears as this will muddy up my fronts as well as make it next to impossible to balance out the fronts.

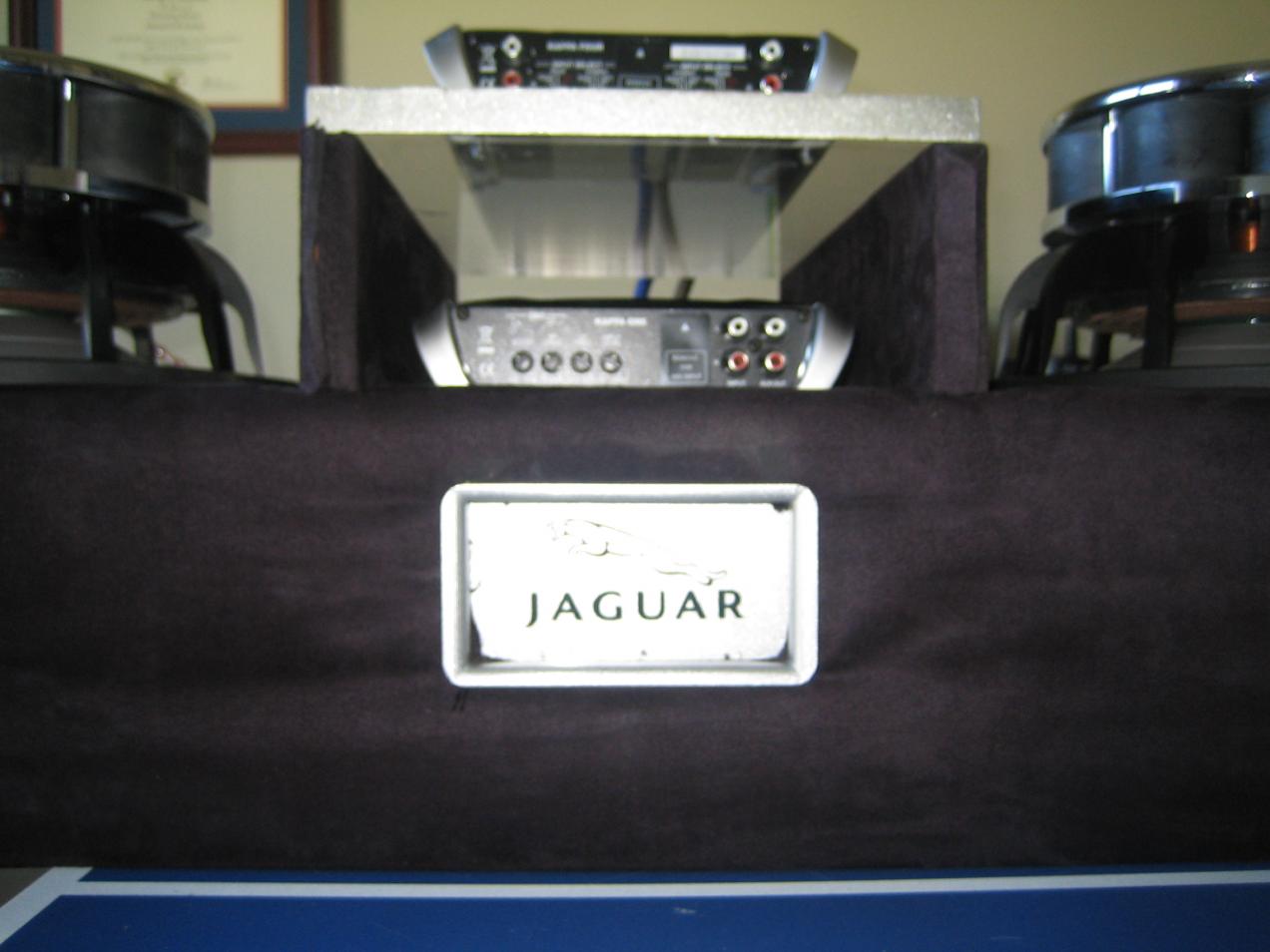

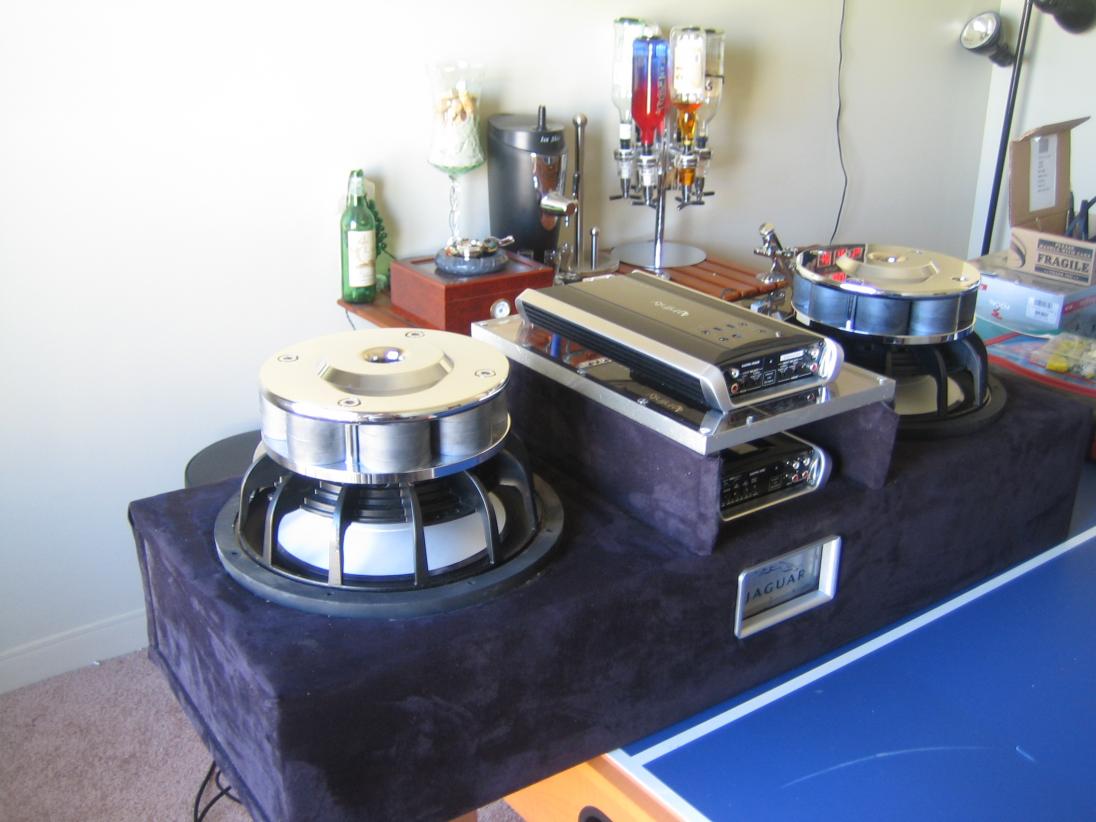

I have enclosed some pics of the box i have designed and built. Is has the 2 12"s mounted as well as a center amp rack. oh yeah any i installed a custome acrylic jaguar logo piece in the center of the box thats lights up green whne the trunk is opened. I still have some final trimming to do but it will look great when it is all done.
