Pictures of new finished throttle

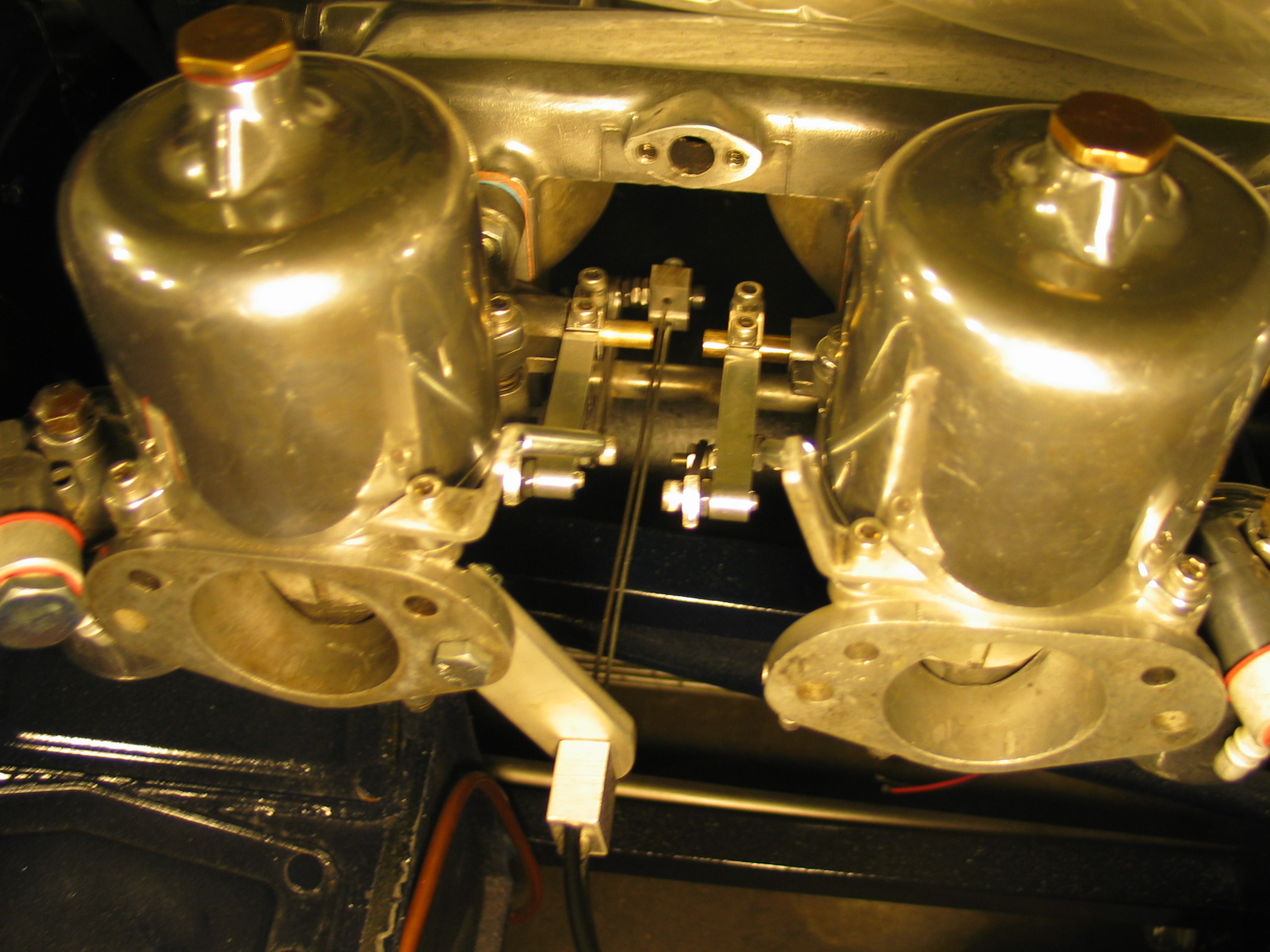

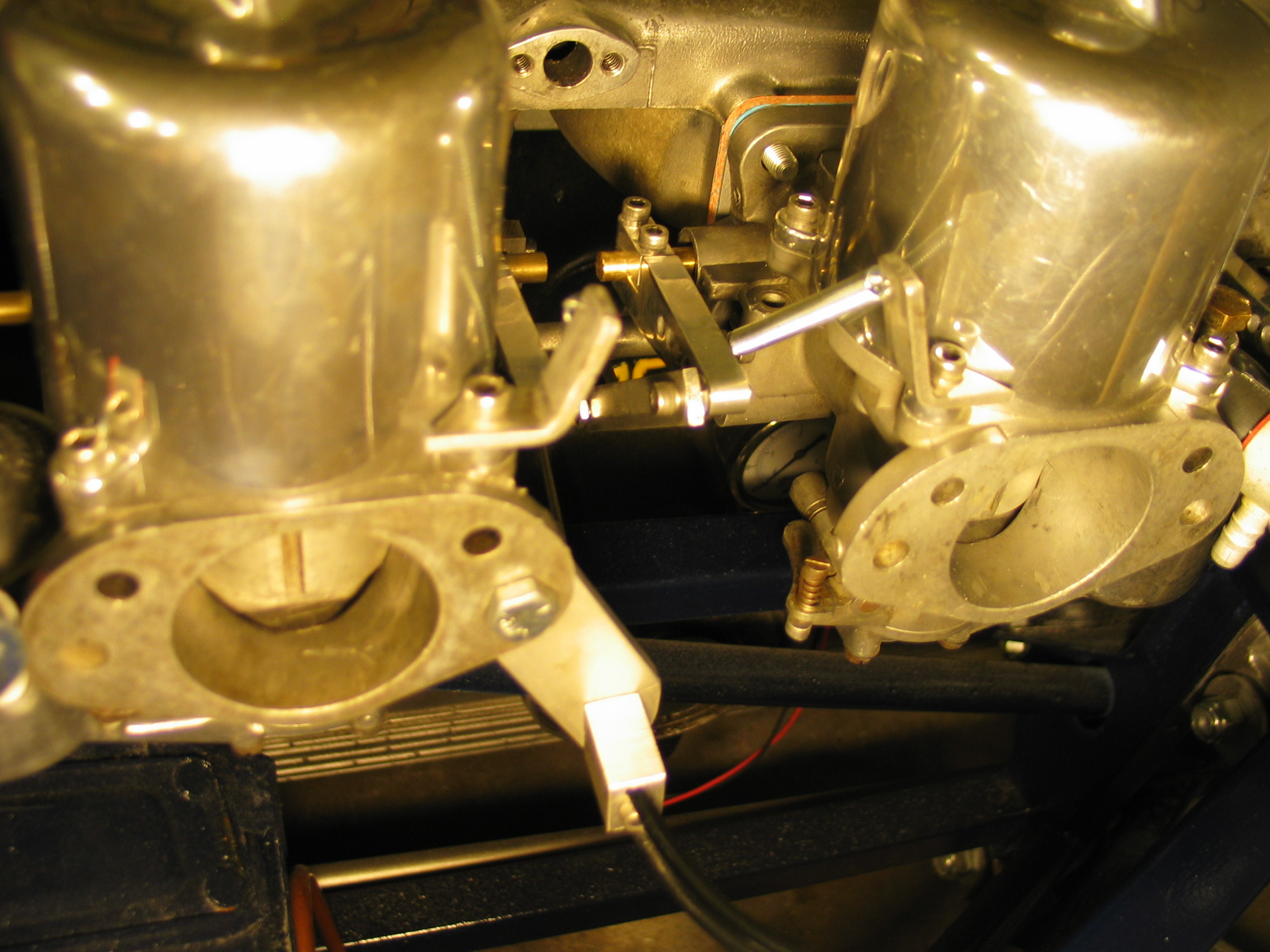

As a follow-up to " Alternate throttle for XKE" here are photos of the finished cable operated throttle showing spring returns for each carb and Jaguars Jack-shaft to throttle butterflys connections. let me know what you think.

Attached Thumbnails

Pictures of new finished throttle-img_3420.jpg

Pictures of new finished throttle-img_3421.jpg

Pictures of new finished throttle-img_3422.jpg

Reply Like

08-13-2015 | 01:23 PM

vrracing

Member

Joined: Feb 2013

Posts: 89

Likes: 13

From: Austin

Looks very tidy on the carb side. How does it work?

Jim

Reply Like

08-13-2015 | 04:52 PM

felinecat

Thread Starter

Senior Member

Joined: Feb 2015

Posts: 107

Likes: 14

From: niagara falls ont

This system works very smoothly and provides complete adjustment independently for each carb. the carb arms were from speedway motors at $9. each and the cables were rear bike break cables at $6. each. See also" Alternate throttle for XKE."
