2016 F-Type Convertible Jacking points
#1
#2
Welcome to the forums adsjag2016*,
I've moved your question from General Tech Help to F-Type forum. Members here with the same model will be able to help.
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
I've moved your question from General Tech Help to F-Type forum. Members here with the same model will be able to help.
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
#4
Join Date: Feb 2014
Location: Adelaide, South Australia
Posts: 8,463
Received 3,226 Likes
on
2,380 Posts

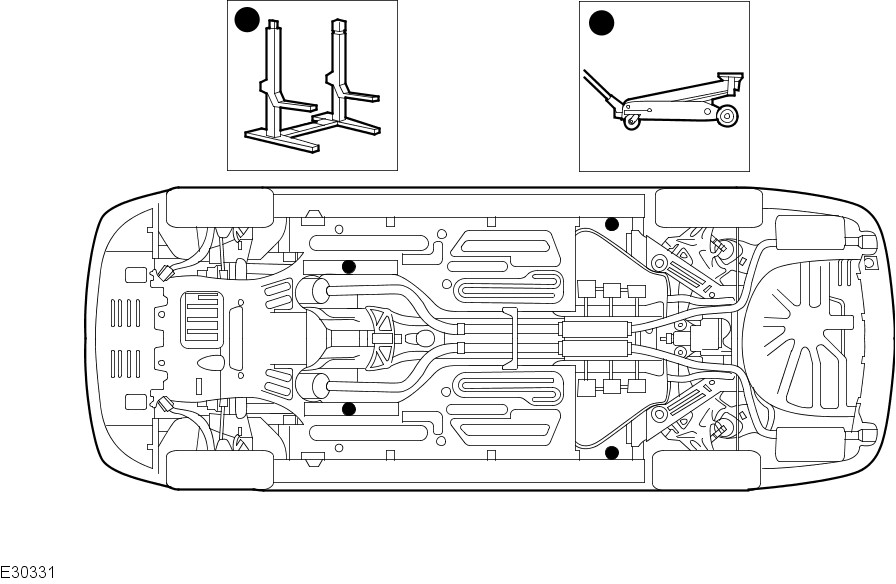

I have commented before that this diagram is WRONG even though it is the diagram shown in the Workshop Manual (twice even!).
It is a diagram of the XK or maybe XF axle stand points, you only need to look at the rear exhaust and muffler layout to see it is not from an F-Type.
The front jacking points shown are miles out they are in fact just inboard of the sills however the rear jacking points are correct (smack in the middle of three bolts that stick out of a triangular shaped chassis piece).
There is no diagram in the Owner Manual and all it says is:
"There are 4 jacking points on the underside of the floor. Two indented, triangular indicators are provided on each sill cover. These indicate
the location for the jack."
Look/feel along the underside of the sills and you will find those little triangle shaped indents
Tip - the jacking points are fairly small, too small for the "large" head that many trolley jacks come with, if you only have that type of trolley jack you should use a "puck" on/in the head of the jack.
It is a diagram of the XK or maybe XF axle stand points, you only need to look at the rear exhaust and muffler layout to see it is not from an F-Type.
The front jacking points shown are miles out they are in fact just inboard of the sills however the rear jacking points are correct (smack in the middle of three bolts that stick out of a triangular shaped chassis piece).
There is no diagram in the Owner Manual and all it says is:
"There are 4 jacking points on the underside of the floor. Two indented, triangular indicators are provided on each sill cover. These indicate
the location for the jack."
Look/feel along the underside of the sills and you will find those little triangle shaped indents
Tip - the jacking points are fairly small, too small for the "large" head that many trolley jacks come with, if you only have that type of trolley jack you should use a "puck" on/in the head of the jack.
The following 5 users liked this post by OzXFR:
Borbor (08-26-2021),
Carbuff2 (09-09-2021),
DJS (08-25-2021),
jlewis10 (09-17-2021),
Thunder Dump (08-25-2021)
#5
Join Date: Nov 2019
Location: (Illinois) - Led by Gov. PRICKster
Posts: 1,498
Received 985 Likes
on
565 Posts
The following 3 users liked this post by Therock88:
#7
HI, thank you. .... I have a V6 , Base, and I need a drawing for the V6 not the V8 layout underneath.

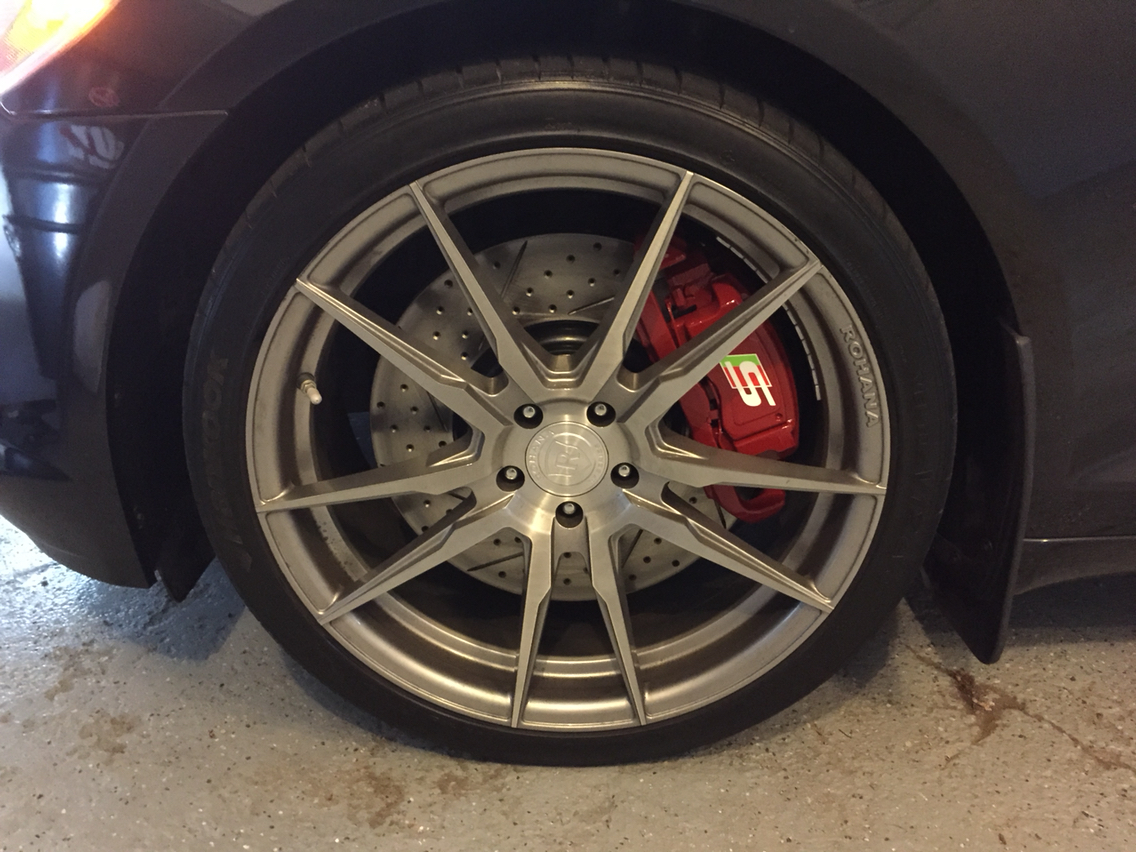

and,,,,,,, Has anyone installed the RED caliper covers on the 18" wheels... they are from MPA ... not my first choice but
still trying to find ... a OEM set of covers.... driving me nuts..... HELP.
and,,,,,,, Has anyone installed the RED caliper covers on the 18" wheels... they are from MPA ... not my first choice but
still trying to find ... a OEM set of covers.... driving me nuts..... HELP.
Trending Topics
#8
Join Date: Feb 2014
Location: Adelaide, South Australia
Posts: 8,463
Received 3,226 Likes
on
2,380 Posts
HI, thank you. .... I have a V6 , Base, and I need a drawing for the V6 not the V8 layout underneath.
and,,,,,,, Has anyone installed the RED caliper covers on the 18" wheels... they are from MPA ... not my first choice but
still trying to find ... a OEM set of covers.... driving me nuts..... HELP.
and,,,,,,, Has anyone installed the RED caliper covers on the 18" wheels... they are from MPA ... not my first choice but
still trying to find ... a OEM set of covers.... driving me nuts..... HELP.
The following 2 users liked this post by OzXFR:
Carbuff2 (09-09-2021),
JacksonvilleJag (08-27-2021)
#10
as I can see them, plenty of room between my 8 spoke 18" OEM wheels and the face of the calipers ... going to be a Fall project.
The OEM Jaguar pad cover in RED is not an option for the 18" Base model....wheels.... arggggggh
#11
Hi, I have a 2016 F-Type, base, with V6 ..... I have decided to either keep them the cleaned up Grey metal, and or, RED pad cover, OEM , ...
as I can see them, plenty of room between my 8 spoke 18" OEM wheels and the face of the calipers ... going to be a Fall project.
The OEM Jaguar pad cover in RED is not an option for the 18" Base model....wheels.... arggggggh
as I can see them, plenty of room between my 8 spoke 18" OEM wheels and the face of the calipers ... going to be a Fall project.
The OEM Jaguar pad cover in RED is not an option for the 18" Base model....wheels.... arggggggh
#12
The following users liked this post:
adsjag2016* (09-09-2021)
#13
Join Date: Feb 2014
Location: Adelaide, South Australia
Posts: 8,463
Received 3,226 Likes
on
2,380 Posts
I suppose decent quality good looking metal ones might exist but I have never read or heard of or seen any.
#14
#15
For me personally, they all look like hot garbage. They are easily noticed as "fake brakes". Like one of those Pontiac Fiero - Ferrari Testarossa kit cars. Although many claim otherwise, I'd also be concerned with heat dissipation. The last thing you want is for your brakes not to cool down efficiently.
#17
the Gray calipers, (properly cleaned.... work ! ) is the only option. Buying the $$$$ x 4 larger diameter rotors, then add $$$
new rims.... + installation at the Dealer... nooooooo, I am very pleased with the clean look of my 18" wheels set up.
