Adding "invisible" Bluetooth to your Jaguar
#1
![Lightbulb](https://www.jaguarforums.com/forum/images/icons/icon3.gif)
I plan to follow up with some photos later, but thought I'd start a thread on this.
I have a '99 XJ8 VDP. I wanted to wirelessly play music from my phone (I have an Android phone) through the Jag stereo. My preference was Bluetooth. Like I imagine most Jag owners would be, I wanted to keep a stock look, and avoid clipping devices on the visor or plugging more things into the cigar lighter plug.
So here's what I did:
1. Ordered a (about $60)
2. Removed facade from around the shifter, radio, and heater controls.
3. Pulled the stereo forward.
4. Found a wire that had voltage only while the key is turned on, and attached to this to power the Tranzit Blu module. Also attached to ground via a grounding screw in the same area.
5. Unplugged the antenna [male] from the radio [female] and plugged it into the Tranzit Blu adapter [female], then plugged the Tranzit Blu antenna wire [male] into the radio.
6. I found that the best place to put the Tranzit Blu box, which is about 3"x2"x1", was the cavity to the forward-left of the shifter, and routed the wires under the console frames, so none would get pinched or simply be in the way.
7. Put everything back together.
8. Paired with my phone, tuned the radio to the right station, and played my music!
This was relatively easy to do with only basic electrical knowledge.
The Tranzit Blu device does come with a switch for turning it off and on, but again, I didn't want to modify the appearance of the interior, so the key is essentially the switch. The downside is that the Tranzit Blu only goes into connect mode at startup, so if my phone doesn't have Bluetooth turned on when I start the vehicle, it appears there is no way for me to connect until I've restarted the vehicle.
I've been studying the XJ schematics, and I plan to reopen the console and move the power source over to the wire that supplies the amplifier. This way, the radio on/off button becomes the Tranzit Blu switch as well. You may have to identify a different source for your car, or install a manual switch.
Anyway, hope that helps somebody! Haven't run into a problem since installing.

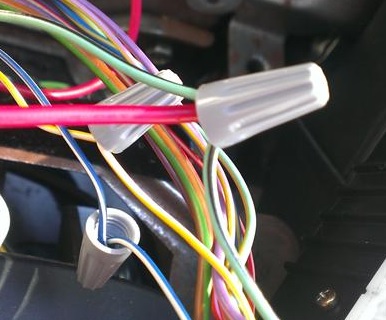

Update: Here are some pictures of the wiring and the placement of the Tranzit Blu box. Also, as you can maybe see by the pictures, I had previously tapped into power from the yellow/white wire (power for the CD changer), which has constant power while the car is on, but just this morning I moved over to the light-green/black wire (power for the antenna motor), which has constant power only while the radio is turned on. Now, if I need to reset the Tranzit Blu box, simply shut off the radio and then turn it back on.
