JTIS manual doesn't specify fastener torque
#1
![Default](/forum/images/icons/icon1.gif)
I've purchased on-the-internet what were advertised as Jaguar Factory Service manuals or JTIS. Not seeing any useful information like engine fastener torque specs for reassembling the timing components on my 2001 XKR engine.
The dealer says it cost $1000/year for a real factory service manual subscription. Where does one find the same information Jaguar dealers use to service or rebuild their customer's engines?
Thank you,
Toronadomike
The dealer says it cost $1000/year for a real factory service manual subscription. Where does one find the same information Jaguar dealers use to service or rebuild their customer's engines?
Thank you,
Toronadomike
#2
Join Date: Oct 2009
Location: Perth Ontario Canada
Posts: 11,058
Received 2,263 Likes
on
1,845 Posts
#3
#4
![Default](/forum/images/icons/icon1.gif)
JTIS was the 'real factory manual' before Jaguar changed to an OnLine system in 2005. Navigating can be rather obscure at first. To get to the Torque Specifications for your model:

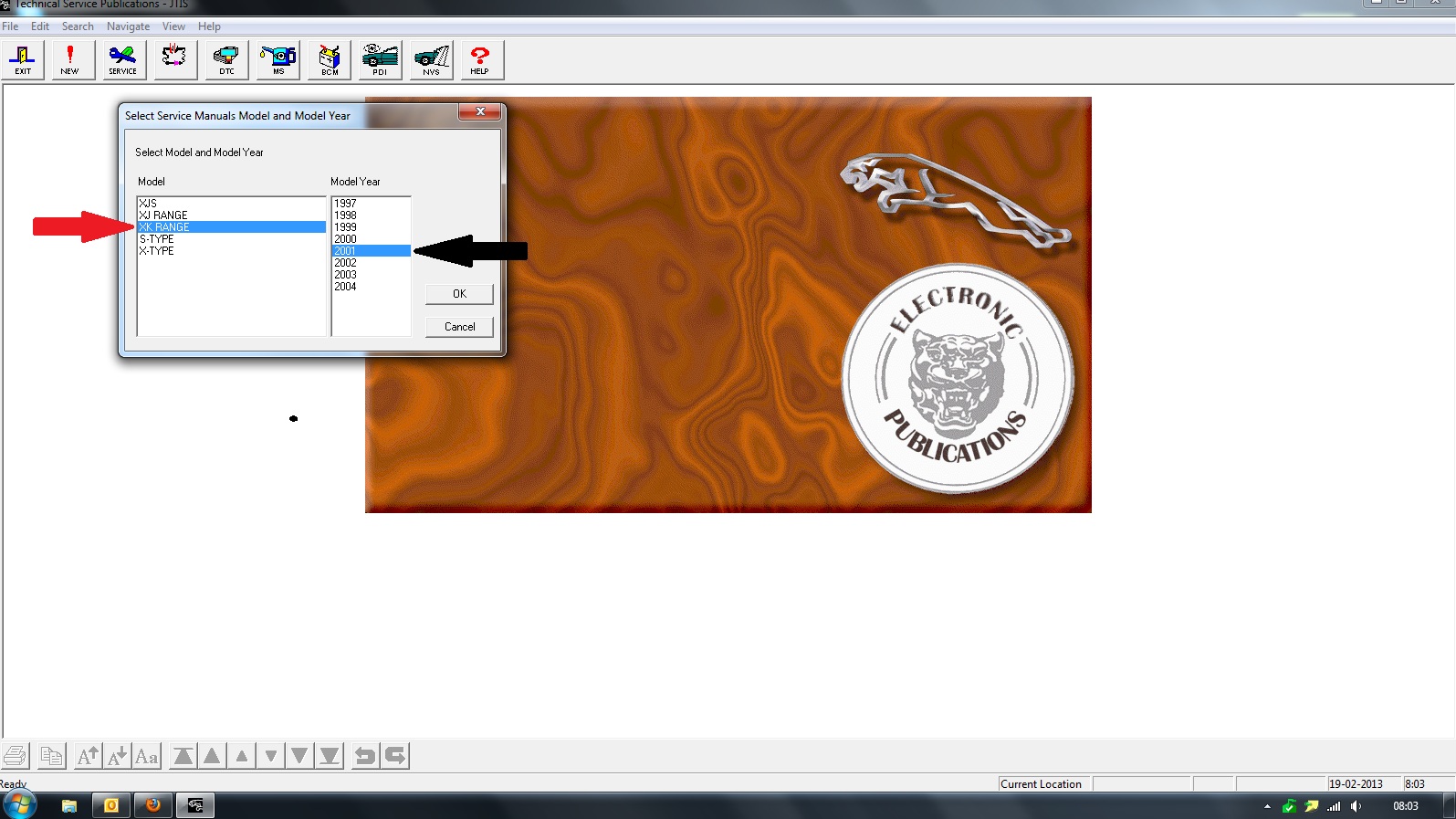

1. select Service button then XK from the Model Range (arrowed in red) and 2001 from the Model Year (arrowed in black)
![JTIS manual doesn't specify fastener torque-jtis-1.jpg](https://www.jaguarforums.com/forum/attachments/general-tech-help-7/34079d1480967678t-jtis-manual-doesnt-specify-fastener-torque-jtis-1.jpg)

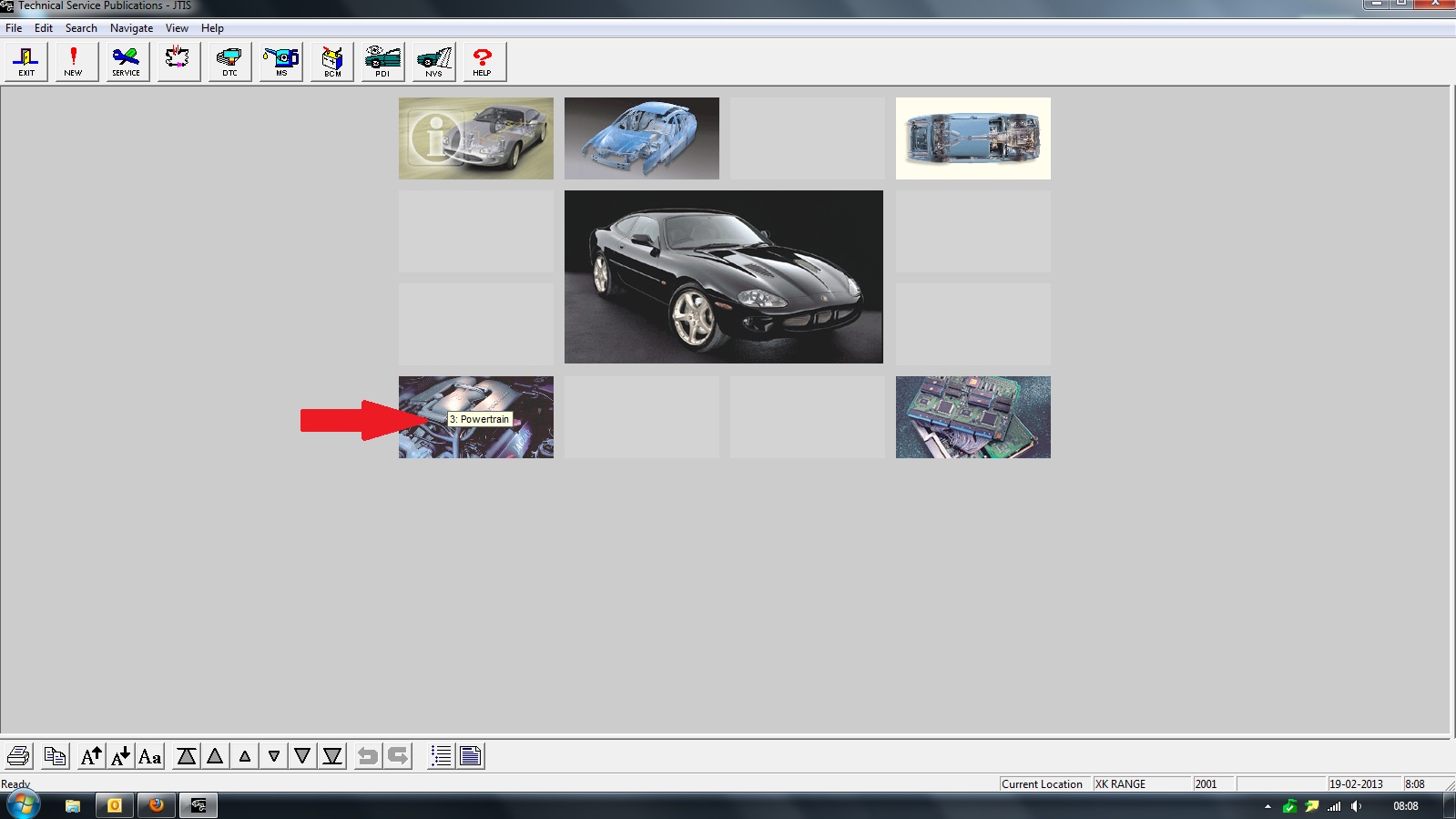

2. click on Powertrain image (arrowed in red
![JTIS manual doesn't specify fastener torque-jtis-2.jpg](https://www.jaguarforums.com/forum/attachments/general-tech-help-7/34080d1480967678t-jtis-manual-doesnt-specify-fastener-torque-jtis-2.jpg)

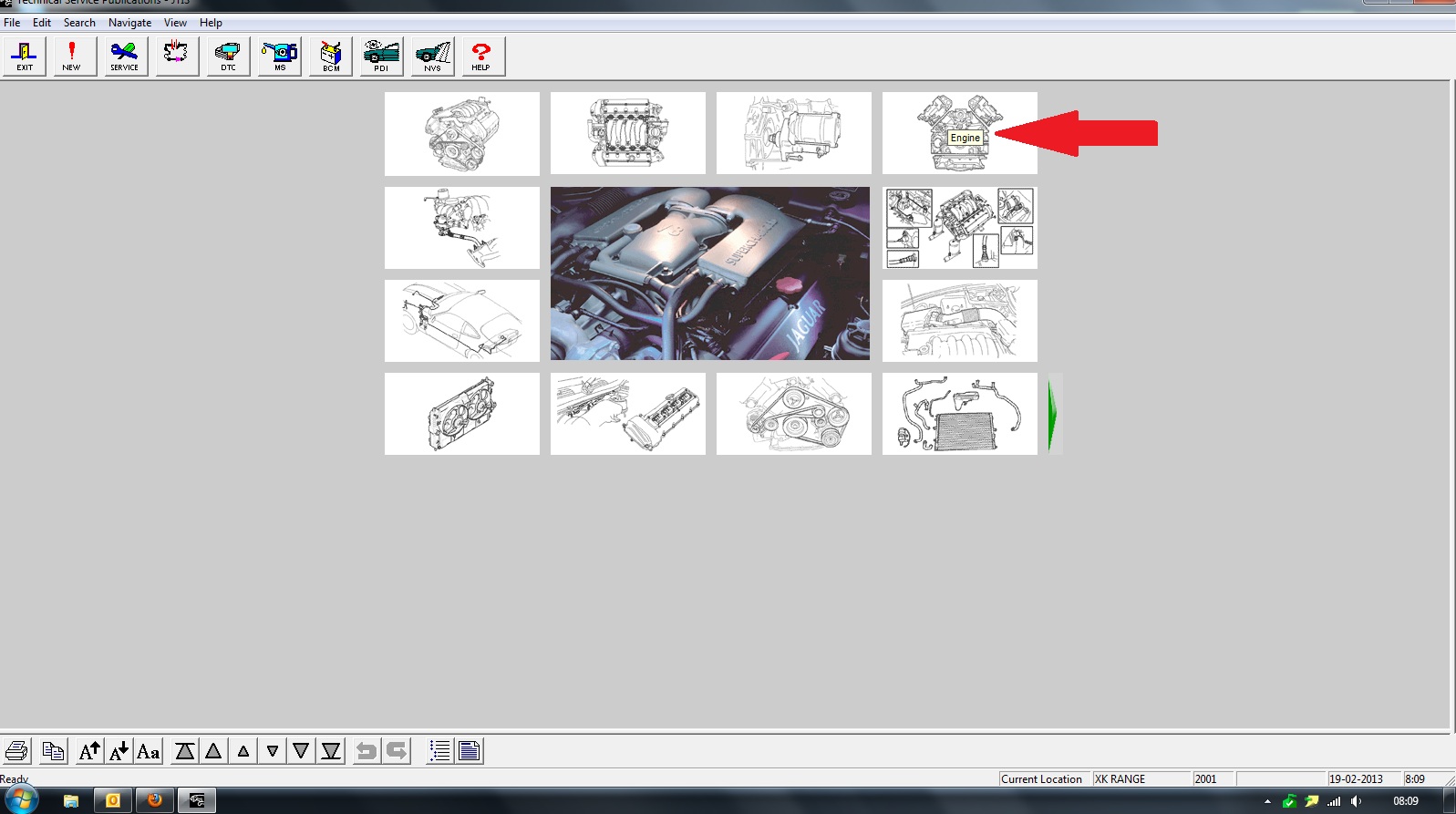

3. click on the Engine graphic (arrowed in red)
![JTIS manual doesn't specify fastener torque-jtis-3.jpg](https://www.jaguarforums.com/forum/attachments/general-tech-help-7/34081d1480967678t-jtis-manual-doesnt-specify-fastener-torque-jtis-3.jpg)

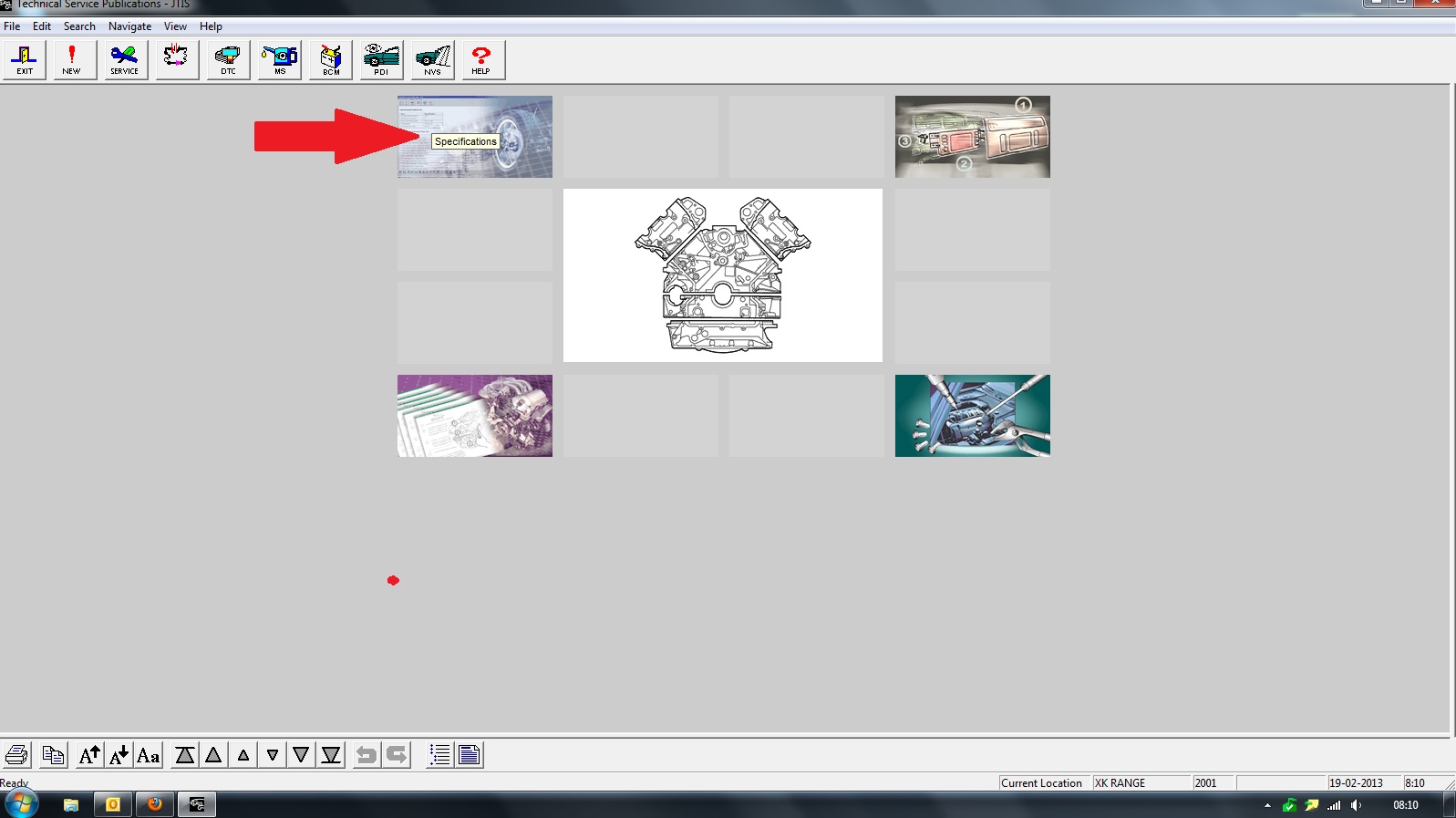

4. click on the Specifications graphic (arrowed in red)
![JTIS manual doesn't specify fastener torque-jtis-4.jpg](https://www.jaguarforums.com/forum/attachments/general-tech-help-7/34082d1480967678t-jtis-manual-doesnt-specify-fastener-torque-jtis-4.jpg)

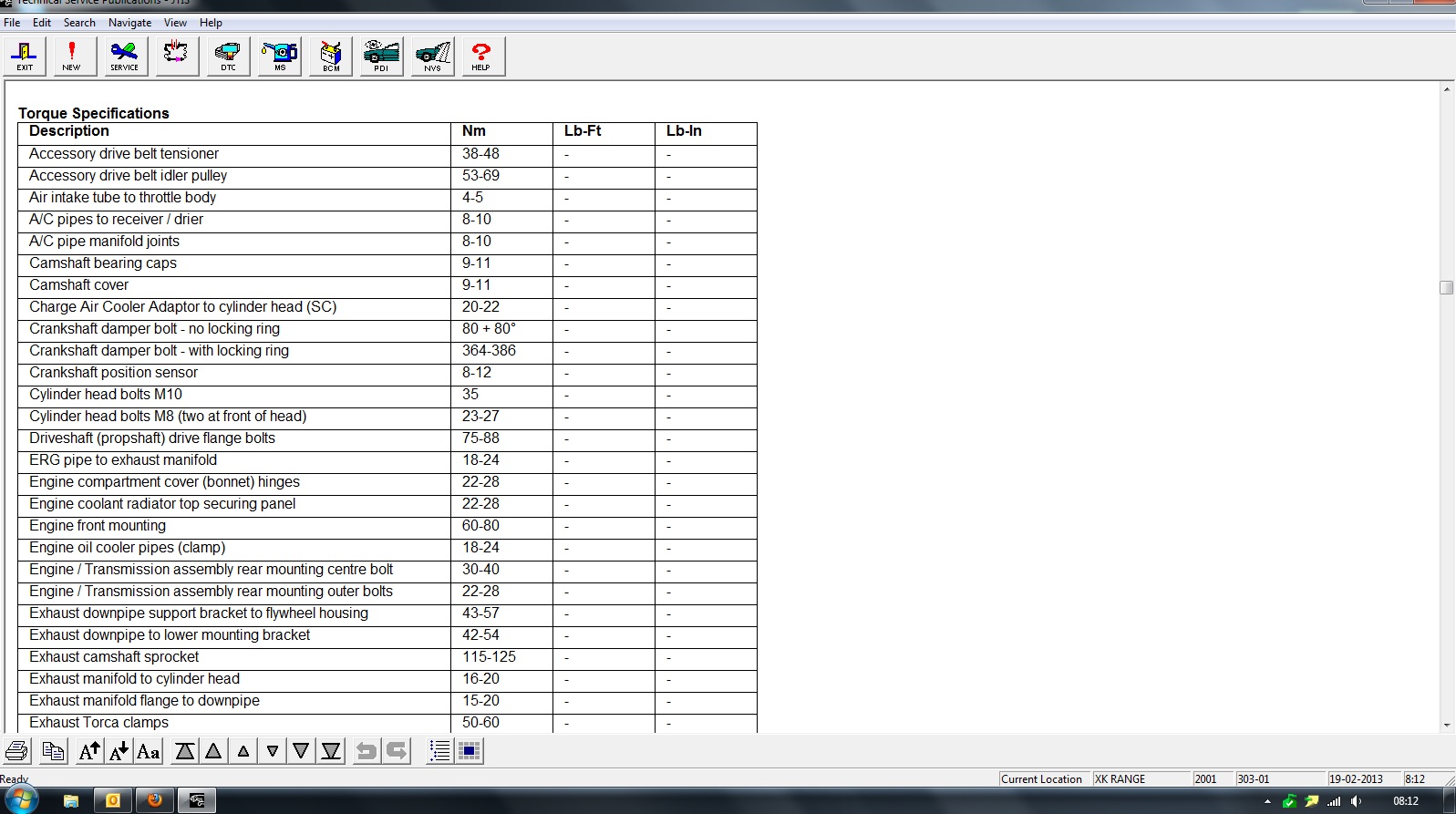

5. scroll down the page to the Torque Specifications section
![JTIS manual doesn't specify fastener torque-jtis-5.jpg](https://www.jaguarforums.com/forum/attachments/general-tech-help-7/34083d1480967678t-jtis-manual-doesnt-specify-fastener-torque-jtis-5.jpg)
This screen shot only shows a section of the list.
Graham
Last edited by GGG; 02-19-2013 at 02:31 AM.
