Pedal box rebuild
#1
![Default](/forum/images/icons/icon1.gif)

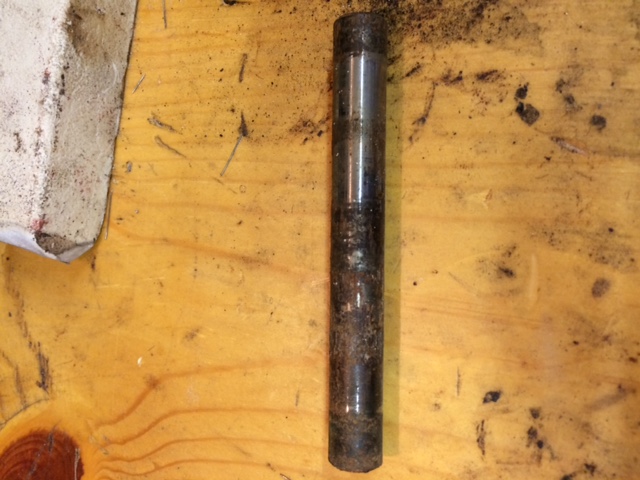

Any tips on rebuilding the pedal box? I need to remove the shaft that holds the brake and clutch pedal arms/springs. i took out the center bolt that I assume holds the shaft. Is the pin just pressed/hammered out in either direction? It doesn't seem inclined to move. I have it soaking in solvent hopefully to loosen it up.
The following users liked this post:
tedwone (05-13-2016)
#2
![Default](/forum/images/icons/icon1.gif)
After the centre bolt is removed it just slips out, it's not pressed in there.
I just finished assembling mine.
The shaft can only come out in one direction because one of the studs that holds the whole assembly in place on the bulk head is in the way (unless you remove the stud of course).
Put the whole assembly on something solid, take a punch with a blunt end and give it a light, and quick tap with a small ball peen hammer.
Use small light taps at both ends so the aluminum housing doesn't get damaged.
Once it starts to move start with your penetrating oil _ keep adding oil and continue tapping _ it will eventually come free.
If it still won't move, remove the clutch and brake master cylinders.
Take a heat gun and start heating the aluminum housing from the top on the exposed flat part, moving the heat gun back and forth in that area keeping it about an inch away from the housing. Keep the heat gun square to the housing, don't angle it.
The aluminum will quickly absorb the heat and expand faster then the steel shaft.
I use some good leather welding gloves to handle things like this.
With it hot it should easily tap out now, or even just slip out.
Patients is key here of course.
EDIT:
I'm also betting that your clutch return spring is broken. Seems to be pretty common as it moves quite a bit further then the brake and becomes work hardened.
If you get one from SNG Barratt _ you posted in this thread _ so just a reminder if you order it from them.
They did eventually send me the correct spring, free of charge.
https://www.jaguarforums.com/forum/m...3/#post1397008
I just finished assembling mine.
The shaft can only come out in one direction because one of the studs that holds the whole assembly in place on the bulk head is in the way (unless you remove the stud of course).
Put the whole assembly on something solid, take a punch with a blunt end and give it a light, and quick tap with a small ball peen hammer.
Use small light taps at both ends so the aluminum housing doesn't get damaged.
Once it starts to move start with your penetrating oil _ keep adding oil and continue tapping _ it will eventually come free.
If it still won't move, remove the clutch and brake master cylinders.
Take a heat gun and start heating the aluminum housing from the top on the exposed flat part, moving the heat gun back and forth in that area keeping it about an inch away from the housing. Keep the heat gun square to the housing, don't angle it.
The aluminum will quickly absorb the heat and expand faster then the steel shaft.
I use some good leather welding gloves to handle things like this.
With it hot it should easily tap out now, or even just slip out.
Patients is key here of course.
EDIT:
I'm also betting that your clutch return spring is broken. Seems to be pretty common as it moves quite a bit further then the brake and becomes work hardened.
If you get one from SNG Barratt _ you posted in this thread _ so just a reminder if you order it from them.
They did eventually send me the correct spring, free of charge.
https://www.jaguarforums.com/forum/m...3/#post1397008
Last edited by JeffR1; 04-16-2016 at 11:23 PM.
The following users liked this post:
csbush (04-17-2016)
#3
![Default](/forum/images/icons/icon1.gif)
Jeff- thanks very much. Just what I needed to know. Wanted to make sure I was headed in the right direction.
I had read the thread on the clutch return spring, and got the part numbers off there. But of course since I needed both the brake and clutch springs, I just ordered both parts.
Actually it was my brake spring that was broken, but I am replacing both.
Thanks again for your timely advice! I'll try getting it apart this evening.
I had read the thread on the clutch return spring, and got the part numbers off there. But of course since I needed both the brake and clutch springs, I just ordered both parts.
Actually it was my brake spring that was broken, but I am replacing both.
Thanks again for your timely advice! I'll try getting it apart this evening.
