2003 jaguar s-type CD-Changer cables?
#1
![Question](https://www.jaguarforums.com/forum/images/icons/icon5.gif)
This is my first time posting so I'll do my best including as many details as possible.
Maker: Jaguar
Model: s-type
Year: 2003
Other: v8
My car didn't come with a cd-changer equipped so I am looking to buy one so I can modify it for blue tooth capabilities. I am have a little trouble locating the cables for the unit. There are 4 unknown cables where the unit goes. One is the 3 prong power source, One has 10 pins (GRAY-Unknown), One has 15+ pins (Gray-Unknown), The last one doesn't have a connector because it was cut off ( IDK Why). The cut cable has 3 insulated wires running through it ( RED-Brown, Blue, Green ).
Here's a picture of a 2004 CD-Changer (Fits 2003 - 2008):
http://cas07.businessflow.ms/Current...e2476cd&size=2
Here's the picture of the 3 cables with connectors:
![2003 jaguar s-type CD-Changer cables?-14kksbl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/18654d1480966479t-2003-jaguar-s-type-cd-changer-cables-14kksbl.jpg)

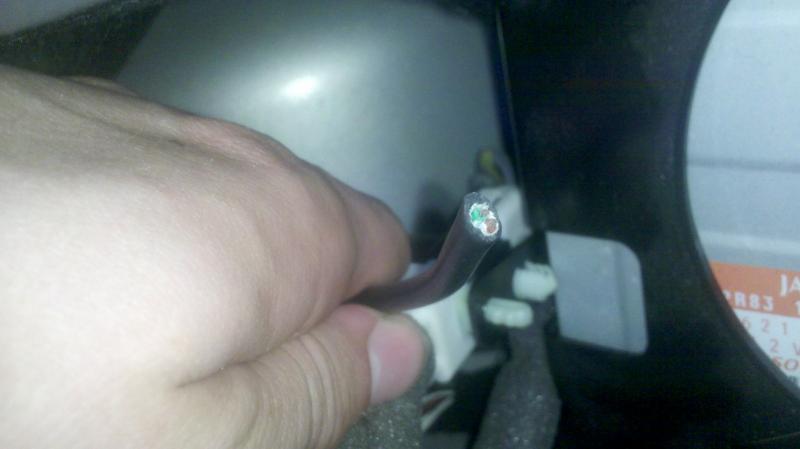

Here's The cut cable ( I think this is the cable that is connected to the one in the 1st picture ):
![2003 jaguar s-type CD-Changer cables?-10ia4qe.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/18655d1480966479t-2003-jaguar-s-type-cd-changer-cables-10ia4qe.jpg)
Is the cut cable the correct cable for the cd-changer?
What are the unknown cables for?
Is the cd-changer a plug & play situation or needs to be programmed?
Thanks in advanced.
Maker: Jaguar
Model: s-type
Year: 2003
Other: v8
My car didn't come with a cd-changer equipped so I am looking to buy one so I can modify it for blue tooth capabilities. I am have a little trouble locating the cables for the unit. There are 4 unknown cables where the unit goes. One is the 3 prong power source, One has 10 pins (GRAY-Unknown), One has 15+ pins (Gray-Unknown), The last one doesn't have a connector because it was cut off ( IDK Why). The cut cable has 3 insulated wires running through it ( RED-Brown, Blue, Green ).
Here's a picture of a 2004 CD-Changer (Fits 2003 - 2008):
http://cas07.businessflow.ms/Current...e2476cd&size=2
Here's the picture of the 3 cables with connectors:
![2003 jaguar s-type CD-Changer cables?-14kksbl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/18654d1480966479t-2003-jaguar-s-type-cd-changer-cables-14kksbl.jpg)
Here's The cut cable ( I think this is the cable that is connected to the one in the 1st picture ):
![2003 jaguar s-type CD-Changer cables?-10ia4qe.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/18655d1480966479t-2003-jaguar-s-type-cd-changer-cables-10ia4qe.jpg)
Is the cut cable the correct cable for the cd-changer?
What are the unknown cables for?
Is the cd-changer a plug & play situation or needs to be programmed?
Thanks in advanced.
![Icon Lol](https://www.jaguarforums.com/forum/images/smilies/icon_lol.gif)
#2
Join Date: Oct 2007
Location: PHX some of the time
Posts: 117,329
Received 6,311 Likes
on
5,498 Posts
![Default](/forum/images/icons/icon1.gif)
The audio system wiring can be found here https://docs.google.com/file/d/1mSzG...CPzc8rwF&pli=1
Hope that helps.
Hope that helps.
