Additional Trunk Light Modification with Pics
#1
![Default](/forum/images/icons/icon1.gif)

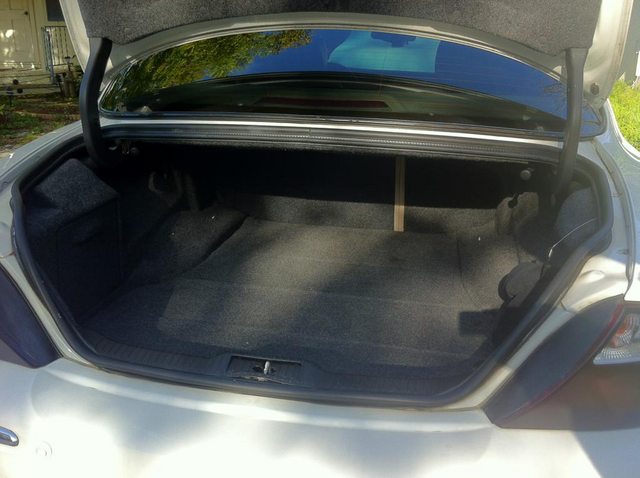

I'm not used to having a car with a trunk as big as an S-Type's. Fantastic, love the spacious trunk interior. Problem is at night time, light only extends to the area that runs the length of the trunk lid. Because the trunk light is attached to the back / top of the trunk lid, no light reaches items in the rear of the trunk. This was a huge problem as I had forgotten cold groceries in back of the trunk at night because it looked like I had gotten everything. Yeah, no more.
![Additional Trunk Light Modification with Pics-zbzkjl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226564d1683067653t-additional-trunk-light-modification-pics-zbzkjl.jpg)
I took some of the x3 LED pure white strip lights, the same kind I used for the interior, and used them for the trunk. I tested out a couple different configurations and found that two LED lights were the right lighting.
![Additional Trunk Light Modification with Pics-ctogrl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226565d1683067653t-additional-trunk-light-modification-pics-ctogrl.jpg)
![Additional Trunk Light Modification with Pics-wz8ndl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226566d1683067653t-additional-trunk-light-modification-pics-wz8ndl.jpg)

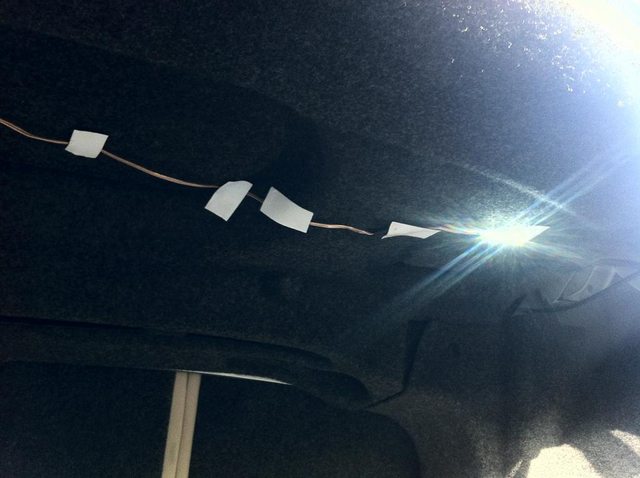

I wired them up with the same wiring as I did with the interior; small-gage speaker wire. I wired them up to the trunk light's power source, of course. There's a lotta' ways I could have fastened the wiring, but I decided to make use of the fabric roof and just use Velcro strips to keep the lights and wires in position. The wires can't be seen unless you crane your head.
Next I needed to get the trunk light's light to match the color and intensity of the LED's. Rather than buying a LED bulb online and questioning its temperature and brightness, I decided to hook up one of the strip LED's and use it in place of the stock light fixture. Same temperature, same brightness.

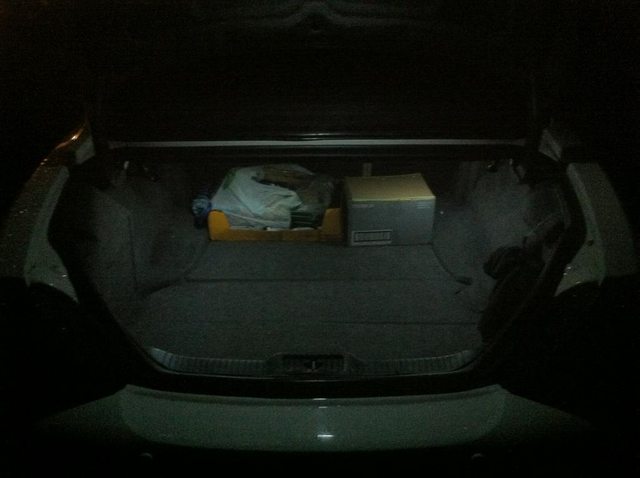

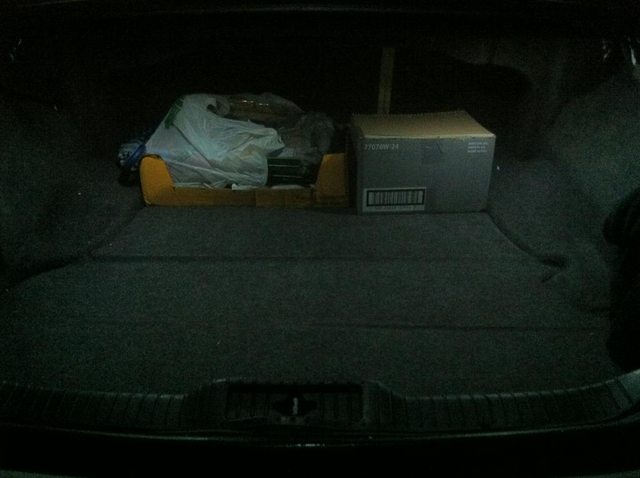

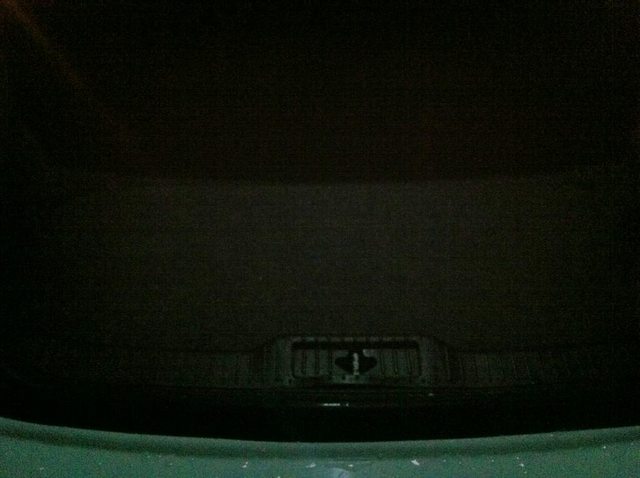

You see the trunk at night. Here's the trunk with only the trunk light (one strip LED) on and the rear LED's off. You can't see what's in the rear of the trunk at all. Then, with the rear LED's on, you can clearly see all parts of the trunk equally.
![Additional Trunk Light Modification with Pics-z421nl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226567d1683067653t-additional-trunk-light-modification-pics-z421nl.jpg)
![Additional Trunk Light Modification with Pics-g7sqsl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226568d1683067653t-additional-trunk-light-modification-pics-g7sqsl.jpg)
![Additional Trunk Light Modification with Pics-nlsvol.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226569d1683067653t-additional-trunk-light-modification-pics-nlsvol.jpg)
![Additional Trunk Light Modification with Pics-hhqael.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226570d1683067653t-additional-trunk-light-modification-pics-hhqael.jpg)
How does it perform? It's illuminating yo. JbB
![Additional Trunk Light Modification with Pics-zbzkjl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226564d1683067653t-additional-trunk-light-modification-pics-zbzkjl.jpg)
I took some of the x3 LED pure white strip lights, the same kind I used for the interior, and used them for the trunk. I tested out a couple different configurations and found that two LED lights were the right lighting.
![Additional Trunk Light Modification with Pics-ctogrl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226565d1683067653t-additional-trunk-light-modification-pics-ctogrl.jpg)
![Additional Trunk Light Modification with Pics-wz8ndl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226566d1683067653t-additional-trunk-light-modification-pics-wz8ndl.jpg)
I wired them up with the same wiring as I did with the interior; small-gage speaker wire. I wired them up to the trunk light's power source, of course. There's a lotta' ways I could have fastened the wiring, but I decided to make use of the fabric roof and just use Velcro strips to keep the lights and wires in position. The wires can't be seen unless you crane your head.
Next I needed to get the trunk light's light to match the color and intensity of the LED's. Rather than buying a LED bulb online and questioning its temperature and brightness, I decided to hook up one of the strip LED's and use it in place of the stock light fixture. Same temperature, same brightness.
You see the trunk at night. Here's the trunk with only the trunk light (one strip LED) on and the rear LED's off. You can't see what's in the rear of the trunk at all. Then, with the rear LED's on, you can clearly see all parts of the trunk equally.
![Additional Trunk Light Modification with Pics-z421nl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226567d1683067653t-additional-trunk-light-modification-pics-z421nl.jpg)
![Additional Trunk Light Modification with Pics-g7sqsl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226568d1683067653t-additional-trunk-light-modification-pics-g7sqsl.jpg)
![Additional Trunk Light Modification with Pics-nlsvol.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226569d1683067653t-additional-trunk-light-modification-pics-nlsvol.jpg)
![Additional Trunk Light Modification with Pics-hhqael.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226570d1683067653t-additional-trunk-light-modification-pics-hhqael.jpg)
How does it perform? It's illuminating yo. JbB
Last edited by JbB; 08-12-2012 at 03:55 AM.
#3
#4
#6
#7
Trending Topics
#9
![Default](/forum/images/icons/icon1.gif)

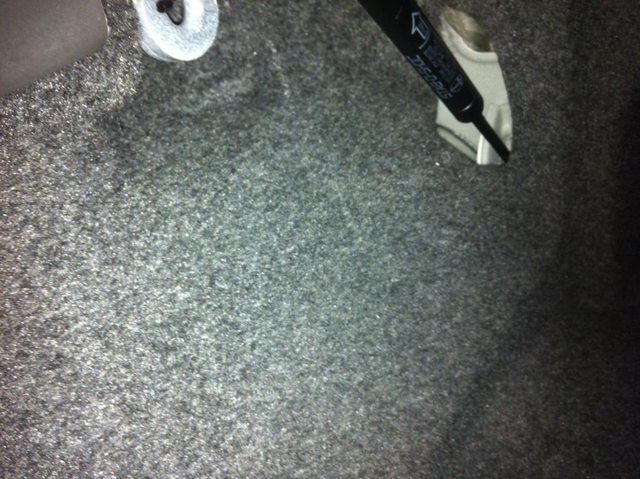

![Additional Trunk Light Modification with Pics-wiiwcl.jpg](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/226563d1683067653t-additional-trunk-light-modification-pics-wiiwcl.jpg)
