Did an oil & filter change this morning. While waiting for the oil pan to completely drain, I was looking around underneath and noticed that the wiring harness leading to the radiator fan was chaffing in the very tight spot where it feeds up from underneath and into the fan housing. Far too tight a spot to allow me to decently wrap any new electrical tape around the wires there, so I cut several 1-inch long pieces of tape off my roll and did the best I could with them. Then I decided to snip off a 2-inch by 2-inch piece of foam insulation I had laying around on one of my garage shelves (it's about a half-inch thick) and wedge it up between the plastic housing and metal crossbrace to hold the wires in place and prevent them from rubbing against the metal crossbrace that has been doing all the chaffing. That tight fit should hold the foam in place even with the road vibration and therefore stop the chaffing. The best way to find this spot and look to see if your harness is chaffing is to jack up the front end, drop the belly pan, crawl underneath, and look at the area just above the U.S. passenger-side 10mm bolt that holds the front of the belly pan in place. You'll see the black wiring harness running up underneath between the plastic fan housing and the black metal crossbrace. It doesn't take much movement at all for those wires to begin chaffing against that black metal crossbrace and it was very evident to me....
On another note, I had last tightened the two 8mm bolts that hold the ZF shift cable in place during the oil & filter change I did 6,000 miles ago in early August. Took my 8mm box wrench down there with me and checked those bolts again this morning. They both needed about a one-eighth to one-sixth turn to snug them up again. So there's no question that these bolts are prone to loosen up without too much effort. I really cranked them down this time, so we'll see if that makes a difference when I check them again in another 6,000 miles (if not sooner)....
The best news was that my oil pan gasket, ZF sleeve, and DCCV were all bone dry and easily passed the clean white napkin test. The car currently has 54,500 miles on it. I'm knocking on wood right this second. Sure hope it stays that way for the foreseeable future....
On another note, I had last tightened the two 8mm bolts that hold the ZF shift cable in place during the oil & filter change I did 6,000 miles ago in early August. Took my 8mm box wrench down there with me and checked those bolts again this morning. They both needed about a one-eighth to one-sixth turn to snug them up again. So there's no question that these bolts are prone to loosen up without too much effort. I really cranked them down this time, so we'll see if that makes a difference when I check them again in another 6,000 miles (if not sooner)....
The best news was that my oil pan gasket, ZF sleeve, and DCCV were all bone dry and easily passed the clean white napkin test. The car currently has 54,500 miles on it. I'm knocking on wood right this second. Sure hope it stays that way for the foreseeable future....
Last edited by Jon89; 01-07-2011 at 12:31 PM.
#2
#4
#5
Did an oil & filter change this morning. While waiting for the oil pan to completely drain, I was looking around underneath and noticed that the wiring harness leading to the radiator fan was chaffing in the very tight spot where it feeds up from underneath and into the fan housing. Far too tight a spot to allow me to decently wrap any new electrical tape around the wires there, so I cut several 1-inch long pieces of tape off my roll and did the best I could with them. Then I decided to snip off a 2-inch by 2-inch piece of foam insulation I had laying around on one of my garage shelves (it's about a half-inch thick) and wedge it up between the plastic housing and metal crossbrace to hold the wires in place and prevent them from rubbing against the metal crossbrace that has been doing all the chaffing. That tight fit should hold the foam in place even with the road vibration and therefore stop the chaffing. The best way to find this spot and look to see if your harness is chaffing is to jack up the front end, drop the belly pan, crawl underneath, and look at the area just above the U.S. passenger-side 10mm bolt that holds the front of the belly pan in place. You'll see the black wiring harness running up underneath between the plastic fan housing and the black metal crossbrace. It doesn't take much movement at all for those wires to begin chaffing against that black metal crossbrace and it was very evident to me....
On another note, I had last tightened the two 8mm bolts that hold the ZF shift cable in place during the oil & filter change I did 6,000 miles ago in early August. Took my 8mm box wrench down there with me and checked those bolts again this morning. They both needed about a one-eighth to one-sixth turn to snug them up again. So there's no question that these bolts are prone to loosen up without too much effort. I really cranked them down this time, so we'll see if that makes a difference when I check them again in another 6,000 miles (if not sooner)....
The best news was that my oil pan gasket, ZF sleeve, and DCCV were all bone dry and easily passed the clean white napkin test. The car currently has 54,500 miles on it. I'm knocking on wood right this second. Sure hope it stays that way for the foreseeable future....
On another note, I had last tightened the two 8mm bolts that hold the ZF shift cable in place during the oil & filter change I did 6,000 miles ago in early August. Took my 8mm box wrench down there with me and checked those bolts again this morning. They both needed about a one-eighth to one-sixth turn to snug them up again. So there's no question that these bolts are prone to loosen up without too much effort. I really cranked them down this time, so we'll see if that makes a difference when I check them again in another 6,000 miles (if not sooner)....
The best news was that my oil pan gasket, ZF sleeve, and DCCV were all bone dry and easily passed the clean white napkin test. The car currently has 54,500 miles on it. I'm knocking on wood right this second. Sure hope it stays that way for the foreseeable future....
I really need to check my trans cable bolts eh?
As far as the insulation sleeve. You could use one of the ones designed to insulate hot water pipes and a couple zip ties. I need to check this on my car as well.
Thanks,
George.
#6
On another note, I had last tightened the two 8mm bolts that hold the ZF shift cable in place during the oil & filter change I did 6,000 miles ago in early August. Took my 8mm box wrench down there with me and checked those bolts again this morning. They both needed about a one-eighth to one-sixth turn to snug them up again. So there's no question that these bolts are prone to loosen up without too much effort. I really cranked them down this time, so we'll see if that makes a difference when I check them again in another 6,000 miles (if not sooner)....
#7
George
Trending Topics
#8
#9
#10
Lying on my back in the driveway underneath the car with only a couple of inches of working clearance between me and the underside of the car, there's no way I'm going to risk removing those ZF cable bolts to place Locktite or lock washers or anything else on them. I can barely get my 8mm wrench in there. There's no way I could get my huge hands in that tiny space to replace bolts there. Standing comfortably underneath a hydraulic lift with my car way up in the air, I would try it. On my back in the driveway with the car just a few inches above me and hardly being able to turn my head in order to see, no way would I back those bolts out. It's much easier (and safer for me) to just check and tighten them every time I do an oil & filter change....
Rick, it was about 30 degrees outside yesterday morning. That's a balmy day to me. I did the oil & filter job in a flimsy worn-out T-shirt, my trusty old gym shorts, and my yard shoes. But remember, I'm a polar bear. I'd be happy if the temperature never rose above freezing all year long....
Rick, it was about 30 degrees outside yesterday morning. That's a balmy day to me. I did the oil & filter job in a flimsy worn-out T-shirt, my trusty old gym shorts, and my yard shoes. But remember, I'm a polar bear. I'd be happy if the temperature never rose above freezing all year long....
Last edited by Jon89; 01-08-2011 at 12:36 PM.
#11
OK, I'm heading out back to change the oil in the '03, and I'll have to find these bolts. Say they are on left side, abeam the transmission? It has 84,000 mi. and unless Motorcarman checked 'em when he changed the fluid in the ZF a couple weeks ago, they've probably never been touched....at least not since we acquired the car at 67k. Thanks Jon, I'll give the wires a look, too!
#12
Glad to assist. Yes, you'll see the two silver 8mm bolts on the U.S. drivers side of the ZF unit, horizontally installed and tucked up into the very narrow transmission tunnel. The higher you can raise your car, the easier time you'll have of it. An 8mm box wrench is the perfect tool - trying to get even a junior-sized socket wrench in there would be laughable....
The following users liked this post:
aholbro1 (01-08-2011)
#13
OK, I'm heading out back to change the oil in the '03, and I'll have to find these bolts. Say they are on left side, abeam the transmission? It has 84,000 mi. and unless Motorcarman checked 'em when he changed the fluid in the ZF a couple weeks ago, they've probably never been touched....at least not since we acquired the car at 67k. Thanks Jon, I'll give the wires a look, too!
George
#14
#15
#16
The bolts; the wires
Mine were in a corrugated plastic loom, wrapped in tape. More chaffing evident in the smaller tree from the air deflector, but it is also in a corrugated loom and only the label endangered thus far. Keep in mind it's an 03, the girls took the '05 to FTW today so I can't do a quick-compare. Oil change due on it soon, though, and I'll see if maybe they cost-cut some of the protection...or maybe shortened the harness by $0.00357 or something making it snugger against the crossmember in the "refresh."
#17
at the risk of showing everyone the middle finger....

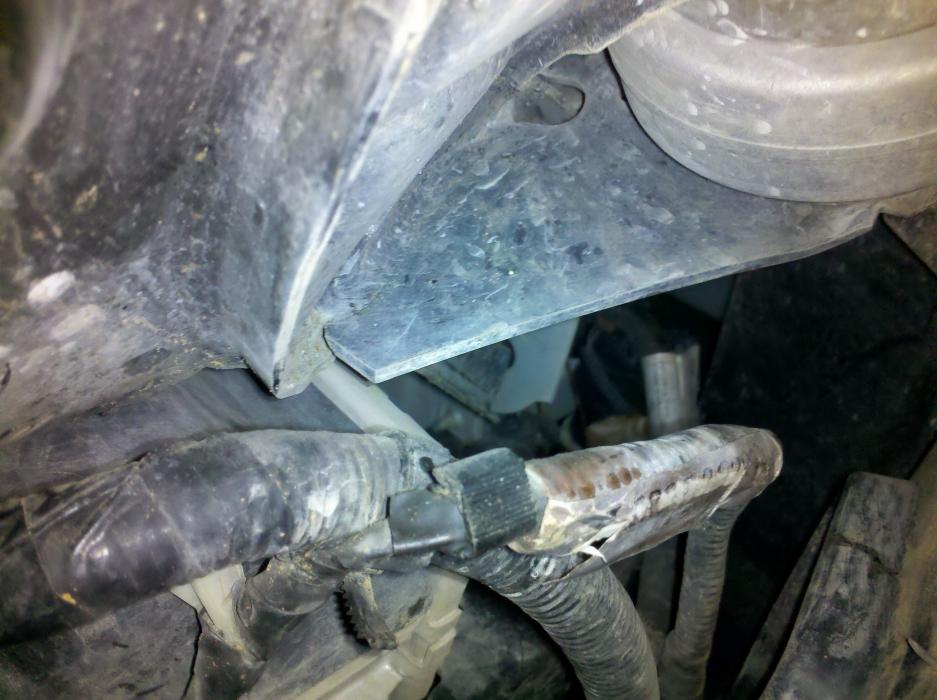

sorry, but it is the best pic I have of where the wiring touches the cross-member, and you can see there is little abrasion in my case. Also, I thought I included a pic of the smaller wiring tree that is rubbing the lower air-deflector; but noticed it is not there. So here:
