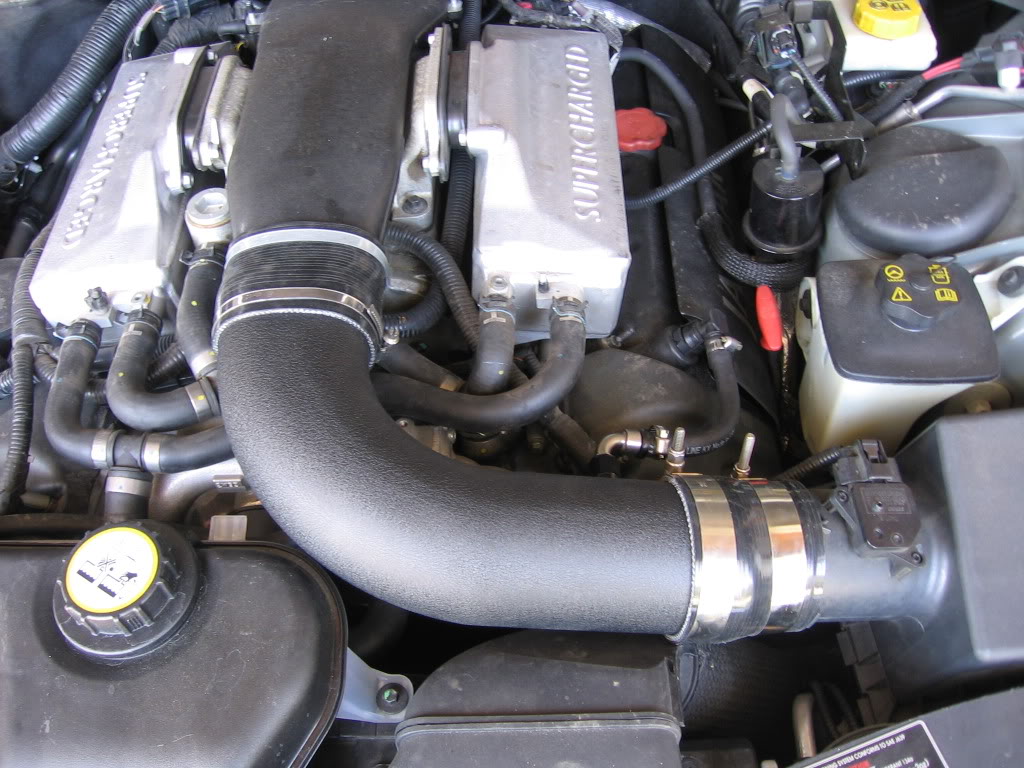

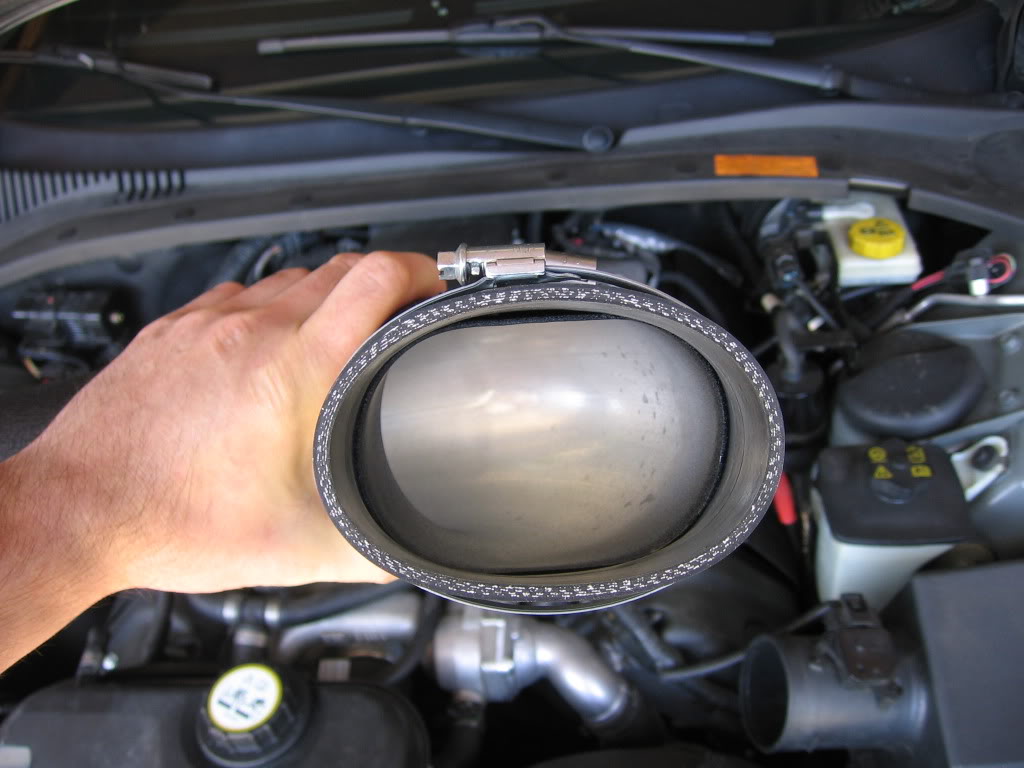

I haven't posted any pictures or specs yet, and I don't want to fill up qwiketz thread with this, so here it is. I finally got my intake after 3 months of promises and failure to deliver on the developer's end, but it was worth it in the end for my one-off custom intake. They used 3.5" tubing and ceramic coated it, as well as shaped the supercharger end to make it oval for better fitment.
![Name: strintake007.jpg
Views: 253
Size: 148.3 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161744d1501267997-ardesign-intake-strintake007.jpg)
![Name: strintake004.jpg
Views: 122
Size: 87.3 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161745d1501267997-ardesign-intake-strintake004.jpg)

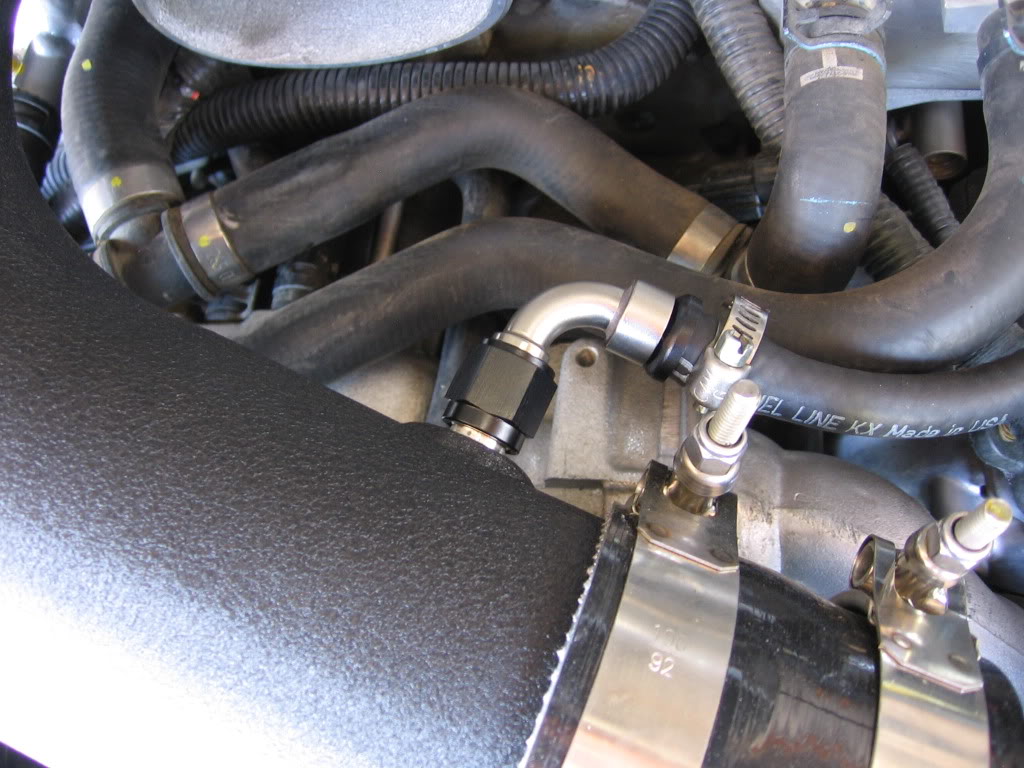

For the PCV hose, it has a 2-piece fitting welded on with a barbed ending. I replaced the plastic line with fuel line and clamped it, and reused the old ending out of the PCV valve.
![Name: strintake006.jpg
Views: 205
Size: 132.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161746d1501267997-ardesign-intake-strintake006.jpg)

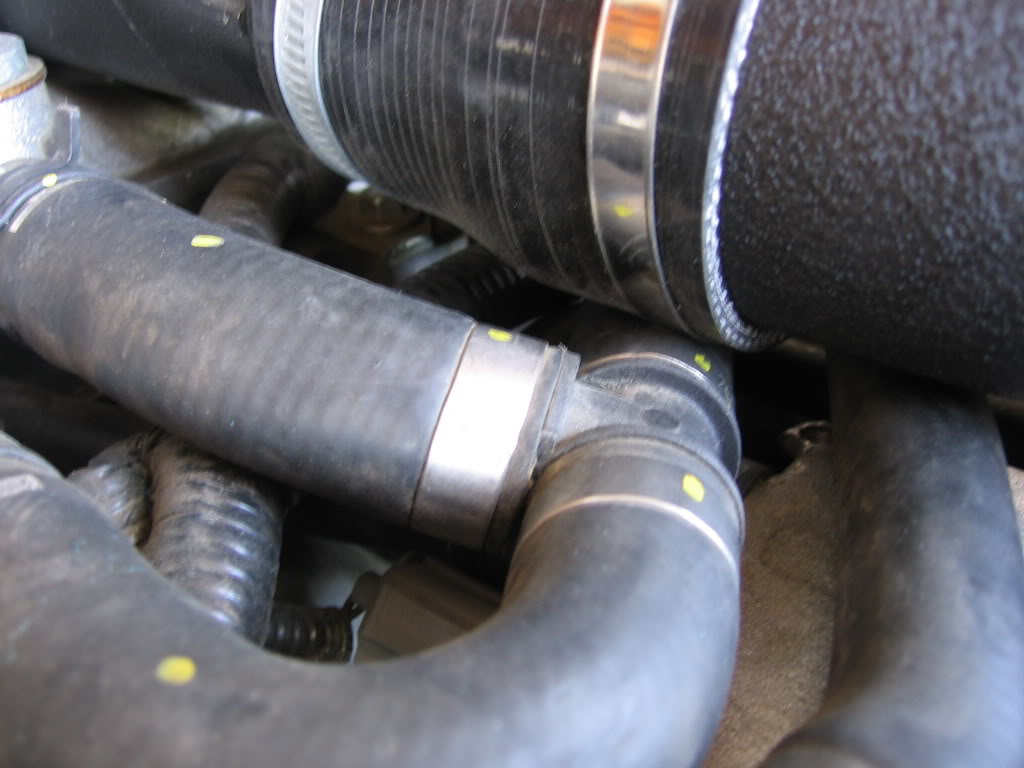

A couple things I ran into during installation were coolant hose clearances. As mentioned in the qwiketz thread, the OEM intake has grooves in it to help clearance. The oval end helps a lot, but it still rests against the hose.
![Name: strintake009.jpg
Views: 116
Size: 79.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161747d1501267997-ardesign-intake-strintake009.jpg)

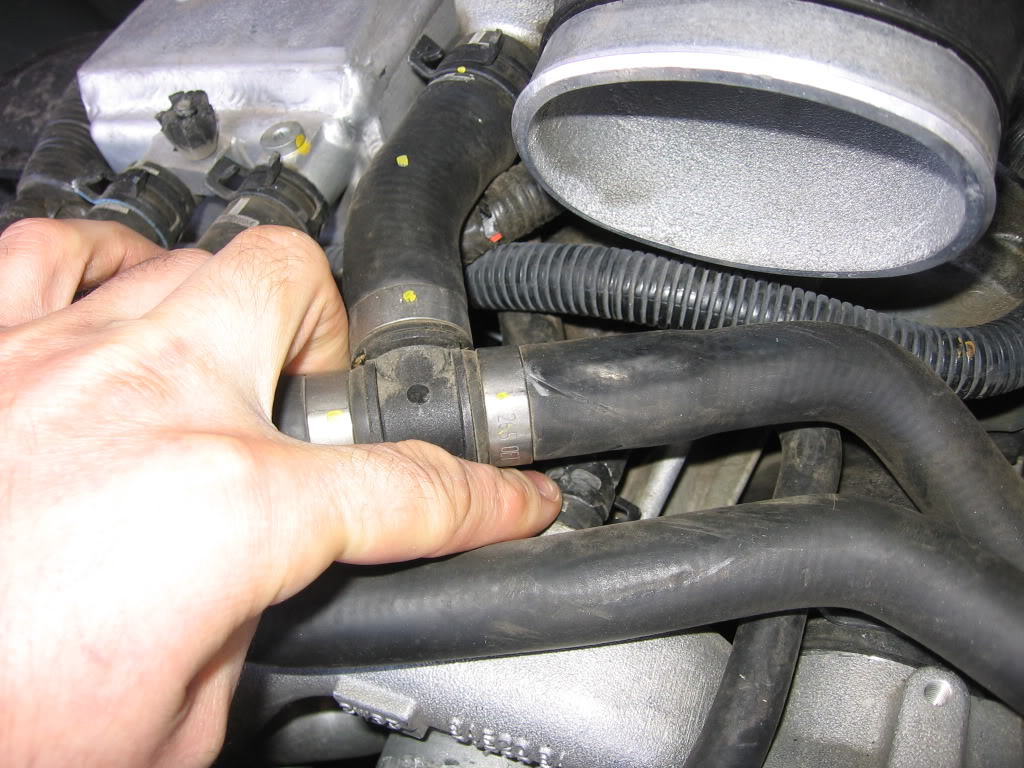

One thing I would recommend is to make sure the clamp on the smaller hose beneath the larger one which the intake rests on is facing down, as to help avoid pressure and possible slicing of the hose.
![Name: strintake002.jpg
Views: 112
Size: 156.7 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161748d1501267997-ardesign-intake-strintake002.jpg)
I also had to make sure the clamps on the supercharger end were rotated so they weren't digging into the under hood cover, which they were when I first shut it.
![Name: strintake008.jpg
Views: 104
Size: 132.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161749d1501267997-ardesign-intake-strintake008.jpg)
No dyno graphs yet, but hopefully soon!
![Name: strintake007.jpg
Views: 253
Size: 148.3 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161744d1501267997-ardesign-intake-strintake007.jpg)
![Name: strintake004.jpg
Views: 122
Size: 87.3 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161745d1501267997-ardesign-intake-strintake004.jpg)
For the PCV hose, it has a 2-piece fitting welded on with a barbed ending. I replaced the plastic line with fuel line and clamped it, and reused the old ending out of the PCV valve.
![Name: strintake006.jpg
Views: 205
Size: 132.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161746d1501267997-ardesign-intake-strintake006.jpg)
A couple things I ran into during installation were coolant hose clearances. As mentioned in the qwiketz thread, the OEM intake has grooves in it to help clearance. The oval end helps a lot, but it still rests against the hose.
![Name: strintake009.jpg
Views: 116
Size: 79.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161747d1501267997-ardesign-intake-strintake009.jpg)
One thing I would recommend is to make sure the clamp on the smaller hose beneath the larger one which the intake rests on is facing down, as to help avoid pressure and possible slicing of the hose.
![Name: strintake002.jpg
Views: 112
Size: 156.7 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161748d1501267997-ardesign-intake-strintake002.jpg)
I also had to make sure the clamps on the supercharger end were rotated so they weren't digging into the under hood cover, which they were when I first shut it.
![Name: strintake008.jpg
Views: 104
Size: 132.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/161749d1501267997-ardesign-intake-strintake008.jpg)
No dyno graphs yet, but hopefully soon!
#2
#4
Join Date: Nov 2006
Location: Glasgow, Scotland UK
Posts: 47,302
Received 9,011 Likes
on
4,114 Posts
#5
#6
![Default](/forum/images/icons/icon1.gif)
Let me tell you all a little story about how this came about...I went to them in March, they made up the tube right there, and all that was left was to weld the PCV elbow on and have it ceramic coated when I left that day. They told me it would be a week. After a week, I went back and it wasn't done. Then they stopped answering my phone calls, wouldn't return text messages, private messages on another forum, avoided me, etc. I got a hold of them again finally in May, and they told me it would be "next week" again. Then the cycle of avoidance repeated itself for another month or so. I kept getting the same response of being backed up on other projects and the like, even though there was almost nothing left to be done on my intake. After another month I finally made a public post on another forum and got a response (apparently I'm not the only one with this type of experience with them) and my intake was finally finished a couple weeks later. At least at the end they did the right thing customer service wise and didn't charge me even after I offered to pay. Its a high quality piece and most of their work is of the highest quality (which is why I wanted them to do it at the beginning). At the beginning I offered to help them do a group buy on them since I knew quite a few people were interested and they seemed interested in it as well, but now I wouldn't reference anyone to them based on how long it took for them to do the work for me.
