Coolant hose under the supercharger
#1
![Default](/forum/images/icons/icon1.gif)
Howdy, I have a 05 s type r. I'm in the process of completing the dreaded coolant hose under the supercharger. I can't remember where the small end of the hose connects. Is it the TB and if so does it matter which port? I don't have a manual nor access to TIS. Any help would be greatly appreciated!![Icon Rant](https://www.jaguarforums.com/forum/images/smilies/icon_rant.gif)
US spec left hand drive version
![Icon Rant](https://www.jaguarforums.com/forum/images/smilies/icon_rant.gif)
![Icon Rant](https://www.jaguarforums.com/forum/images/smilies/icon_rant.gif)
Last edited by gkt33; 11-30-2014 at 09:12 AM.
#2
The following users liked this post:
gkt33 (12-04-2014)
#3
#4
#5
Join Date: Oct 2007
Location: PHX some of the time
Posts: 117,369
Received 6,315 Likes
on
5,502 Posts
The following users liked this post:
gkt33 (12-04-2014)
#7
![Default](/forum/images/icons/icon1.gif)
https://www.jaguarforums.com/forum/a...dy-diagram.jpg
That's the one, my problem is which port on the TB does it connect to?
That's the one, my problem is which port on the TB does it connect to?
Trending Topics
#8
![Default](/forum/images/icons/icon1.gif)
https://www.jaguarforums.com/forum/a...dy-diagram.jpg
That's the one, my problem is which port on the TB does it connect to?
That's the one, my problem is which port on the TB does it connect to?
The following users liked this post:
gkt33 (11-30-2014)
#10
The following users liked this post:
gkt33 (12-06-2014)
#11
![Default](/forum/images/icons/icon1.gif)

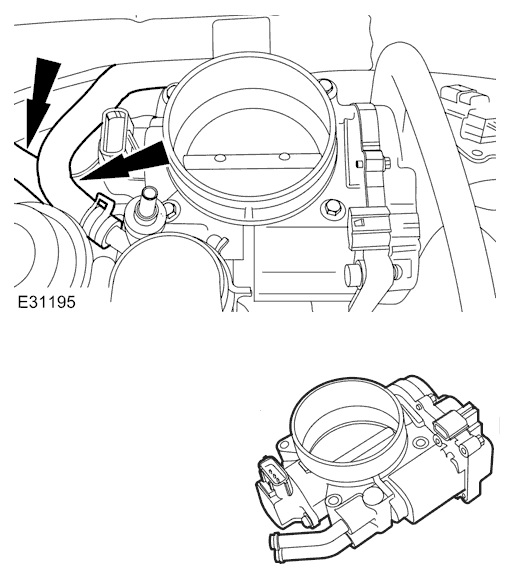

From JTIS removal/refitting procedure:
Attachment 101945
Is this the one you need showing the hoses?
Graham
Attachment 101945
Is this the one you need showing the hoses?
Graham
