Help me get running again - part needed
#1
#2
#3
#4
![Default](/forum/images/icons/icon1.gif)
...hope that helps you out
![Icon Wink](https://www.jaguarforums.com/forum/images/smilies/icon_wink.gif)
#5
![Default](/forum/images/icons/icon1.gif)

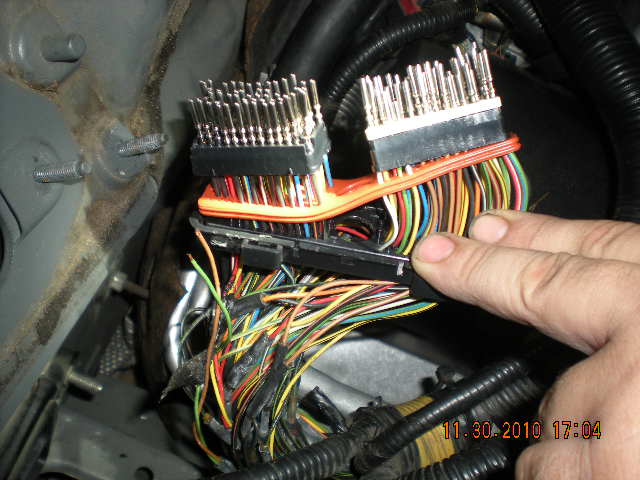

You can probably repair it but if not then just make sure you get the right kind of harness from a wrecker as they kept changing with the car years and engine kinds (size, NA or SC). That looks like the 134-pin type, for the Denso PCM used in USA between about 2003 and 2005.
I'd repair, unless the insualtion is cracking off all over the place (which I doubt on that section as it shouldn't get hot).
Try to figure out a reason for the problem, as that location is most unusual in my limited experience (i.e. I've not seen it before on the jag forums).
I'd repair, unless the insualtion is cracking off all over the place (which I doubt on that section as it shouldn't get hot).
Try to figure out a reason for the problem, as that location is most unusual in my limited experience (i.e. I've not seen it before on the jag forums).
#6
![Default](/forum/images/icons/icon1.gif)
![Icon Teeth](https://www.jaguarforums.com/forum/images/smilies/icon_teeth.gif)
If you go that route, I believe most of the connectors and terminals are Tyco...But would have to see the actual connector body and terminals to be sure...
you can also try www.powerandsignal.com
![Icon Angel](https://www.jaguarforums.com/forum/images/smilies/icon_angel.gif)
![Icon Wink](https://www.jaguarforums.com/forum/images/smilies/icon_wink.gif)
#7
Trending Topics
#8
![Default](/forum/images/icons/icon1.gif)
Actually, a bit of history... Power and Signal used to be exclusively Delphi parts but have since branched out to include Molex, Tyco and others.
A bit of politics that really can't be discussed over the internet...
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
#9
#10
![Default](/forum/images/icons/icon1.gif)
Conventry West (Atlanta, Georgia) and Jaguar Heaven (California) are Jaguar salvage yards that may have the PCM harness. I recently purchased a passenger lower wishbone (control arm) from Conventry West ($275) vs one offered by Jaguar Heaven ($450).
Last edited by bfsgross; 12-02-2010 at 08:05 PM.
#11
![Default](/forum/images/icons/icon1.gif)
You can probably repair it but if not then just make sure you get the right kind of harness from a wrecker as they kept changing with the car years and engine kinds (size, NA or SC). That looks like the 134-pin type, for the Denso PCM used in USA between about 2003 and 2005.
I'd repair, unless the insualtion is cracking off all over the place (which I doubt on that section as it shouldn't get hot).
Try to figure out a reason for the problem, as that location is most unusual in my limited experience (i.e. I've not seen it before on the jag forums).
I'd repair, unless the insualtion is cracking off all over the place (which I doubt on that section as it shouldn't get hot).
Try to figure out a reason for the problem, as that location is most unusual in my limited experience (i.e. I've not seen it before on the jag forums).
I know the length needs to remain the same to avoid a DTC. Actually I only need two pins and their associated wires (6" each would do nicely) Since I'm wishing, I would like to get the green and brown wires to keep the color scheme original.
Last edited by ttwotees; 12-02-2010 at 06:20 PM. Reason: poor sentence structure
#12
![Default](/forum/images/icons/icon1.gif)
You can probably repair it but if not then just make sure you get the right kind of harness from a wrecker as they kept changing with the car years and engine kinds (size, NA or SC). That looks like the 134-pin type, for the Denso PCM used in USA between about 2003 and 2005.
I'd repair, unless the insualtion is cracking off all over the place (which I doubt on that section as it shouldn't get hot).
Try to figure out a reason for the problem, as that location is most unusual in my limited experience (i.e. I've not seen it before on the jag forums).
I'd repair, unless the insualtion is cracking off all over the place (which I doubt on that section as it shouldn't get hot).
Try to figure out a reason for the problem, as that location is most unusual in my limited experience (i.e. I've not seen it before on the jag forums).
and thus the damage. Otherwise I also don't see how this could happen. What can I say? (You just can't get good help these days)
#13
![Default](/forum/images/icons/icon1.gif)
I expect they're crimped. If so, you can buy the uncrimped pins and a crimping tool at electrical places such as Radio Shack (does it still exist?). Practice on spare wire as you want good crimps.
Or - the pins look the same size on many PCMs. The connectors I've messed with were fairly easy to take apart (they unclip) so you can grab some wires with pins/etc out of any scrap harness.
Or - the pins look the same size on many PCMs. The connectors I've messed with were fairly easy to take apart (they unclip) so you can grab some wires with pins/etc out of any scrap harness.
#14
![Default](/forum/images/icons/icon1.gif)
I expect they're crimped. If so, you can buy the uncrimped pins and a crimping tool at electrical places such as Radio Shack (does it still exist?). Practice on spare wire as you want good crimps.
Or - the pins look the same size on many PCMs. The connectors I've messed with were fairly easy to take apart (they unclip) so you can grab some wires with pins/etc out of any scrap harness.
Or - the pins look the same size on many PCMs. The connectors I've messed with were fairly easy to take apart (they unclip) so you can grab some wires with pins/etc out of any scrap harness.
As I see it, the best option for "ttwotees" is to either get with a friendly Jaguar Parts department manager and try to find out exactly what connector and terminal setup was used in the harness and try to source replacements. From what limited knowledge I have, I don't know who made that connector, but I can tap some engineers here if given a hint. And may be able to help with a cost effective buying solution. I've looked at the throttle body connectors before (because of the water issues talked about here) and from what I can tell of the numbers stamped on mine it is a Tyco connector. That however is no indication of what is used for the PCM.
The other solution is to source an entire connector with pins and wire attached.. If it was me, I would be searching on www.car-part.com for someone who was listing various mechanical parts for my year / engine car and start making phone calls to see if they could cut a harness for me.. (I actually did that when I installed power seats in one of my Honda's and after a few calls found someone who would do it for less than $30).
Sorry it is long winded but hope it helps....
#15
![Default](/forum/images/icons/icon1.gif)
I did say at post #5 about a wrecker ![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Otherwise, for sure you'd have to get the right crimp part. It's what I'd do if I couldn't go the wrecker route (can't think of any reason why not to go that way, though).
In the photo it looks like they already have the connector apart and that no special tool would be needed to remove & replace a wire with its (crimped) pin. If that's the case, any harness from that era S-Type (so it uses the same PCM) would do. $30 or less, I'd say (I got something similar for under $20).
The electrical guide for 2002.5MY (2003 USA) after VIN M45254 shows that the PCM connector pinout is essentially the same regardless of V6 / V8 (NA or SC). They MAY have changed with 2004.5MY (2005 in USA) after VIN N13088, but it looks like only the diesel was different. They're different at 2006 after VIN N52047, I think.
You are of course right in the general situation, where special tools etc are needed
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Otherwise, for sure you'd have to get the right crimp part. It's what I'd do if I couldn't go the wrecker route (can't think of any reason why not to go that way, though).
In the photo it looks like they already have the connector apart and that no special tool would be needed to remove & replace a wire with its (crimped) pin. If that's the case, any harness from that era S-Type (so it uses the same PCM) would do. $30 or less, I'd say (I got something similar for under $20).
The electrical guide for 2002.5MY (2003 USA) after VIN M45254 shows that the PCM connector pinout is essentially the same regardless of V6 / V8 (NA or SC). They MAY have changed with 2004.5MY (2005 in USA) after VIN N13088, but it looks like only the diesel was different. They're different at 2006 after VIN N52047, I think.
You are of course right in the general situation, where special tools etc are needed
![Frown](https://www.jaguarforums.com/forum/images/smilies/frown.gif)
Last edited by JagV8; 12-03-2010 at 05:44 AM.
