Rear ball joint boots
#1
![Default](/forum/images/icons/icon1.gif)
I noticed that the rear ball joint boots are split. Still grease in there and surely not worn out at 20 thou. Certainly not worth buying new control arms.![Icon No](https://www.jaguarforums.com/forum/images/smilies/icon_no.gif)
So I did a quick search and came up with this.
Ball Joint Boot - Auto Parts Warehouse
Perhaps an alternative if I could get the sizeing correct?
![Icon No](https://www.jaguarforums.com/forum/images/smilies/icon_no.gif)
So I did a quick search and came up with this.
Ball Joint Boot - Auto Parts Warehouse
Perhaps an alternative if I could get the sizeing correct?
#3
![Default](/forum/images/icons/icon1.gif)
The Energy Suspension site has them listed by dimensions. If someone had a set off to measure it would be great. I figure anything would be better that the split open ones.
This site has what seems to be all the dimensions available
http://www.suspension.com/bjb.htm
This site has what seems to be all the dimensions available
http://www.suspension.com/bjb.htm
Last edited by Bodyman; 08-03-2011 at 06:57 PM.
#4
![Default](/forum/images/icons/icon1.gif)
The Energy Suspension site has them listed by dimensions. If someone had a set off to measure it would be great. I figure anything would be better that the split open ones.
This site has what seems to be all the dimensions available
Suspension Restoration Parts Co. - Polyurethane ball joint boots and tie-rod boots.
This site has what seems to be all the dimensions available
Suspension Restoration Parts Co. - Polyurethane ball joint boots and tie-rod boots.
I will measure them this weekend and order the approriate ones, I plan to take the vehicle to the shop and replace the rear tie rods and links. might as well do this at that time.
#5
![Default](/forum/images/icons/icon1.gif)
Thanks, I have a set of front uppers already taken off, I think the BJ's should be the same size as the rear.
I will measure them this weekend and order the approriate ones, I plan to take the vehicle to the shop and replace the rear tie rods and links. might as well do this at that time.
I will measure them this weekend and order the approriate ones, I plan to take the vehicle to the shop and replace the rear tie rods and links. might as well do this at that time.
Please post back what you find. Part #s would be awesome. This would be a huge savings if it could work.
#6
![Default](/forum/images/icons/icon1.gif)
Will do.
On a related note, this is the first time I see a seller offering the front upper control arm bushings. Along with the boots, this can save some of us $$ by avoiding having to purchase a brand new arm:
JAGUAR FRONT UPPER WISHBONE CONTROL ARM BUSH BUSHING | eBay
Does anyone know if the upper front control arm bushings and rear upper bushings are interchangable?
On a related note, this is the first time I see a seller offering the front upper control arm bushings. Along with the boots, this can save some of us $$ by avoiding having to purchase a brand new arm:
JAGUAR FRONT UPPER WISHBONE CONTROL ARM BUSH BUSHING | eBay
Does anyone know if the upper front control arm bushings and rear upper bushings are interchangable?
#7
![Default](/forum/images/icons/icon1.gif)
Ok, I was able to take the measurements, just had to clean up the front arm and take the boot off.
View from top:
![Name: IMG_0897.jpg
Views: 272
Size: 50.4 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170501d1501284444-rear-ball-joint-boots-img_0897.jpg)
Diameter Base of Ball Joint Measured 1 3/8":
![Name: IMG_9201.jpg
Views: 248
Size: 44.0 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170502d1501284444-rear-ball-joint-boots-img_9201.jpg)

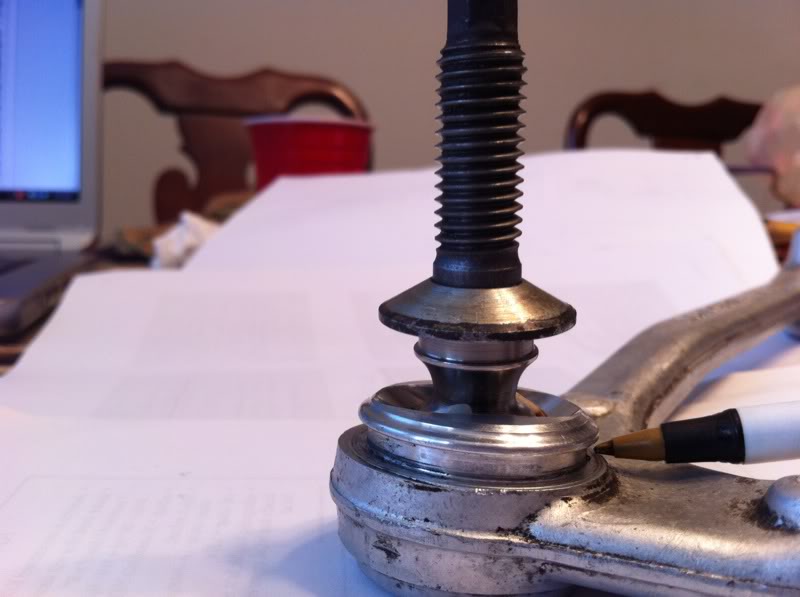

There was a metal ring on this groove securing the boot. Diameter was 1.220 almost 1 1/4":
![Name: IMG_3200.jpg
Views: 257
Size: 46.8 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170503d1501284444-rear-ball-joint-boots-img_3200.jpg)
There is another metal ring securing the boot inside. Diameter was 5/8":
![Name: IMG_5670.jpg
Views: 253
Size: 45.5 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170504d1501284444-rear-ball-joint-boots-img_5670.jpg)
The diameter of this following piece was 1 1/16" :
![Name: IMG_0845.jpg
Views: 241
Size: 40.6 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170505d1501284444-rear-ball-joint-boots-img_0845.jpg)
Finally, the height from the base to the underside of the threads was 7/8"
View from top:
![Name: IMG_0897.jpg
Views: 272
Size: 50.4 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170501d1501284444-rear-ball-joint-boots-img_0897.jpg)
Diameter Base of Ball Joint Measured 1 3/8":
![Name: IMG_9201.jpg
Views: 248
Size: 44.0 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170502d1501284444-rear-ball-joint-boots-img_9201.jpg)
There was a metal ring on this groove securing the boot. Diameter was 1.220 almost 1 1/4":
![Name: IMG_3200.jpg
Views: 257
Size: 46.8 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170503d1501284444-rear-ball-joint-boots-img_3200.jpg)
There is another metal ring securing the boot inside. Diameter was 5/8":
![Name: IMG_5670.jpg
Views: 253
Size: 45.5 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170504d1501284444-rear-ball-joint-boots-img_5670.jpg)
The diameter of this following piece was 1 1/16" :
![Name: IMG_0845.jpg
Views: 241
Size: 40.6 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170505d1501284444-rear-ball-joint-boots-img_0845.jpg)
Finally, the height from the base to the underside of the threads was 7/8"
![Name: IMG_7822.jpg
Views: 262
Size: 39.3 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/170506d1501284444-rear-ball-joint-boots-img_7822.jpg)
