Ok I'm done... I didn't do things "by the book" per se.
First I have an aftermarket Pioneer DVD/Nav Head unit in my car, and my objective was to integrate these into the rear video output of that unit. I wasn't planning on using the wireless headphones, or the card reader - although that feature seems kinda cool... We didn't realize these things have a built in media player.
I ended up with the control panel in the center arm rest, for now, even though the remote "eye" is on that. We'll see if I change my mind on this. It gives a cleaner look especially considering I have to plug an rca cable into the system for my rear screen output from the head unit.
You don't HAVE to take the ashtray out, the splitter harness works perfectly fine on the rear power point to draw power for the system. That's what I did. The seatbacks are a bit tricky, but they do come off.
I have a bunch of pictures, I'm wondering if I should post here, or start my own thread.
George
First I have an aftermarket Pioneer DVD/Nav Head unit in my car, and my objective was to integrate these into the rear video output of that unit. I wasn't planning on using the wireless headphones, or the card reader - although that feature seems kinda cool... We didn't realize these things have a built in media player.
I ended up with the control panel in the center arm rest, for now, even though the remote "eye" is on that. We'll see if I change my mind on this. It gives a cleaner look especially considering I have to plug an rca cable into the system for my rear screen output from the head unit.
You don't HAVE to take the ashtray out, the splitter harness works perfectly fine on the rear power point to draw power for the system. That's what I did. The seatbacks are a bit tricky, but they do come off.
I have a bunch of pictures, I'm wondering if I should post here, or start my own thread.
George
#23
#24
Ok I'm done... I didn't do things "by the book" per se.
First I have an aftermarket Pioneer DVD/Nav Head unit in my car, and my objective was to integrate these into the rear video output of that unit. I wasn't planning on using the wireless headphones, or the card reader - although that feature seems kinda cool... We didn't realize these things have a built in media player.
I ended up with the control panel in the center arm rest, for now, even though the remote "eye" is on that. We'll see if I change my mind on this. It gives a cleaner look especially considering I have to plug an rca cable into the system for my rear screen output from the head unit.
You don't HAVE to take the ashtray out, the splitter harness works perfectly fine on the rear power point to draw power for the system. That's what I did. The seatbacks are a bit tricky, but they do come off.
I have a bunch of pictures, I'm wondering if I should post here, or start my own thread.
George
First I have an aftermarket Pioneer DVD/Nav Head unit in my car, and my objective was to integrate these into the rear video output of that unit. I wasn't planning on using the wireless headphones, or the card reader - although that feature seems kinda cool... We didn't realize these things have a built in media player.
I ended up with the control panel in the center arm rest, for now, even though the remote "eye" is on that. We'll see if I change my mind on this. It gives a cleaner look especially considering I have to plug an rca cable into the system for my rear screen output from the head unit.
You don't HAVE to take the ashtray out, the splitter harness works perfectly fine on the rear power point to draw power for the system. That's what I did. The seatbacks are a bit tricky, but they do come off.
I have a bunch of pictures, I'm wondering if I should post here, or start my own thread.
George
#25
Rear Screen Connectivity monitors
Hello to all,
I have had these istalled for 18 mths plus now and they went straight in my 2002.5 STR.
No cutting etc.
Even the electric headrests still work.
I think the reason they say they only fit on the later cars is mainly because of the leather pipeping trim.
I have been lazy and have not taped the cables to the seat as per instructions.
My kids have watched movies through their portable DVD players (with no screens, just players), but thats about all. The quality is very good for a standard resolution screen.
Recently I have tried to load a movie on to an SD card for them with no success.
I am doing something wrong, perhap wrong SD card? Any suggestions?
Also my new Panasonic 1080p camcorders SD cards don't want to play on this system either????
I have had these istalled for 18 mths plus now and they went straight in my 2002.5 STR.
No cutting etc.
Even the electric headrests still work.
I think the reason they say they only fit on the later cars is mainly because of the leather pipeping trim.
I have been lazy and have not taped the cables to the seat as per instructions.
My kids have watched movies through their portable DVD players (with no screens, just players), but thats about all. The quality is very good for a standard resolution screen.
Recently I have tried to load a movie on to an SD card for them with no success.
I am doing something wrong, perhap wrong SD card? Any suggestions?
Also my new Panasonic 1080p camcorders SD cards don't want to play on this system either????
#26
Even the electric headrests still work.
I think the reason they say they only fit on the later cars is mainly because of the leather pipeping trim.
Recently I have tried to load a movie on to an SD card for them with no success.
I am doing something wrong, perhap wrong SD card? Any suggestions?
Also my new Panasonic 1080p camcorders SD cards don't want to play on this system either????
I think the reason they say they only fit on the later cars is mainly because of the leather pipeping trim.
Recently I have tried to load a movie on to an SD card for them with no success.
I am doing something wrong, perhap wrong SD card? Any suggestions?
Also my new Panasonic 1080p camcorders SD cards don't want to play on this system either????
I have the same issue as you with the memory card...Tested it yesterday with a portable DVD and the test subject reported clear sound and great picture..Only in his words it was..."DAD! This is SOOOOO coool!"...Not bad coming from a 5 year old....
I PM'd another user that is posting in this thread and he suggested that I use a smaller card. I have a SD card that is 4g and a Memory Stick that is 4g as well. They are formatted in FAT32. I put an assortment of media on them to test out the various functions. Some video, pictures, and MP3's. I keep getting a "no media found" message, so I think it is the size of the card.
#27
Ugh, so I'm at work, and I forgot my camera at home (which has all my install pics on it).

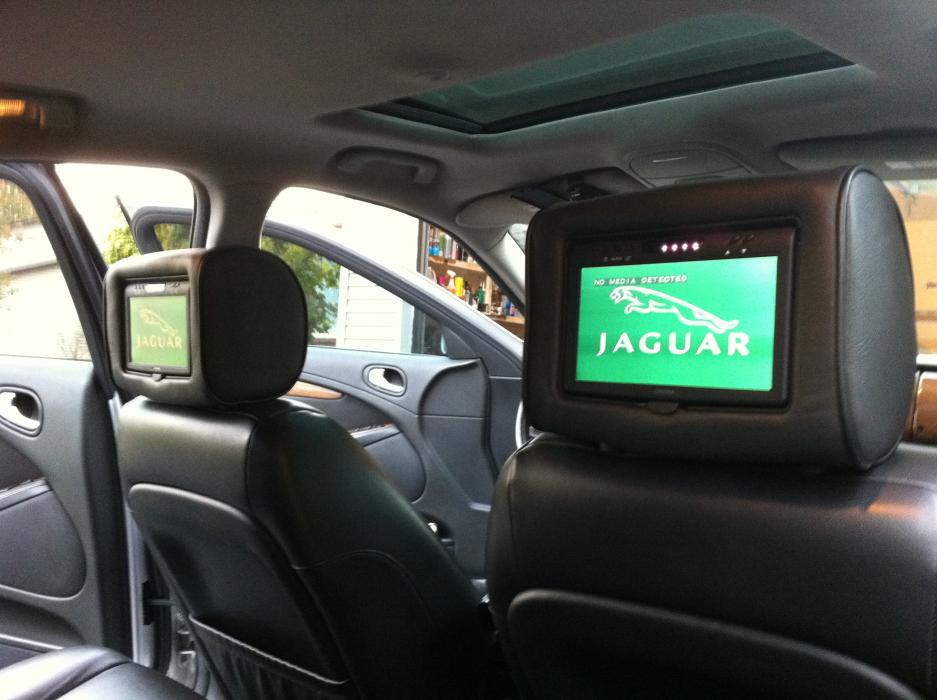

I do have a shot of it done in my iphone i'll post.
And as far as the media reader, I think the issue is sdhc v/s standard sd. Most everything these days is SDHC. In 2006 when these were made, and probably before that in 200x when they were designed, that wasn't the case. Standard SD cards went to 2gb. So I think that might be the key as far as getting the card reader to work. Now, where does one find an old 2gb sd card. I think we might be able to order some for cheap somewhere. One of my old cell phones might have one as well, which I can stick in an micro SD to regular SD adapter just to test this out.
George
I do have a shot of it done in my iphone i'll post.
And as far as the media reader, I think the issue is sdhc v/s standard sd. Most everything these days is SDHC. In 2006 when these were made, and probably before that in 200x when they were designed, that wasn't the case. Standard SD cards went to 2gb. So I think that might be the key as far as getting the card reader to work. Now, where does one find an old 2gb sd card. I think we might be able to order some for cheap somewhere. One of my old cell phones might have one as well, which I can stick in an micro SD to regular SD adapter just to test this out.
George
#28
Ugh, so I'm at work, and I forgot my camera at home (which has all my install pics on it).
I do have a shot of it done in my iphone i'll post.
And as far as the media reader, I think the issue is sdhc v/s standard sd. Most everything these days is SDHC. In 2006 when these were made, and probably before that in 200x when they were designed, that wasn't the case. Standard SD cards went to 2gb. So I think that might be the key as far as getting the card reader to work. Now, where does one find an old 2gb sd card. I think we might be able to order some for cheap somewhere. One of my old cell phones might have one as well, which I can stick in an micro SD to regular SD adapter just to test this out.
George
I do have a shot of it done in my iphone i'll post.
And as far as the media reader, I think the issue is sdhc v/s standard sd. Most everything these days is SDHC. In 2006 when these were made, and probably before that in 200x when they were designed, that wasn't the case. Standard SD cards went to 2gb. So I think that might be the key as far as getting the card reader to work. Now, where does one find an old 2gb sd card. I think we might be able to order some for cheap somewhere. One of my old cell phones might have one as well, which I can stick in an micro SD to regular SD adapter just to test this out.
George
Found quite a few to choose from on Newegg.com . I'm going to try my local Office Max later today.
#29
Ahh..I just had an interesting realization while looking at your pictures...
Your seat backs are different than mine.. I need to take pictures of mine..
See, you have the removeable backs that they show in the instructions. Mine are different. They have a map pocket, but the back is attached differently than yours. I know it has to be clipped together somehow or else, how in the heck did they make the seat??? It just isn't easy to figure out, so the "feed the wire" method may be the best alternative for those with seats like mine..
Your seat backs are different than mine.. I need to take pictures of mine..
See, you have the removeable backs that they show in the instructions. Mine are different. They have a map pocket, but the back is attached differently than yours. I know it has to be clipped together somehow or else, how in the heck did they make the seat??? It just isn't easy to figure out, so the "feed the wire" method may be the best alternative for those with seats like mine..
#30
Ahh..I just had an interesting realization while looking at your pictures...
Your seat backs are different than mine.. I need to take pictures of mine..
See, you have the removeable backs that they show in the instructions. Mine are different. They have a map pocket, but the back is attached differently than yours. I know it has to be clipped together somehow or else, how in the heck did they make the seat??? It just isn't easy to figure out, so the "feed the wire" method may be the best alternative for those with seats like mine..
Your seat backs are different than mine.. I need to take pictures of mine..
See, you have the removeable backs that they show in the instructions. Mine are different. They have a map pocket, but the back is attached differently than yours. I know it has to be clipped together somehow or else, how in the heck did they make the seat??? It just isn't easy to figure out, so the "feed the wire" method may be the best alternative for those with seats like mine..
I know you have the redesigned exterior, (Since you have an 05) but i thought the interior was the same.
George
#31
#32

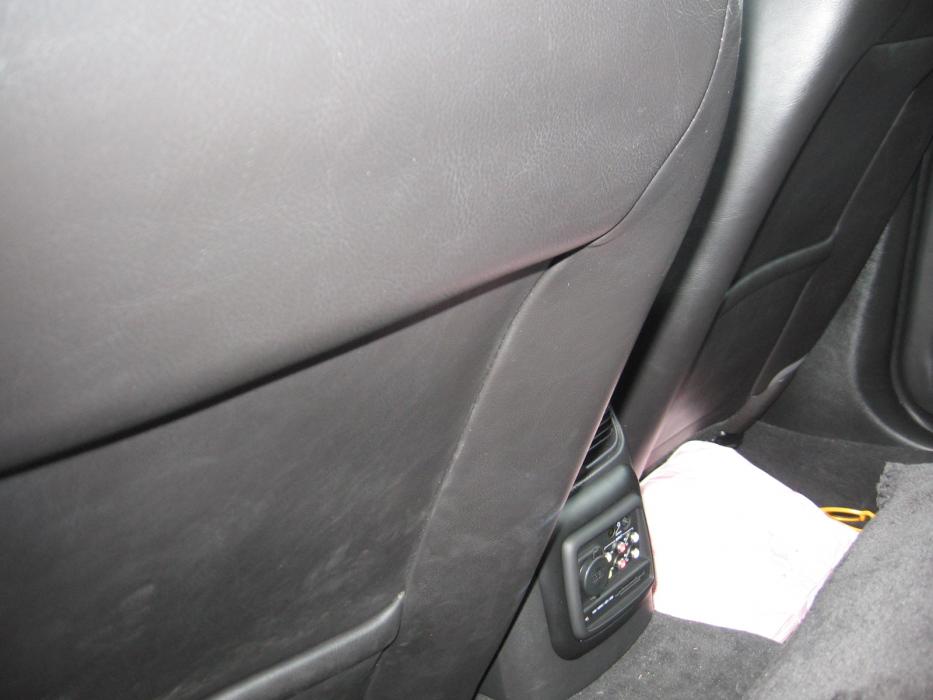

You know the control panel in the rear console doesn't look that bad. If I only didn't have the RCA cable coming from my headunit to feed video into the screens. Hrrmmm... How to make that look "not ghetto"...
George
#33
And as far as the media reader, I think the issue is sdhc v/s standard sd. Most everything these days is SDHC. In 2006 when these were made, and probably before that in 200x when they were designed, that wasn't the case. Standard SD cards went to 2gb. So I think that might be the key as far as getting the card reader to work. Now, where does one find an old 2gb sd card. I think we might be able to order some for cheap somewhere. One of my old cell phones might have one as well, which I can stick in an micro SD to regular SD adapter just to test this out.
George
George
#34
BINGO...Give George a cigar.. Got a cheap ($10) 2gig SD card from Target last night. Loaded a few files. A video, four pictures, and two MP3's and the card reader saw them all! Now this rocks! I saw NewEgg had a 3 pack of PNY 2gig SD cards for like $20 with $3 shipping. I'll get those and load some entertainment files for the kiddies and it's all set. Now I really like this little stand alone system! Just to get it retro-fitted to the Caravan..
2gb SD cards are cheap these days. You can get 10 for $60 on ebay all day long.
George
#36

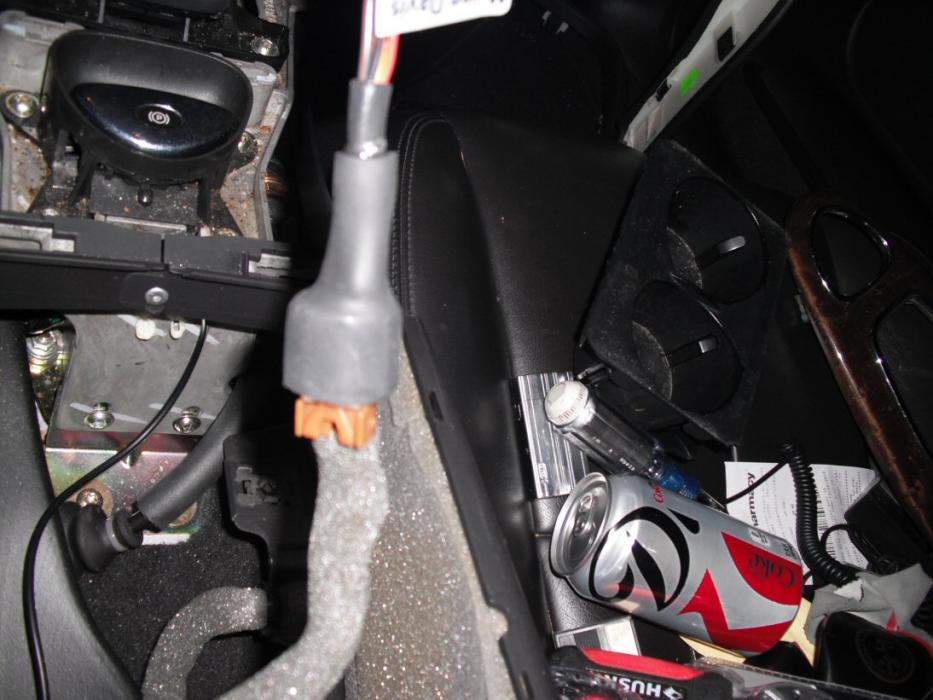

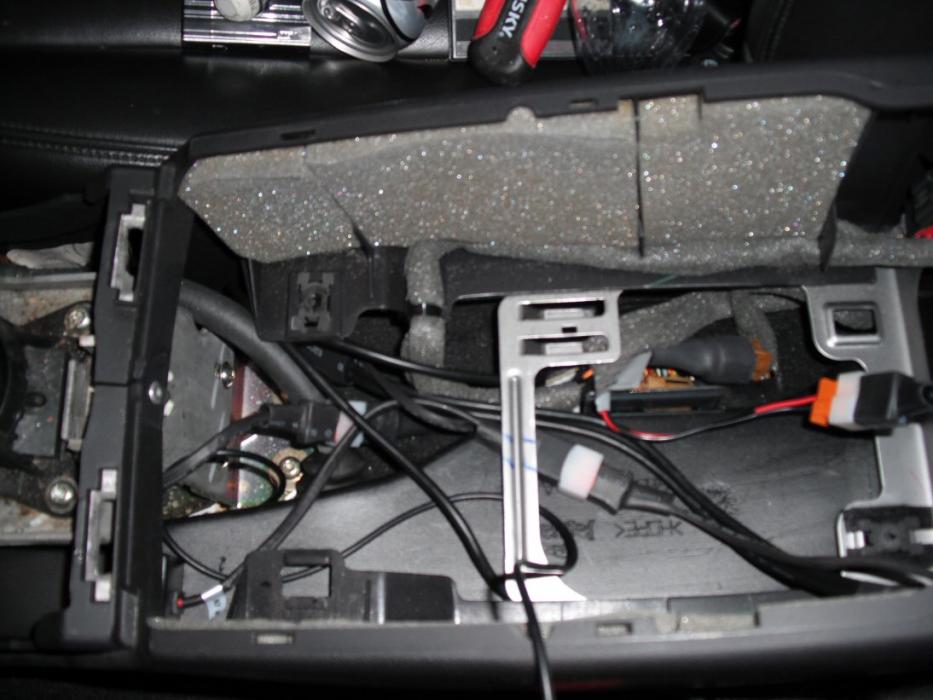

I don't know how helpful they will be because I really didn't do things by the book.
