Hey guys after gathering all the info from the XJR thread(thanks to Vector and Plums for their infos) about changing the SuperCharger oil, I finally completed it tonight. First let me tell you this is no walk in the park drain and fill I guess I'm the first to do a write up on the STR SC oil change because I looked all around and there was nothing I could find on the S type Forum for the info; I maybe wrong so don't take my word for it.
Tools required:
1) 3/16 hex bit
2) 1/4 wrench
3) 1/4 ratcheting wrench
4) 2 4oz Supercharger oi (SuperCharger capacity 7.3 oz) ( New bottle is made by ACDElCO no more GM written on bottle, has same part#refer to pic)(available at any dealership..GM or Chevy dealership for $10.89 per bottle)
5) 2oz Syringe (Very Handy!! Cardone Industries 100-105000MCB - A1 Cardone Master Cylinder Bench Bleeder Tools - Overview - SummitRacing.com)
6)1/4 plastic tube
7)1/8 plastic tube
***As an Alternative you can also purchase from ACE HARDWARE STORE one polyurethane tube with a inner diameter of 1/4 and another with a inner diameter of 1/8 (The Syringe will attach to the 1/4 tube). Tell the employee you want to have it joined together the two tubes, he will give you two small barb hose fittings connected.
***Please note what you see in the pic I made from a 1/4 rubber hose and brake line tube combined together from 1/4 to 1/8 with a round rubber connector in between and attached it to the syringe. I found the brake line tube to be the perfect fit and size might be less than 1/8(get it from Nappa store) SMALLER DIAMETER THE BETTER to fit downwards in the SC oil filler hole!!
Alrite now the fun part, man ohhh man was this a pain in the *** for me. My STR has 92k and I'm dead positive the SC oil never been changed. People at Jaguar say and its stated that our Supercharger oil is Sealed for life (BS ) Honestly in our STR we don't have much room to work with in that small area you'll see once you remove the Air Intake tube and the 3/16th black colored hex drain plug is very visible just behind the Thermostat housing. I really would have liked to squeeze a flex drive wrench with the hex bit but no go! Tried everything but that option didn't' work. Like I said you have to remove the Air Intake tube completely off no work around.**Make sure you pack the surrounding area under the SC drain plug completely with paper towels or a cloth, no spot should be left uncovered and also it will catch the overflow. Why? Because you will definitely drop the hex bit and it will save you from digging around looking for it. I dropped it many times just trying to turn the dam hex bit with the wrench luckily it was very easy to recover bc it was packed with paper towels. Then use the 3/16 hex bit with the 1/4 ratcheting wrench first, once loosened, then use the 1/4 wrench to remove it completely. LIke I said very tight spot to work with, it took me a good 15mins or soo trying to turn the hex bit little by little. Finally once off you should see the small drain plug with the washer on it.

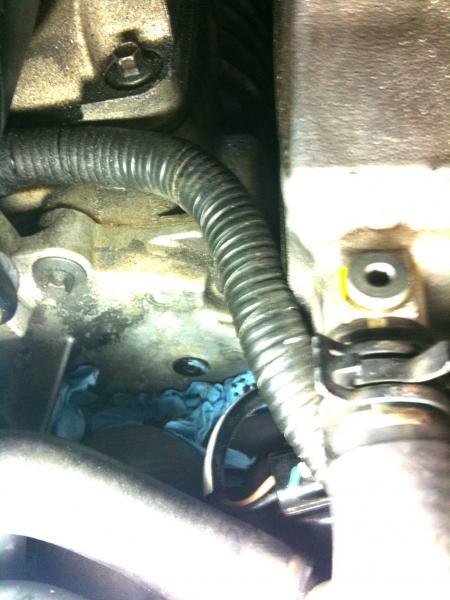

Now comes the time to drain the fluid out. The **** smells horrible, I don't know why some ppl say it doesn't smell, but once that drain plug came undone my garage was stinking like something died! lolz..no joke. The new fluid doesn't smell at all which is weird; must be the SC burning the oil to produce the stink, I dunno. Anyways this is important, you can't just stick the dam end of the tube inside the hole and expect miracles of sucking it up! YOu have to go in a downward angle, b/c there's some kind of metal or gear I dunno right smack near the opening of the drain/fill hole, took me long and mutilple times to get it right(this is where the majority of time gets eaten up; so be patient Once you get lucky and feel you can't push the tube down further, start sucking up the fluid with the Syringe. It will take some effort and muscle by pumping and retracting slowly till you start sucking up air then stop. My first try I got around 2oz of fluid out. I had to keep poking the end of the tube in different areas of the hole, seriously its not that easy as the XJR people who done it. I thought it would be a walk in the park, but hell noooo!
Now this part I did on my own thinking and it actually worked. I was able to completely remove all the fluid from my Super Charger by jacking up the REAr Passenger side only till the wheel wasn't touching the ground(now the oil is tilted to the front drivers side, angle the tube in the drain/filler hole towards the drivers side to suck up the remaining oil). Then I was able to suck out the remaining fluid. In total I was able to get out 5.5oz, now I said in the beginning the recommended capacity is 7.3oz for the SuperCharger, what the **** happened to the remaining 1.8oz Seriously no clue. I ended up using close to 7.5oz in total refill.
Last Step, now after making sure you completely did your utmost to drain the fluid all out, you will start pumping her up with the fresh fluid,(ohhh I like the sound of that) It doesn't matter where you stick your tube, try to get it in as far as possible and start pumping it in. Keep doing it till it starts to over flow. Once you start seeing it over flow from the drain hole stop, and plug her up. Use your fingers to tighten it up firstly then start using the wrench then lastly tight her up as hard as possible using the 1/4 ratcheting wrench. Phewwww....I took my time and did this carefully making sure you don't put any hand pressure on the coolant tank or any hoses on the Intercoolers of the SC.
Conclusion
My fluid was like dark coffee color(see pic)(normally should be clear) and it smelled terrible. My STR has 92k at present, so it looks like its been in there since it rolled out of the production plant. Jaguar may not give any guidance other than just saying the SuperCharger oil is "Sealed for Life" but General Motors gives guidance in their scheduled maintenance - "check supercharger oil level every 25k miles or 3 years, whichever comes first". AFter putting all the **** back together I started her up and knock on wood, I heard her scream like never before , honestly I heard the smooth rich loud whine more than before on WOT; music to my ears
Hope this write up and the pics of the tools used help those to take the challenge and change the SC oil, I think its a must just like any fluid change, tranny, motor oil etc.....at the end you will be happy you did
Tools required:
1) 3/16 hex bit
2) 1/4 wrench
3) 1/4 ratcheting wrench
4) 2 4oz Supercharger oi (SuperCharger capacity 7.3 oz) ( New bottle is made by ACDElCO no more GM written on bottle, has same part#refer to pic)(available at any dealership..GM or Chevy dealership for $10.89 per bottle)
5) 2oz Syringe (Very Handy!! Cardone Industries 100-105000MCB - A1 Cardone Master Cylinder Bench Bleeder Tools - Overview - SummitRacing.com)
6)1/4 plastic tube
7)1/8 plastic tube
***As an Alternative you can also purchase from ACE HARDWARE STORE one polyurethane tube with a inner diameter of 1/4 and another with a inner diameter of 1/8 (The Syringe will attach to the 1/4 tube). Tell the employee you want to have it joined together the two tubes, he will give you two small barb hose fittings connected.
***Please note what you see in the pic I made from a 1/4 rubber hose and brake line tube combined together from 1/4 to 1/8 with a round rubber connector in between and attached it to the syringe. I found the brake line tube to be the perfect fit and size might be less than 1/8(get it from Nappa store) SMALLER DIAMETER THE BETTER to fit downwards in the SC oil filler hole!!
Alrite now the fun part, man ohhh man was this a pain in the *** for me. My STR has 92k and I'm dead positive the SC oil never been changed. People at Jaguar say and its stated that our Supercharger oil is Sealed for life (BS ) Honestly in our STR we don't have much room to work with in that small area you'll see once you remove the Air Intake tube and the 3/16th black colored hex drain plug is very visible just behind the Thermostat housing. I really would have liked to squeeze a flex drive wrench with the hex bit but no go! Tried everything but that option didn't' work. Like I said you have to remove the Air Intake tube completely off no work around.**Make sure you pack the surrounding area under the SC drain plug completely with paper towels or a cloth, no spot should be left uncovered and also it will catch the overflow. Why? Because you will definitely drop the hex bit and it will save you from digging around looking for it. I dropped it many times just trying to turn the dam hex bit with the wrench luckily it was very easy to recover bc it was packed with paper towels. Then use the 3/16 hex bit with the 1/4 ratcheting wrench first, once loosened, then use the 1/4 wrench to remove it completely. LIke I said very tight spot to work with, it took me a good 15mins or soo trying to turn the hex bit little by little. Finally once off you should see the small drain plug with the washer on it.
Now comes the time to drain the fluid out. The **** smells horrible, I don't know why some ppl say it doesn't smell, but once that drain plug came undone my garage was stinking like something died! lolz..no joke. The new fluid doesn't smell at all which is weird; must be the SC burning the oil to produce the stink, I dunno. Anyways this is important, you can't just stick the dam end of the tube inside the hole and expect miracles of sucking it up! YOu have to go in a downward angle, b/c there's some kind of metal or gear I dunno right smack near the opening of the drain/fill hole, took me long and mutilple times to get it right(this is where the majority of time gets eaten up; so be patient Once you get lucky and feel you can't push the tube down further, start sucking up the fluid with the Syringe. It will take some effort and muscle by pumping and retracting slowly till you start sucking up air then stop. My first try I got around 2oz of fluid out. I had to keep poking the end of the tube in different areas of the hole, seriously its not that easy as the XJR people who done it. I thought it would be a walk in the park, but hell noooo!
Now this part I did on my own thinking and it actually worked. I was able to completely remove all the fluid from my Super Charger by jacking up the REAr Passenger side only till the wheel wasn't touching the ground(now the oil is tilted to the front drivers side, angle the tube in the drain/filler hole towards the drivers side to suck up the remaining oil). Then I was able to suck out the remaining fluid. In total I was able to get out 5.5oz, now I said in the beginning the recommended capacity is 7.3oz for the SuperCharger, what the **** happened to the remaining 1.8oz Seriously no clue. I ended up using close to 7.5oz in total refill.
Last Step, now after making sure you completely did your utmost to drain the fluid all out, you will start pumping her up with the fresh fluid,(ohhh I like the sound of that) It doesn't matter where you stick your tube, try to get it in as far as possible and start pumping it in. Keep doing it till it starts to over flow. Once you start seeing it over flow from the drain hole stop, and plug her up. Use your fingers to tighten it up firstly then start using the wrench then lastly tight her up as hard as possible using the 1/4 ratcheting wrench. Phewwww....I took my time and did this carefully making sure you don't put any hand pressure on the coolant tank or any hoses on the Intercoolers of the SC.
Conclusion
My fluid was like dark coffee color(see pic)(normally should be clear) and it smelled terrible. My STR has 92k at present, so it looks like its been in there since it rolled out of the production plant. Jaguar may not give any guidance other than just saying the SuperCharger oil is "Sealed for Life" but General Motors gives guidance in their scheduled maintenance - "check supercharger oil level every 25k miles or 3 years, whichever comes first". AFter putting all the **** back together I started her up and knock on wood, I heard her scream like never before , honestly I heard the smooth rich loud whine more than before on WOT; music to my ears
Hope this write up and the pics of the tools used help those to take the challenge and change the SC oil, I think its a must just like any fluid change, tranny, motor oil etc.....at the end you will be happy you did
