Turn Signal Lamp?!
#2
![Default](/forum/images/icons/icon1.gif)

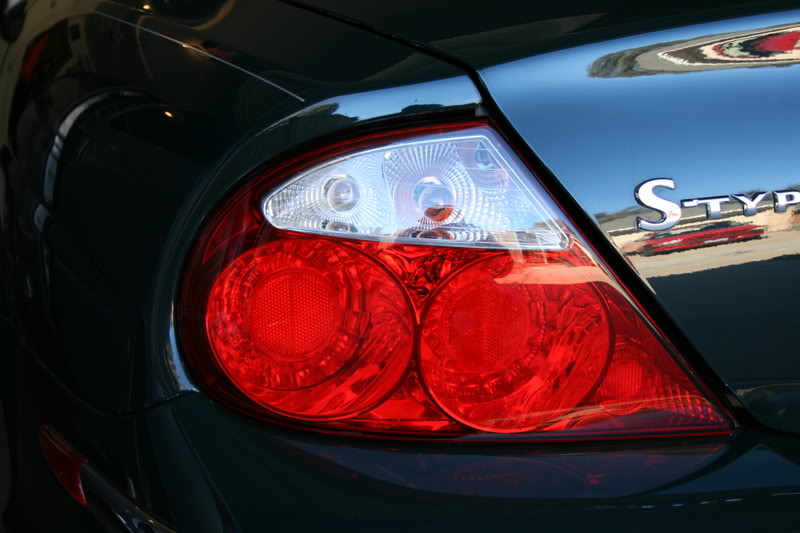

Basically if you are looking at the back side of the taillight, there are either two or three tabs that you push in and the whole unit comes apart. This exposes they entire assembly that holds the lights. I had to replaced a burned out light and the only place I found that carried the light was Napa Auto parts, so take yourlight with you to make sure it’s the same one.
#3
#4
#6
![Default](/forum/images/icons/icon1.gif)
Thanks to 02JagSport for posting the diagrams. I finally got around to removing the tail light assembly and removing the dead bulb. Unfortunetly, Autozone was out of stock on the bulb and I had to order it. It should arrive in a couple of days. I also bought replacements for the other tail lights figuring that if I was going to go to all this trouble I might as well replace all the bulbs. Here is the process:
1. Lift the spare tire cover and remove the two screwssecuring the luggage trim piece![Name: Step_1.jpg
Views: 393
Size: 112.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194470d1501334169-turn-signal-lamp-step_1.jpg)
![Name: Step_2.jpg
Views: 392
Size: 76.5 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194471d1501334169-turn-signal-lamp-step_2.jpg)
![Name: Step_3.jpg
Views: 408
Size: 78.3 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194472d1501334169-turn-signal-lamp-step_3.jpg)

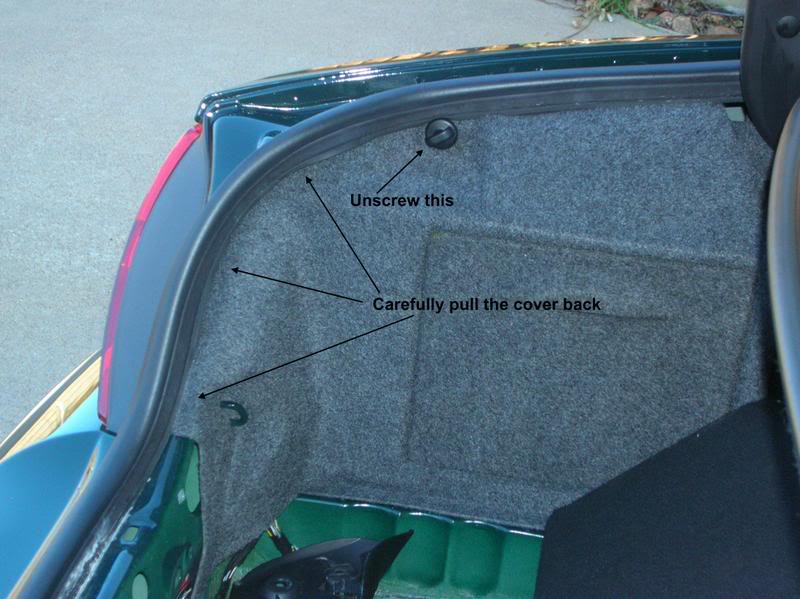

![Name: Step_4.jpg
Views: 385
Size: 73.2 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194473d1501334169-turn-signal-lamp-step_4.jpg)
![Name: Step_5.jpg
Views: 398
Size: 65.5 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194474d1501334169-turn-signal-lamp-step_5.jpg)

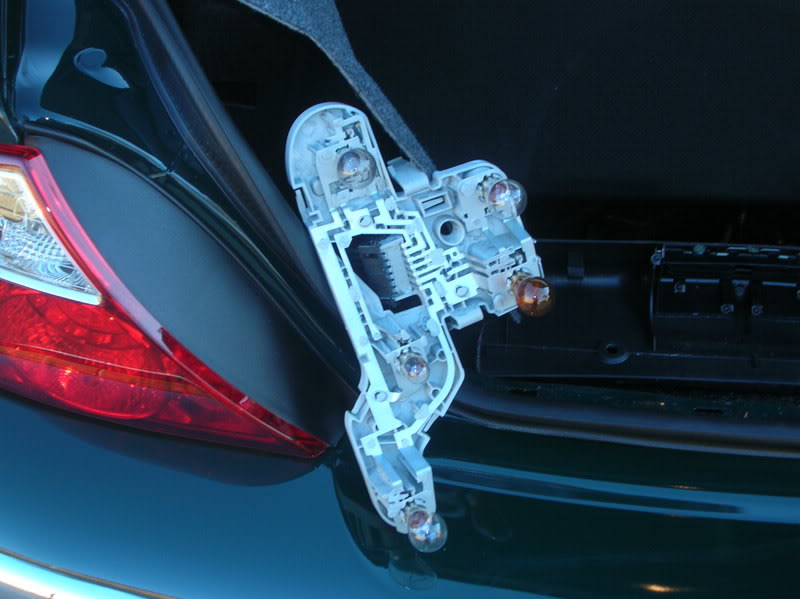

![Name: Step_6.jpg
Views: 401
Size: 59.7 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194475d1501334169-turn-signal-lamp-step_6.jpg)
![Name: Screws_rivets.jpg
Views: 395
Size: 68.6 KB](https://www.jaguarforums.com/forum/attachments/s-type-s-type-r-supercharged-v8-x200-15/194476d1501334169-turn-signal-lamp-screws_rivets.jpg)
Oh, and if you are like me you'll be appalled at the dirt and spots under that trim! I'll be cleaning that up before putting it back together.
The following users liked this post:
Jumpin' Jag Flash (05-22-2013)
#7
![Default](/forum/images/icons/icon1.gif)
Update: I finaly got the turn signal bulb. Autozone ordered them for me. I replaced all the bulbs on the left side (there are 4 different bulb types!). Well, the turn signal works now but the brake light doesn't work! I'm going to drop by the dealer tomorrow to see if I can pick up the correct bulb from them to see if that fixes it. Hopefully I didn't break something trying to fix it!
