Wiring in the trunk and front bumper

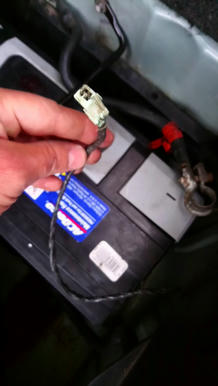

Hi guys, last week i took out the spare tire and was cleaning the trunk of the car and notice this cable just beside the battery, search to see from where it was but couln't find where to connect.

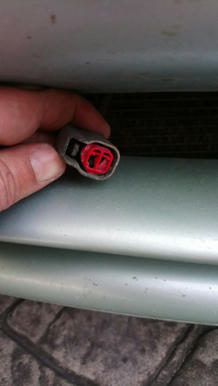

The other cable is in the front bumper, was checking the righ hand fog light that is loose and found it. Is in front of the radiator, the cable isn't long enough to get to the fog light. i know that my father change the headlights feom Halogen to Xenon bulbs, don't know if this cable and socket is from the old connection of one of the headlights

Does anyone knows what this two sockets are for and where does they go?

Thanks for any help

Last edited by e_brugal; 03-06-2021 at 01:52 PM.

Reply Like

03-06-2021, 06:49 PM

kr98664

Veteran Member

Join Date: Oct 2012

Location: Oregon

Posts: 4,436

Likes: 2,253

Received 2,050 Likes on 1,448 Posts

The connector in the trunk was for the transit isolation relay. This device was removed before delivery to the customer. The harness was no longer needed and tucked out of way.

No idea about the connector up front.

Reply Like

03-07-2021, 04:57 PM

davidladewig

Senior Member

Join Date: Feb 2015

Location: Birmingham, AL

Posts: 707

Likes: 114

Received 188 Likes on 138 Posts

There is a side light just above the fog light. Turn on your parking lights and see if one of them is not on. It is the yellow one. There is also the yellow turn signal side light on the back side of the fender. Turn on your turn signal and it should flash.

Reply Like

03-07-2021, 06:34 PM

e_brugal

Senior Member

Thread Starter

Join Date: Dec 2020

Location: Puerto Plata, Dominican Republic

Posts: 114

Likes: 21

Received 15 Likes on 10 Posts

Quote:

Originally Posted by kr98664

Thanks!!!

Quote:

Originally Posted by davidladewig

The wiring is not long enough to get there. But I will check tomorrow

Thanks!!

Reply Like

03-08-2021, 11:20 AM

Aarcuda

Veteran Member

Join Date: Jun 2019

Posts: 1,646

Likes: 529

Received 483 Likes on 370 Posts

Tell us the wire colors w stripe colors. Then search the electrical schematics

Reply Like

03-08-2021, 11:49 AM

JagV8

Veteran Member

Join Date: May 2009

Location: Yorkshire, England

Posts: 26,786

Likes: 834

Received 4,535 Likes on 3,944 Posts

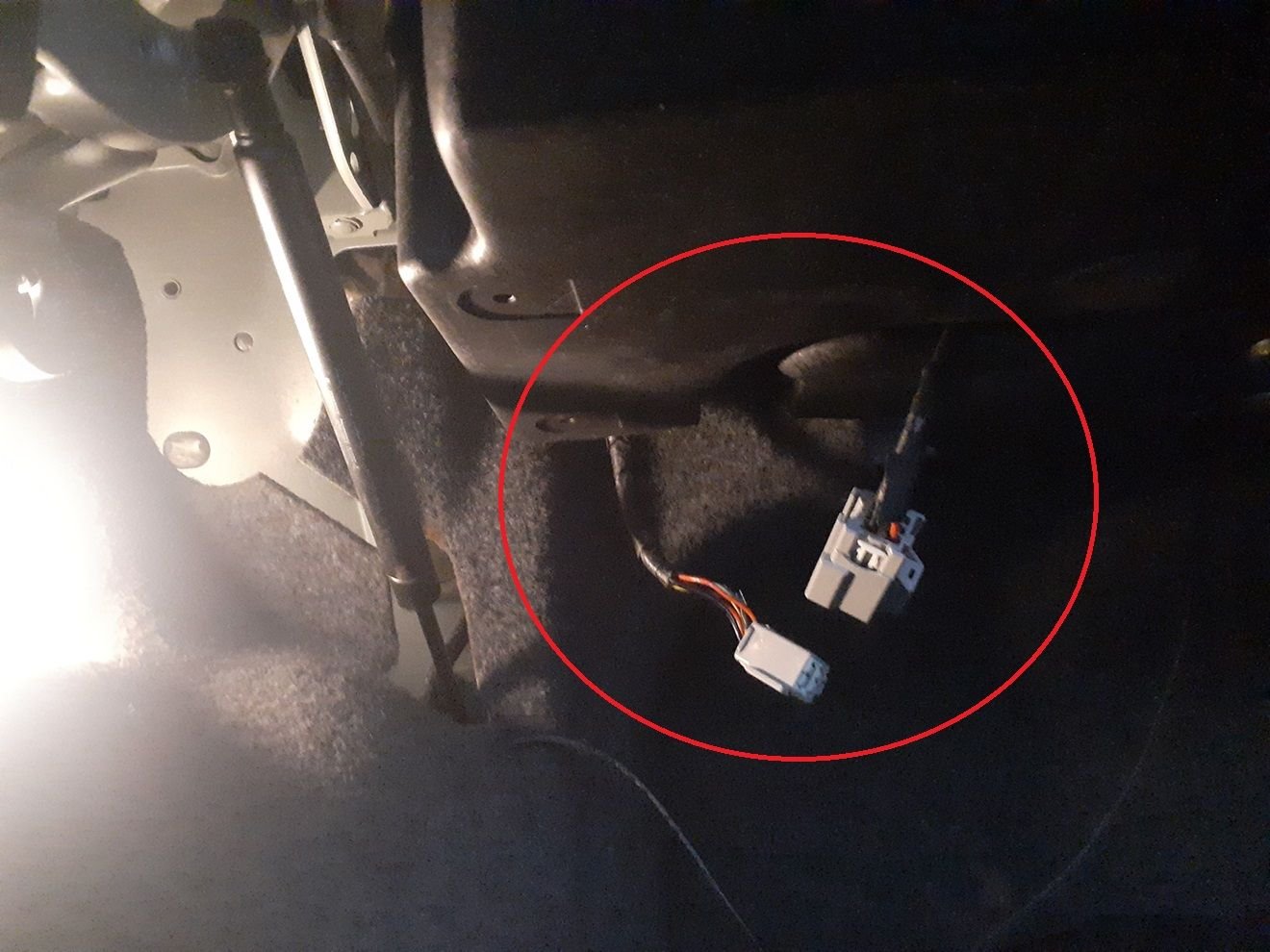

There are multiple unused connectors, scattered around the car. Normal for S-Types.

Reply Like

03-09-2021, 06:46 AM

e_brugal

Senior Member

Thread Starter

Join Date: Dec 2020

Location: Puerto Plata, Dominican Republic

Posts: 114

Likes: 21

Received 15 Likes on 10 Posts

Quote:

Originally Posted by e_brugal

Does anyone knows what this two sockets are for and where does they go?

Thanks for any help

Was searching on ebay for a fuel level arm (finally found and bought one last week and seller backed up

) and saw this fuel injector S824 harness connector pigtail that is identical to the one I haven hanging in the front of the car. Link to the one I saw on ebay

https://www.ebay.com/itm/FUEL-INJECTOR-s824-HARNESS-CONNECTOR-PIGTAIL-FITS-JEEP-DODGE-FORD-HYUNDAI-MAZDA/163220836270?fits=Year%3A2001%7CModel%3AS-Type%7CMake%3AJaguar&hash=item2600b84fae:g:~ZQAAOS wPJxbgZrw

Other one specify that is ABS/ fuel injector harness conector

https://www.ebay.com/itm/ABS-Fuel-Injector-Harness-Connector-Pigtail-S824-S-824-1P1344-WPT-1051-PT2160/173451338737?fits=Year%3A2001%7CModel%3AS-Type%7CMake%3AJaguar&epid=3022169691&hash=item2862 8163f1:g:E5sAAOSwUv5bZjN8

Does this need to be connected? Sorry for the question but not a mechanic, learning in a way with you guys
