belt tensioner. advice needed RESOLVED
#1
![Default](/forum/images/icons/icon1.gif)
Evening all.
I want to replace the upper belt tensioner as I think that is what is causing a strange sound when I start the car in the morning..only happens first thing in the morning when I put the car into gear...disappears if I shift back to park.
Anyway, I bought a new tensioner and pulley from napa, surprising cheap at $72 !.
As usual...looks easy to replace, but I'm wondering if that is really the case...lol
If you have replaced one, can you tell me if it,s a straightforward job.
Thanks muchly
I want to replace the upper belt tensioner as I think that is what is causing a strange sound when I start the car in the morning..only happens first thing in the morning when I put the car into gear...disappears if I shift back to park.
Anyway, I bought a new tensioner and pulley from napa, surprising cheap at $72 !.
As usual...looks easy to replace, but I'm wondering if that is really the case...lol
If you have replaced one, can you tell me if it,s a straightforward job.
Thanks muchly
#3
![Default](/forum/images/icons/icon1.gif)
ok..here goes...text first followed by pics.

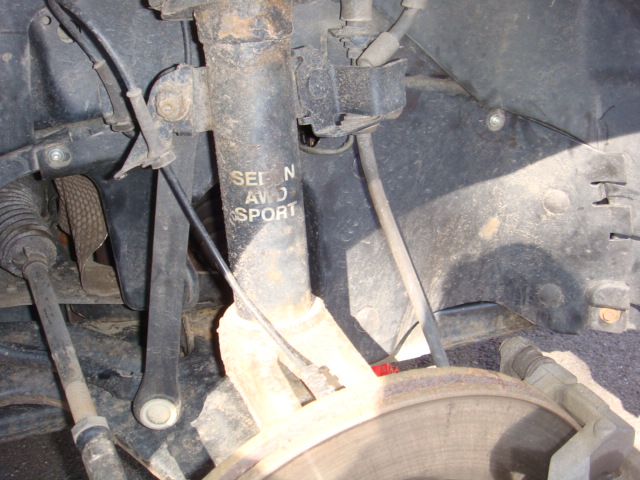

1. jack up passenger side of car and remove passenger side wheel

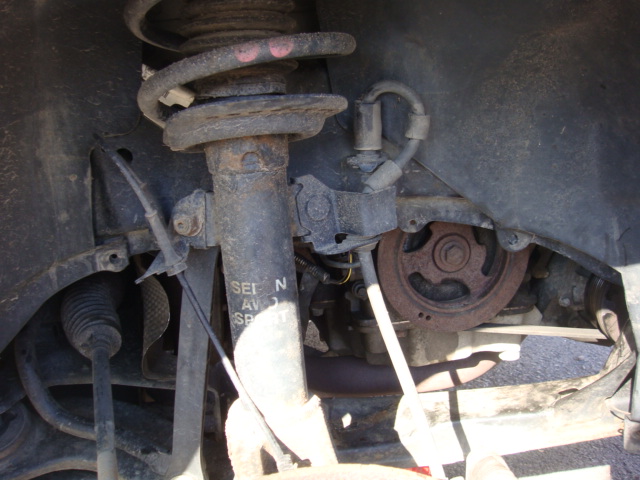

2. locate and remove the plastic lower inner wheel well (3 plastic crosshead fastners..all broke, replaced with metal screws. and one 12mm bolt.

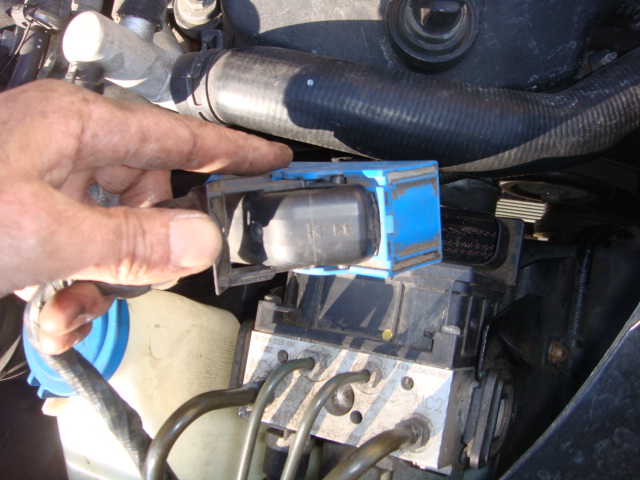

3. disconnect the large blue plug next to the abs unit. To disconnect, locate the black lever at the front of the plug and pull it upwards, this releases the plug and you can move the plug out of the way to allow room to place your ratchet and leverage pipe

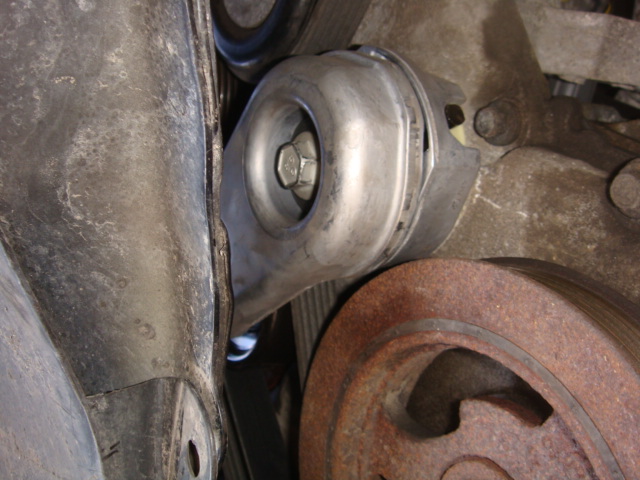

4.locate the serpentine belt tensioner.

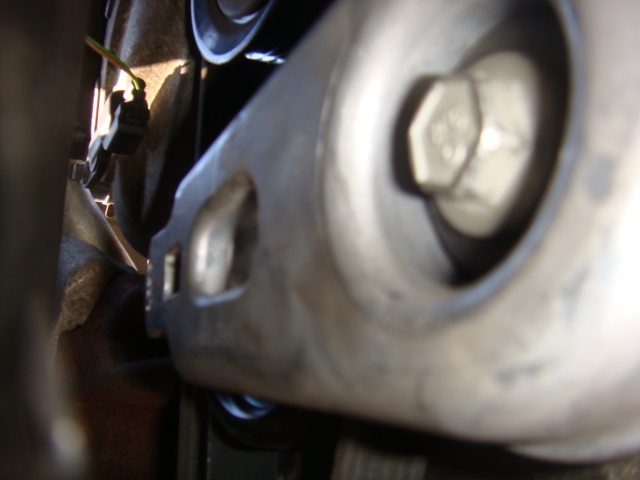

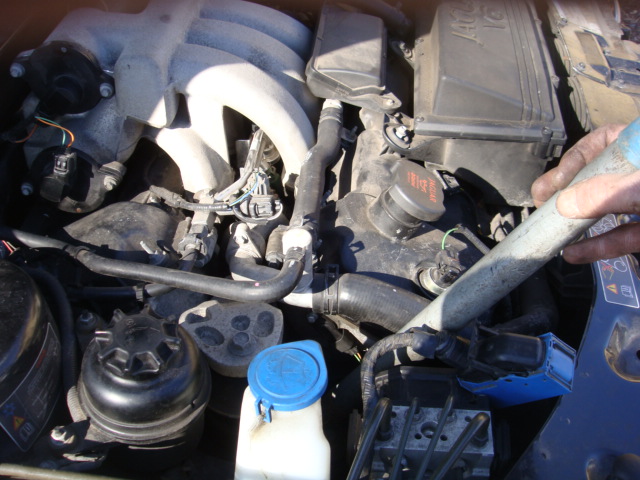

5. note the 3/8 square notch at the top of the tensioner. You will insert a 3/8 ratchet into this hole with a pile slipped over the ratchet for easy leverage
Push the pole or ratchet towards the windscreen and the belt will slacken enough for you to remove it.

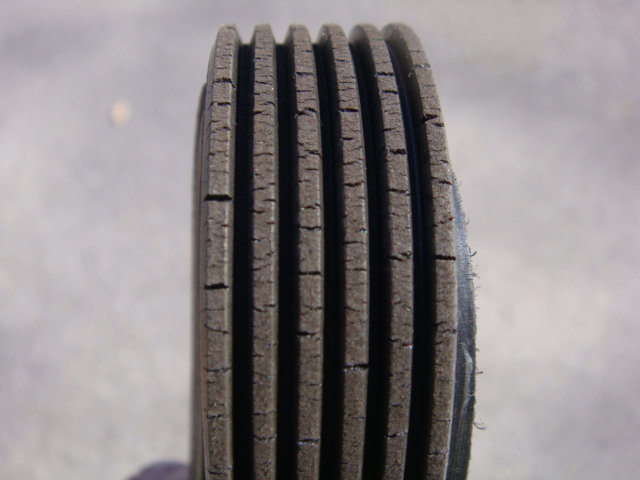

6. remove belt. inspect for wear and replace if necessary ($34 @ NAPA)

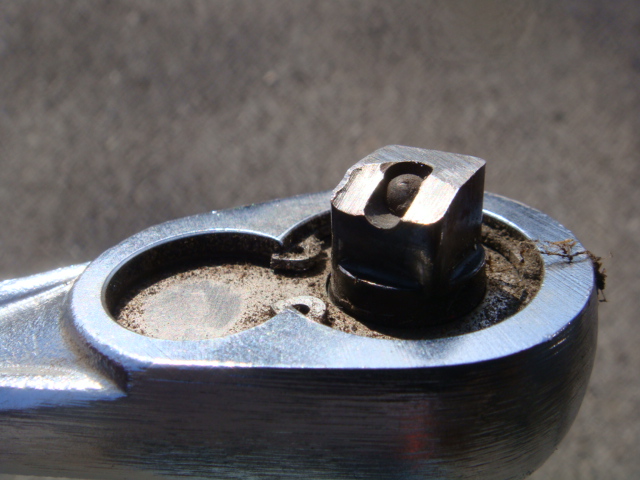

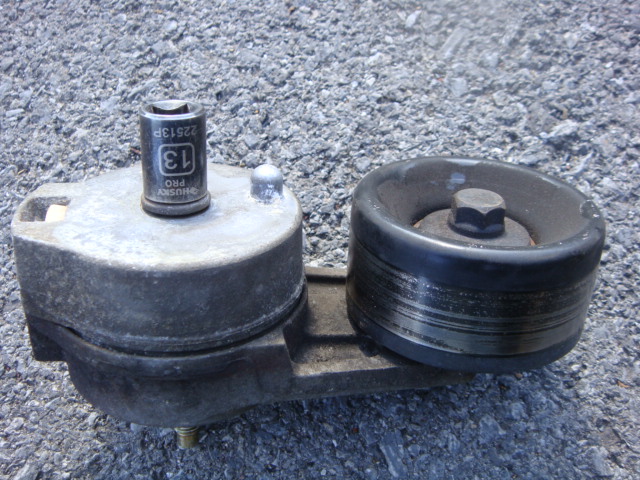

7. Take a 13mm wrench or ratchet (ratchet may not fit.. i had to grind down the 3/8 ratchet stub so it would fit. Next locate the 13mm bolt head in the center of the tensioner and remove the bolt. it will not come all the way out, but comes out enough the remove the unit.
On the back of the tensioner are 2 small round stubs. These locate into the engine for correct alignment of the tensioner.
8. The tensioner should fall down once the bolt is out..if not, pry it off with a flat blade.
9. Put the new tensioner in place and tighten the bolt
10. replace the serpentine belt (using the same ratchet/pipe to move the tensioner forward towards windscreen to allow enough slack)
11. Replace Blue plug, making sure to push the black locking lever down
12. replace the inner wheel well.
13. replace wheel
14. etc etc etc
