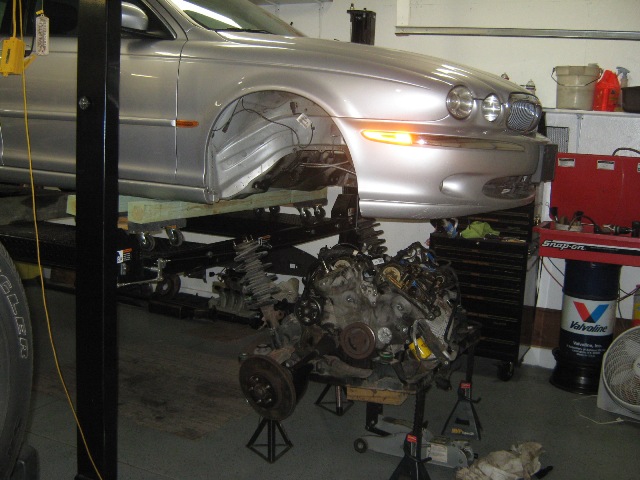

I'm hoping some X-type experts can help me diagnose this issue. I bought a 2003 2.5 with 5 speed tranny as a project car as it had a blown head gasket. I start digging into it and find oil/fluid all underneath the car, from front to back, just coated everywhere. P.O. says they had no known oil leaks before the head gasket failure that they were aware of, so I assumed it must have related to the HG problem. However, I have dropped the entire sub-frame assembly and separated the engine/transaxle/transfer case and it does not appear to be from the engine (plus the engine oil was like chocolate milk due to the HG failure and the oil spilled looks like "clean" oil or fluid.

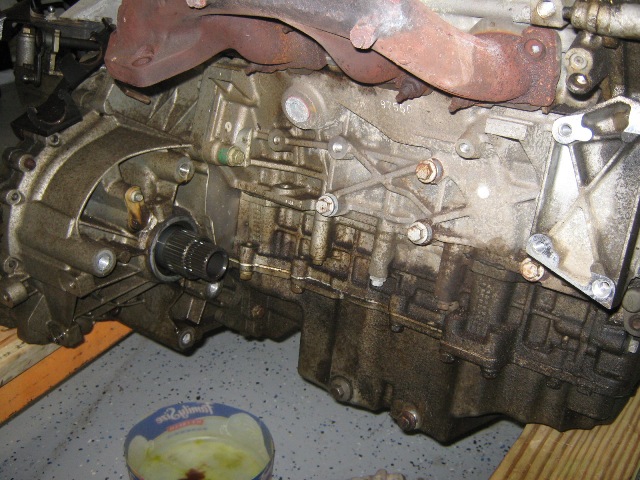

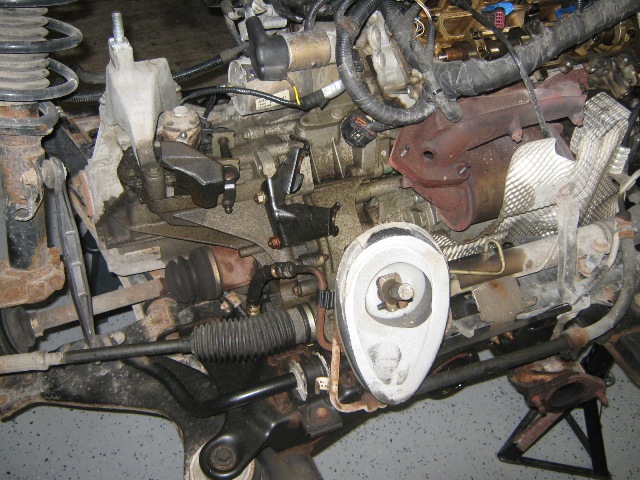

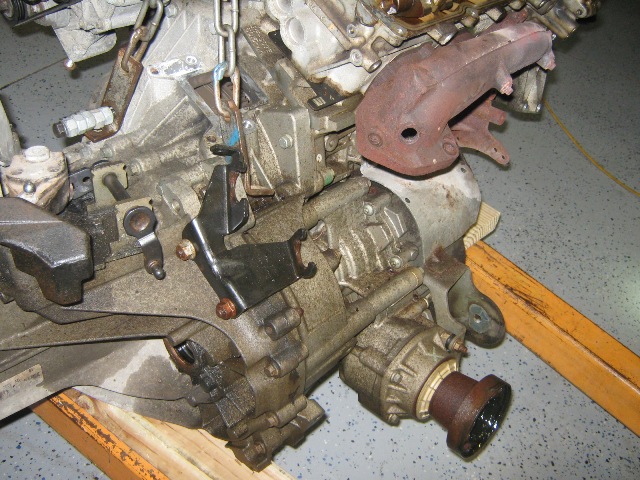

The oil is spread out on top of the transaxle around the shift mechanism, on the side, along the side of the engine block, and on the transfer case. I drained the transaxle and only got about 0.75 liter of fluid (down a liter). I drained the transfer case and got about 0.9 liter, about 0.4 too much. The seals on the output shaft of the transaxle and the internal seal in the transfer case "appear" ok, but is it possible for the fluid to drain from the transaxle into the transfer case, then blow out the vent and then spread this far out? Or I wonder if P.O. had the car serviced and the tech filled the transfer case instead of the transaxle when trying to top off.
I am buying a replacement used engine and sure don't want to have take it all back apart again due to an fluid leak. I plan on replacing the axle seals, but how hard is to replace that internal seal in the transfer case?
Dave
'03 2.5 5 spd
The oil is spread out on top of the transaxle around the shift mechanism, on the side, along the side of the engine block, and on the transfer case. I drained the transaxle and only got about 0.75 liter of fluid (down a liter). I drained the transfer case and got about 0.9 liter, about 0.4 too much. The seals on the output shaft of the transaxle and the internal seal in the transfer case "appear" ok, but is it possible for the fluid to drain from the transaxle into the transfer case, then blow out the vent and then spread this far out? Or I wonder if P.O. had the car serviced and the tech filled the transfer case instead of the transaxle when trying to top off.
I am buying a replacement used engine and sure don't want to have take it all back apart again due to an fluid leak. I plan on replacing the axle seals, but how hard is to replace that internal seal in the transfer case?
Dave
'03 2.5 5 spd
#2
My theoory on oil leaks is that the furthest forward place that is covered in
oil is near the oil leak. Anything further back that is oily is just a result
of the air flow. If you have a second oil leak further back you are
out of luck finding it. It is pretty hard to identify "clean" oil from
"dirty" oil after it has be flowing over the surface of a dirty drive train.
How many miles on the car? It might be worthwhile changing the seals
anyway since you are 95% of the way there and they are cheap.
Pete.
oil is near the oil leak. Anything further back that is oily is just a result
of the air flow. If you have a second oil leak further back you are
out of luck finding it. It is pretty hard to identify "clean" oil from
"dirty" oil after it has be flowing over the surface of a dirty drive train.
How many miles on the car? It might be worthwhile changing the seals
anyway since you are 95% of the way there and they are cheap.
Pete.
#3
Join Date: May 2008
Location: Great Mills, MD
Posts: 14,426
Likes: 0
Received 3,910 Likes
on
3,212 Posts
wal74, is the fluid that you are seeing red or gray in color. Red would indicate a tranny fluid issue, grey would be a transfer case issue. Since you mention that there was too much fluid in the transfer case, it can be that it was spitting out the vent and that is what you are seeing. If you have an oil leak, the most likely place would be from the pan gasket and if you have the motor out, now is the time to replace the gasket. I Think most would say if you have the motor out, replace the gasket anyways. The gasket is fairly cheap and it is tons easier to replace now than later.
