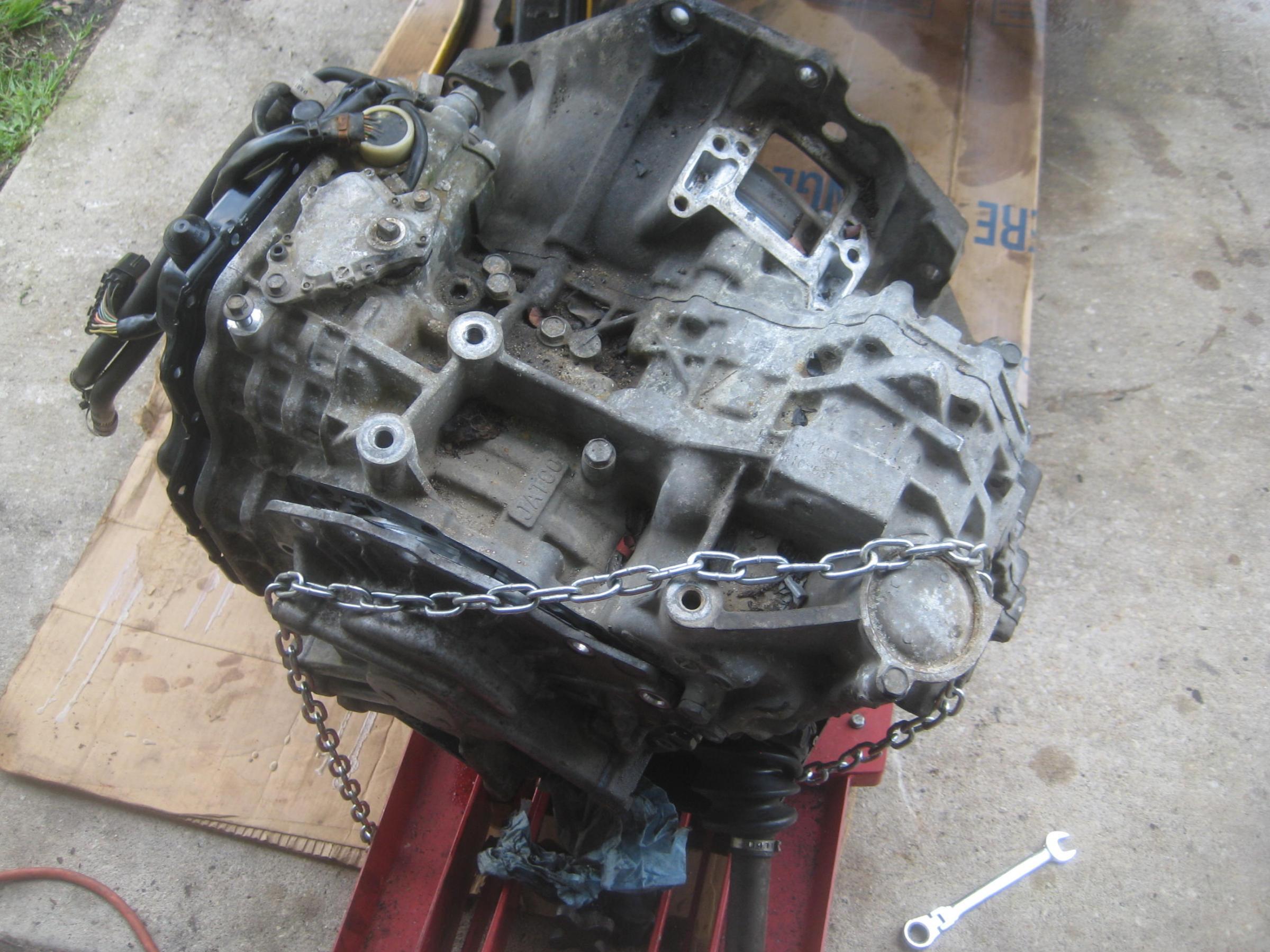

Got the entire trans and transfer case out in about 6 hours. Job was pretty straightforward. Followed most of the steps in the trans replacement technical bulletin XT307-S941 and didn't have any surprises.
Getting at the top left bolt on the catalytic converter mounting bracket wasn't that difficult with my flex head ratchet wrench but it was tough getting the mounting bracket off and wound up taking it off at the same time I dropped the transfer case.
Made my own holder for the link shaft from an old spark plug loom and hose clamp and it worked great.

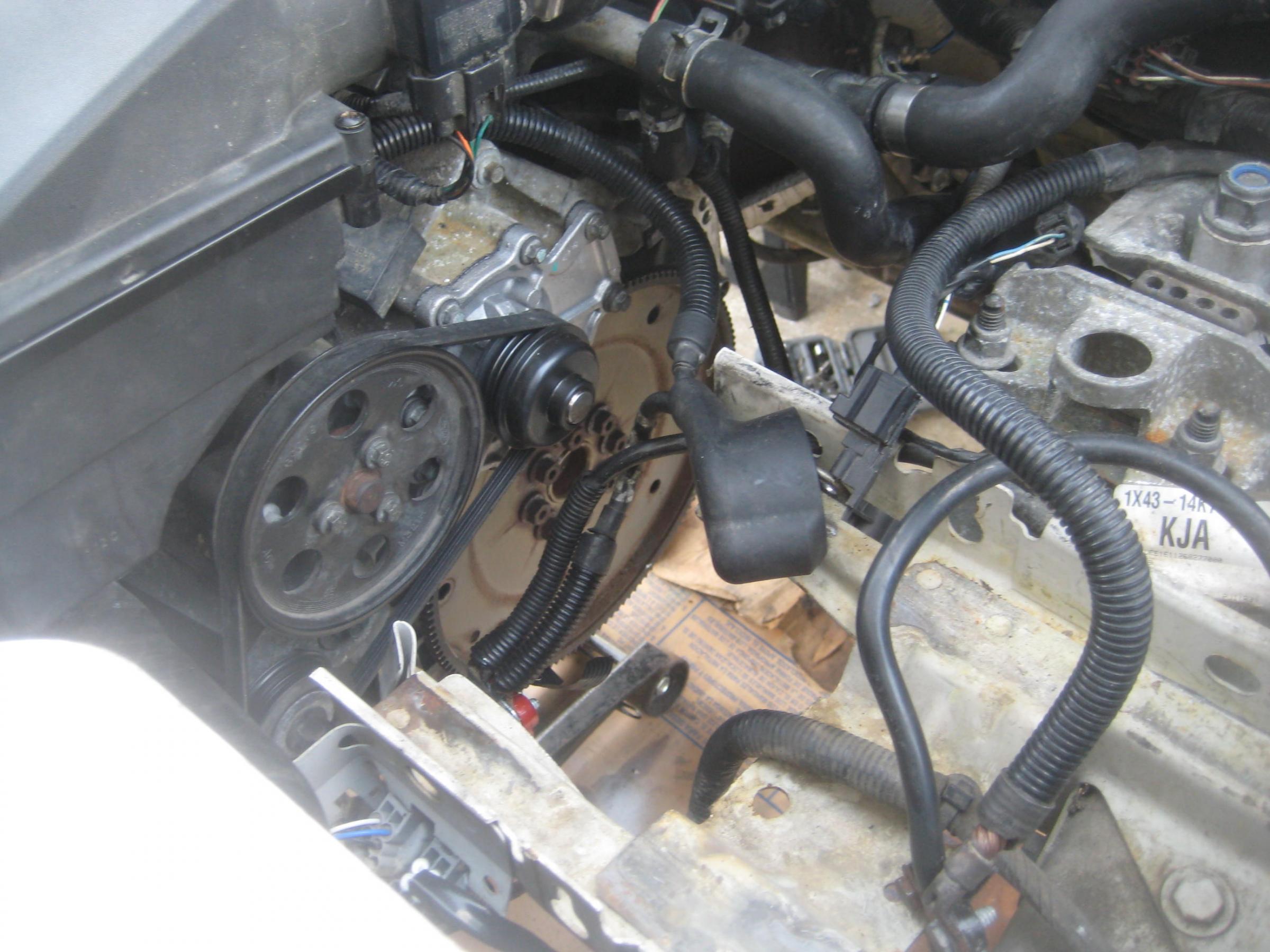

Removed the rear part of the transfer case before I took the subframe out to save having to remove the power steering heat shield. Didn't use an engine lift, just used my floor jack under the oil pan and once it was all out I put a wratchet strap on to hold the engine in place. The oil pan gasket is leaking pretty bad so that will be swapped also.
Should have the new trans in a few days and in the meantime I'll swap out the bearings in the rear of the transfer case and clean it all up.
The job wasn't all that bad and way easier than I dreaded it would be so hopefully going back in will be just as straightforward.
Getting at the top left bolt on the catalytic converter mounting bracket wasn't that difficult with my flex head ratchet wrench but it was tough getting the mounting bracket off and wound up taking it off at the same time I dropped the transfer case.
Made my own holder for the link shaft from an old spark plug loom and hose clamp and it worked great.
Removed the rear part of the transfer case before I took the subframe out to save having to remove the power steering heat shield. Didn't use an engine lift, just used my floor jack under the oil pan and once it was all out I put a wratchet strap on to hold the engine in place. The oil pan gasket is leaking pretty bad so that will be swapped also.
Should have the new trans in a few days and in the meantime I'll swap out the bearings in the rear of the transfer case and clean it all up.
The job wasn't all that bad and way easier than I dreaded it would be so hopefully going back in will be just as straightforward.
Last edited by ltmax; 03-22-2014 at 04:25 PM.
The following 5 users liked this post by ltmax:
alan924 (03-30-2014),
Bruce in North Dakota (08-15-2014),
Danny A Fish (03-23-2014),
Five Speed (04-30-2014),
mda419 (01-18-2015)
#6
#7
New used transmission and all the parts showed up yesterday.
Spent last night pulling the side cover and valve body of the trans, installing a new reverse/high piston assembly, new seals and o-rings, and cleaning out all the crud inside from sitting in the junkyard for a long time. Glad I took it apart as it had some rust and dirt inside that could have ruined it if it wasn't cleaned out. Guess that's why it's always good to check out used parts before you just put them in. They're not always as good as advertised.
Plan to put it all back together today, install new rear cat, oil pan gasket, transmission and transfer case.
Wish me luck.
Spent last night pulling the side cover and valve body of the trans, installing a new reverse/high piston assembly, new seals and o-rings, and cleaning out all the crud inside from sitting in the junkyard for a long time. Glad I took it apart as it had some rust and dirt inside that could have ruined it if it wasn't cleaned out. Guess that's why it's always good to check out used parts before you just put them in. They're not always as good as advertised.
Plan to put it all back together today, install new rear cat, oil pan gasket, transmission and transfer case.
Wish me luck.
Last edited by ltmax; 03-29-2014 at 07:09 AM.
Trending Topics
#8

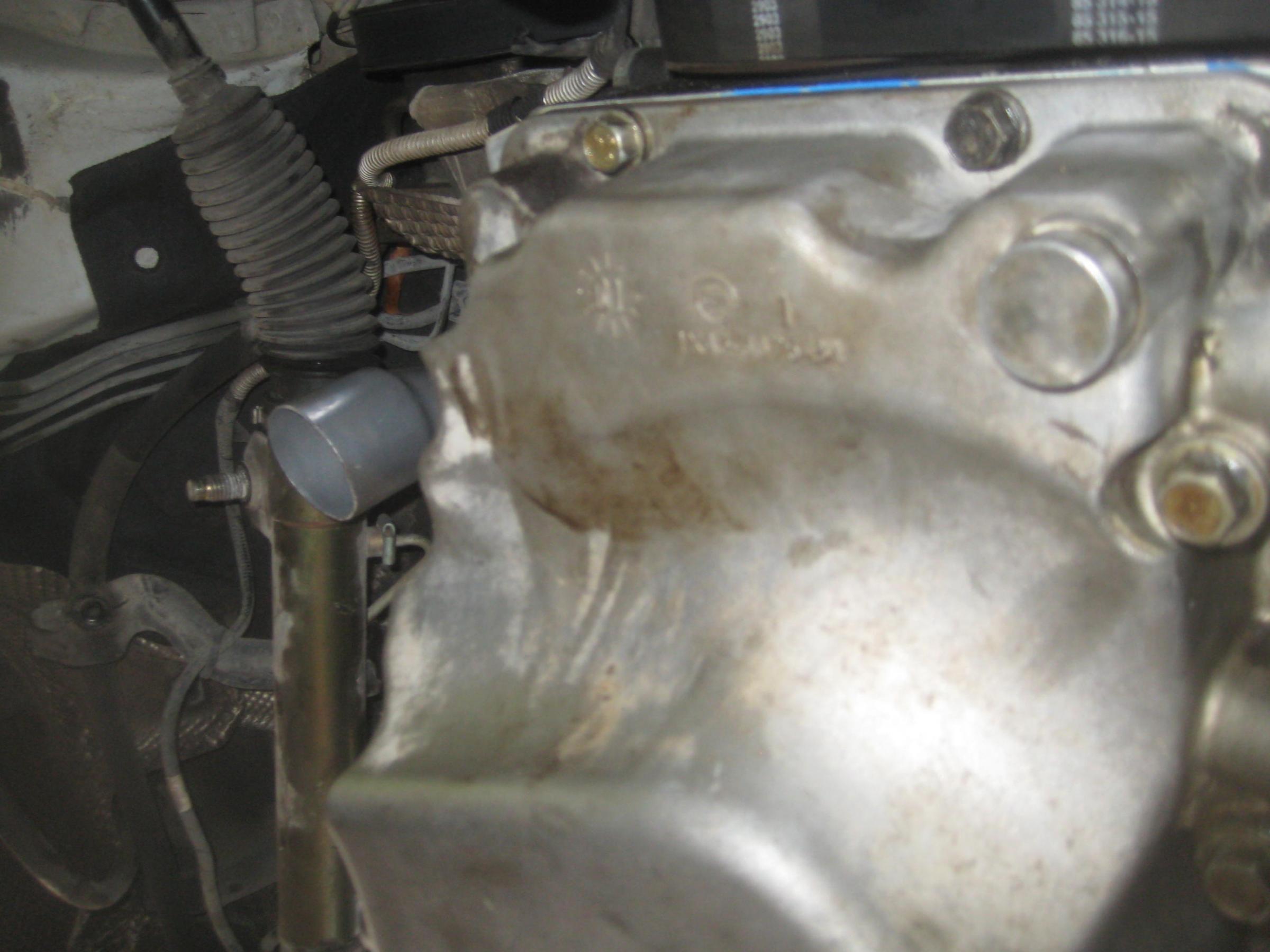

Got the new rear cat and oil pan gasket installed yesterday. There is soo much more room with the smaller aftermarket cat that I don't think I'll have the problems I had getting the transfer case bracket out around the big OEM cat and no heat shield is required so more room to access all the bolts and O2 sensors. The old cat was setting low efficiency codes and once it was out it was clear from the chunks that fell out of it that it needed to be changed.

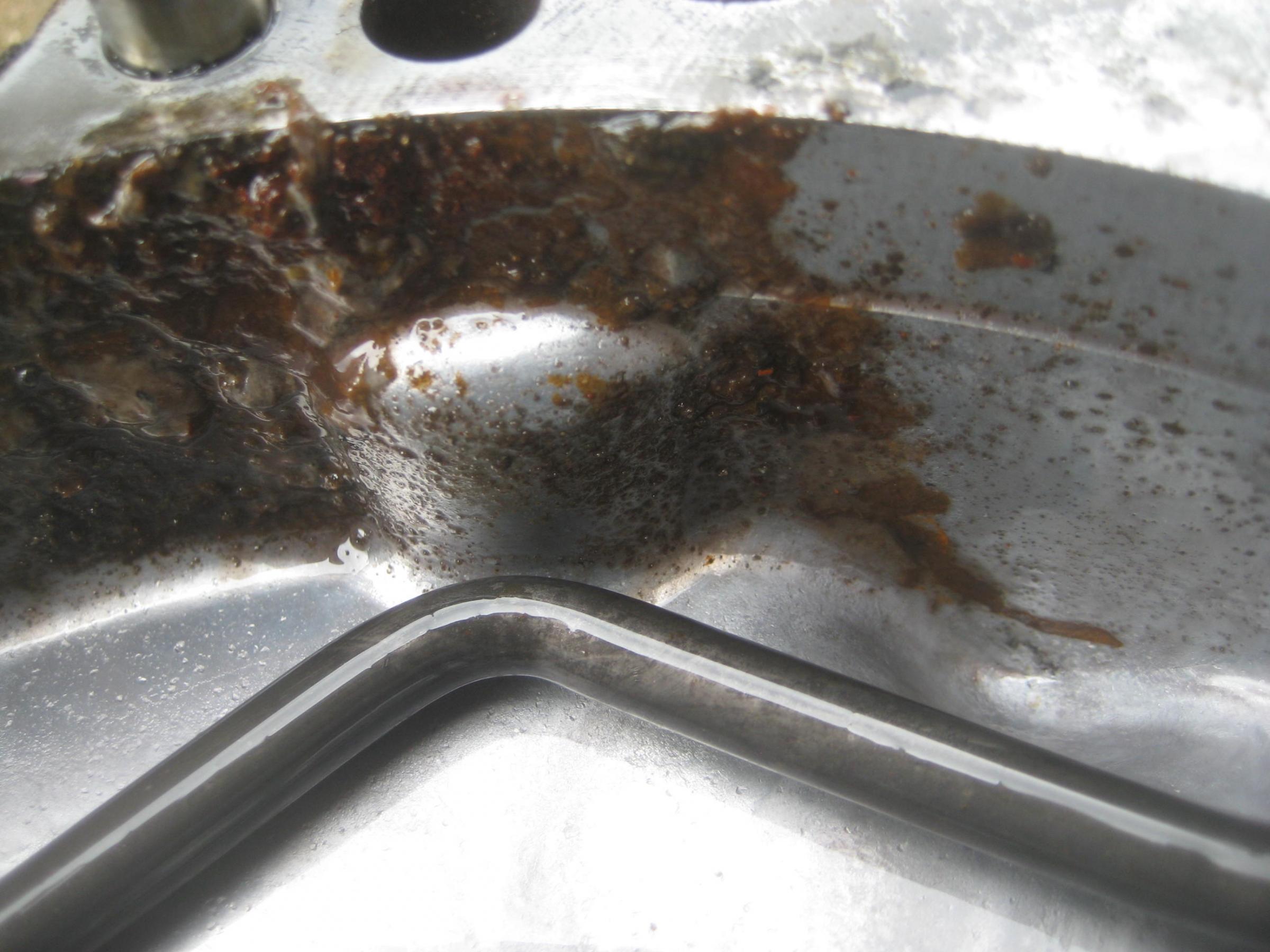

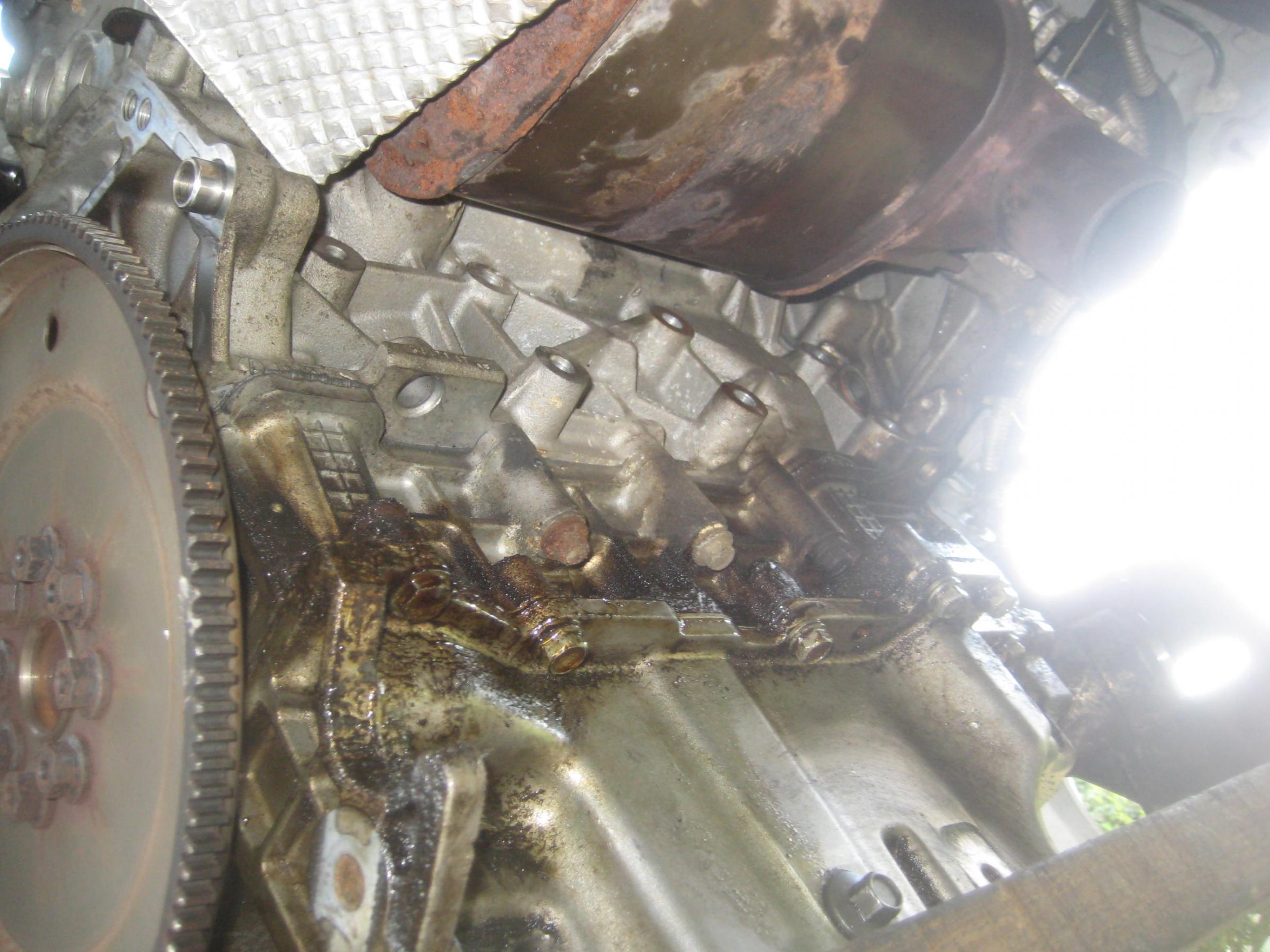

The oil pan fell right off once the bolts were out with the trans out of the car. Couldn't believe just how dirty and nasty the pan was, lots of caked on sludge and deposits that needed to be cleaned off. The previous owners must have used cheap dino oil and ran long on the oil change intervals for that much stuff to be inside. It's funny because the heads and valve covers didn't have any crud at all. One more reason to run good synthetic oil and change it often.

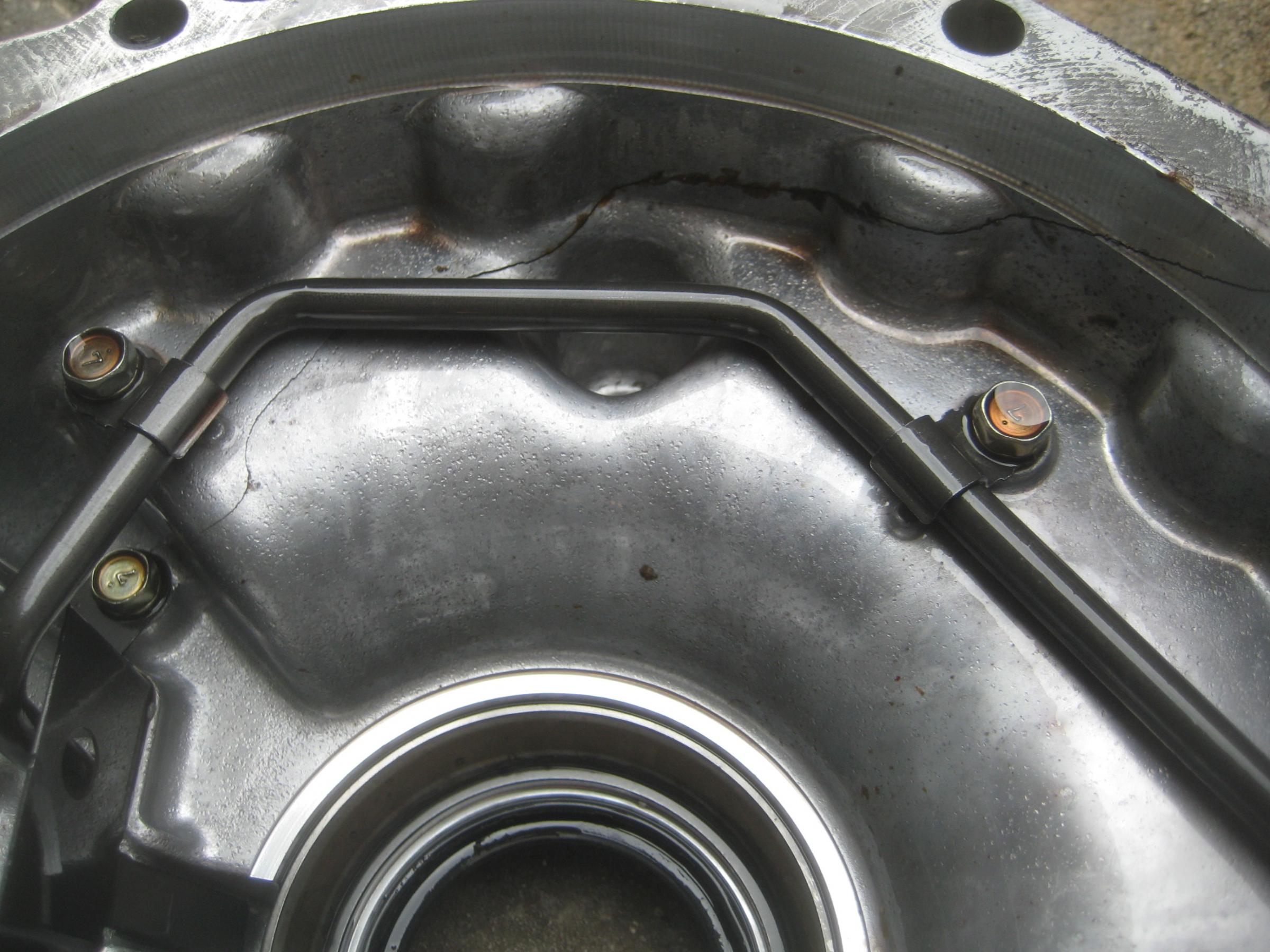

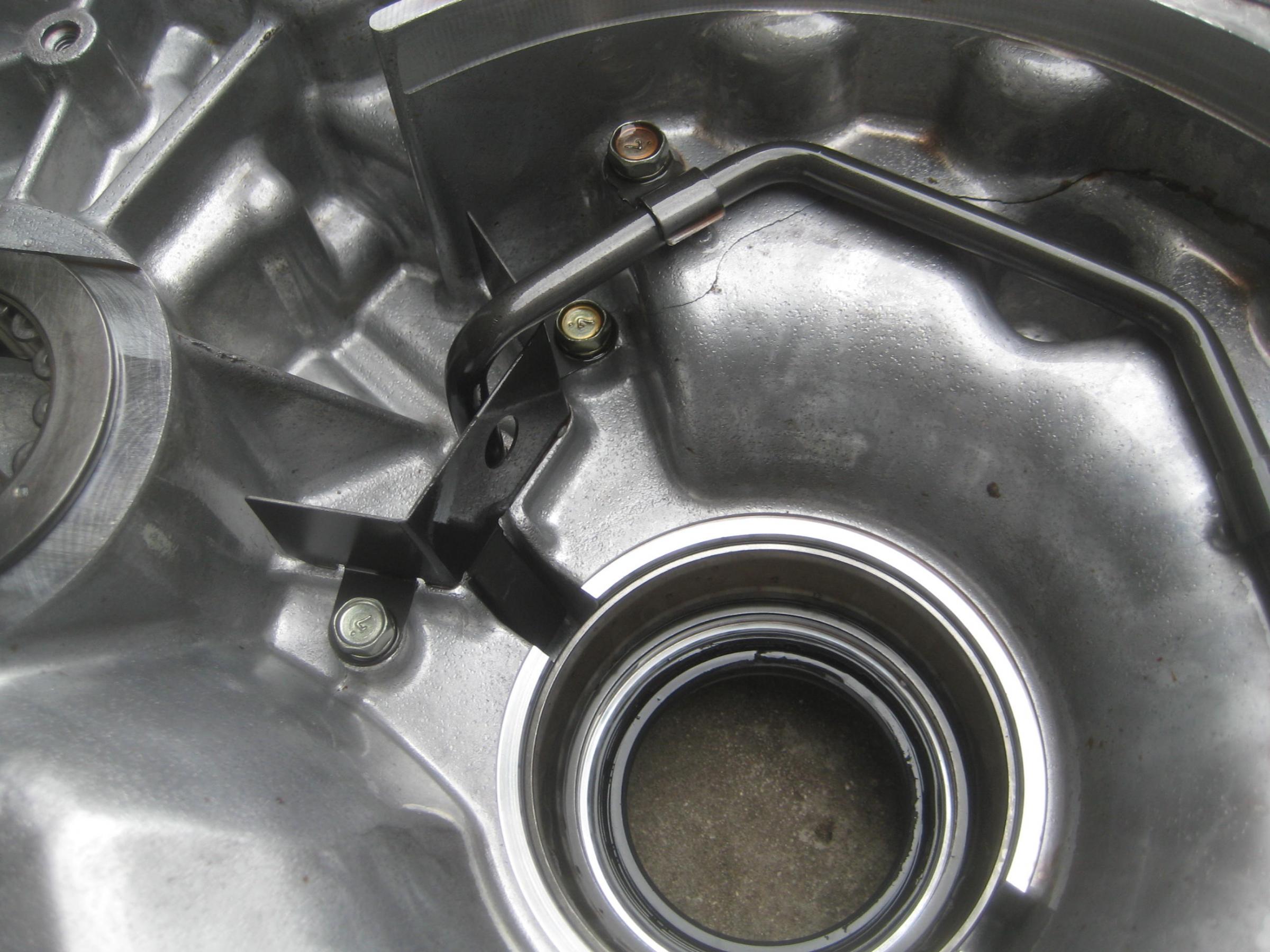

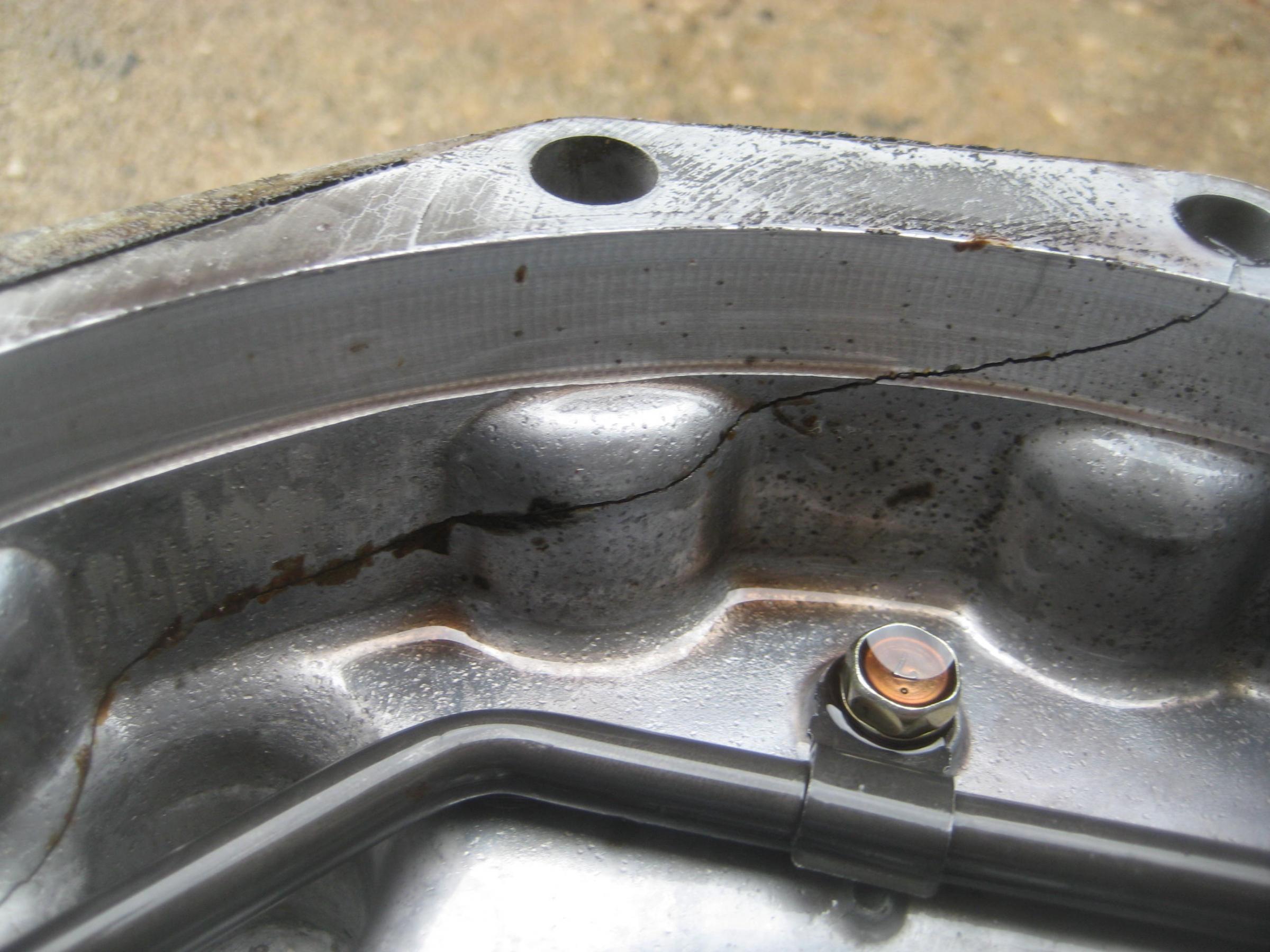

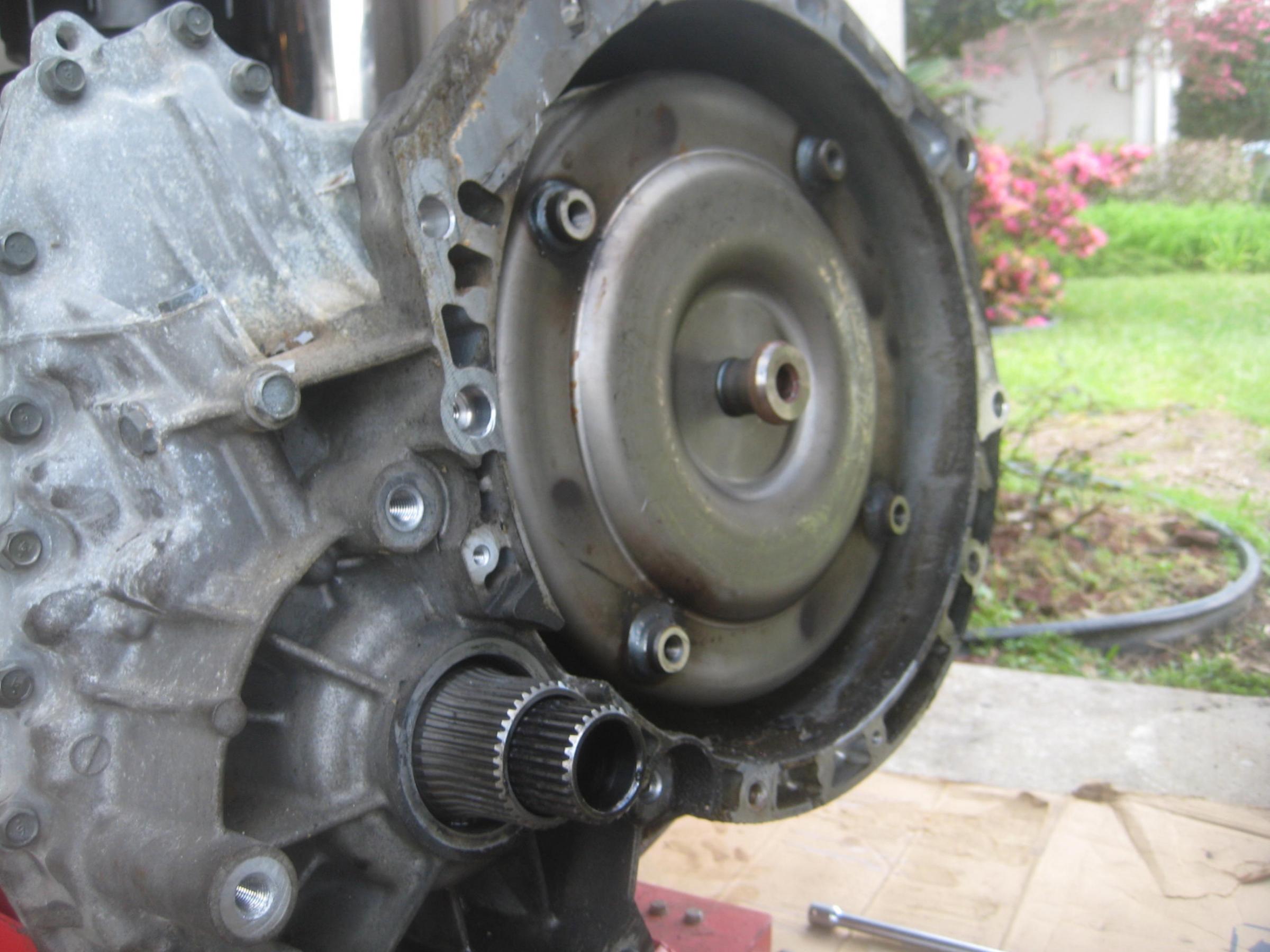

The junkyard trans I bought had a crack in the case and started leaking fluid as soon as I started pouring it in, so I had to pull it back out and swap over the front case on my old one. It gave me a chance to see inside the front of the transmission (torque converter side), it was pretty clean but had some sludge that needed to be removed. The filter is right under the case and once you take the 20 or so case bolts out the cover lifts right off and the filter and gears are easy to get to, had I known that it was so easy to take it apart, I might have tried to fix my old transmission once it was out of the car.
I'll now need to get a few oil seals and o-rings to make sure it's not going to leak once it's back in so Looks like I'm stuck waiting till next weekend to put it in the car.
The oil pan fell right off once the bolts were out with the trans out of the car. Couldn't believe just how dirty and nasty the pan was, lots of caked on sludge and deposits that needed to be cleaned off. The previous owners must have used cheap dino oil and ran long on the oil change intervals for that much stuff to be inside. It's funny because the heads and valve covers didn't have any crud at all. One more reason to run good synthetic oil and change it often.
The junkyard trans I bought had a crack in the case and started leaking fluid as soon as I started pouring it in, so I had to pull it back out and swap over the front case on my old one. It gave me a chance to see inside the front of the transmission (torque converter side), it was pretty clean but had some sludge that needed to be removed. The filter is right under the case and once you take the 20 or so case bolts out the cover lifts right off and the filter and gears are easy to get to, had I known that it was so easy to take it apart, I might have tried to fix my old transmission once it was out of the car.
I'll now need to get a few oil seals and o-rings to make sure it's not going to leak once it's back in so Looks like I'm stuck waiting till next weekend to put it in the car.
#10
Got the entire transmission, transfer case, and sub-frame etc back in the car. What was advertised as "perfect working, road tested, guaranteed" salvage yard transmission that I bought doesn't work, turns out the trans is junk.
Complete waste of money, days of labor, and now it's back to square one.
Complete waste of money, days of labor, and now it's back to square one.
#11

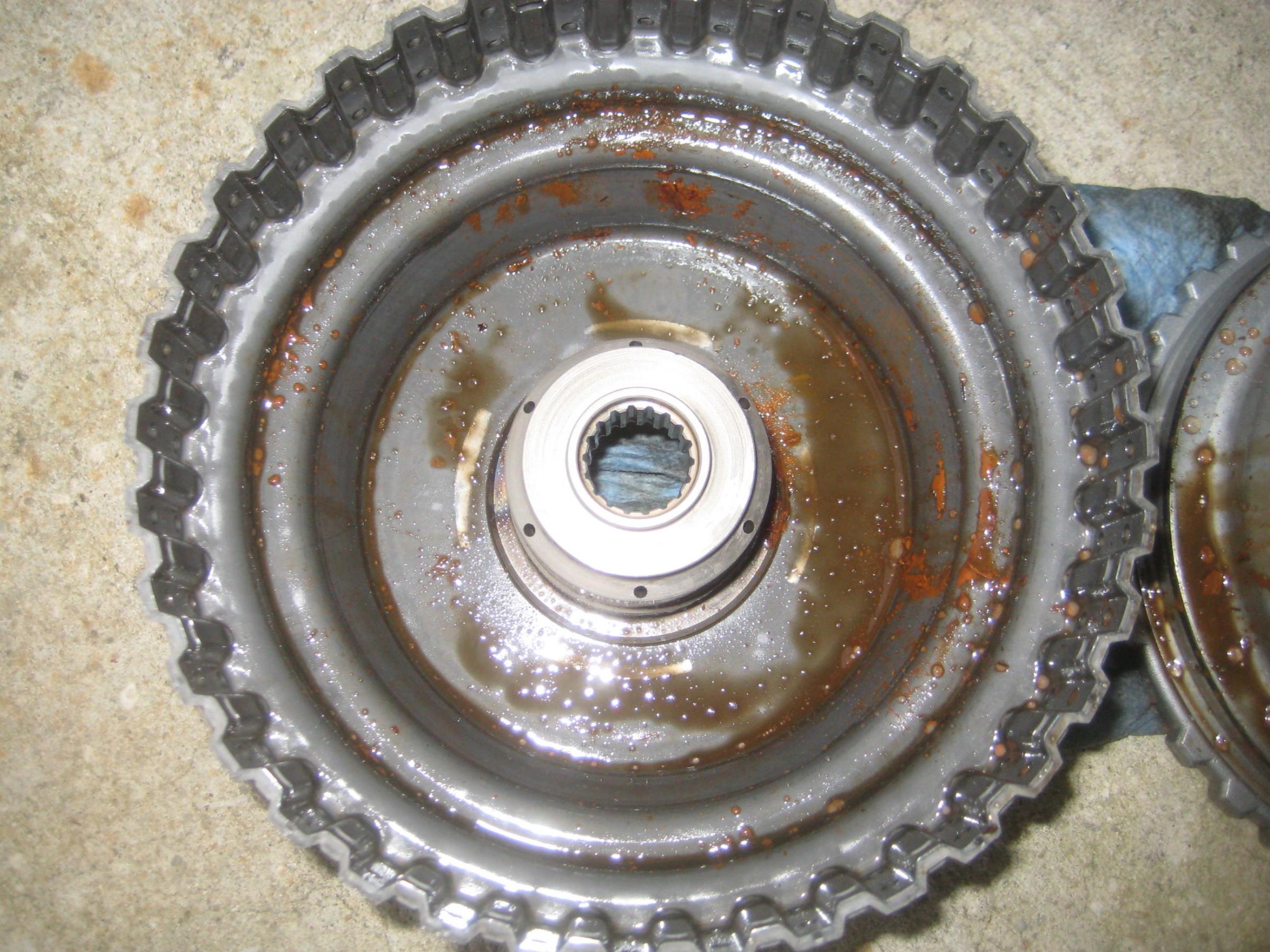

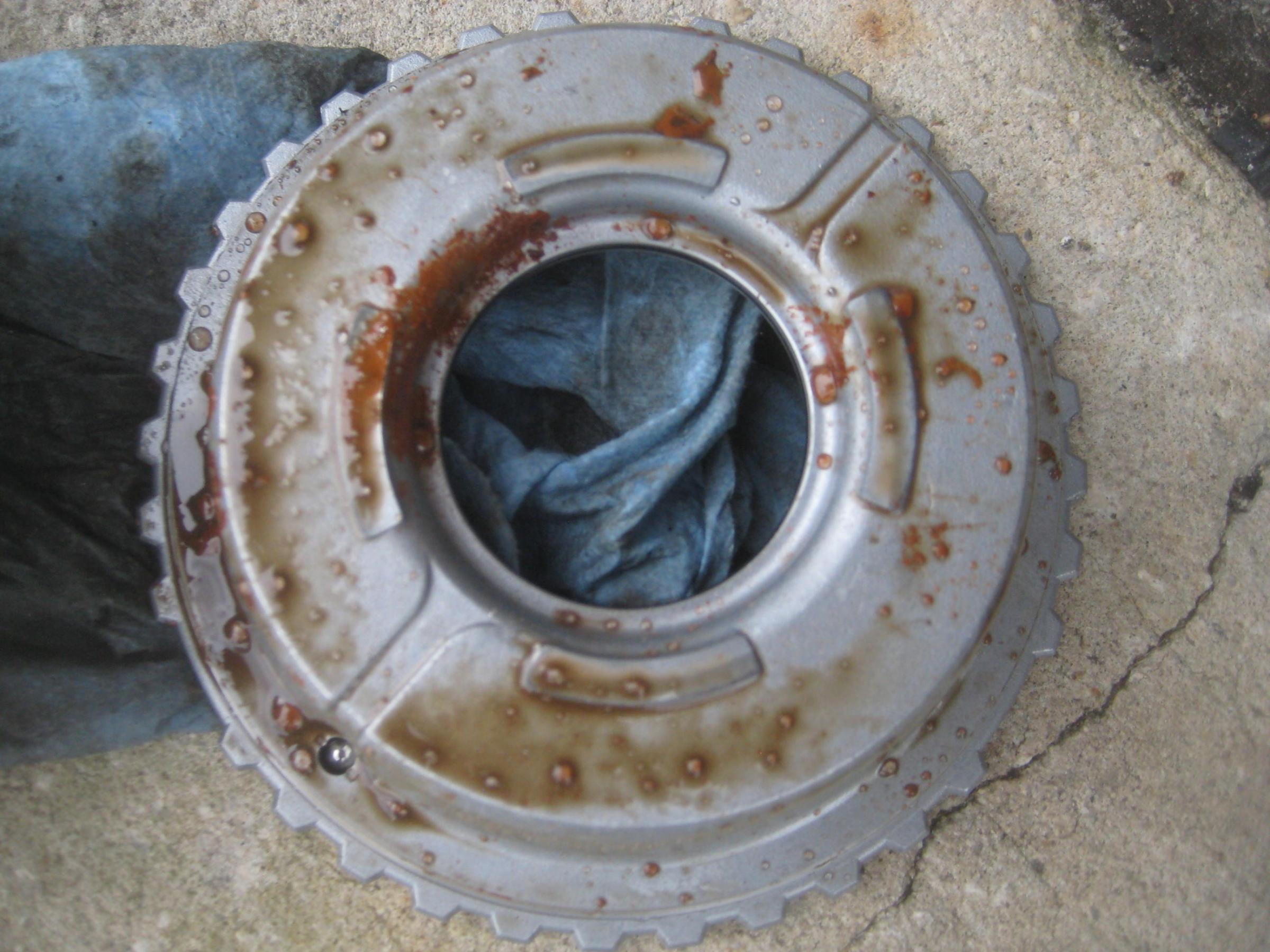

Pulled the valve body off and found some more broken parts behind it, swapped them out and installed my old gear position switch and now have all forward gears 1-5 but no reverse.
