2015 XF AWD transfer case fluid replacement
#1
#3
I dont think its the same fluid as ZF transmission fluid. I contacted Royal purple and they recommended RP Synchromax. Ive had good luck with these fluids on my LR3. I just cant find a proper way to fill it up
QUOTE=Jssaab;2290648]I was confused as well. Shop told me it is lubricated with the same fluid as the trans?[/QUOTE]
QUOTE=Jssaab;2290648]I was confused as well. Shop told me it is lubricated with the same fluid as the trans?[/QUOTE]
#4
PUBLISHED: 12-FEB-2019
2015.0 XF (X250), 307-07
TRANSFER CASE
TRANSFER CASE DRAINING AND FILLING (G1568856)
GENERAL PROCEDURES
- 46.10.05
- TRANSFER CASE DRAIN AND REFILL
- 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD
- 0.60
- USED WITHINS

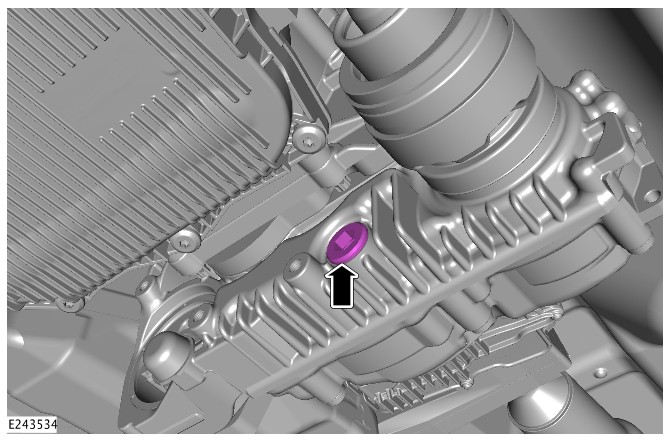

DRAINING
- WARNING:Make sure to support the vehicle with axle stands.
Raise and support the vehicle. - Refer to:Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
- Position a container to collect the fluid.
- CAUTION:Make sure that the area around the component is clean and free of foreign material.
- Allow the fluid to drain.

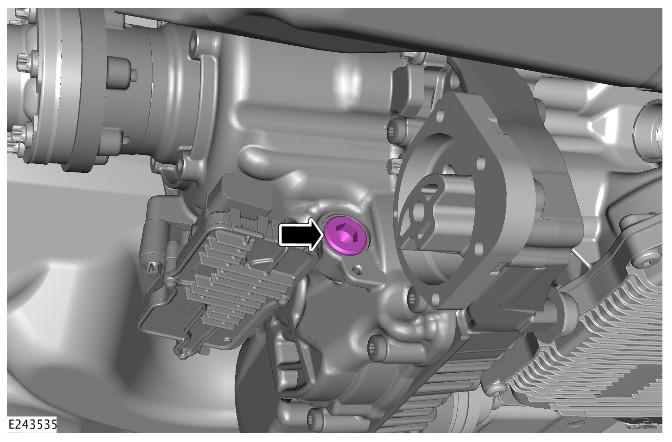

FILLING
- NOTE:Make sure that all the component mating faces are clean.

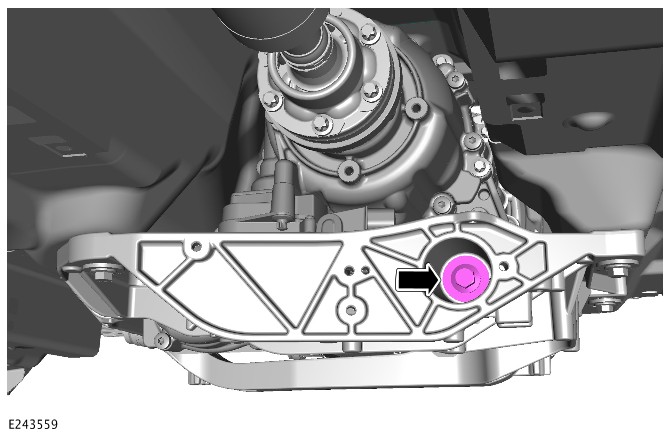

Torque: 60Nm - CAUTION:Make sure that the area around the component is clean and free of foreign material.
- Refill transfer case with the recommended fluid, until the fluid is level with bottom of filler/level plug hole.
- NOTE:Make sure that all the component mating faces are clean.
Torque: 60Nm
Torque: 43Nm

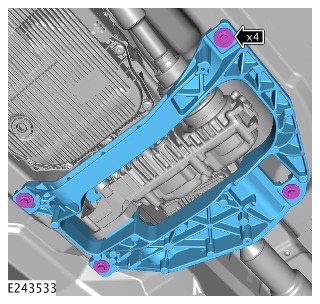

Torque: 133Nm- Refer to:Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
-
- Connect an approved battery support unit / power supply to the vehicle.
- Connect the approved diagnostic equipment.
- Check for transfer case control module (TCCM) software updates.
- Update TCCM software if required.
- Carry out the diagnostic service function, Transfer case - Oil change reset procedure.
- Disconnect the approved diagnostic equipment.
- Disconnect the approved battery support unit / power supply from the vehicle.
