Anybody have any wiring diagrams or location for amplifier for the audio system....
#21
![Default](/forum/images/icons/icon1.gif)
Hi Mark,
Thank you for looking into this and clearing things up. Bummer we don’t have a built in sub, it would have made installation easy.
Most amps for subwoofers have a pre-amp level input with a built in crossover. This allows you to tap into 2 full range signals (i.e. either Left Front / Right Front or Left Rear / Right Rear) and amplify just the lower frequencies and send that to your sub woofers. This is what I did in my previous car. Essentially everything stays in place with the OEM system and I tapped into the pre-amp level signals at the stock amplifier and connected up my own subwoofer and amp.
With that said can you confirm which wires are the right wires I should tap into (i.e. either Left Front / Right Front or Left Rear / Right Rear)?
Also, there should be another signal which tells the amp to turn on. This is separate from the power supply to the amp and only turns the OEM amp on when the stereo is turned on. Do you know which wire this is as well ?
Thanks a lot for your help!
Jim
Thank you for looking into this and clearing things up. Bummer we don’t have a built in sub, it would have made installation easy.
Most amps for subwoofers have a pre-amp level input with a built in crossover. This allows you to tap into 2 full range signals (i.e. either Left Front / Right Front or Left Rear / Right Rear) and amplify just the lower frequencies and send that to your sub woofers. This is what I did in my previous car. Essentially everything stays in place with the OEM system and I tapped into the pre-amp level signals at the stock amplifier and connected up my own subwoofer and amp.
With that said can you confirm which wires are the right wires I should tap into (i.e. either Left Front / Right Front or Left Rear / Right Rear)?
Also, there should be another signal which tells the amp to turn on. This is separate from the power supply to the amp and only turns the OEM amp on when the stereo is turned on. Do you know which wire this is as well ?
Thanks a lot for your help!
Jim
#22
#23
![Default](/forum/images/icons/icon1.gif)
I had to get the connector for speaker level signals for my amp. Do you know if there was a signal to turn the amp on (not the power supply, but a low power signal that tells the amp to turn the power supply on)?
I heard it may be the gray/red on the green connector.
Thx.
I heard it may be the gray/red on the green connector.
Thx.
I downloaded the 10 speaker wiring diagram from jag technical website (1 day access cost me £7.50), you could run the sub off the rear right woofer wires, they are labelled as:
BN-WH
BN-BU
Of course these are speaker level outputs, so would need amp capable of taking high-level input.
BN-WH
BN-BU
Of course these are speaker level outputs, so would need amp capable of taking high-level input.
The following users liked this post:
Mikeyy121 (10-06-2021)
#24
![Default](/forum/images/icons/icon1.gif)
Below are some pics from my install.
Pic 1: Used wire taps to splice into L & R woofer signals (makes for easy connection).

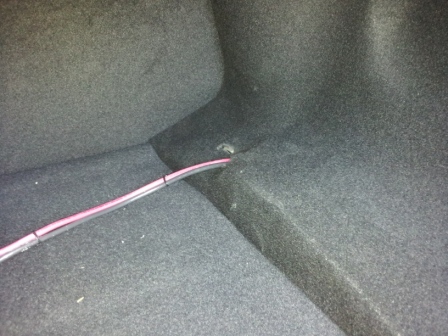

Pic 2: Routed Power cables
Pic 3: Finished install of sub and amp
I ended up tapping into the fuse box in the trunk for the signal to switch the amp power on and off.
Thanks to BlackX300VDP and DMan for their help!
-Jim
Pic 1: Used wire taps to splice into L & R woofer signals (makes for easy connection).
Pic 2: Routed Power cables
Pic 3: Finished install of sub and amp
I ended up tapping into the fuse box in the trunk for the signal to switch the amp power on and off.
Thanks to BlackX300VDP and DMan for their help!
-Jim
The following 3 users liked this post by jjsaustin:
#25
![Default](/forum/images/icons/icon1.gif)
I have a 2009 Jaguar XF with the standard 320W sounds system. I am getting no sound out of the driver side front door speaker (it appears to be blown out completely). The tweeter on driver side front still works. The passenger side front door distorts at high volume as well. My question is has anyone upgraded the speakers on a Jaguar XF? Any recommendations? Does the XF requires component speakers?
I have heard the amp is non-upgradeable?
I have heard the amp is non-upgradeable?
#26
![Default](/forum/images/icons/icon1.gif)
Remote Start, Security, Keyless Entry, Accessories
Item Wire Color Polarity Wire Location
12 Volts red (250A) + Central Junction Box
Second 12 Volts N/A
Starter yellow/orange - 1K ohms start/stop button or CJB, purple 20 pin plug, pin 16
Second Starter green/brown + Engine Junction Box, black 168 pin plug,pin Q5
Ignition green/purple (for ignition sense only) + start/stop button or CJB, green 20 pin plug, pin 8
Second Ignition N/A
Third Ignition N/A
Accessory gray/red (for accessory sense only) + front accessory socket or CJB, gray 6 pin plug, pin 4
Second Accessory N/A
Third Accessory N/A
Keysense N/A
Data Bus N/A
Can Bus High gray/orange (MS CAN) data diagnostic conn, blk 16 pin plg, pin 3 or CJB, brn 20 pin plg, pin 3
Can Bus Low purple/orange (MS CAN) data diagnostic conn, blk 16 pin plg, pin 11 or CJB, brn 20 pin plg, pin4
Can Bus Sw N/A
Power Lock gray/brown - master lock switch or CJB, green 20 pin plug, pin 3
Power Unlock brown/green - master unlock switch or CJB, green 20 pin plug, pin 11
Lock Motor black 5 wire Driver Door Module, black 22 pin plug, pin 10
Driver Unlock Motor black 5 wire Driver Door Module, black 22 pin plug, pin 7
Passenger Unlock Motor black 5 wire Passenger Door Module, gray 22 pin plug, pin 7
Parking Lights (-) yellow/blue (need to relay isolate from switch) - 236 ohms headlight switch, black 6 pin plug, pin 4
Parking Lights (+) green/orange (LF), brown/yellow (RF) + CJB, blue 20 pin plug, pins 5 and 17
Hazards brown/yellow - hazard switch, black 10 pin plug, pin 10 or pass kick, harness to rear
Turn Signal (Left) blue/green (F), gray/orange (R) + Rear Junction Box, blue 20 pin plug, pins 7 and 19
Turn Signal (Right) yellow/purple (F), green/orange (R) + Rear Junction Box, gray 20 pin plug, pins 6 and 19
Headlight yellow/blue (need to relay isolate from switch) - 506 ohms headlight switch, black 6 pin plug, pin 4
AutoLights yellow/blue (need to relay isolate from switch) - 56 ohms headlight switch, black 6 pin plug, pin 4
Reverse Light green/brown + Rear Junction Box, blue 20 pin plug, pin 13
Left Front Door Trigger green/purple - CJB, green 20 pin plug, pin 13
Right Front Door Trigger white - CJB, brown 20 pin plug, pin 19
Left Rear Door Trigger green - CJB, brown 20 pin plug, pin 7
Right Rear Door Trigger yellow - CJB, brown 20 pin plug, pin 2
Remote Start, Security, Keyless Entry, Accessories (Continued)
Item Wire Color Polarity Wire Location
Dome Supervision gray/purple - footwell lamp or Rear Junction Box, white 20 pin plug, pin 2
Trunk/Hatch Pin yellow/orange - N.C. CJB, brown 20 pin plug, pin 9
Rear Glass Pin N/A
Hood Pin black - CJB, green 20 pin plug, pin 12
Trunk/Hatch Release white - trunk release switch, black 12 pin plug, pin 2
Trunk Release Motor brown/purple 5 wire Rear Junction Box, white 20 pin plug, pin 5
Fuel Door Release white/purple 5 wire Rear Junction Box, white 20 pin plug, pin 15
Power Sliding Door (Left) N/A
Power Sliding Door (Right) N/A
Factory Alarm Arm black (driver door key cylinder) - Driver Door Module, black 22 pin plug, pin 21
Factory Alarm Disarm black (driver door key cylinder) double - Driver Door Module, black 24 pin plug, pin 22
Disarm No Unlock Smart Key and push-button start
Trunk Alarm Shunt N/A
Tachometer NOT purple/gray ac any fuel injector
Wait to Start N/A
Neutral Safety N/A
Clutch Pedal N/A
Fuel Pump white/orange + Rear Junction Box, green 12 pin plug, pin 1
Rear Defroster green/blue + latched Rear Junction Box, gray 6 pin plug, pin 4
Mirror Defroster black (L), black (R) + latched Driver/Passenger Door Module, black or gray 24 pin plug, pin 10
Left Front Heated Seat purple/green (except climate controlled) 5 wire CJB, white 20 pin plug, pin 2
Right Front Heated Seat yellow/green (except climate controlled) 5 wire CJB, white 20 pin plug, pin 8
Speed Sense blue (with sunroof only) ac driver A pillar or driver kick, harness to engine compartment
Brake Wire purple/brown + brake switch or CJB, purple 20 pin plug, pin 7
Parking Brake (electric parking brake)
Horn Trigger blue/white - horn switch, white 10 pin plug, pin 7 or pass kick, harness to rear
Wipers gray/brown - CJB, gray 20 pin plug, pin 4
Left Front Window (Up/Down) (not recommended because of factory auto up/down)
Right Front Window (Up/Down) (not recommended because of factory auto up/down)
Left Rear Window (Up/Down) (not recommended because of factory auto up/down)
Right Rear Window (Up/Down) (not recommended because of factory auto up/down)
Sun Roof (Open/Close) pur/brn - yel/org (function with ignition on only) - overhead console, gray 20 pin plug, pins 14 and 16
Sun Roof (Limit/Close) N/A
Memory Seat 1 black to gray/purple - resistor memory switch, black 8 pin plug, pin 4 or driver kick, door harness
Memory Seat 2 same as memory seat 1 - resistor
Memory Seat 3 N/A
Audio
Item Wire Color Polarity Wire Location
Radio 12V yellow/red + radio, lt. gray 14 pin plug, pin 1
Radio Ground black - radio, lt. gray 14 pin plug, pin 8
Radio Ignition (MS CAN)
Radio Illumination (MS CAN)
Factory Amp Turn-on (MOST bus)
Power Antenna yellow/green + radio, lt. gray 14 pin plug, pin 2
Left Front Speaker (+/-) white - white/brown +,- radio, gray 12 pin plug, pins 6 and 12
Right Front Speaker (+/-) white/purple - white/orange +,- radio, gray 12 pin plug, pins 1 and 7
Left Rear Speaker (+/-) white/green - brown/yellow +,- radio, gray 12 pin plug, pins 3 and 9
Right Rear Speaker (+/-) brown/white - brown/blue +,- radio, gray 12 pin plug, pins 4 and 10
Center Channel (+/-) green - gray/yellow +,- amplifier, lt. gray 10 pin plug, pins 8 and 3
Subwoofer (+/-) purple/grn - green/wht (1); wht/brn - pur/org (2) +,- amplifier, green 16 pin plug, pins 16 and 8; 10 and 2
Aux. Audio Input Left (+/-) blue - yellow/green +,- radio, lt. gray 14 pin plug, pins 10 and 11
Aux. Audio Input Right (+/-) blue/green - yellow/green +,- radio, lt. gray 14 pin plug, pins 12 and 11
RSE Video (+/-) yellow/gray - (shield) (TV receiver video input) +,- touch screen display, 2 pin plug, pins 1 and 2
RSE Audio Left (+/-) (MOST bus)
RSE Audio Right (+/-) (MOST bus)
Satellite Radio 12 Volts white/red + SDARS Module, black 2 pin plug, pin 1
Satellite Radio Ground black - SDARS Module, black 2 pin plug, pin 2
Satellite Radio Ignition (MOST bus)
Satellite Radio Antenna (coaxial cable)
Satellite Audio Left (+/-) (MOST bus)
Satellite Audio Right (+/-) (MOST bus)
What Fits
Item Size Depth Location
Headunit irregular center of dash
Left Front Speaker left front door
Left Front Tweeter left front door
Right Front Speaker right front door
Right Front Tweeter right front door
Left Rear Speaker left rear door
Left Rear Tweeter left rear door (tweeter), rear deck (surround)
Right Rear Speaker right rear door
Right Rear Tweeter right rear door (tweeter), rear deck (surround)
Center Channel top center of dash
Subwoofer spare tire well
Left Front Headrest
Right Front Headrest
Left Rear Headrest
Right Rear Headrest
Satellite Radio Tuner under driver seat

Item Wire Color Polarity Wire Location
12 Volts red (250A) + Central Junction Box
Second 12 Volts N/A
Starter yellow/orange - 1K ohms start/stop button or CJB, purple 20 pin plug, pin 16
Second Starter green/brown + Engine Junction Box, black 168 pin plug,pin Q5
Ignition green/purple (for ignition sense only) + start/stop button or CJB, green 20 pin plug, pin 8
Second Ignition N/A
Third Ignition N/A
Accessory gray/red (for accessory sense only) + front accessory socket or CJB, gray 6 pin plug, pin 4
Second Accessory N/A
Third Accessory N/A
Keysense N/A
Data Bus N/A
Can Bus High gray/orange (MS CAN) data diagnostic conn, blk 16 pin plg, pin 3 or CJB, brn 20 pin plg, pin 3
Can Bus Low purple/orange (MS CAN) data diagnostic conn, blk 16 pin plg, pin 11 or CJB, brn 20 pin plg, pin4
Can Bus Sw N/A
Power Lock gray/brown - master lock switch or CJB, green 20 pin plug, pin 3
Power Unlock brown/green - master unlock switch or CJB, green 20 pin plug, pin 11
Lock Motor black 5 wire Driver Door Module, black 22 pin plug, pin 10
Driver Unlock Motor black 5 wire Driver Door Module, black 22 pin plug, pin 7
Passenger Unlock Motor black 5 wire Passenger Door Module, gray 22 pin plug, pin 7
Parking Lights (-) yellow/blue (need to relay isolate from switch) - 236 ohms headlight switch, black 6 pin plug, pin 4
Parking Lights (+) green/orange (LF), brown/yellow (RF) + CJB, blue 20 pin plug, pins 5 and 17
Hazards brown/yellow - hazard switch, black 10 pin plug, pin 10 or pass kick, harness to rear
Turn Signal (Left) blue/green (F), gray/orange (R) + Rear Junction Box, blue 20 pin plug, pins 7 and 19
Turn Signal (Right) yellow/purple (F), green/orange (R) + Rear Junction Box, gray 20 pin plug, pins 6 and 19
Headlight yellow/blue (need to relay isolate from switch) - 506 ohms headlight switch, black 6 pin plug, pin 4
AutoLights yellow/blue (need to relay isolate from switch) - 56 ohms headlight switch, black 6 pin plug, pin 4
Reverse Light green/brown + Rear Junction Box, blue 20 pin plug, pin 13
Left Front Door Trigger green/purple - CJB, green 20 pin plug, pin 13
Right Front Door Trigger white - CJB, brown 20 pin plug, pin 19
Left Rear Door Trigger green - CJB, brown 20 pin plug, pin 7
Right Rear Door Trigger yellow - CJB, brown 20 pin plug, pin 2
Remote Start, Security, Keyless Entry, Accessories (Continued)
Item Wire Color Polarity Wire Location
Dome Supervision gray/purple - footwell lamp or Rear Junction Box, white 20 pin plug, pin 2
Trunk/Hatch Pin yellow/orange - N.C. CJB, brown 20 pin plug, pin 9
Rear Glass Pin N/A
Hood Pin black - CJB, green 20 pin plug, pin 12
Trunk/Hatch Release white - trunk release switch, black 12 pin plug, pin 2
Trunk Release Motor brown/purple 5 wire Rear Junction Box, white 20 pin plug, pin 5
Fuel Door Release white/purple 5 wire Rear Junction Box, white 20 pin plug, pin 15
Power Sliding Door (Left) N/A
Power Sliding Door (Right) N/A
Factory Alarm Arm black (driver door key cylinder) - Driver Door Module, black 22 pin plug, pin 21
Factory Alarm Disarm black (driver door key cylinder) double - Driver Door Module, black 24 pin plug, pin 22
Disarm No Unlock Smart Key and push-button start
Trunk Alarm Shunt N/A
Tachometer NOT purple/gray ac any fuel injector
Wait to Start N/A
Neutral Safety N/A
Clutch Pedal N/A
Fuel Pump white/orange + Rear Junction Box, green 12 pin plug, pin 1
Rear Defroster green/blue + latched Rear Junction Box, gray 6 pin plug, pin 4
Mirror Defroster black (L), black (R) + latched Driver/Passenger Door Module, black or gray 24 pin plug, pin 10
Left Front Heated Seat purple/green (except climate controlled) 5 wire CJB, white 20 pin plug, pin 2
Right Front Heated Seat yellow/green (except climate controlled) 5 wire CJB, white 20 pin plug, pin 8
Speed Sense blue (with sunroof only) ac driver A pillar or driver kick, harness to engine compartment
Brake Wire purple/brown + brake switch or CJB, purple 20 pin plug, pin 7
Parking Brake (electric parking brake)
Horn Trigger blue/white - horn switch, white 10 pin plug, pin 7 or pass kick, harness to rear
Wipers gray/brown - CJB, gray 20 pin plug, pin 4
Left Front Window (Up/Down) (not recommended because of factory auto up/down)
Right Front Window (Up/Down) (not recommended because of factory auto up/down)
Left Rear Window (Up/Down) (not recommended because of factory auto up/down)
Right Rear Window (Up/Down) (not recommended because of factory auto up/down)
Sun Roof (Open/Close) pur/brn - yel/org (function with ignition on only) - overhead console, gray 20 pin plug, pins 14 and 16
Sun Roof (Limit/Close) N/A
Memory Seat 1 black to gray/purple - resistor memory switch, black 8 pin plug, pin 4 or driver kick, door harness
Memory Seat 2 same as memory seat 1 - resistor
Memory Seat 3 N/A
Audio
Item Wire Color Polarity Wire Location
Radio 12V yellow/red + radio, lt. gray 14 pin plug, pin 1
Radio Ground black - radio, lt. gray 14 pin plug, pin 8
Radio Ignition (MS CAN)
Radio Illumination (MS CAN)
Factory Amp Turn-on (MOST bus)
Power Antenna yellow/green + radio, lt. gray 14 pin plug, pin 2
Left Front Speaker (+/-) white - white/brown +,- radio, gray 12 pin plug, pins 6 and 12
Right Front Speaker (+/-) white/purple - white/orange +,- radio, gray 12 pin plug, pins 1 and 7
Left Rear Speaker (+/-) white/green - brown/yellow +,- radio, gray 12 pin plug, pins 3 and 9
Right Rear Speaker (+/-) brown/white - brown/blue +,- radio, gray 12 pin plug, pins 4 and 10
Center Channel (+/-) green - gray/yellow +,- amplifier, lt. gray 10 pin plug, pins 8 and 3
Subwoofer (+/-) purple/grn - green/wht (1); wht/brn - pur/org (2) +,- amplifier, green 16 pin plug, pins 16 and 8; 10 and 2
Aux. Audio Input Left (+/-) blue - yellow/green +,- radio, lt. gray 14 pin plug, pins 10 and 11
Aux. Audio Input Right (+/-) blue/green - yellow/green +,- radio, lt. gray 14 pin plug, pins 12 and 11
RSE Video (+/-) yellow/gray - (shield) (TV receiver video input) +,- touch screen display, 2 pin plug, pins 1 and 2
RSE Audio Left (+/-) (MOST bus)
RSE Audio Right (+/-) (MOST bus)
Satellite Radio 12 Volts white/red + SDARS Module, black 2 pin plug, pin 1
Satellite Radio Ground black - SDARS Module, black 2 pin plug, pin 2
Satellite Radio Ignition (MOST bus)
Satellite Radio Antenna (coaxial cable)
Satellite Audio Left (+/-) (MOST bus)
Satellite Audio Right (+/-) (MOST bus)
What Fits
Item Size Depth Location
Headunit irregular center of dash
Left Front Speaker left front door
Left Front Tweeter left front door
Right Front Speaker right front door
Right Front Tweeter right front door
Left Rear Speaker left rear door
Left Rear Tweeter left rear door (tweeter), rear deck (surround)
Right Rear Speaker right rear door
Right Rear Tweeter right rear door (tweeter), rear deck (surround)
Center Channel top center of dash
Subwoofer spare tire well
Left Front Headrest
Right Front Headrest
Left Rear Headrest
Right Rear Headrest
Satellite Radio Tuner under driver seat
The following 6 users liked this post by BigCat09:
2010 Kyanite XFR (09-28-2013),
bryce804 (06-29-2012),
Customgtrs (03-12-2014),
racer9816 (10-14-2012),
Reaxions (05-30-2012),
and 1 others liked this post.
#28
![Default](/forum/images/icons/icon1.gif)
Now, i have not seen the trunk of a 2012 but the 2011 and older all had the same setup. The subwoofer does not look like the traditional subwoofer. The huge plastic box that the spare sits on is the sub enclosure. There should be a four wire connector at the back right (passenger side) corner of the box. Those are the sub wires. I don't think 2012 changed. Wire colors are (at the sub)
pin 1 violet/green
pin 2 Green/white
pin 3 white/brown
pin 4 violet/orange
The wires at the amplifier are the same colors but the connector is the grey connector. Looks like second from left looking at the connector side of the amp.
Good luck
pin 1 violet/green
pin 2 Green/white
pin 3 white/brown
pin 4 violet/orange
The wires at the amplifier are the same colors but the connector is the grey connector. Looks like second from left looking at the connector side of the amp.
Good luck
I am trying to get a sub in my trunk and want to do it as cleanly as possible. Any help would be greatly appreciated.
#29
![Default](/forum/images/icons/icon1.gif)
im thinking of upgrading my speakers to, no problems with them though its an 09 luxury with the bower wilkins system. what yall think of some rockford fosgate component speakers and a 2 channel amp for the speakers. probably cant change out the stock screen to a double din huh, not that i want to but if it is a possibility?
#30
![Default](/forum/images/icons/icon1.gif)
Hi I've just bought a XF Business and been a bit disappointed with the audio quality.
The spec says a 400W 10 speaker but it sounds more like 40W, The back door speakers are very quiet.
I've seen a Subwoofer on Ebay for the space saver, But if I buy it.
Can I connect it instead of the back door speakers? Is there enough power ?
Also if the Sub goes into the space saver well. How does the sound get into the car ? Wouldn't the wooden carpeted lid on-top of it, stop the sound ?
The spec says a 400W 10 speaker but it sounds more like 40W, The back door speakers are very quiet.
I've seen a Subwoofer on Ebay for the space saver, But if I buy it.
Can I connect it instead of the back door speakers? Is there enough power ?
Also if the Sub goes into the space saver well. How does the sound get into the car ? Wouldn't the wooden carpeted lid on-top of it, stop the sound ?
#31
![Default](/forum/images/icons/icon1.gif)
This is a great forum when I have to reply to my own posts.
Further research I have found that the XF business 2012MY audio system is the 250W basic jaguar and the power to the back door speakers is alot less than the front.
Also I found the bleeps for the reversing sensors are feed into the rear door speakers. So I cant disconnect them.
The only answer is a high level subwoofer Amp.
Further research I have found that the XF business 2012MY audio system is the 250W basic jaguar and the power to the back door speakers is alot less than the front.
Also I found the bleeps for the reversing sensors are feed into the rear door speakers. So I cant disconnect them.
The only answer is a high level subwoofer Amp.
#32
![Default](/forum/images/icons/icon1.gif)
jjsaustin: Can you provide a bit more detail on what you did to get your amps working? Would I need an amp if my intention is to run just a standard small 6" woofer or a powered unit like a Blaupunkt?
I'm just looking to fill out the lows of this system a bit, and not really rattle the trunk.
I'm just looking to fill out the lows of this system a bit, and not really rattle the trunk.
#33
![Default](/forum/images/icons/icon1.gif)
I tapped off four wires from the high level outputs from the back speakers white/green brown/yellow and brown/white brown/blue into a high to low level converter with a remote signal output. Then used the 12v feed Black/red-white to power my amp and the remote signal to turn the amp on and off. I have a space saver subwoofer and the frequencies are so low you tend to feel the sound through the car.
#34
#35
#36
![Default](/forum/images/icons/icon1.gif)
I have a Jaguar XF 2012 too do you think an upgrade of the amps ad subs is a good decision? Or will it just make the XF look cheap?
THe current stock subs are like useless theres barely anything in them, that why i would like to replace them.
But i dont want to lose the sleek look and feel of the XF for it.
THe current stock subs are like useless theres barely anything in them, that why i would like to replace them.
But i dont want to lose the sleek look and feel of the XF for it.
Last edited by Globot1; 11-04-2012 at 01:51 AM.
#37
![Default](/forum/images/icons/icon1.gif)
I bought a used jaguar space saver subwoofer from ebay. It plugs straight into the existing wiring for the amp, Unfortunately the subwoofer option in the amp has not been enabled. Therefore I had to add a 2 x 80w amp which uses the rear speaker high level output. The Amp sits on top of the speaker and is remotely switch on and off from the rear audio signal.
