Climate Seats retrofit
For me it the longest mod for this vehicle, lasting more than a year.
There almost two year till now how the front XFR seats with climate function were bought, about a year they are waits time for alter to Barley color, about 6 months looks for correct color leather and 6 months after installing rides without worked cooling/heating function.

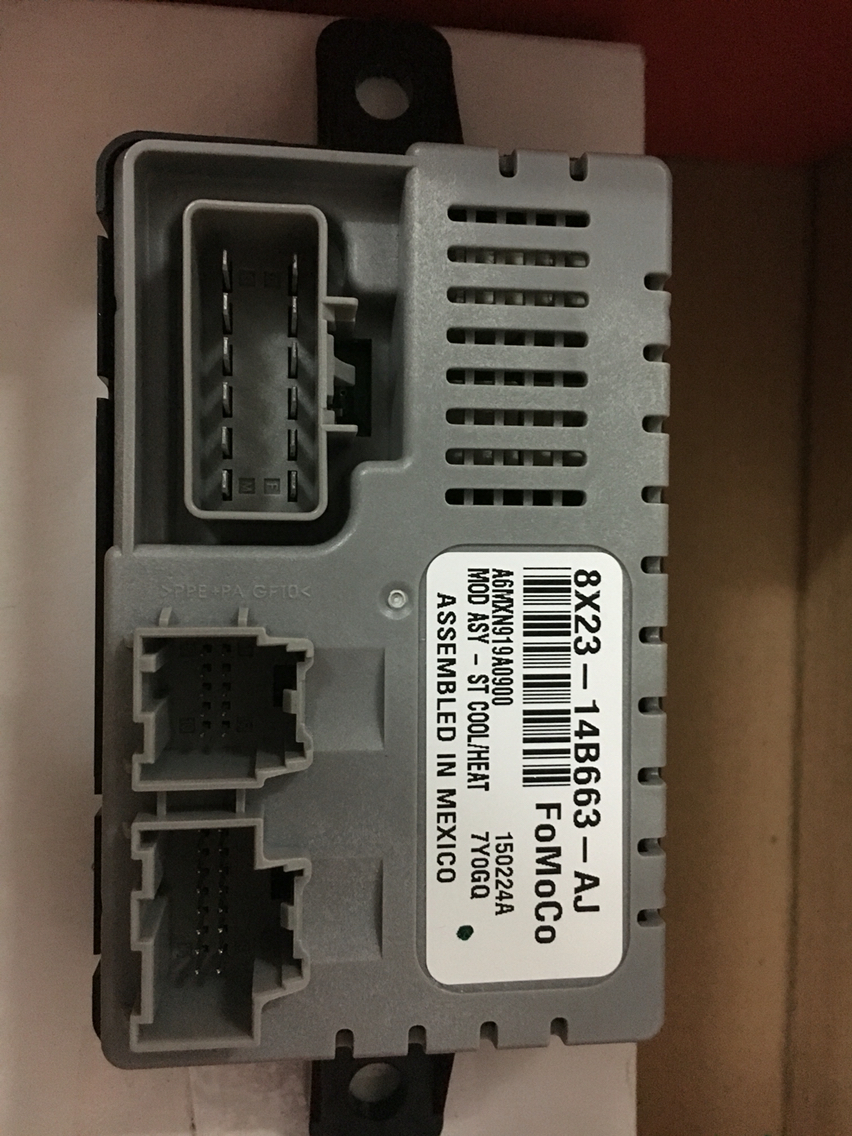

About two or three months tried to find correctÂ*Â*cooling/heating module on online markets without luck, so decided to order new one with part number C2Z25605 (8X23-14B663-AJ)
and connection housing, the main problem was with one of housing, now its obsolete, so about a week looked for used one housing, they are were found with pigtails wiring (for very high price). also there was ordered the Blind rivet for Module, 2pcs., part number C2P5323
The main problem was to find correct connections for wiring, but I have on mine shelves the inner front seats wiring, so they are became the donors for retrofitting.
As you can see the wiring diagrams needs about 29 wiring different colors and length, it was the hardest part of modding - the finding most “correct”color wiring, solve it and connect for correct pin in module and seat harness

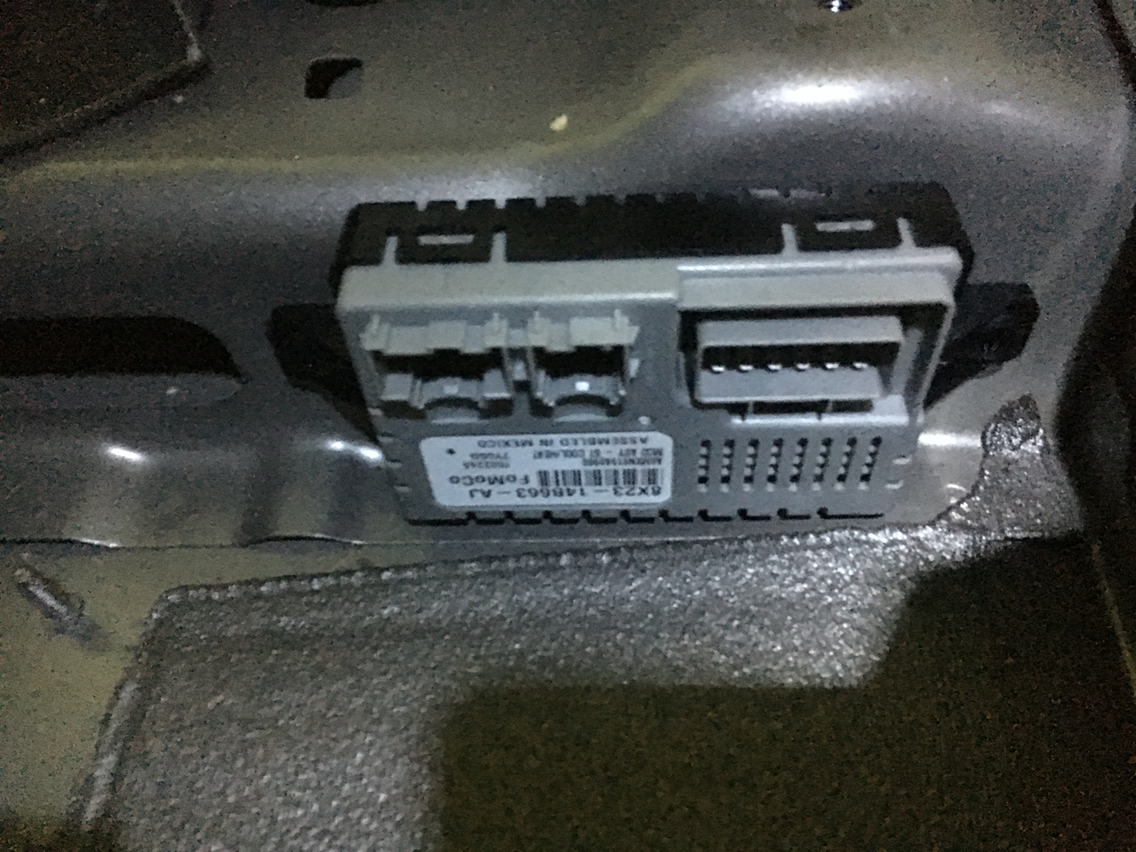

After the front seats and floor panel were stripped the floor under front right seat was lifted, were was found the plastic plate which should be replace for climate seats module.
Climate seat wiring was laid along the existing wiring harnesses, all connections in the new wiring were tested and placed in their places in housings.
the next step was solve floor panel, seats and using SDD change CCF file and program new module.
The next step takes about the hour and first launch was successful.
The whole works for this retrofitting lasts about 20 hours of labour.
Now during hot summer days use it option almost every day for a few minutes after starting riding if car was stayed under the sun.
For me it the longest mod for this vehicle, lasting more than a year.
There almost two year till now how the front XFR seats with climate function were bought, about a year they are waits time for alter to Barley color, about 6 months looks for correct color leather and 6 months after installing rides without worked cooling/heating function.
About two or three months tried to find correctÂ*Â*cooling/heating module on online markets without luck, so decided to order new one with part number C2Z25605 (8X23-14B663-AJ)
and connection housing, the main problem was with one of housing, now its obsolete, so about a week looked for used one housing, they are were found with pigtails wiring (for very high price). also there was ordered the Blind rivet for Module, 2pcs., part number C2P5323
The main problem was to find correct connections for wiring, but I have on mine shelves the inner front seats wiring, so they are became the donors for retrofitting.
As you can see the wiring diagrams needs about 29 wiring different colors and length, it was the hardest part of modding - the finding most “correct”color wiring, solve it and connect for correct pin in module and seat harness
After the front seats and floor panel were stripped the floor under front right seat was lifted, were was found the plastic plate which should be replace for climate seats module.
Climate seat wiring was laid along the existing wiring harnesses, all connections in the new wiring were tested and placed in their places in housings.
the next step was solve floor panel, seats and using SDD change CCF file and program new module.
The next step takes about the hour and first launch was successful.
The whole works for this retrofitting lasts about 20 hours of labour.
Now during hot summer days use it option almost every day for a few minutes after starting riding if car was stayed under the sun.
