Decided to dress up my 09 XF
#1
Decided to dress up my 09 XF
After reading numerous posts about how the 09 XF does NOT come with DRLs, and seeing a few interesting mods in the forums, I decided to give it a try.
First I have to say it is extremely easy to remove the front bumper and grille on the XF. A few bolts on the bottom; a few on the top; and then the whole unit pops out with a little tug on each side to unhook from each quarter panel. Crazy easy!

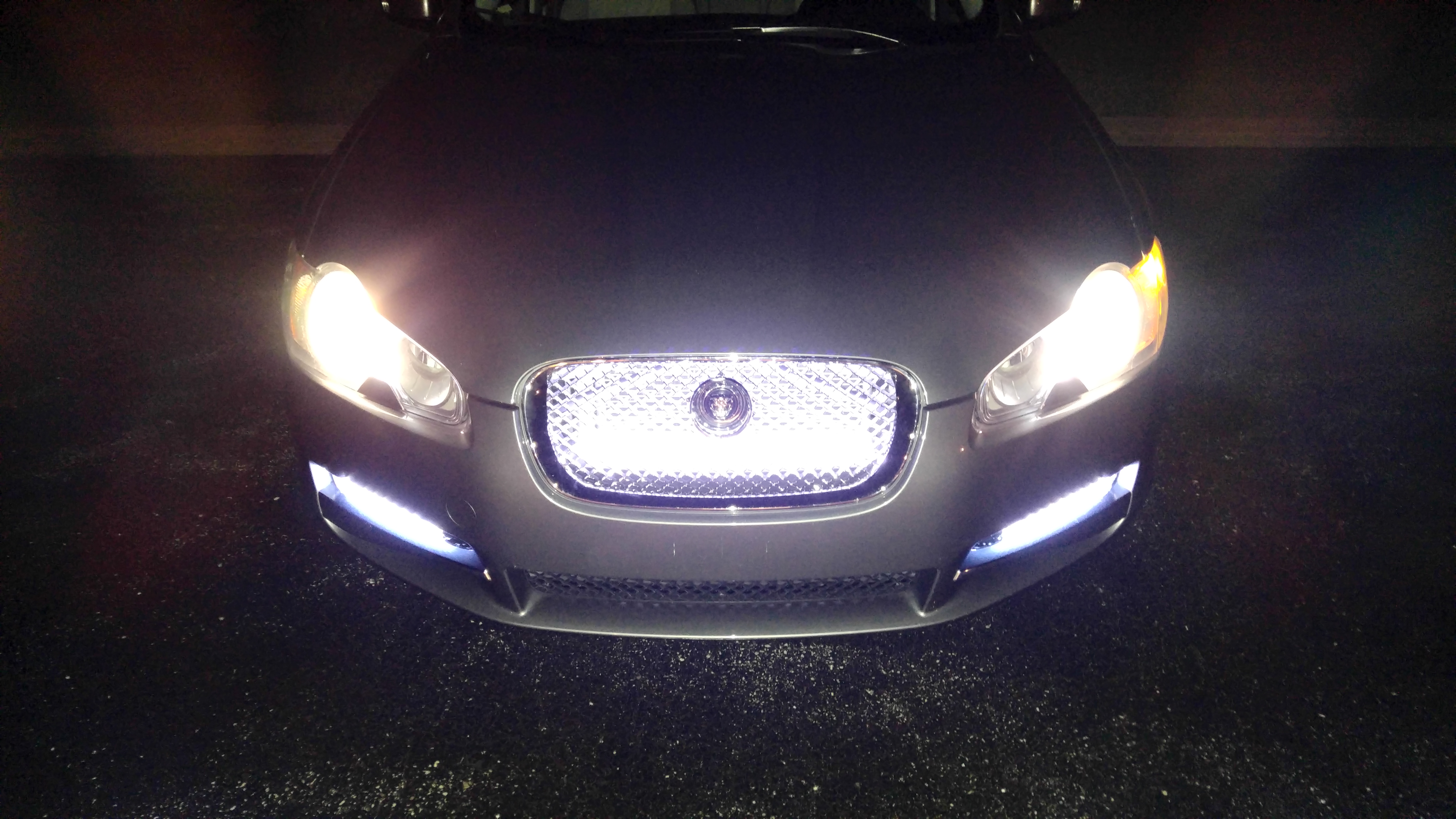

From here, I added a couple of LED strips just above the silver bezels on the bottom left and right, and then added a strip inside the radiator air intake cavity to illuminate the grille from behind. (see pic)
Lastly, I added an HID conversion kit to match the color of the headlights to the LEDs (not shown in pic).
All of this could have been completed in one weekend, if I had had all of the parts on hand. I was too excited to get started, so I added each mod over 3 weekends as the parts were delivered.
I'll add more pics if anyone is interested in the details.
First I have to say it is extremely easy to remove the front bumper and grille on the XF. A few bolts on the bottom; a few on the top; and then the whole unit pops out with a little tug on each side to unhook from each quarter panel. Crazy easy!
From here, I added a couple of LED strips just above the silver bezels on the bottom left and right, and then added a strip inside the radiator air intake cavity to illuminate the grille from behind. (see pic)
Lastly, I added an HID conversion kit to match the color of the headlights to the LEDs (not shown in pic).
All of this could have been completed in one weekend, if I had had all of the parts on hand. I was too excited to get started, so I added each mod over 3 weekends as the parts were delivered.
I'll add more pics if anyone is interested in the details.
