HELP with Jaguar XF fuse box diagram, Nothing matches ! :(
#1
HELP with Jaguar XF fuse box diagram, Nothing matches ! :(
Does any one had maybe the same placement of fuses in the fuse box? I've looked everywhere on google, forums, my own user manual, all are different than mine.

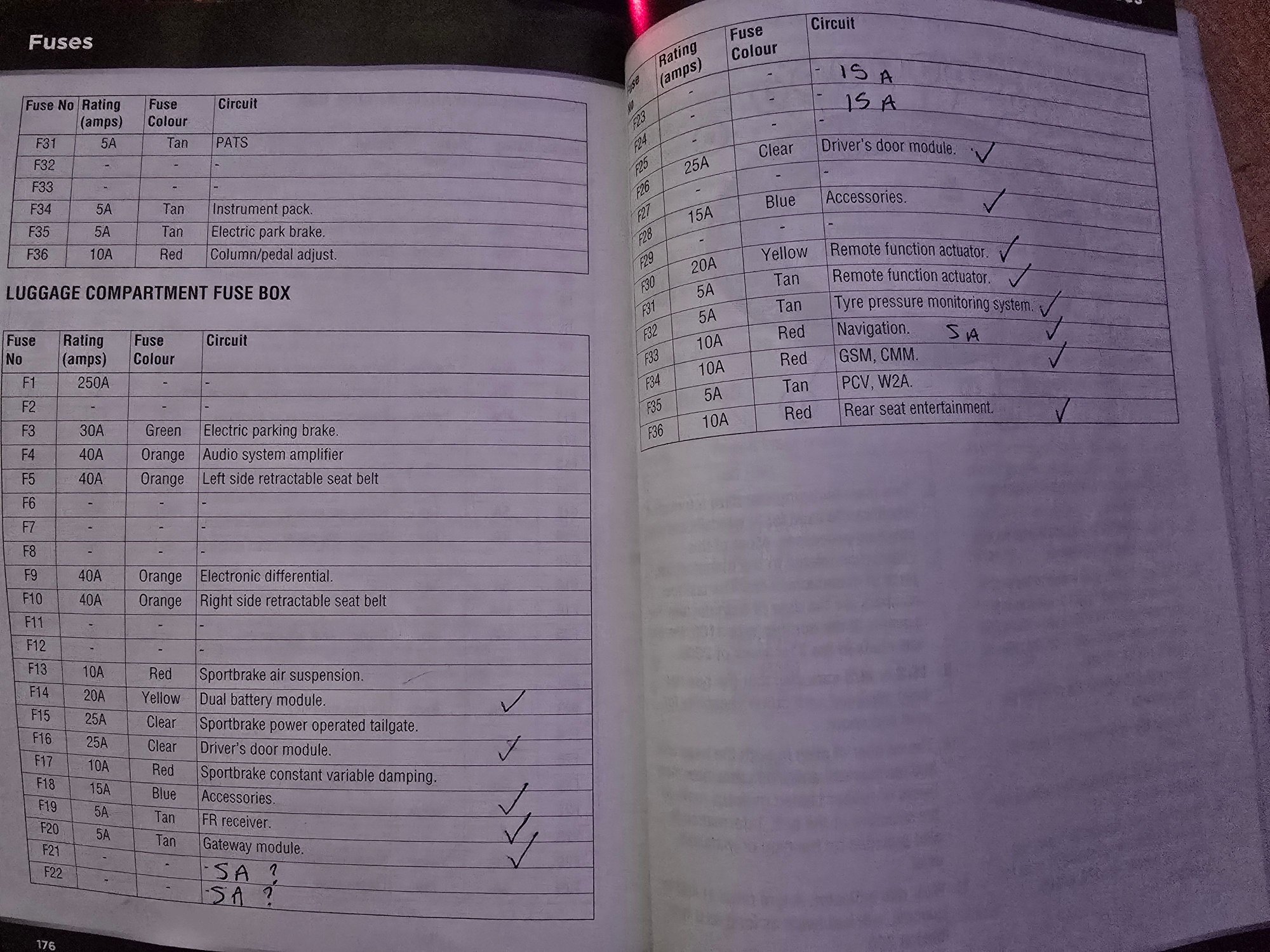

I have a Jaguar XF 2.2 Diesel 2011 (facelift body x250) it's right hand drive. None of fuse box diagrams anywhere will match mine, i've looked at my10 publish to my15 , all possible years none matches not even my own manual (pathetic from jaguar I know) please if anyone has the same would very much appreciate the help... I'm having problem changing the boot/trunk lock mechanism, it stopped working recently and can't open it (not from key fob, not from dash board, not from electronically button-near rear camera) only way is to manually pop the key blade into the barrel and twist. wire looms seem all in great condition all the way down to it's connector that lead to central locking module, rear camera/rev lights/ tailgate lights all working, except the lock release , Was hoping to check the fuses ?
I have a Jaguar XF 2.2 Diesel 2011 (facelift body x250) it's right hand drive. None of fuse box diagrams anywhere will match mine, i've looked at my10 publish to my15 , all possible years none matches not even my own manual (pathetic from jaguar I know) please if anyone has the same would very much appreciate the help... I'm having problem changing the boot/trunk lock mechanism, it stopped working recently and can't open it (not from key fob, not from dash board, not from electronically button-near rear camera) only way is to manually pop the key blade into the barrel and twist. wire looms seem all in great condition all the way down to it's connector that lead to central locking module, rear camera/rev lights/ tailgate lights all working, except the lock release , Was hoping to check the fuses ?
#2
The boot loom often has broken wires at the hinge point on the right as you look in the boot, peel back the rubber boot & check.

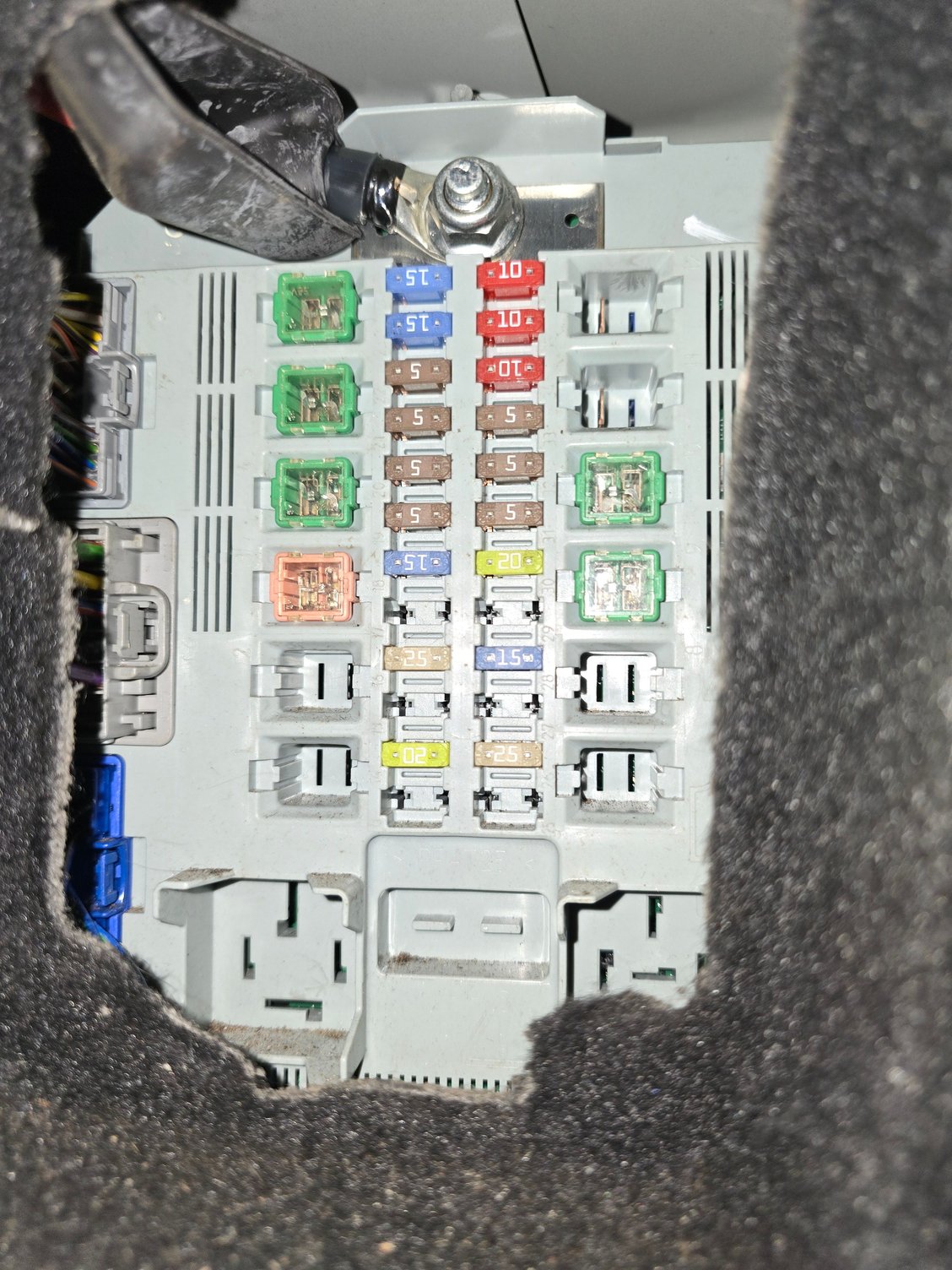

If you look most of the empty fuse positions have no contacts in them, except the 5th down on the right centre of the boot fusebox, worth sticking a 10amp fuse & see if anything changes.
If you look most of the empty fuse positions have no contacts in them, except the 5th down on the right centre of the boot fusebox, worth sticking a 10amp fuse & see if anything changes.
#3
I'll definitely going to try the 10A fuse in there pal, the wire loom on the other hand, that look like new, had to tear bit of rubber to actually pull out, i've tracked the wires down to where it connects to some module on right side just above the batteries, where there's millions of other wires/cables
