Sportbrake antenna removal
#1
Sportbrake antenna removal
Hi
I need some help.
The GPS signal is lost and I have a replacement antenna to fit BUT I can't seem to drop the head liner without damaging it.
I have removed the two visible torx screws holding the rear post plastic trim on but can't seem to free the lower ends. Any ideas what to remove next? I don't want to brute force it.
Has any body got the workshop manual for a 2013 Sportbrake? The saloon version doesn't cover this.
Thanks
Chris
I need some help.
The GPS signal is lost and I have a replacement antenna to fit BUT I can't seem to drop the head liner without damaging it.
I have removed the two visible torx screws holding the rear post plastic trim on but can't seem to free the lower ends. Any ideas what to remove next? I don't want to brute force it.
Has any body got the workshop manual for a 2013 Sportbrake? The saloon version doesn't cover this.
Thanks
Chris
#2
Yep sure do - have a look below
REMOVAL AND INSTALLATION
REMOVAL
INSTALLATION
PUBLISHED: 11-MAY-2011
2013.0 XF (X250), 419-07
NAVIGATION SYSTEM
NAVIGATION SYSTEM ANTENNA (G1057932)
REMOVAL AND INSTALLATION
- 86.62.06
- GLOBAL POSITIONING SENSOR ANTENNA - RENEW
- ALL DERIVATIVES
- 0.20
- USED WITHINS
REMOVAL

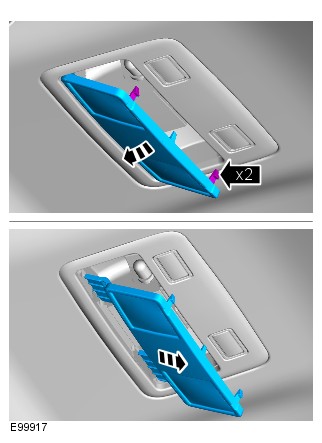

Remove the interior lamp lens.

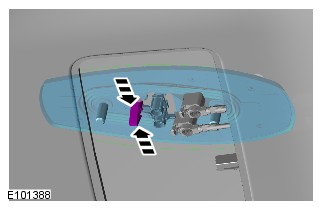

Release the interior lamp.- CAUTION:Make sure that the latch is pressed before disconnecting the electrical connector.
Release and disconnect the 2 electrical connectors.-

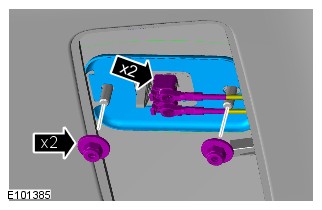

- Remove the 2 nuts.
- Remove the reinforcement plate.
-

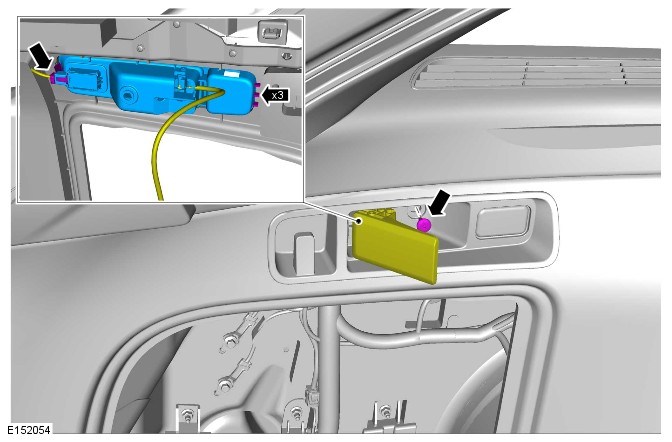

Remove the global positioning sensor (GPS) antenna.
INSTALLATION
To install, reverse the removal procedure.-
- Tighten to 6 Nm.
-
#3
#4
Yep you're right - my apologies, got side tracked
You can get to it without dropping the entire headliner, but yes you will need to at least drop the rear seat grab handles, and the D-Pillar trims
If I remember, there is a big yellow clip that holds up the rear section of the headliner - I call it the Big Bird clip - it will most likely break, practically unpreventable. The part number I have is JRC2D22430, it may have been superseded by now
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
INSTALLATION
You can get to it without dropping the entire headliner, but yes you will need to at least drop the rear seat grab handles, and the D-Pillar trims
If I remember, there is a big yellow clip that holds up the rear section of the headliner - I call it the Big Bird clip - it will most likely break, practically unpreventable. The part number I have is JRC2D22430, it may have been superseded by now
PUBLISHED: 01-OCT-2012
2013.0 XF (X250), 501-05
INTERIOR TRIM AND ORNAMENTATION

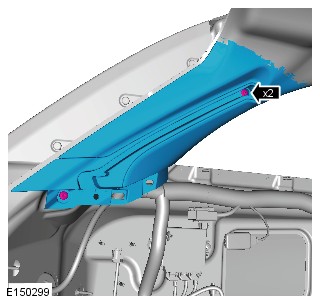

D-PILLAR TRIM PANEL (G1567815)
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
- CAUTION:Apply heatshrink or protective tape to the end of a suitable tool to protect the interior components.
- Refer to:Left Loadspace Trim Panel - Sportbrake (501-05 Interior Trim and Ornamentation, Removal and Installation).
PUBLISHED: 30-DEC-2012
2013.0 XF (X250), 501-05
INTERIOR TRIM AND ORNAMENTATION

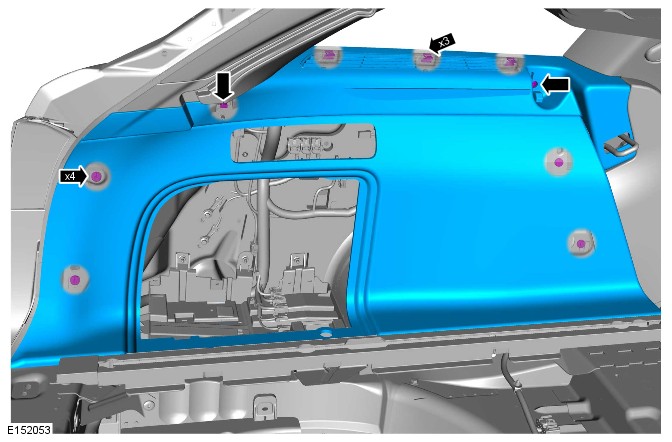

LEFT LOADSPACE TRIM PANEL - SPORTBRAKE (G1567821)
REMOVAL AND INSTALLATION- 76.19.22
- LUGGAGE COMPARTMENT SIDE LINER - LEFT HAND - RENEW
- ALL DERIVATIVES
- 0.50
- USED WITHINS
REMOVAL
NOTES:- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.

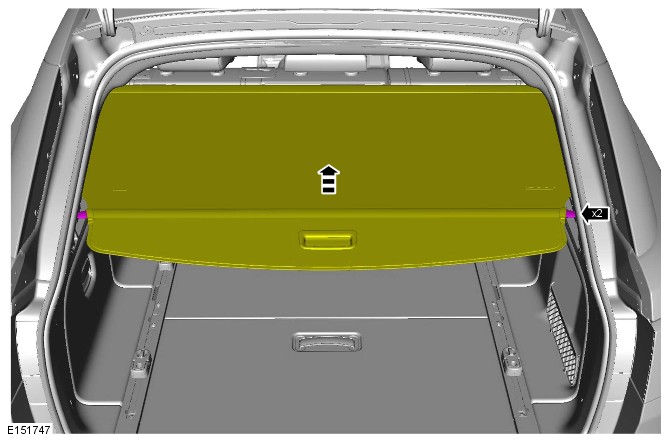

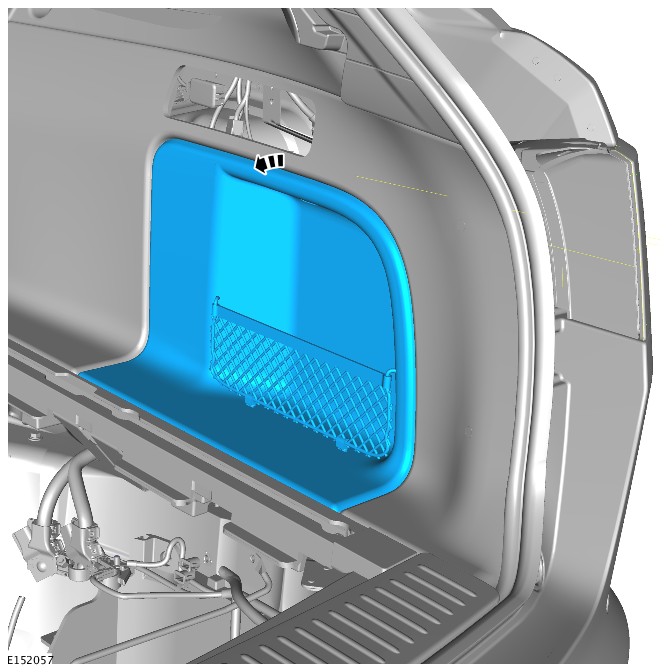

Retract and remove the parcel shelf.
- Lower the rear seat backrest.
INSTALLATION- To install, reverse the removal procedure.
Refer to:Right Loadspace Trim Panel - Sportbrake (501-05 Interior Trim and Ornamentation, Removal and Installation).
PUBLISHED: 30-DEC-2012
2013.0 XF (X250), 501-05
INTERIOR TRIM AND ORNAMENTATION

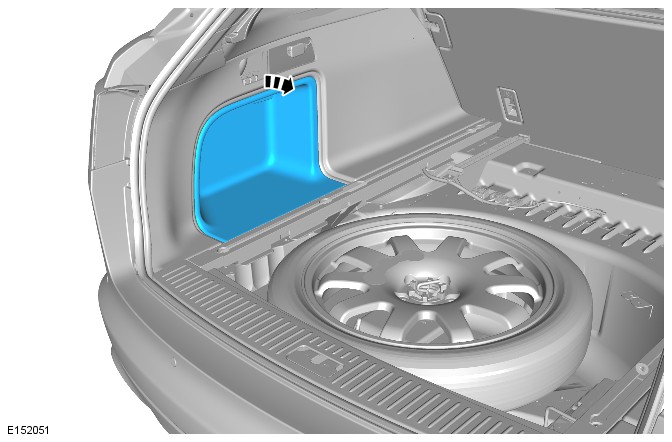

RIGHT LOADSPACE TRIM PANEL - SPORTBRAKE (G1567822)
REMOVAL AND INSTALLATION- 76.19.23
- LUGGAGE COMPARTMENT SIDE LINER - RIGHT HAND - RENEW
- ALL DERIVATIVES
- 0.40
- USED WITHINS
REMOVAL
NOTES:- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.

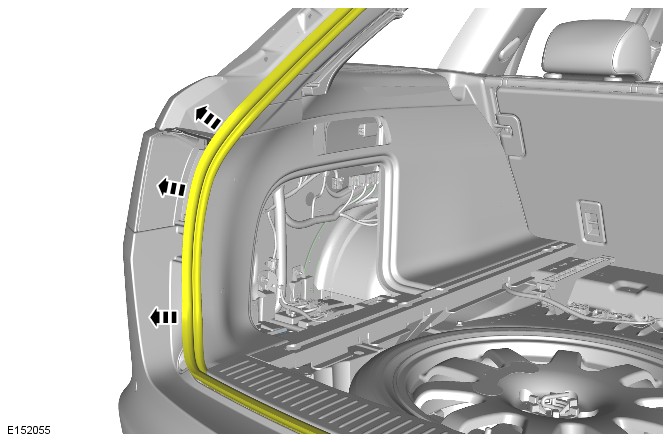

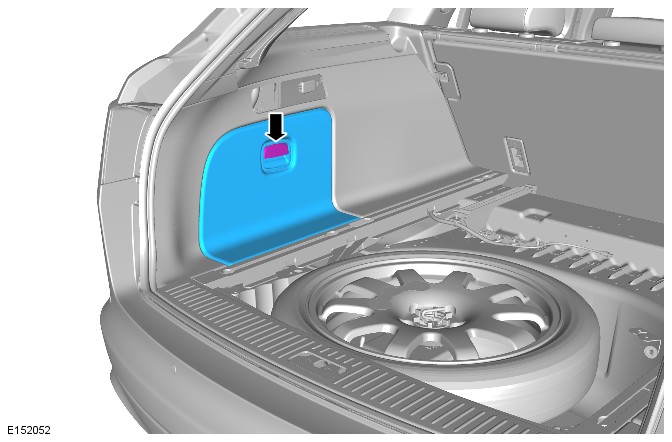

Retract and remove the parcel shelf.
- NOTE:Left hand shown, right hand similar.
- Lower the rear seat backrest.
- NOTE:Left hand shown, right hand similar.
- NOTE:Left hand shown, right hand similar.
INSTALLATION- To install, reverse the removal procedure.
INSTALLATION
- To install, reverse the removal procedure.
The following users liked this post:
Brake buster (04-01-2021)
#5
#6
Looking for help
Hi
I need some help.
The GPS signal is lost and I have a replacement antenna to fit BUT I can't seem to drop the head liner without damaging it.
I have removed the two visible torx screws holding the rear post plastic trim on but can't seem to free the lower ends. Any ideas what to remove next? I don't want to brute force it.
Has any body got the workshop manual for a 2013 Sportbrake? The saloon version doesn't cover this.
Thanks
Chris
I need some help.
The GPS signal is lost and I have a replacement antenna to fit BUT I can't seem to drop the head liner without damaging it.
I have removed the two visible torx screws holding the rear post plastic trim on but can't seem to free the lower ends. Any ideas what to remove next? I don't want to brute force it.
Has any body got the workshop manual for a 2013 Sportbrake? The saloon version doesn't cover this.
Thanks
Chris
#7
Hi Chris, I have a 2014 sportbrake and I have to remove the shark fin aswell as my gps doesn't work, it's possible to give me any information about how did you do it if I need to buy the yellow clip etc, any information will be appreciated as your post is the only one I have found about jaguar estate. Thank you in advance
I re-used the yellow clip - use a trim removal tool. But to tidy up the rear edges of the liner I resorted to some double sided tape as the door trim stops just short.
Be sure to have the correct antenna unit before you start. I didn't which was frustrating..
Good luck - you'll need it.
Chris
