Need help with part numbers for fasteners and torque spec
#1
Need help with part numbers for fasteners and torque spec
2017 xj L 2wd portfolio 3L. Had the engine replaced under warranty at 35k miles.
immediately after there was a starting problem that a local mechanic diagnosed and fixed as a finger tight chassis ground strap. I have since been going through it checking things and have correctly routed a hose or two.
This weekend I found a bolt to what I think is an engine Mount backed out. I retightened but wonder if someone has a correct torque spec?
Also noted that all but one of the front splash guard screws to the bumper cover are missing. And missing two of the screws at the rear of that guard where it connects to the next undertray. Looking for part numbers for these fasteners.
Also the lower front of the front wheel well liner fasteners are missing from both sides. Looking for part numbers for these screws.
Up top there are three areas where fasteners are missing. Looking for part numbers for these as well.
Of note, I searched parts diagrams online but the ones I found are not descriptive and vague.
Looking for a good place to order from as well.
Thanks for the help.
immediately after there was a starting problem that a local mechanic diagnosed and fixed as a finger tight chassis ground strap. I have since been going through it checking things and have correctly routed a hose or two.
This weekend I found a bolt to what I think is an engine Mount backed out. I retightened but wonder if someone has a correct torque spec?
Also noted that all but one of the front splash guard screws to the bumper cover are missing. And missing two of the screws at the rear of that guard where it connects to the next undertray. Looking for part numbers for these fasteners.
Also the lower front of the front wheel well liner fasteners are missing from both sides. Looking for part numbers for these screws.
Up top there are three areas where fasteners are missing. Looking for part numbers for these as well.
Of note, I searched parts diagrams online but the ones I found are not descriptive and vague.
Looking for a good place to order from as well.
Thanks for the help.
Last edited by lsupcar; 04-30-2023 at 05:07 PM.
#2
You really should take the vehicle back. Claim that because there are so much missed parts/fasteners and lose bolts that you suspect that the vehicle are not safe to operate. (here we can go to MOT service to have "offical" 3rd party report)
Obiosly the work has not been made professionally like it should be. None of fasteners should be missing and none of bolts/nuts should be lose. One bolt can be mistage, two indicates that there might be more... As a warranty repair this should not have any costs for you. Contact directly to the boss/manager of the shop, since "workforce" like to hide these and told you off. Managments care their business reputation and don´t like bad words spread. Fasteners and check are cheap for the shop compared the damage you could do the reputation, if you open this to the puplic. (here this kind of careless work would be an authority level case)
Obiosly the work has not been made professionally like it should be. None of fasteners should be missing and none of bolts/nuts should be lose. One bolt can be mistage, two indicates that there might be more... As a warranty repair this should not have any costs for you. Contact directly to the boss/manager of the shop, since "workforce" like to hide these and told you off. Managments care their business reputation and don´t like bad words spread. Fasteners and check are cheap for the shop compared the damage you could do the reputation, if you open this to the puplic. (here this kind of careless work would be an authority level case)
#3
As mentioned above, first point of call would be back to the dealer, however also moving forward I bought a set of these from Amazon and have found them helpful to keep in the cupboard for various things on the cars.
#4
Yes a terrible job and so many things left off!
Your best bet it to use Jaguar's parts system and spend some time finding all those little fittings. I have had zero luck using any so called universal trim clip assortments.
Jaguar Parts
The thing to understand when looking for parts is everything Jaguar does is all related to the last 6 digits of your VIN. So type that in first and start searching you have a number of things to find.
It would help if you could post back what the part numbers are after you find all of them too.
Really will help the next guy as you can see!
.
.
.
Your best bet it to use Jaguar's parts system and spend some time finding all those little fittings. I have had zero luck using any so called universal trim clip assortments.
Jaguar Parts
The thing to understand when looking for parts is everything Jaguar does is all related to the last 6 digits of your VIN. So type that in first and start searching you have a number of things to find.
It would help if you could post back what the part numbers are after you find all of them too.
Really will help the next guy as you can see!
.
.
.
#6
I'd be back at the location that did the work. You've got too many little niggly bits missing. Niggly, but needed! While they are little in size, some are $10 each and also have a two week or more wait time.
If they take short-cuts like this, how does one even know the job was done right? I hate it when mechanics just leave the 'little' stuff off. I have even seen cars with the aerodynamic panel under the car
missing, just because they are paid by the job and not by the hour!
Sorry, not much help.....
If they take short-cuts like this, how does one even know the job was done right? I hate it when mechanics just leave the 'little' stuff off. I have even seen cars with the aerodynamic panel under the car
missing, just because they are paid by the job and not by the hour!
Sorry, not much help.....
Last edited by Na5h; 05-02-2023 at 02:45 PM.
#7
Ok
With the help of my son who went to palm beach jaguar and showed a helpful parts department worker the under car photos, we have had some success.
c2s545016010 fits the front and rear of the front and middle splash guards

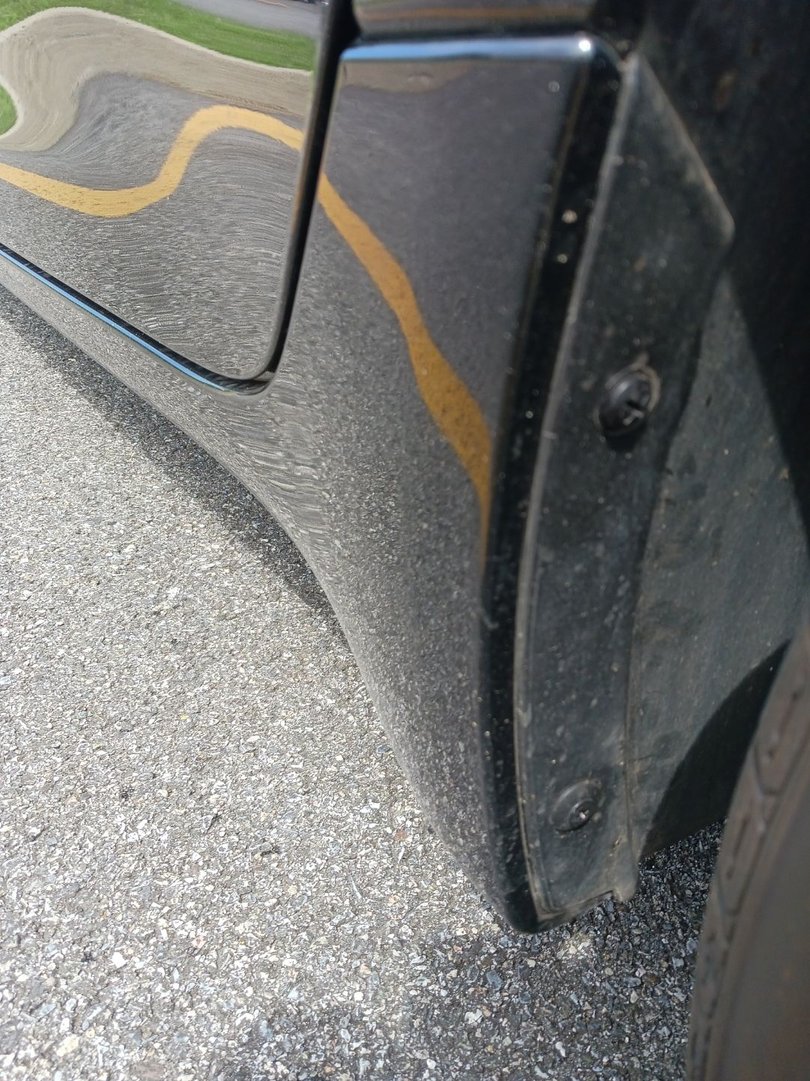

c2z3858 fits the front wheel well screw location
xr87508010 are the clips for the windshield cowl plastic
c2s9354020 fit the front air scoop clips
Still looking for the clips for the jump start location plastic cover
Thanks
With the help of my son who went to palm beach jaguar and showed a helpful parts department worker the under car photos, we have had some success.
c2s545016010 fits the front and rear of the front and middle splash guards
c2z3858 fits the front wheel well screw location
xr87508010 are the clips for the windshield cowl plastic

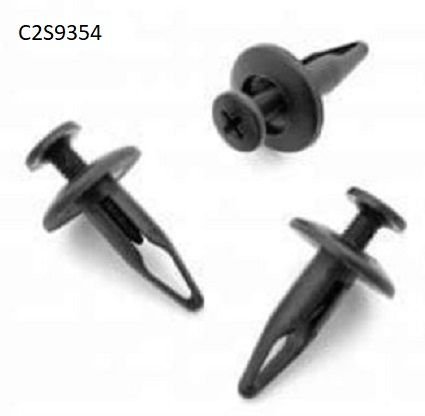

c2s9354020 fit the front air scoop clips
Still looking for the clips for the jump start location plastic cover
Thanks
The following users liked this post:
Vasara (05-14-2023)
Trending Topics
#8
#11
Thank you as there are so many different ones they are hard to identify.
Here is one of the door card fasteners in case someone is looking for these.
There are several similar but different push fasteners again on the door cards.
C2D-3422
And it's almost identical twin.
C2D-3465010
They were so close I had to make some measurements to be sure I got the right part.
I don't have the measurements for this one but it's part #C2P-7160
The Jaguar number for the LR part posted above is XR812941010 common all over EBay for about $8 for 10 clips.
.
.
.
Here is one of the door card fasteners in case someone is looking for these.
There are several similar but different push fasteners again on the door cards.
C2D-3422
And it's almost identical twin.
C2D-3465010
They were so close I had to make some measurements to be sure I got the right part.
I don't have the measurements for this one but it's part #C2P-7160
The Jaguar number for the LR part posted above is XR812941010 common all over EBay for about $8 for 10 clips.
.
.
.
Last edited by clubairth1; 05-15-2023 at 08:16 AM.
The following users liked this post:
KiwiJon (05-16-2023)
#12
I use clipsandfasteners.com they have every fastener I have needed.
Ford Radiator Sight Shield Retainer 24.5 Hd Dia
Ford Radiator Sight Shield Retainer 24.5 Hd Dia
- Radiator Sight Shield Push-Type Retainer
- Black Nylon
- Head Diameter: 24.5mm
- Stem Length: 14mm
- Fits Into 9mm Hole
- Replaces Ford: W705957-S300, W706519-S300 Lincoln LS 2000 -
- 10 Per Package
- View Catalog Page
Package Price: $13.19
Last edited by IanXF; 05-17-2023 at 01:25 PM.
The following users liked this post:
Na5h (05-25-2023)
#13
Does anyone know what part number or aftermarket source exists for the fender liner retainers?
They are white plastic clips like this, the fastener c2z3858 goes into them. With age mine have broken on the front undertray.
The middle circle OP posted is some washer/fastener combo that goes into a spring nut. OP made a typo, the PN is C2S45016010.
There is no documentation online about what the fastener actually goes into in the middle section - but mine have popped out of the subframe over time I guess? I believe the PN is C2D20870, but the part does not come up in NA systems? It might be a different part number? I'm ordering from Terry's Jag, as they support XK vintages.
They are white plastic clips like this, the fastener c2z3858 goes into them. With age mine have broken on the front undertray.
The middle circle OP posted is some washer/fastener combo that goes into a spring nut. OP made a typo, the PN is C2S45016010.
There is no documentation online about what the fastener actually goes into in the middle section - but mine have popped out of the subframe over time I guess? I believe the PN is C2D20870, but the part does not come up in NA systems? It might be a different part number? I'm ordering from Terry's Jag, as they support XK vintages.
Last edited by dmchao; 07-16-2024 at 06:04 PM.
