Alternator won't come out !... Help
#1
![Default](/forum/images/icons/icon1.gif)
Holy freaking pain in the ***!!!!!! The bolt at the top of the alternator isn't comin out!!!! Got the bottom bolt out. I took the nut off the back of the top bolt, but how does the bolt come off????? It has threads and the front of it (end that faces the radiator) is rounded. The back part of the bolt has a square end. Special tool needed???? Can't believe how hard this has been!!!! I'm about to give up and get it towed to the dealership.
#2
![Default](/forum/images/icons/icon1.gif)
![Icon Gunhead](https://www.jaguarforums.com/forum/images/smilies/icon_gunhead.gif)
![Icon Gunhead](https://www.jaguarforums.com/forum/images/smilies/icon_gunhead.gif)
![Icon Gunhead](https://www.jaguarforums.com/forum/images/smilies/icon_gunhead.gif)
![Icon Doh](https://www.jaguarforums.com/forum/images/smilies/icon_doh.gif)
![Icon Doh](https://www.jaguarforums.com/forum/images/smilies/icon_doh.gif)
#4
![Default](/forum/images/icons/icon1.gif)
The service manual never mentions anything. It just references a picture with two arrows pointing to it. Mine was stuck on there and from the angle I was in I couldn't see it just slid off.
Last edited by Cherry_560sel; 02-15-2014 at 08:11 PM.
#5
![Default](/forum/images/icons/icon1.gif)
That's not the way it's supposed to work. Someone must have been in there and bashed a carriage bolt in when they did not have the right bolt.
Special tool for that job is BFH-5LB.
correction ... three months later
while researching the difference between the X308 and early X350 alternators,
i had a good look at pictures on ebay of the mounting brackets for clues
it seems the mounting brackets are identical except that the X308 version
uses a top bolt, while the X350 version uses a stud
mea culpa![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
the good news for X308 owners is that the higher amp alternator from the
X350 ought to fit although the hookup may be three wire on the X350
regulator while the hookup on the X308 is a two wire.
Special tool for that job is BFH-5LB.
correction ... three months later
while researching the difference between the X308 and early X350 alternators,
i had a good look at pictures on ebay of the mounting brackets for clues
it seems the mounting brackets are identical except that the X308 version
uses a top bolt, while the X350 version uses a stud
mea culpa
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
the good news for X308 owners is that the higher amp alternator from the
X350 ought to fit although the hookup may be three wire on the X350
regulator while the hookup on the X308 is a two wire.
Last edited by plums; 06-09-2014 at 01:51 AM. Reason: correction of misinformation
#6
#7
Trending Topics
#8
#9
![Default](/forum/images/icons/icon1.gif)

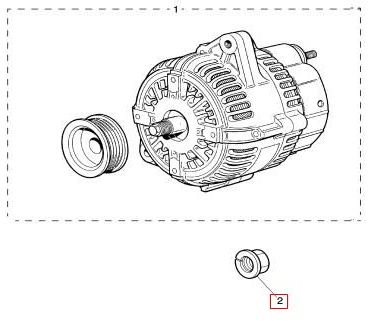

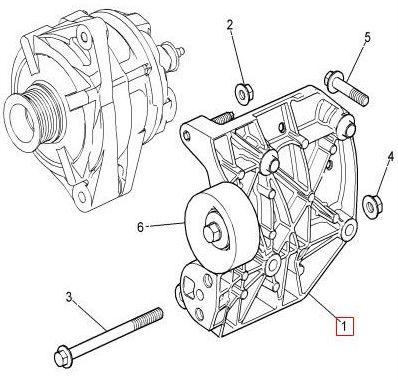

Yes.. The #2 nut in the second picture is what needs to be removed. The threaded stud for that nut does not come off. It is part of the mounting bracket. The alternator simply slides off that bolt once the nut is removed. It would have been helpful to have this diagram that you posted. The diagram I had was not that detailed.
Last edited by Cherry_560sel; 06-14-2014 at 08:17 AM.
