I wanted to share some of my experiences for future forum users encountering issues using SDD. For the last month I have been trying to solve several problems using SDD (Multiple module Red X, DTC’s and when trying to run an SDD program asking to connect a J1962 diagnostic cable)
A significant observation was the battery symbol, top right corner, has always shown red and this is a known concern. However I have always used a battery maintainer reliably delivering 13.7V and up to 40A capacity so what gives
I finally traced the root cause to a blown Fuse 43 in the cabin fuse box. This fuse protects the circuit that delivers B+ to the DLC (Data Link Connector AKA OBD port). With that corrected I get a reliable SDD Battery indicator of green or yellow ![Icon Hyper](https://www.jaguarforums.com/forum/images/smilies/icon_hyper.gif)
![Cabin Fuse Box - Fuse #43 - SDD experiences!-new.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj6-xj8-xjr-x350-x358-28/117755d1440638947t-cabin-fuse-box-fuse-43-sdd-experiences-new.jpg)
Also I no longer get an SDD request to connect a J1962 diagnostic cable and ran through a vehicle scan successfully.
Now the next interesting observation was that all those ISO network module issues disappeared![Icon Biggrin](https://www.jaguarforums.com/forum/images/smilies/icon_biggrin.gif)

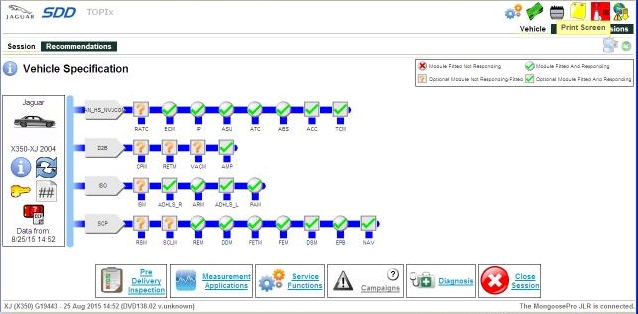

![Cabin Fuse Box - Fuse #43 - SDD experiences!-modules-ok.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj6-xj8-xjr-x350-x358-28/117756d1440638956t-cabin-fuse-box-fuse-43-sdd-experiences-modules-ok.jpg)
So when using SDD always use a battery maintainer or charger to help the battery provide sufficient voltage/current. If you still have issues check passenger fuse 43 if you are having strange SDD behaviors and avoid chasing down false positives and stripping out the driver and passenger footwells and drivers door module like me. Well on the bright side I at least cleaned most connectors with zero residue electrical cleaner![Icon Dunce](https://www.jaguarforums.com/forum/images/smilies/icon_dunce.gif)

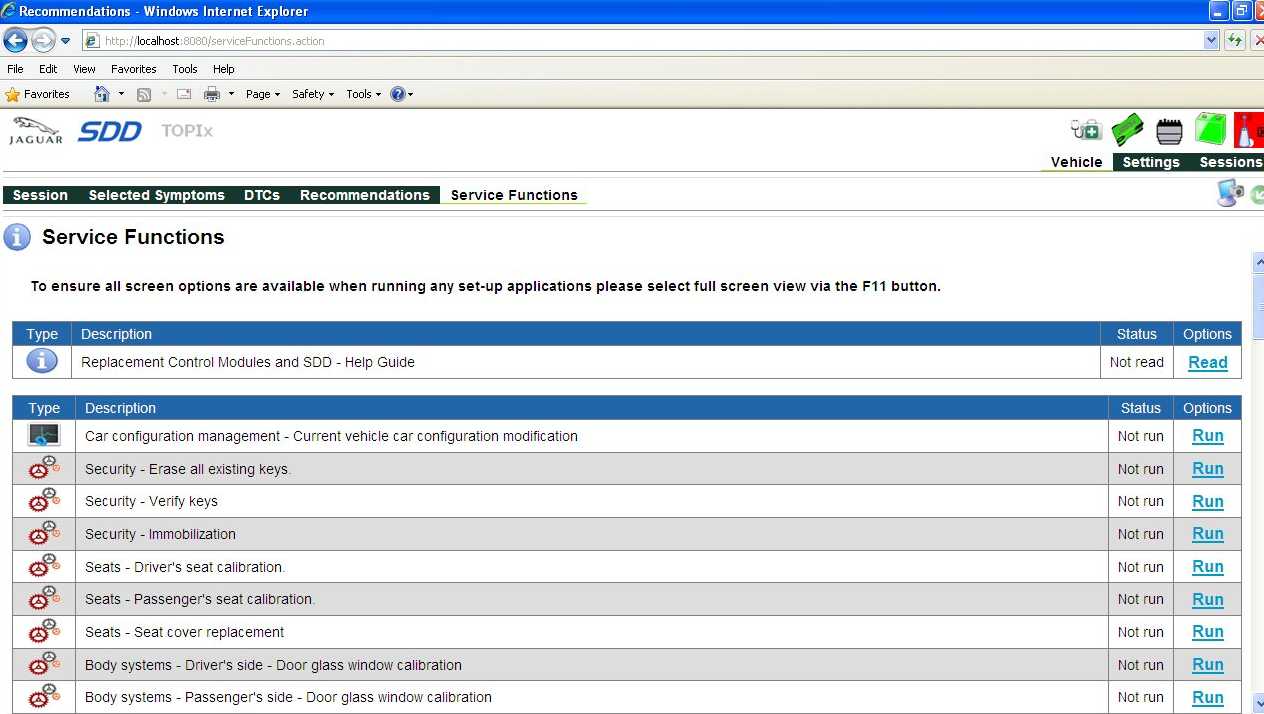

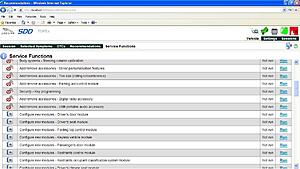

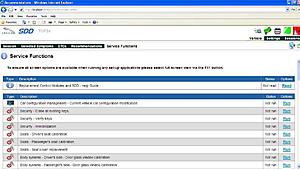

Now I need to find out why service functions no longer provide an option to program keys. Why is this all so difficult - oh I Know it’s a Jaguar. Any advise on how to get the key programming option back?
![Cabin Fuse Box - Fuse #43 - SDD experiences!-old.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj6-xj8-xjr-x350-x358-28/117753d1440638928t-cabin-fuse-box-fuse-43-sdd-experiences-old.jpg)

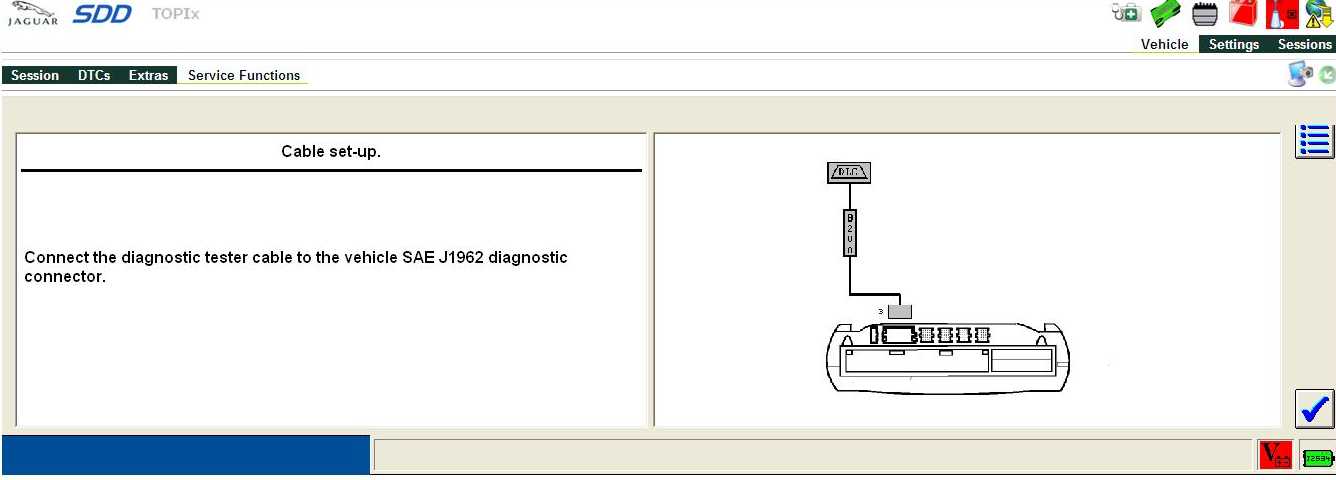

![Cabin Fuse Box - Fuse #43 - SDD experiences!-sdd-key-programming-lite.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj6-xj8-xjr-x350-x358-28/117754d1440638940t-cabin-fuse-box-fuse-43-sdd-experiences-sdd-key-programming-lite.jpg)
