Many people have to replace their air compressor because it gets tired and very inefficient and
this can only be because the piston seal wears allowing the pressurised air to blow by.
Replacement seals are not available because of a conspiracy between Jaguar and Wabco.
The seals are made of a type of PTFE with a low coeff. of friction however the compressor has to be replaced
on average at about 45,000 miles and usually the only thing wrong with it is a worn seal!
The piston is made of aluminium alloy and is about 35mm in diameter with a 6mm approx. deep groove to hold the seal.

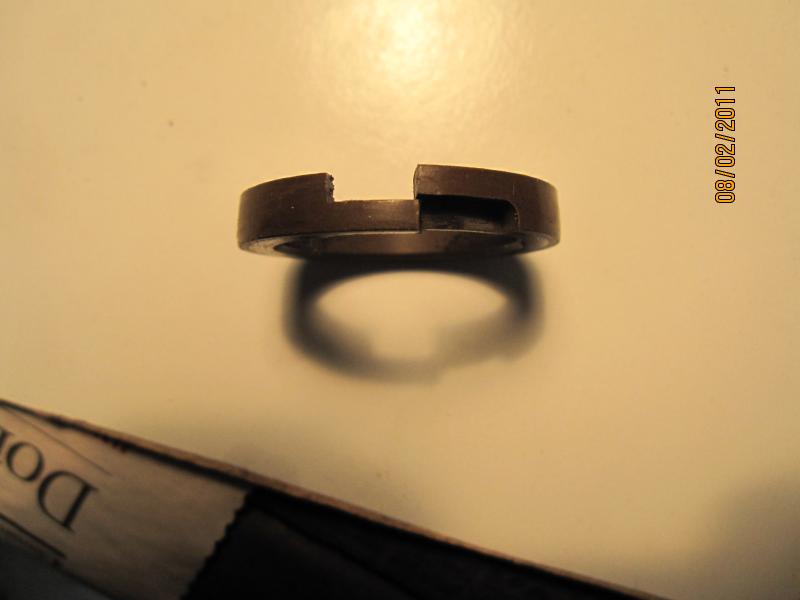

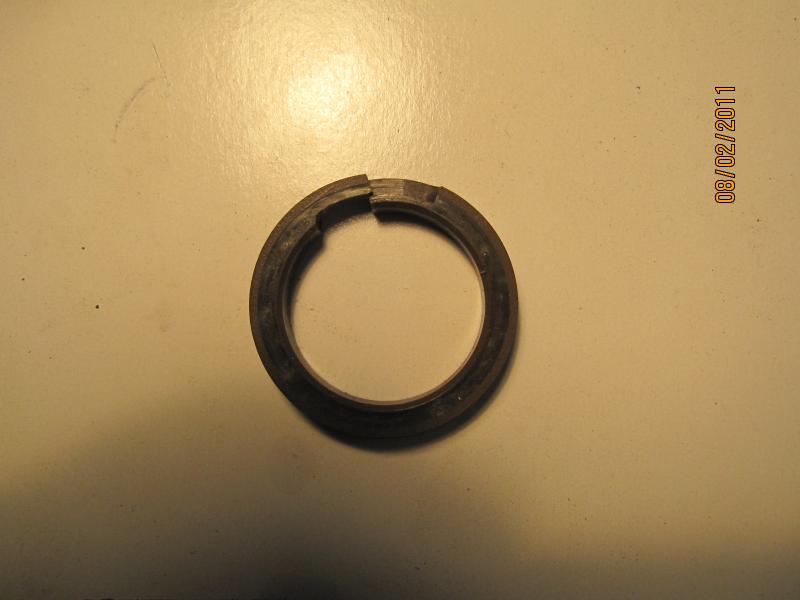

The seal is split with an overlapping joint so that it is gas tight.
My first reaction to solving this problem was to have new seals made. This is possible without much difficulty
however, there is a much simpler solution…………………………..SHIM IT!
Shim for those that don’t know is a sheet of thin material in different thicknesses. It can be brass, aluminium, stainless
steel and plastic! They even make some which is self adhesive.
This can be cut to be an interference fit (tight) in the piston groove
and wrapped around the base of the groove. This will increase the diameter of the seal making it gas tight.
Obviously you can’t increase the diameter beyond the point at which the joint in the seal does not overlap.
Now this will have to be done by trial and error until the piston is a snug fit in the cylinder but not too tight!
It seems to me that once the shim is in place and the piston is in the cylinder the shim cannot “go anywhere”
Therefore it does not need any further fixing. I think the best shim would be a plastic, like the seal itself, but it does
not have to be the same material since it will not be subject to friction.
The only snag I can think of is that you don’t know what thickness of shim you will need until you dismantle the compressor
but then you can buy a range of different thicknesses, it’s not expensive for small sheets.
What d’yall think?

OMG I am becoming American!
Any precision engineers or toolmakers out there who would like to comment?
this can only be because the piston seal wears allowing the pressurised air to blow by.
Replacement seals are not available because of a conspiracy between Jaguar and Wabco.
The seals are made of a type of PTFE with a low coeff. of friction however the compressor has to be replaced
on average at about 45,000 miles and usually the only thing wrong with it is a worn seal!
The piston is made of aluminium alloy and is about 35mm in diameter with a 6mm approx. deep groove to hold the seal.
The seal is split with an overlapping joint so that it is gas tight.
My first reaction to solving this problem was to have new seals made. This is possible without much difficulty
however, there is a much simpler solution…………………………..SHIM IT!
Shim for those that don’t know is a sheet of thin material in different thicknesses. It can be brass, aluminium, stainless
steel and plastic! They even make some which is self adhesive.
This can be cut to be an interference fit (tight) in the piston groove
and wrapped around the base of the groove. This will increase the diameter of the seal making it gas tight.
Obviously you can’t increase the diameter beyond the point at which the joint in the seal does not overlap.
Now this will have to be done by trial and error until the piston is a snug fit in the cylinder but not too tight!
It seems to me that once the shim is in place and the piston is in the cylinder the shim cannot “go anywhere”
Therefore it does not need any further fixing. I think the best shim would be a plastic, like the seal itself, but it does
not have to be the same material since it will not be subject to friction.
The only snag I can think of is that you don’t know what thickness of shim you will need until you dismantle the compressor
but then you can buy a range of different thicknesses, it’s not expensive for small sheets.
What d’yall think?
OMG I am becoming American!
Any precision engineers or toolmakers out there who would like to comment?
Last edited by meirion1; 11-19-2012 at 01:19 AM.
The following 5 users liked this post by meirion1:
2ManyCars (03-30-2013),
fireflyer141 (06-25-2013),
JimC64 (11-19-2012),
mls111 (11-25-2012),
SuperTrav (11-19-2012)
#2
#3
#4
![Default](/forum/images/icons/icon1.gif)
The problem with a part like this is that even though it is small it would cost several thousand dollars to create the tooling and manufacture the parts. Most companies will not make the investment because the market it too small.
Can you put a number on the "big market"?
What is the source of your data?
How many parts could we sell per month/year?
What would the market consider to be a reasonable retail price?
Do you know how many of these units were produced and how many are replaced or repaired each month/year?
For the mechanic doing the work, is it faster/easier for him the replace the whole unit or to rebuild the old one?
These are the kinds of questions that a manufacturer has to ask to determine if making a part is going to result in a return on their investment and generate profits.
Show me the "big market" and I will make the parts!
Mark
Last edited by Safari; 11-19-2012 at 02:54 PM.
#5
![Default](/forum/images/icons/icon1.gif)
Through some research, the jaguar suspension air compressor for 2004-2009 XJ8's is the same compressor used in other cars such as Audi and others, simply the mounting is different. There is a person on Ebay that is currently selling just a rebuild kit for 35GBP or about $56USD out of Maybole, United Kindom. I am not endorsing this persons listing but rather sharing what I have discovered, it is worth checking out.
Dear bagpipingandy, seller on Ebay
Can you tell me for sure if this kit you are selling, mainly the rubber pistion seal will fit a 2008 Jaguar xj8 suspension air compressor made by WABCO. There are may Jaguar owners begging for such a kit to avoid having to buy a whole new compressor which seams to fail at approx. 40K miles. The Jaguar rubber ring looks just like yours with the same looking split end. 2004-2009 Jaguar XJ8 Suspension Compressor WABCO part number is W0133-1939145.
Regards,
lcmjaguar
Yes this is the same compressor as used on your Jaguar, I checked up the part and it is the same compressor but with different mounts but the piston ring part is the bit you need and will fix your compressor. Spread the word to your Jaguar friends
!! Any questions just ask.
Best regards
Andy
bagpipingandy
Here is the listing link:
http://www.ebay.co.uk/sch/bagpipinga...&_trksid=p3686
The listing Says...
This repair kit contains:
Postage to the UK is included in the price,
Dear bagpipingandy, seller on Ebay
Can you tell me for sure if this kit you are selling, mainly the rubber pistion seal will fit a 2008 Jaguar xj8 suspension air compressor made by WABCO. There are may Jaguar owners begging for such a kit to avoid having to buy a whole new compressor which seams to fail at approx. 40K miles. The Jaguar rubber ring looks just like yours with the same looking split end. 2004-2009 Jaguar XJ8 Suspension Compressor WABCO part number is W0133-1939145.
Regards,
lcmjaguar
Yes this is the same compressor as used on your Jaguar, I checked up the part and it is the same compressor but with different mounts but the piston ring part is the bit you need and will fix your compressor. Spread the word to your Jaguar friends
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Best regards
Andy
bagpipingandy
Here is the listing link:
http://www.ebay.co.uk/sch/bagpipinga...&_trksid=p3686
The listing Says...
Audi Allroad Air Suspension Compressor Repair Kit
For sale is a repair kit to renew your Allroad air suspension compression, This will fit Audi Allroad C5 models 2000-2005.
It will also fit other car manufacturers using the same Wabco air suspension compressor, Landrover Discovery 2, Mercedes, BMW X5, Audi A8/Q7, VW Touareg, Porsche Cayenne and others.
A problem with these compressors is poor performance & noise. Poor performance can be noticed with the car raising very slowly or even failing to reach its level settings. This can be due to either the age of the compressor or if it has been overworked due to leaks in the air system at some point. This poor performance is mainly due to wear on the piston ring. In this kit is a brand new PTFE piston ring, new o-ring seal, bolts, step by step Instructions and all parts required to replace the piston ring.
Replacing the Piston ring restores the compressors performance back to as good as new, I have one fitted to my allroad with dramatic improvements in performance, which beats replacing the whole compressor.
To confirm you are buying a kit to refurbish your existing Wabco air suspension compressor, bringing its compression back to as good as new.
For sale is a repair kit to renew your Allroad air suspension compression, This will fit Audi Allroad C5 models 2000-2005.
It will also fit other car manufacturers using the same Wabco air suspension compressor, Landrover Discovery 2, Mercedes, BMW X5, Audi A8/Q7, VW Touareg, Porsche Cayenne and others.
A problem with these compressors is poor performance & noise. Poor performance can be noticed with the car raising very slowly or even failing to reach its level settings. This can be due to either the age of the compressor or if it has been overworked due to leaks in the air system at some point. This poor performance is mainly due to wear on the piston ring. In this kit is a brand new PTFE piston ring, new o-ring seal, bolts, step by step Instructions and all parts required to replace the piston ring.
Replacing the Piston ring restores the compressors performance back to as good as new, I have one fitted to my allroad with dramatic improvements in performance, which beats replacing the whole compressor.
To confirm you are buying a kit to refurbish your existing Wabco air suspension compressor, bringing its compression back to as good as new.
This repair kit contains:
· A new precision machined PTFE piston ring.
· New rubber o-ring seal.
· 2 new bolts.
· 2 new bolts.
· Cable ties.
· Step by step manual with photos to assist you in the repair.
· Step by step manual with photos to assist you in the repair.
Postage outside the UK offered.
The kit is easy to fit, saving a lot of money on replacing the whole compressor unit for a new one.
IMPORTANT NOTE: This repair kit will only renew the compression, the compressor must be operational, typical symptoms are the car being slow to raise and even not reaching the requested level which then puts the error light on, but ignition off and on again and it will try again. If the car is sinking, not sitting level or the error light is on all the time, there is a leak or fault in the system and this will need to be fixed by other means before fitting this kit.
If unsure I would recommend a fault scan before fitting to ensure there are no other faults in the system, or send me any questions for more information.
The rubber o ring provided in the kit is only suitable on some units, some compressors have a shaped o-ring, in this case you would need to re use the original rubber o-ring.
If you have any questions Don't hesitate to ask.
Have Happy Air suspension again J!!
The kit is easy to fit, saving a lot of money on replacing the whole compressor unit for a new one.
IMPORTANT NOTE: This repair kit will only renew the compression, the compressor must be operational, typical symptoms are the car being slow to raise and even not reaching the requested level which then puts the error light on, but ignition off and on again and it will try again. If the car is sinking, not sitting level or the error light is on all the time, there is a leak or fault in the system and this will need to be fixed by other means before fitting this kit.
If unsure I would recommend a fault scan before fitting to ensure there are no other faults in the system, or send me any questions for more information.
The rubber o ring provided in the kit is only suitable on some units, some compressors have a shaped o-ring, in this case you would need to re use the original rubber o-ring.
If you have any questions Don't hesitate to ask.
Have Happy Air suspension again J!!
Last edited by lcmjaguar; 11-29-2012 at 07:17 PM.
The following 7 users liked this post by lcmjaguar:
2ManyCars (03-30-2013),
brakeboost (11-21-2012),
H20boy (11-23-2012),
JimC64 (11-25-2012),
Na5h (01-29-2013),
and 2 others liked this post.
#6
Join Date: Nov 2009
Location: The beautiful Mornington Peninsula in OZ
Posts: 3,022
Received 761 Likes
on
637 Posts
![Default](/forum/images/icons/icon1.gif)
Well spotted lcmjaguar.
In the past I have searched the planet for a
replacement seal and not found it!
This must be a relatively new listing.
I am sure that this seal will do the job and I think I will ask the vendor what the seal is made of. Even if it is an inferior grade to the original it will do the job.
In the past I have searched the planet for a
replacement seal and not found it!
This must be a relatively new listing.
I am sure that this seal will do the job and I think I will ask the vendor what the seal is made of. Even if it is an inferior grade to the original it will do the job.
#7
![Default](/forum/images/icons/icon1.gif)
According to his listing, the seal is made like the origional and is a machined PTFE piston ring with a low coeff. His listing shows a picture of the piston ring. If you have an origional compressor double check that this kit will work with the vendor. My understanding is that the compressor exterior design has changed a little since 2004 depending on who is making it but the internal components remained the same. For instance the dryer/filter is sometimes integrated inside the compressor, depending on who you bought it from. Arnott's compressor is integrated.
lcmjaguar
2008 VDP
1988 XJ6
lcmjaguar
2008 VDP
1988 XJ6
Last edited by lcmjaguar; 11-22-2012 at 08:07 PM.
Trending Topics
#8
#9
Join Date: Nov 2009
Location: The beautiful Mornington Peninsula in OZ
Posts: 3,022
Received 761 Likes
on
637 Posts
![Default](/forum/images/icons/icon1.gif)
here is a quick reply from the vendor:
hi Robert, the piston ring is the same as the original & made from a type of pfte, which is ideal for a dry running system, I have been providing them for around 8 months now,
any questions just ask.
best regards
Andy
- bagpipingandy
Well there you have it....it's the dog's b******s
I am pretty sure that the material is Ekonol.
Ekonol Polyester is a very thermally stable polymer, making it easy to blend/fabricate with other high temperature materials. When combined with polytetrafluoroethylene (i.e. PTFE); it produces a composite material that has excellent temperature and wear resistance properties. The Ekonol Polyester/PTFE blend will not wear metal surfaces and resists self-wear better than any other PTFE composition. Applications for Ekonol Polyester/PTFE blends are varied and include packing sets, compressor ring sets, "0" ring seals, spring-loaded seals, lip seals, self-lubricating bearings and rotors or vanes of process pumps. Ekonol Polyester/PTFE works best under environmentally tough conditions where wear resistance, dimensional stability and corrosion resistance are critical.
Compressor seals first on the list!
hi Robert, the piston ring is the same as the original & made from a type of pfte, which is ideal for a dry running system, I have been providing them for around 8 months now,
any questions just ask.
best regards
Andy
- bagpipingandy
Well there you have it....it's the dog's b******s
I am pretty sure that the material is Ekonol.
Ekonol Polyester is a very thermally stable polymer, making it easy to blend/fabricate with other high temperature materials. When combined with polytetrafluoroethylene (i.e. PTFE); it produces a composite material that has excellent temperature and wear resistance properties. The Ekonol Polyester/PTFE blend will not wear metal surfaces and resists self-wear better than any other PTFE composition. Applications for Ekonol Polyester/PTFE blends are varied and include packing sets, compressor ring sets, "0" ring seals, spring-loaded seals, lip seals, self-lubricating bearings and rotors or vanes of process pumps. Ekonol Polyester/PTFE works best under environmentally tough conditions where wear resistance, dimensional stability and corrosion resistance are critical.
Compressor seals first on the list!
#10
![Default](/forum/images/icons/icon1.gif)
Andy aka bagpipingandy on Ebay sent me the following:
This kit does not exist from WABCO, I actually manufacture the piston ring and buy parts to make up the kit, I an an Audi enthusiast and own an Audi Allroad car with the same compressor and as your Jaguar owners the only options for us was to buy a new compressor at serious costs but being an engineer i thought i could fix it, I manufactured prototypes and tested it on my allroad finding the best solution, You can buy a kit from WABCO for the VW Touareg but the drier unit differs slightly and it still costs a lot of money, WABCO don't offer the piston ring only as obviously they won't sell many new compressors if they did.
My initial investigation is found here, please read and pass to your forum if you wish:
Allroad Air Suspension Compressor strip & repair
In short, I have made a replacement Piston ring made from 25% Carbon graphite PTFE which is the same as the material used on the original, and ideal for these dry running applications. I have manufactured and sold over 340 kits from my garage at home where i have a small machine shop for hobby work and now to produce this repair kit. I have sold kits now to all types of cars using this type of compressor all with great feedback, please read my feedback for your reference. The compressor is actually very well made and just changing the piston ring gives it a new lease of life.
This all sounds promising as a cost effective fix!
lcmjaguar
2008 VDP
1988 XJ6
This kit does not exist from WABCO, I actually manufacture the piston ring and buy parts to make up the kit, I an an Audi enthusiast and own an Audi Allroad car with the same compressor and as your Jaguar owners the only options for us was to buy a new compressor at serious costs but being an engineer i thought i could fix it, I manufactured prototypes and tested it on my allroad finding the best solution, You can buy a kit from WABCO for the VW Touareg but the drier unit differs slightly and it still costs a lot of money, WABCO don't offer the piston ring only as obviously they won't sell many new compressors if they did.
My initial investigation is found here, please read and pass to your forum if you wish:
Allroad Air Suspension Compressor strip & repair
In short, I have made a replacement Piston ring made from 25% Carbon graphite PTFE which is the same as the material used on the original, and ideal for these dry running applications. I have manufactured and sold over 340 kits from my garage at home where i have a small machine shop for hobby work and now to produce this repair kit. I have sold kits now to all types of cars using this type of compressor all with great feedback, please read my feedback for your reference. The compressor is actually very well made and just changing the piston ring gives it a new lease of life.
This all sounds promising as a cost effective fix!
lcmjaguar
2008 VDP
1988 XJ6
Last edited by lcmjaguar; 11-23-2012 at 09:25 AM.
#13
#14
Join Date: Nov 2006
Location: Glasgow, Scotland UK
Posts: 47,302
Received 9,011 Likes
on
4,114 Posts
![Default](/forum/images/icons/icon1.gif)
![Name: car01.jpg
Views: 1339
Size: 19.3 KB](https://www.jaguarforums.com/forum/attachments/xj-xj6-xj8-xjr-x350-x358-28/158643d1501262097-double-life-your-air-compressor-car01.jpg)
Guys, if it helps any, I know Andy quite well from the Audi forum we both use.
I can confirm that Andy is a well respected and long standing member for many years. He is both knowledgeable and helpful, helping many members to date.
I believe ( please check ) that Andy also offers a compressor refurb service if required.
With a high post count and long standing on the forum, I guess Andy could be compared to our Steve ( WhiteXKR )
The following 3 users liked this post by JimC64:
#15
![Default](/forum/images/icons/icon1.gif)
Hi All, 1st post here so go gentle, Thanks Jim for the kind words, I don't know about "well respected", but I am an Audi & Diy enthusiast and like to have a go fixing tings and breaking things, I try to fix more than I break, but never usually works that way!!, I am a toolmaker to trade and when my audi allroad wabco compressor was on its last legs I thought I would strip and investigate it, as you see from the link further up you can read the strip and repair for more info.
It turns out that these Wabco units are actually very well made, but the "weak" part was the PTFE piston ring, so either being a tight Scotsman not wanting to pay for a new compressor or using my engineering experience (i think the 1st is more realistic) I decided to make a new ring to try to refurbish the compressor & with great results.
A few of your members got in touch and pointed out to me this compressor can be found on the XJ8, & maybe others, this is what the above discussions have been we have been reading about, so although I am not a Jaguar owner i would like to be a member here if you will have me & if you have any compressor questions feel free to ask me, and i will try to help if i can, any knowledge shared is money saved
(or is that the Scots thing again!!) ![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
best regards
Andy
It turns out that these Wabco units are actually very well made, but the "weak" part was the PTFE piston ring, so either being a tight Scotsman not wanting to pay for a new compressor or using my engineering experience (i think the 1st is more realistic) I decided to make a new ring to try to refurbish the compressor & with great results.
A few of your members got in touch and pointed out to me this compressor can be found on the XJ8, & maybe others, this is what the above discussions have been we have been reading about, so although I am not a Jaguar owner i would like to be a member here if you will have me & if you have any compressor questions feel free to ask me, and i will try to help if i can, any knowledge shared is money saved
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
best regards
Andy
Last edited by Norri; 11-25-2012 at 03:56 PM. Reason: spelling
The following 5 users liked this post by Bagpipingandy:
evilfij (11-25-2012),
lcmjaguar (11-25-2012),
nail18974 (12-27-2014),
PigletJohn (06-29-2013),
v8junkie (11-28-2012)
#16
The following users liked this post:
Bagpipingandy (11-25-2012)
#17
![Default](/forum/images/icons/icon1.gif)
Thanks for the welcome, to answer your post above the total postage to US is £4
also see instructions provided for the allroad for now here: Fit piston ring Manual rev E.pdf takes 10 mins to change the ring, hardest part on the allroad is removing the compressor as it is located under the car and usually rusted on there!!
I can modify the instructions through time to suit different cars but for now the actual changing the piston ring is the same, it will obviously differ how you remove the compressor from the car if you even need to do that.
regards
Andy
also see instructions provided for the allroad for now here: Fit piston ring Manual rev E.pdf takes 10 mins to change the ring, hardest part on the allroad is removing the compressor as it is located under the car and usually rusted on there!!
I can modify the instructions through time to suit different cars but for now the actual changing the piston ring is the same, it will obviously differ how you remove the compressor from the car if you even need to do that.
regards
Andy
Last edited by Norri; 11-25-2012 at 03:57 PM. Reason: spelling
#19
Join Date: Oct 2007
Location: PHX some of the time
Posts: 117,538
Received 6,330 Likes
on
5,516 Posts
![Default](/forum/images/icons/icon1.gif)
Welcome to the forum Andy.
There is a time limit on edits and you may also be restricted as a new member.
I'm sure if you post an intro in the New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum Jim will upgrade you to full membership.
There is a time limit on edits and you may also be restricted as a new member.
I'm sure if you post an intro in the New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum Jim will upgrade you to full membership.
