Default Mesh Grill Installation - Photos
This post is to help those who may be considering the installation of mesh inserts in their standard grill.

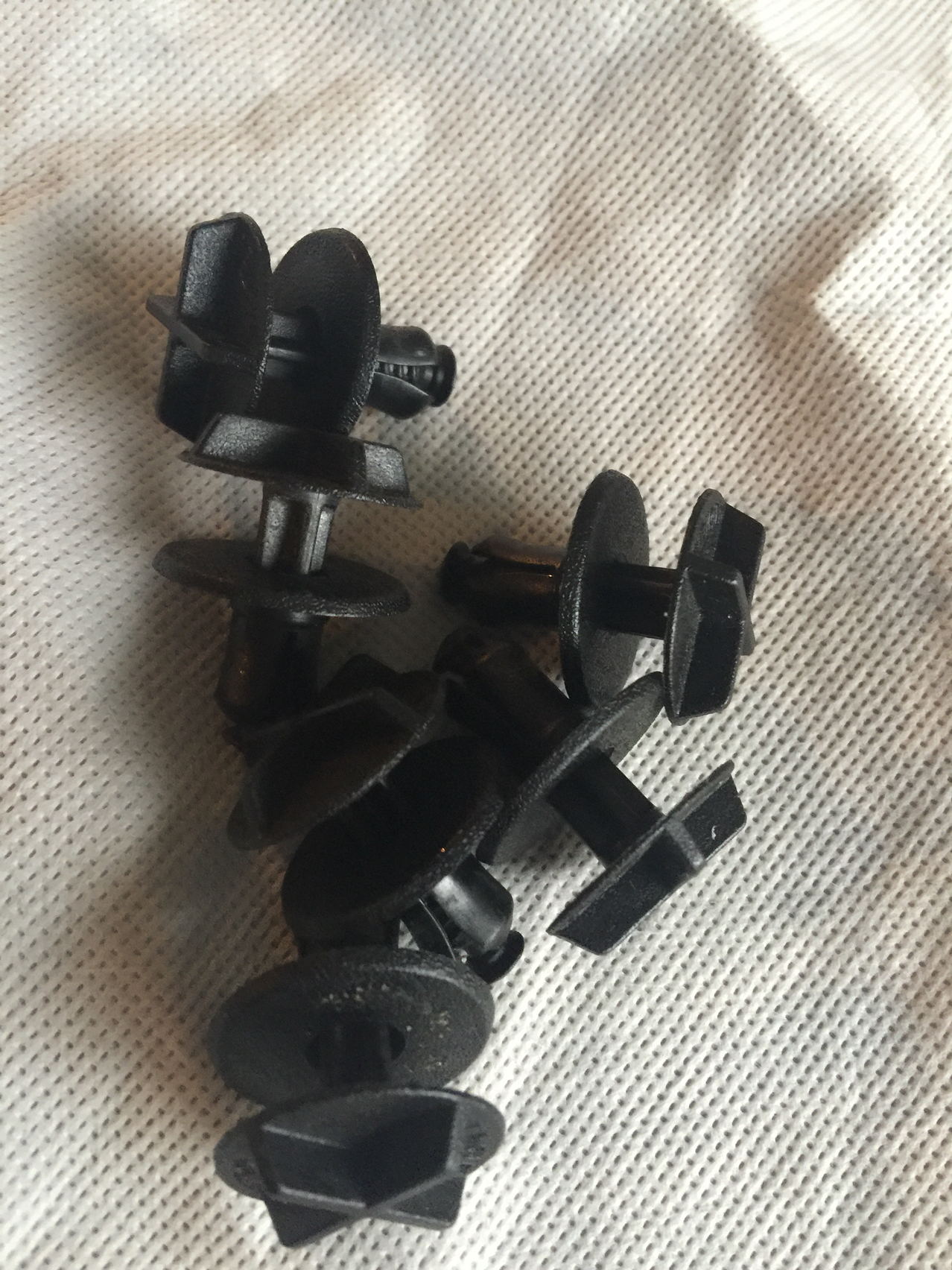

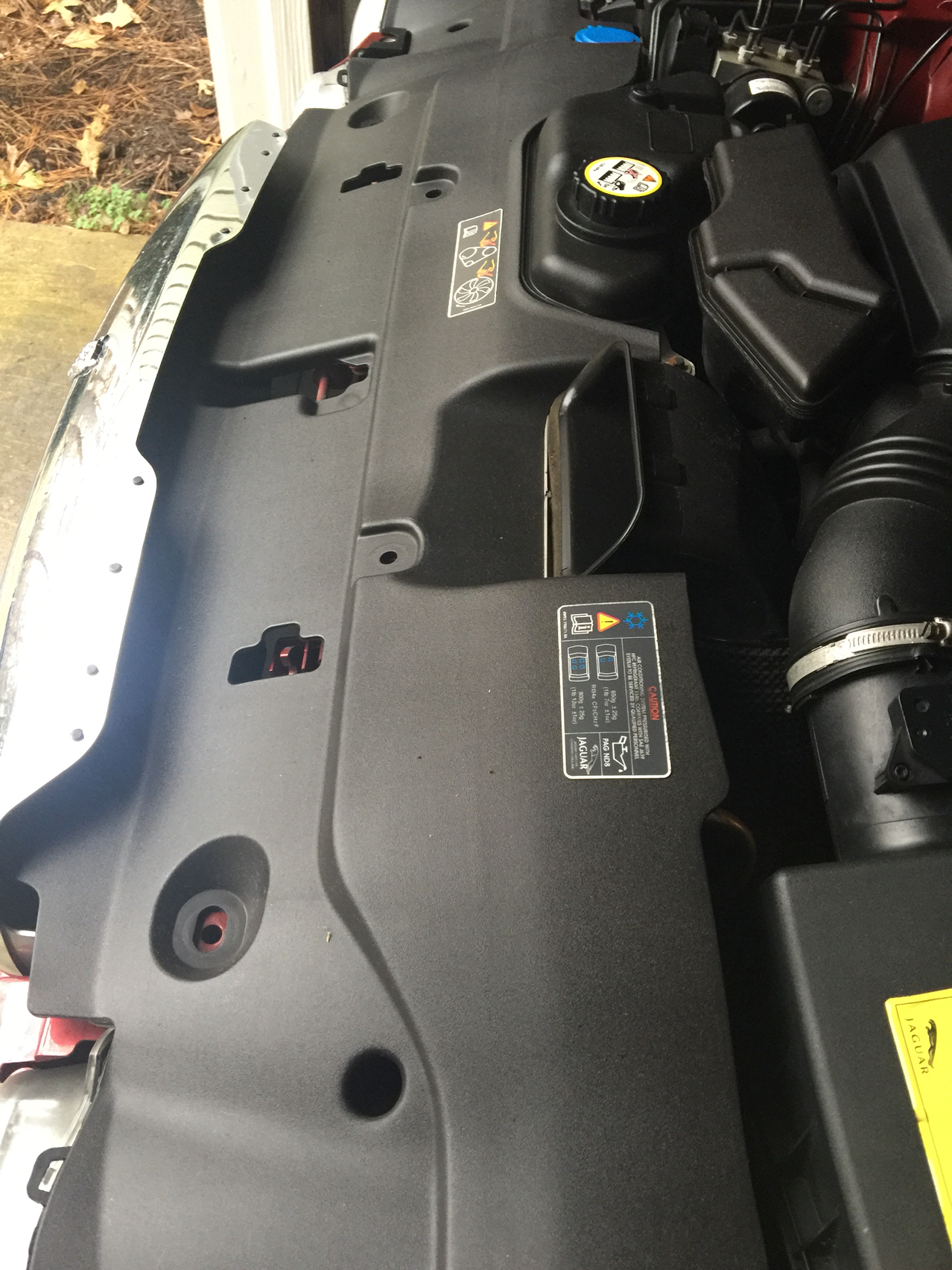

First, remove upper plastic radiator cover.

Thanks-

Attached Thumbnails Mesh Grill Installation - Photos-photo873.jpg   Mesh Grill Installation - Photos-photo146.jpg   Mesh Grill Installation - Photos-photo999.jpg   Mesh Grill Installation - Photos-photo507.jpg
Reply Like
  #2
Old 11-29-2016, 05:01 PM
magmedia's Avatar
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Eastern, MD
Posts: 901
Received 256 Likes on 144 Posts
Default

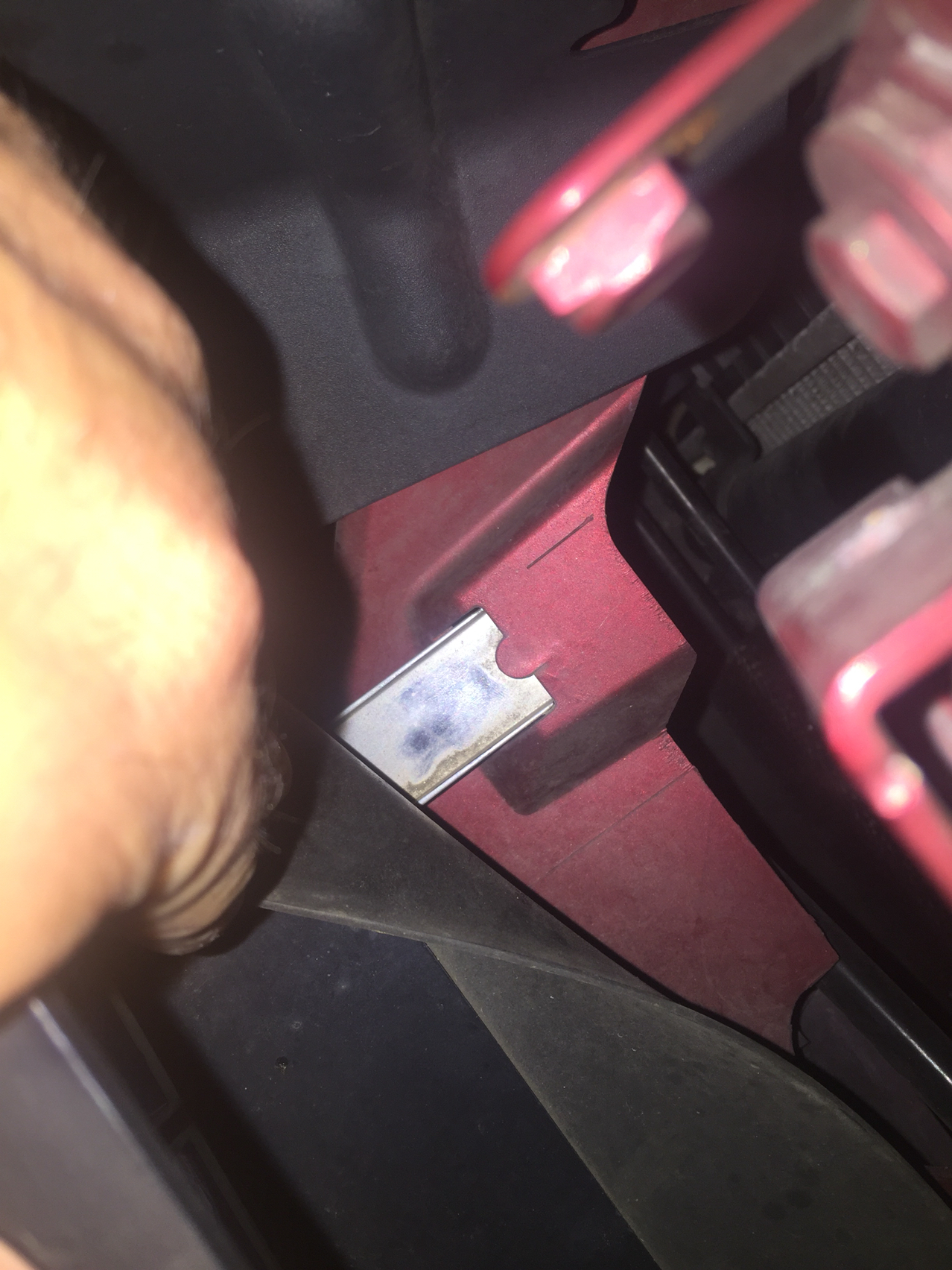

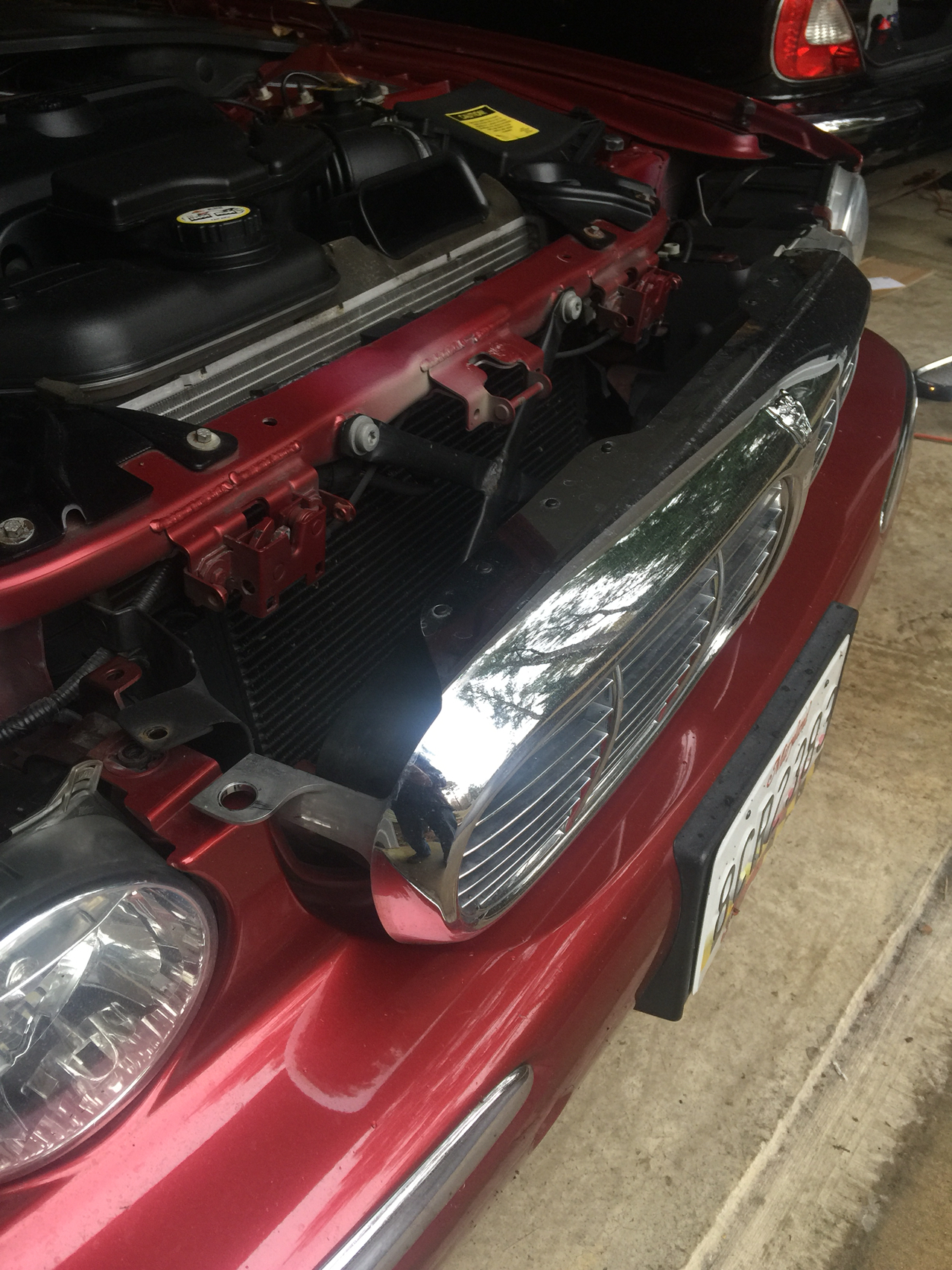

Remove two torx bolts; push down on outer tongue(s), lift on center tongue and slide grill assembly forward.

Attached Thumbnails Mesh Grill Installation - Photos-photo690.jpg   Mesh Grill Installation - Photos-photo464.jpg   Mesh Grill Installation - Photos-photo288.jpg   Mesh Grill Installation - Photos-photo863.jpg   Mesh Grill Installation - Photos-photo309.jpg

Reply Like
  #3
Old 11-29-2016, 05:05 PM
magmedia's Avatar
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Eastern, MD
Posts: 901
Received 256 Likes on 144 Posts
Default

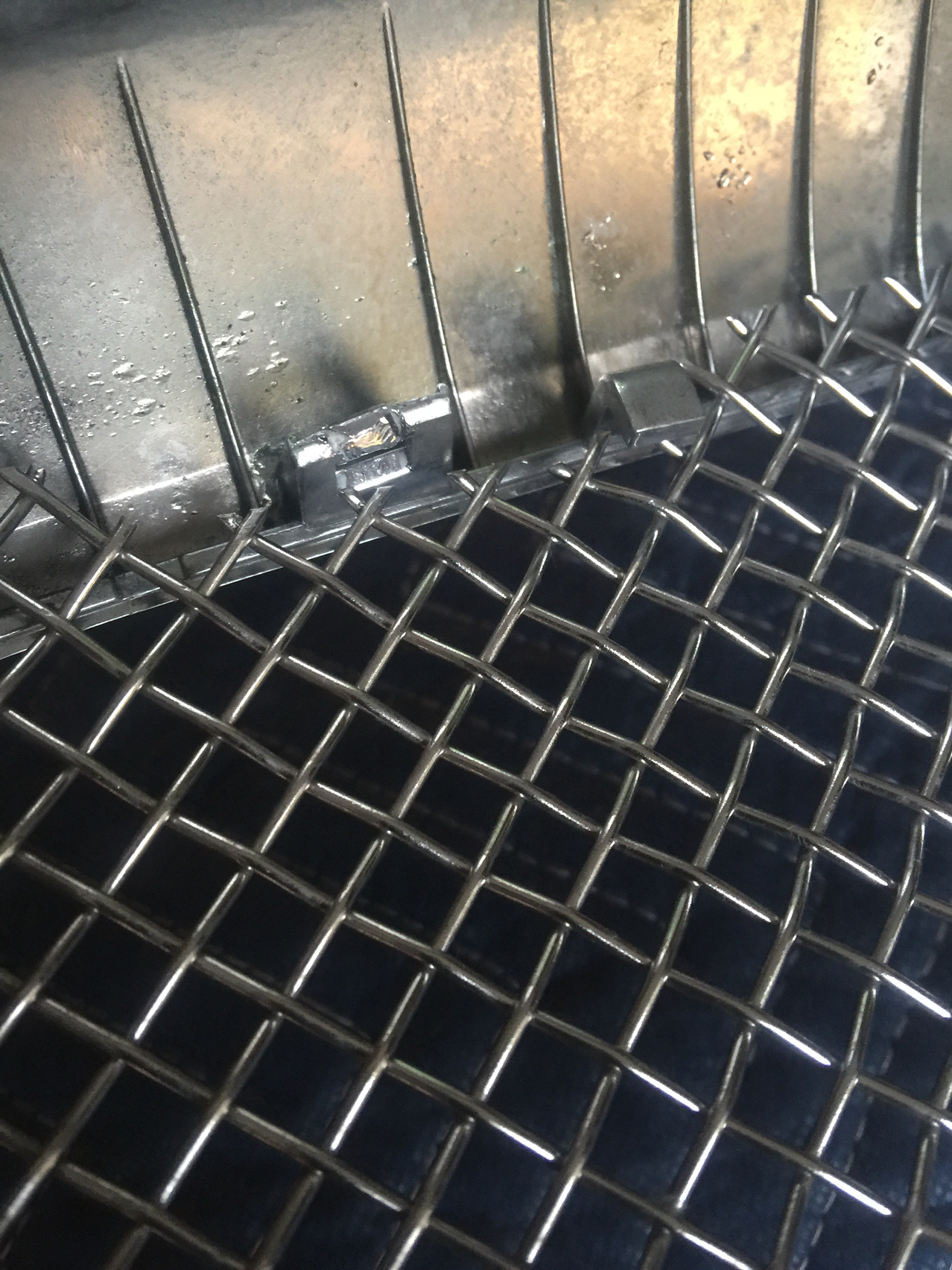

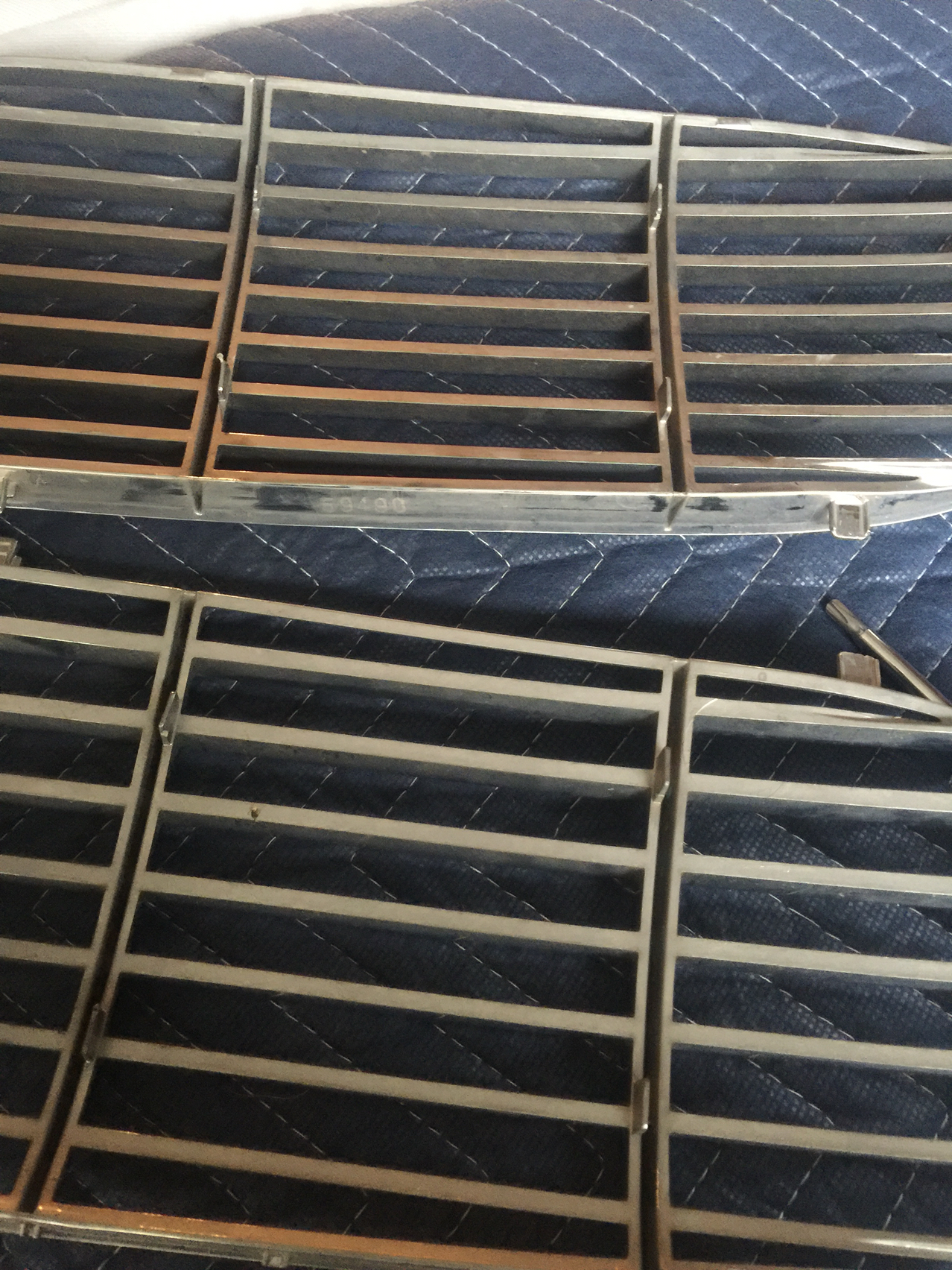

Remove wind 'tunnels', pop out old style vane grill.

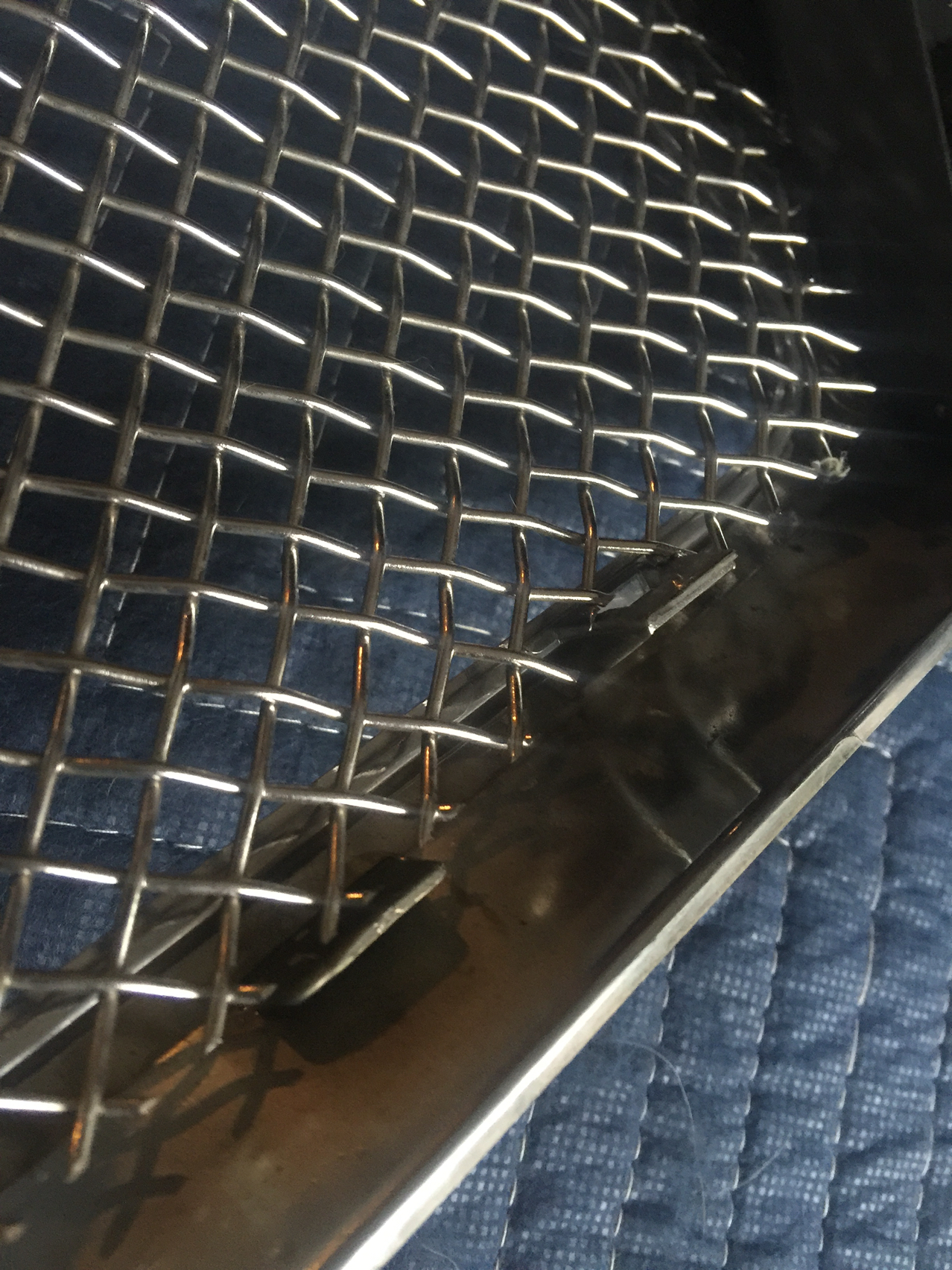

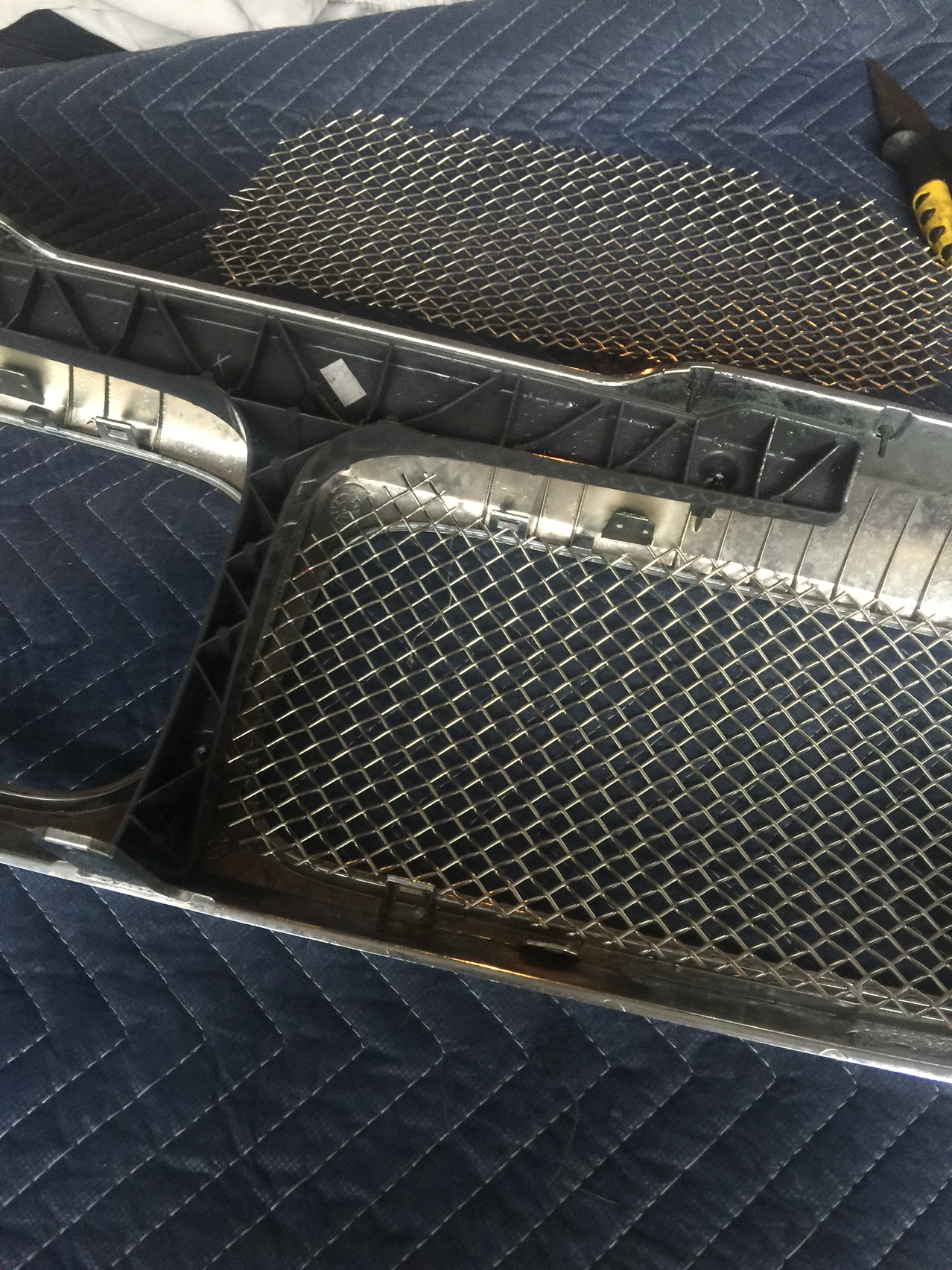

Insert mesh grill(s) and reinsert wind tunnel(s).

Attached Thumbnails Mesh Grill Installation - Photos-photo908.jpg   Mesh Grill Installation - Photos-photo317.jpg   Mesh Grill Installation - Photos-photo765.jpg   Mesh Grill Installation - Photos-photo357.jpg   Mesh Grill Installation - Photos-photo781.jpg

Mesh Grill Installation - Photos-photo414.jpg   Mesh Grill Installation - Photos-photo278.jpg   Mesh Grill Installation - Photos-photo639.jpg
Reply Like
  #4
Old 11-29-2016, 05:07 PM
magmedia's Avatar
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Eastern, MD
Posts: 901
Received 256 Likes on 144 Posts
Default

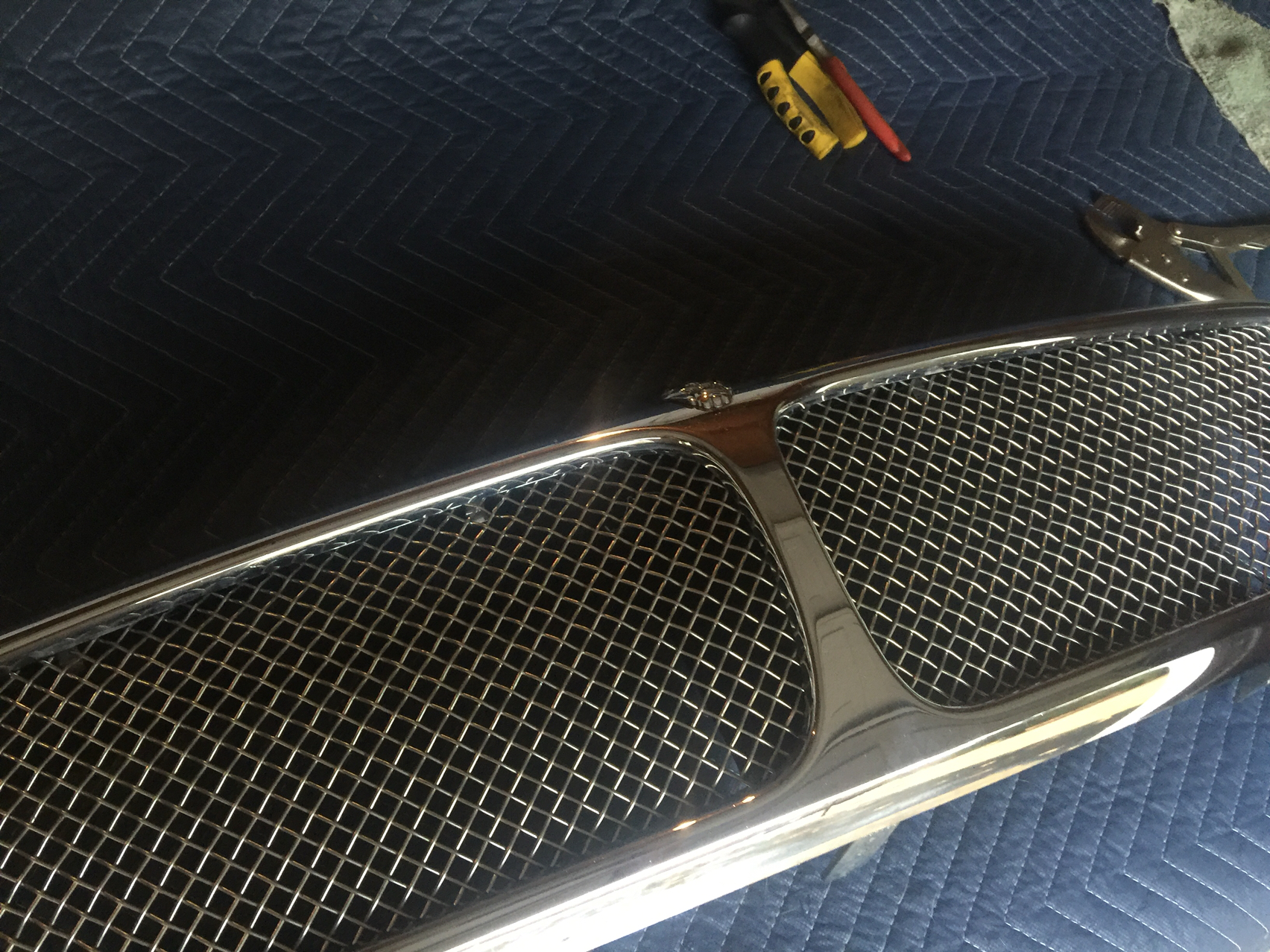

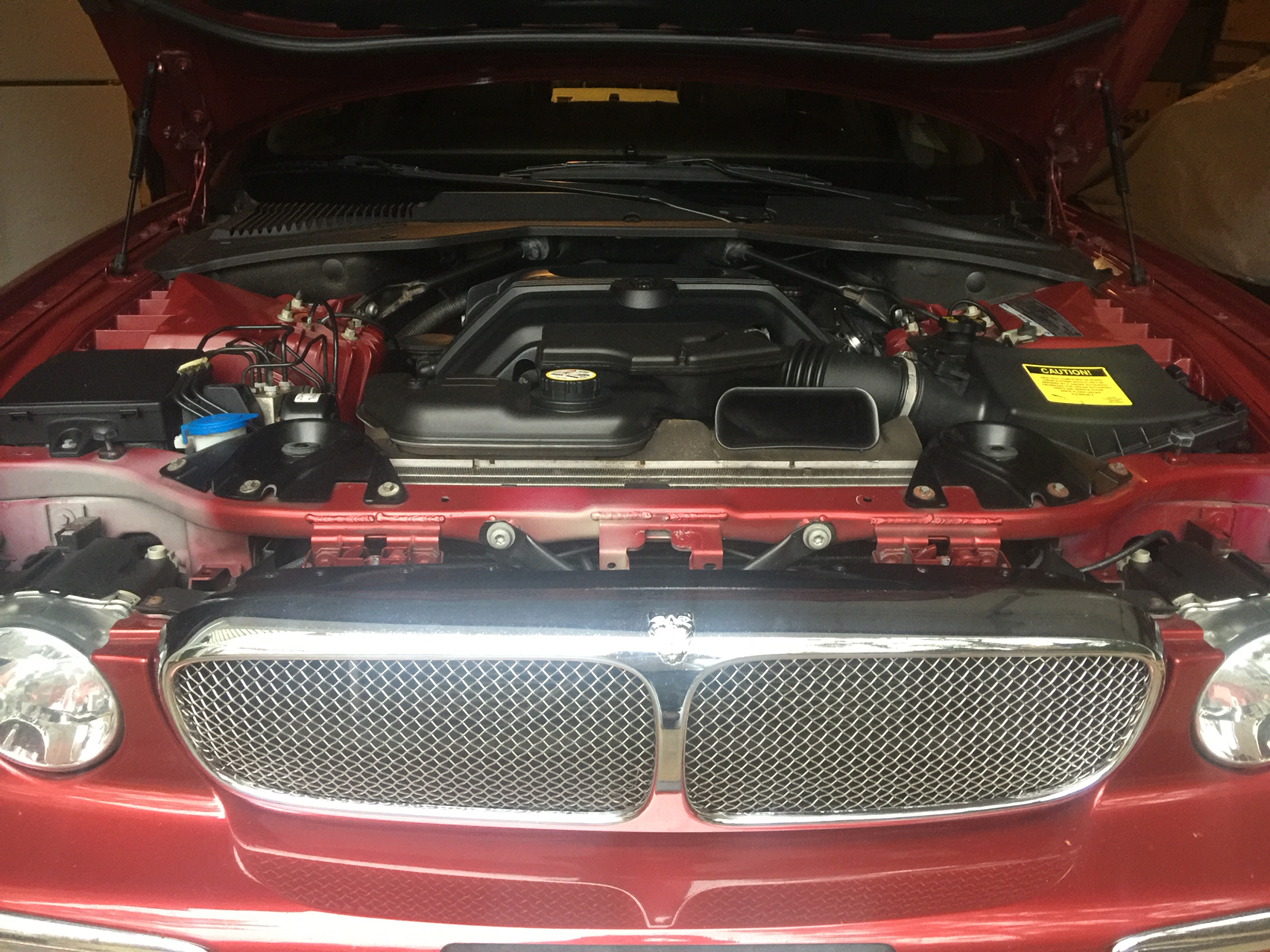

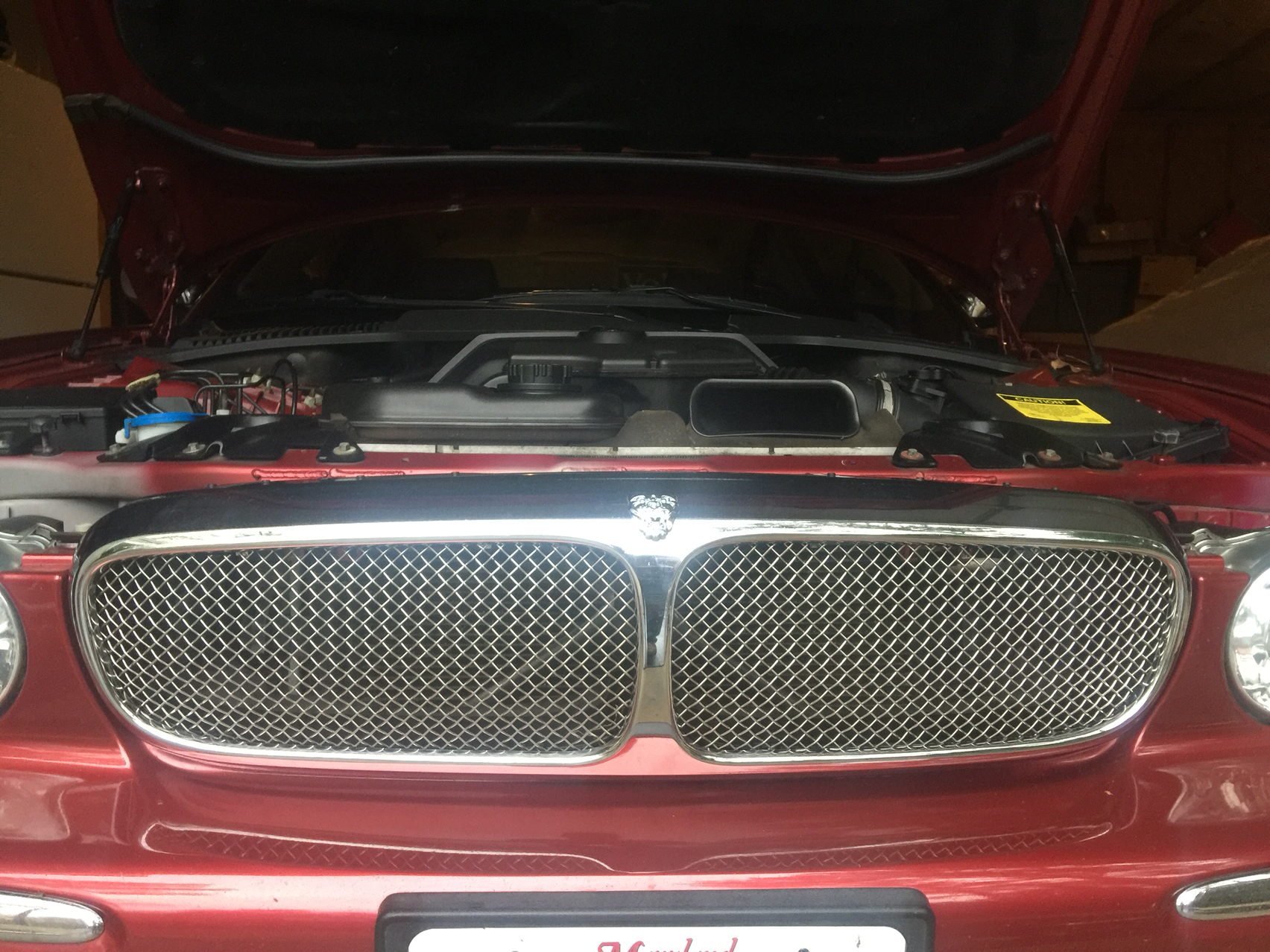

Reinstall grill assembly. Take care to insert the grill surround 'tongues' through the slots in the bumper cover.

Reinstall torx bolts.

Thanks-
Mag

Attached Thumbnails Mesh Grill Installation - Photos-photo823.jpg   Mesh Grill Installation - Photos-photo455.jpg   Mesh Grill Installation - Photos-photo245.jpg
Last edited by magmedia; 11-29-2016 at 05:10 PM.
Reply Like
  #5
Old 11-30-2016, 05:46 PM
NEO Cat's Avatar
Senior Member
Join Date: Dec 2011
Location: Cleveland,Ohio
Posts: 128
Received 41 Likes on 34 Posts
Default Grill
Looks good with the mesh installed. Have been looking at the inserts on Ebay but haven't bought them yet. Where did you get yours and are you happy with the quality of the mesh? Cary

Reply Like
  #6
Old 11-30-2016, 07:22 PM
magmedia's Avatar
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Eastern, MD
Posts: 901
Received 256 Likes on 144 Posts
Default
Originally Posted by NEO Cat
Looks good with the mesh installed. Have been looking at the inserts on Ebay but haven't bought them yet. Where did you get yours and are you happy with the quality of the mesh? Cary
This was a used OEM Grill Surround and Mesh Insert set from eBay, so the inserts are factory appropriate. Did some scrub up and good to go...

I've had the Mina set in the past and they are nice, too.

Thanks-
Mag
