Trunk Actuator Lock
#1
The following 4 users liked this post by magmedia:
#2
![Default](/forum/images/icons/icon1.gif)
1. Remove the plastic latch surround by removing the two plastic clips.

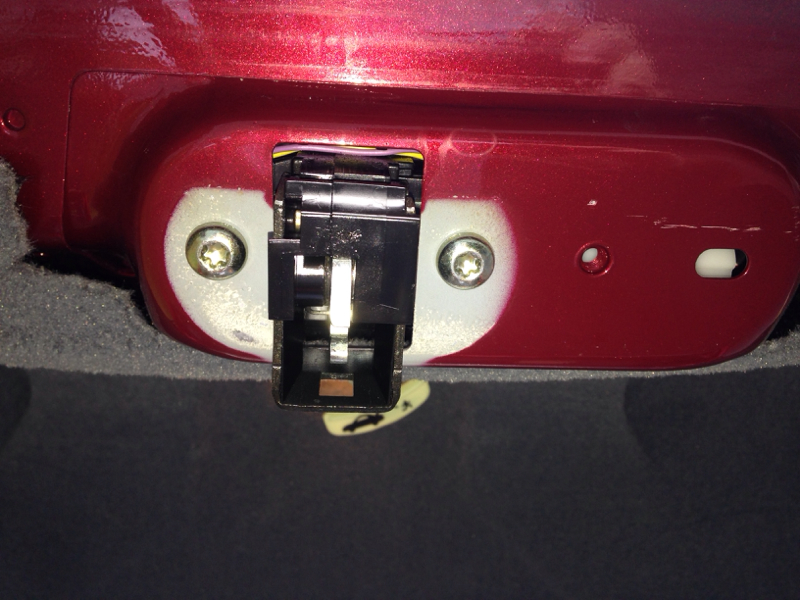

2. Remove two torx bolts holding latch in place.

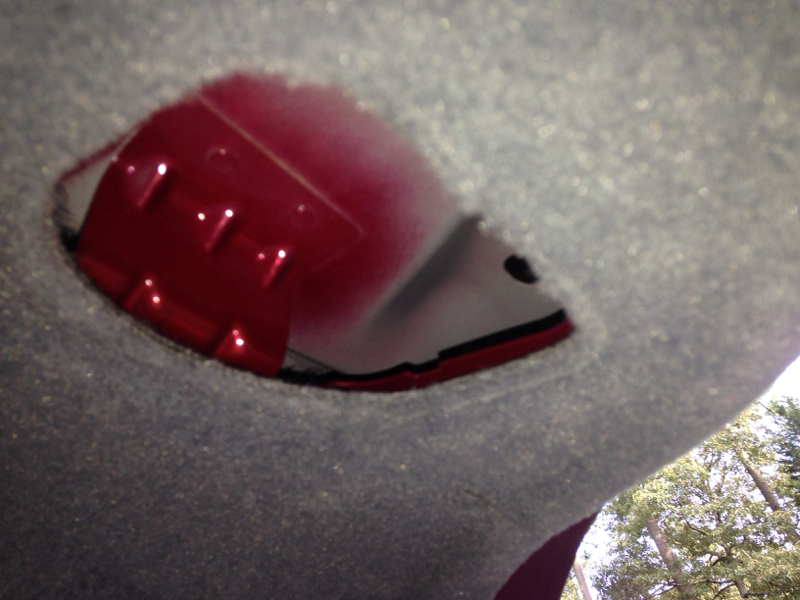

3. Remove plastic hand grabs and a couple plastic clips. This will allow the trunk lid cover to be moved enough for access.
4. Disconnect the emergency trunk release.

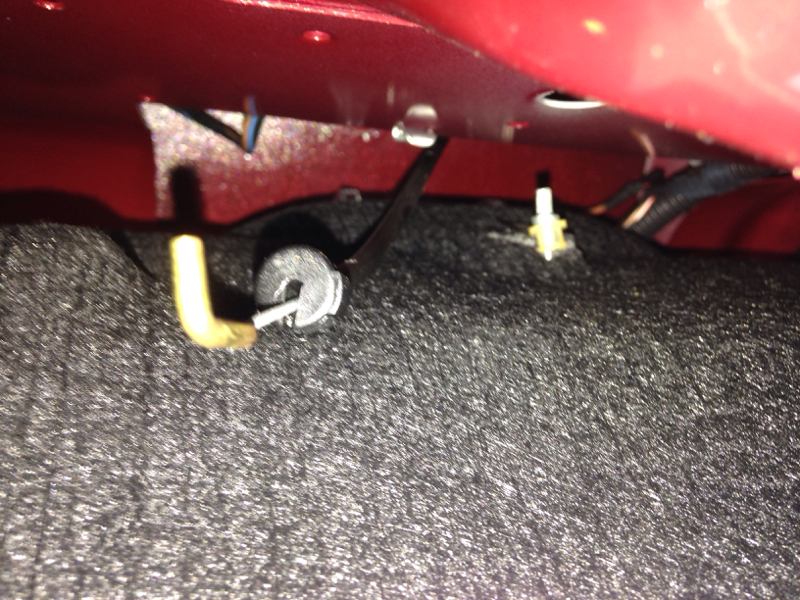

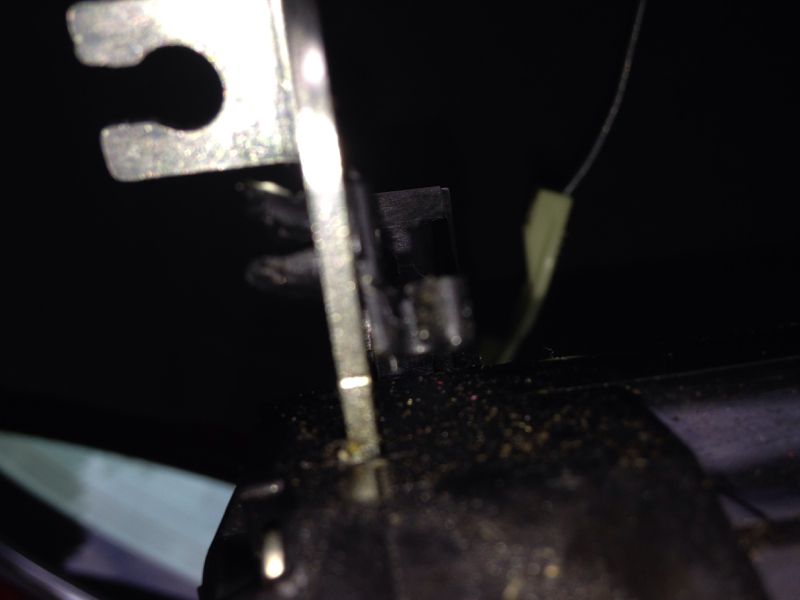

5. Disconnect the lock release cable "arm"- there is a small rotating clip on the end of the cable.
6. Release the grey connector. It is the "squeeze" type.
7. Reverse sequence.
Bought the component from Gaudin Las Vegas on eBay. This was a 2 day delivery, even with their base shipping option.
Enjoy!
-mag
2. Remove two torx bolts holding latch in place.
3. Remove plastic hand grabs and a couple plastic clips. This will allow the trunk lid cover to be moved enough for access.
4. Disconnect the emergency trunk release.
5. Disconnect the lock release cable "arm"- there is a small rotating clip on the end of the cable.
6. Release the grey connector. It is the "squeeze" type.
7. Reverse sequence.
Bought the component from Gaudin Las Vegas on eBay. This was a 2 day delivery, even with their base shipping option.
Enjoy!
-mag
The following 5 users liked this post by magmedia:
Dan.B (06-14-2019),
DanJensen (11-11-2014),
JagJasper (09-23-2023),
lcmjaguar (11-15-2014),
ragman1171 (10-09-2014)
#4
![Default](/forum/images/icons/icon1.gif)
Mag:
Thanks for the pictures and instructions.
I'm curious as to why you changed out the latch. In my case, the trunk will mysteriously open on its own and set off the alarm. This occurs randomly, and now more frequently, when the trunk is heated during the day by the sun. Otherwise, the latch works without issue. I assume that one of the microswitches in the latch is going bad. The latch was replaced at 52K miles under warranty, but my sense from reading posts on the forum is that this is a not-uncommon failure. I suspect I'll have to spring for a new latch.
Dan
Thanks for the pictures and instructions.
I'm curious as to why you changed out the latch. In my case, the trunk will mysteriously open on its own and set off the alarm. This occurs randomly, and now more frequently, when the trunk is heated during the day by the sun. Otherwise, the latch works without issue. I assume that one of the microswitches in the latch is going bad. The latch was replaced at 52K miles under warranty, but my sense from reading posts on the forum is that this is a not-uncommon failure. I suspect I'll have to spring for a new latch.
Dan
#5
![Default](/forum/images/icons/icon1.gif)
Mag: Thanks for the pictures and instructions. I'm curious as to why you changed out the latch. In my case, the trunk will mysteriously open on its own and set off the alarm. This occurs randomly, and now more frequently, when the trunk is heated during the day by the sun. Otherwise, the latch works without issue. I assume that one of the microswitches in the latch is going bad. The latch was replaced at 52K miles under warranty, but my sense from reading posts on the forum is that this is a not-uncommon failure. I suspect I'll have to spring for a new latch. Dan
When closing trunk it would require 3 slams to latch (with no help from electric closer). Worked perfectly after replacement.
This was on 2004 VDP in radiance red, no trouble with the 05 super v8.
Thanks
-mag
#6
#7
