XJ XJ6 / XJR6 ( X300 ) 1995-1997

Broken wires in trunk

Thread Tools

Search this Thread

  #1
Old 06-03-2014 | 05:40 PM
Satterfield's Avatar
Thread Starter
|
Senior Member
Joined: Apr 2013
Posts: 125
Likes: 9
From: Honea Path ,SC 29654
Smile Broken wires in trunk

Does anyone know where all those wires go in the trunk right side ,the ones in the hinge cover, i have four broken, no trunk lights and one tag light, thanks , Satterfield

  #2
Old 06-03-2014 | 07:05 PM
Suede's Avatar
Senior Member
Joined: Oct 2012
Posts: 190
Likes: 108
From: Seattle, WA & Vancouver, BC
Default

Originally Posted by Satterfield
Does anyone know where all those wires go in the trunk right side ,the ones in the hinge cover, i have four broken, no trunk lights and one tag light, thanks , Satterfield
Yep, you've figured out where they go. To the 2 trunk lid lights and tag lights. Best bet is to measure out 2 inch lengths of wire then solder on & wrap in electrical tape. Anything less than 2 inches gets a little frustrating to work with.

  #3
Old 06-04-2014 | 09:14 AM
mgb4tim's Avatar
Senior Member
Joined: Apr 2012
Posts: 722
Likes: 91
From: Pittsburgh, PA
Default

I just metered out the wires in the rear light control box to figure out where to tap off for a trailer wiring harness (brake, directional, running, reverse). I wanted to draw up a "map" of the connectors to show what powers what light. Maybe I'll move forward on that project over the weekend.

  #4
Old 06-04-2014 | 10:02 AM
Satterfield's Avatar
Thread Starter
|
Senior Member
Joined: Apr 2013
Posts: 125
Likes: 9
From: Honea Path ,SC 29654
Default

That would help alot, Thanks, Satterfield

  #5
Old 06-18-2014 | 10:11 AM
mgb4tim's Avatar
Senior Member
Joined: Apr 2012
Posts: 722
Likes: 91
From: Pittsburgh, PA
Default

I haven't forgotten about you. The hitch and wiring module came yesterday - finally. So, I should have that map done very soon - that's if I ever want to move my utility trailer again.

Originally Posted by Satterfield
That would help alot, Thanks, Satterfield

  #6
Old 06-18-2014 | 07:40 PM
Satterfield's Avatar
Thread Starter
|
Senior Member
Joined: Apr 2013
Posts: 125
Likes: 9
From: Honea Path ,SC 29654
Default

Thanks, Satterfield

  #7
Old 06-24-2014 | 09:14 AM
mgb4tim's Avatar
Senior Member
Joined: Apr 2012
Posts: 722
Likes: 91
From: Pittsburgh, PA
Default

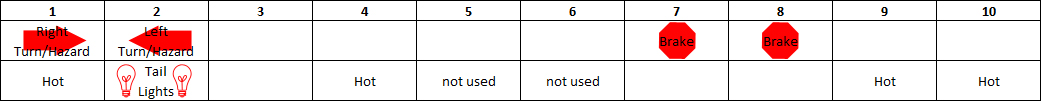

Here you go - the rear lights that I tested on the white connector at the rear light computer.

I tapped these wires to control a wiring harness module for trailer lights. Luckily, in the US for a 4-pin connector, I only needed the tail, indicator, and brake lights. No needs for reverse or rear fogs.

Attached Thumbnails Broken wires in trunk-jag_rear_lights.jpg
  #8
Old 06-25-2014 | 08:11 AM
Satterfield's Avatar
Thread Starter
|
Senior Member
Joined: Apr 2013
Posts: 125
Likes: 9
From: Honea Path ,SC 29654
Default

Thanks Tim,i am sure it will help me ,a little visual goes a long way, Satterfield

  #9
Old 06-25-2014 | 08:45 AM
thorpyuk's Avatar
Junior Member
Joined: Jun 2014
Posts: 27
Likes: 0
From: tamworth
Default

Hi all, sorry to hijak the thread, but my boot/trunk lights are hanging down, and not fixed - there doesn't seem to be anything there to fix them to, is there a couple of fixings i can buy to secure them?

Thanks!

  #10
Old 06-26-2014 | 04:10 PM
b1mcp's Avatar
Veteran Member
Joined: Feb 2012
Posts: 1,037
Likes: 937
From: Manchester UK
Default

No. They should be glued to the boot trim. That's how they come from the factory.

  #11
Old 06-27-2014 | 06:34 AM
thorpyuk's Avatar
Junior Member
Joined: Jun 2014
Posts: 27
Likes: 0
From: tamworth
Default

Problem is that the holes are bigger than the lights, so there's obviously something missing somewhere...

  #12
Old 06-27-2014 | 07:46 AM
Satterfield's Avatar
Thread Starter
|
Senior Member
Joined: Apr 2013
Posts: 125
Likes: 9
From: Honea Path ,SC 29654
Default

there is a bracket of sort their , satterfield

  #13
Old 06-27-2014 | 05:41 PM
b1mcp's Avatar
Veteran Member
Joined: Feb 2012
Posts: 1,037
Likes: 937
From: Manchester UK
Default

They should be glued to the boot trim. That's how they come from the factory.


Sorry, my last post probably wasn't very clear. I didn't mean the lights are glued, I meant the brackets were glued, they are part of the trim so you can't buy them separately.

There is just a sort of frame around the aperture in the trim. See the picture here

X300/XJ6 boot light inspection ~ Jaguar Vanden Plas "The cats meow"


Check inside your boot trim, they may have fallen off and just need gluing back on. The lights just clip to these - no other brackets.
