Diagram for transmission mount
#1
Diagram for transmission mount
Is there a diagram online somewhere showing the different parts of the transmission mount?
Looks like the transmission mount spring buffer is missing on the XJR and whenever going over speed bumps I hear a thud and I think it's because the transmission isn't mounted correctly or some type of bushing is missing...

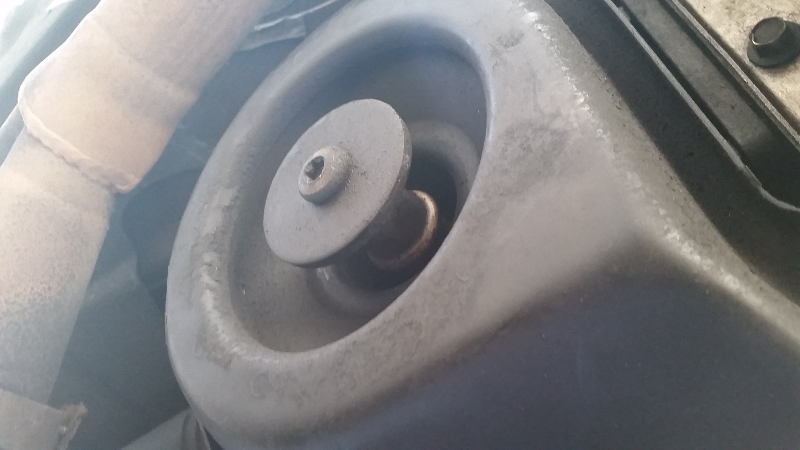

I tried looking underneath the car and there looks to be a hole in the transmission mount with a star bolt in the middle but bolt just moves up and down with the transmission freely.... not sure if that's where the spring mount buffer goes?
Looks like the transmission mount spring buffer is missing on the XJR and whenever going over speed bumps I hear a thud and I think it's because the transmission isn't mounted correctly or some type of bushing is missing...
I tried looking underneath the car and there looks to be a hole in the transmission mount with a star bolt in the middle but bolt just moves up and down with the transmission freely.... not sure if that's where the spring mount buffer goes?
#2
Here's a good one....
Engine Mounting Bracket-Rear-4.0 Litre Supercharged-Automatic - Parts For XJ Series from (V)720125 to (V)812255 (X300) | Jaguar Heritage Parts UK
The trans *does* move up-down a fair bit.
Cheers
DD
Engine Mounting Bracket-Rear-4.0 Litre Supercharged-Automatic - Parts For XJ Series from (V)720125 to (V)812255 (X300) | Jaguar Heritage Parts UK
The trans *does* move up-down a fair bit.
Cheers
DD
The following users liked this post:
AlbBolivar (12-08-2014)
#4
#5
The following users liked this post:
AlbBolivar (12-09-2014)
#7
Trending Topics
#8
Got the new bushing installed this morning but for some reason the washer is not flush with the bushing. There seems to be about a 1 inch gap from the bottom of the bushing and the washer?
Am I missing something else?
I can't tell from the diagram or the picture Al posted if there should be
Am I missing something else?
I can't tell from the diagram or the picture Al posted if there should be
#9
Sorry for the late info...I don't check in here as often as some. I replaced mine about 2 years ago while chasing a vibration problem. I was left with that same gap and the consensus at the time was that it was that way in all of them. Its about half way down the first page of this thread...
https://www.jaguarforums.com/forum/x...d%C2%85-65987/
https://www.jaguarforums.com/forum/x...d%C2%85-65987/
#10
Sorry for the late info...I don't check in here as often as some. I replaced mine about 2 years ago while chasing a vibration problem. I was left with that same gap and the consensus at the time was that it was that way in all of them. Its about half way down the first page of this thread...
https://www.jaguarforums.com/forum/x...d%C2%85-65987/
https://www.jaguarforums.com/forum/x...d%C2%85-65987/
