Rebuilding rear calipers
#1
![Default](/forum/images/icons/icon1.gif)
I'm replacing the rear rotors and pads on my 95 x300 as suggested by my failed annual safety inspection.
Since it has over 100K miles, I thought it might be worth rebuilding the calipers while I'm in there.
My plan it to glass bead or walnut shell blast them clean, pop the pistons, then replace all the seals. Finally, a lick of paint before they go back on.
Any words of wisdom from those that have traveled down this road before. I've done this to other cars, but not my beloved x300.
Thanks!
Since it has over 100K miles, I thought it might be worth rebuilding the calipers while I'm in there.
My plan it to glass bead or walnut shell blast them clean, pop the pistons, then replace all the seals. Finally, a lick of paint before they go back on.
Any words of wisdom from those that have traveled down this road before. I've done this to other cars, but not my beloved x300.
Thanks!
#2
#4
Join Date: May 2008
Location: Great Mills, MD
Posts: 14,425
Likes: 0
Received 3,910 Likes
on
3,212 Posts
![Default](/forum/images/icons/icon1.gif)
Tim, take a look at the calipers before you tear them apart. Atleast on the X-Type, there is a pentahead bolt (5 sided bolt head) that holds the internals of the caliper in place. If it is like the X-Type, it is a 14mm socket that you need. It can be found on E-bay for around $20 delivered to your house. You can go through say Snap-On, but be ready to pay a pretty penny. From there, the rest of the caliper is going to be like what you have dealt with in the past. Just remember that to get the piston back to where it needs to be to install, one side turns one way, the other side turns the opposite way.
The following users liked this post:
mgb4tim (07-15-2013)
#5
![Default](/forum/images/icons/icon1.gif)
Tim, take a look at the calipers before you tear them apart. Atleast on the X-Type, there is a pentahead bolt (5 sided bolt head) that holds the internals of the caliper in place. If it is like the X-Type, it is a 14mm socket that you need. It can be found on E-bay for around $20 delivered to your house. You can go through say Snap-On, but be ready to pay a pretty penny. From there, the rest of the caliper is going to be like what you have dealt with in the past. Just remember that to get the piston back to where it needs to be to install, one side turns one way, the other side turns the opposite way.
The pistons turn in? I've never seen that on calipers that had separate parking brakes. Aren't the parking brakes a mini drum brake inside the caliper?
#7
Trending Topics
#8
#9
Join Date: May 2008
Location: Great Mills, MD
Posts: 14,425
Likes: 0
Received 3,910 Likes
on
3,212 Posts
![Default](/forum/images/icons/icon1.gif)
Ziggy, my reference comes from helping a fellow member with his XJ (I want to say it was a 2004, but something in the early 2000's at a minimum). His were essentially identical to my X-Type. Maybe the older units were a slightly different design and therefore I am mistaken. If they have a separate drum on the inside, then yes, they just push in as I am familiar with that setup too.
#10
![Default](/forum/images/icons/icon1.gif)
I'd bet that the newer ones used an integrated parking brake setup. That's , as it's pretty much the norm now for rear disk brakes, no?

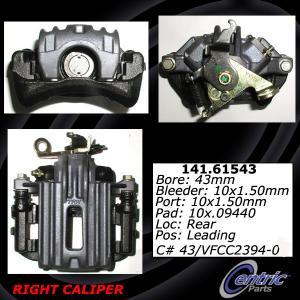

I looked at the photos on Rockauto for the later rear calipers, and it looke like they had an integrated parking brake.
