Removing the seat controls
#1
![Default](/forum/images/icons/icon1.gif)
My '95 XJ6 passenger seat controls work fine, with one exception. The seat moves forward, but not backwards.
I'm hoping the switch just needs cleaned, or a wire is pulled from the harness, or some other simple fault.
But, before I resort to applying brute force to pull the controls away, I was hoping someone could tell me how to remove the little control panel from the lower seat cushion.
I'm hoping the switch just needs cleaned, or a wire is pulled from the harness, or some other simple fault.
But, before I resort to applying brute force to pull the controls away, I was hoping someone could tell me how to remove the little control panel from the lower seat cushion.
#2
![Default](/forum/images/icons/icon1.gif)
Ok, why, why, why is there a little black box under the passenger seat if it doesn't have memory??????
I wired a couple test leads to the fore/aft motor and got the seat back to a comfortable position. If I need a new black box, I think I'll hold off and just put a 'backwards' lead on a momentary switch-just until I get all the other stuff worked out.
I wired a couple test leads to the fore/aft motor and got the seat back to a comfortable position. If I need a new black box, I think I'll hold off and just put a 'backwards' lead on a momentary switch-just until I get all the other stuff worked out.
#3
![Default](/forum/images/icons/icon1.gif)
Ok, why, why, why is there a little black box under the passenger seat if it doesn't have memory??????
I wired a couple test leads to the fore/aft motor and got the seat back to a comfortable position. If I need a new black box, I think I'll hold off and just put a 'backwards' lead on a momentary switch-just until I get all the other stuff worked out.
I wired a couple test leads to the fore/aft motor and got the seat back to a comfortable position. If I need a new black box, I think I'll hold off and just put a 'backwards' lead on a momentary switch-just until I get all the other stuff worked out.
If (with emphasis on the ' if ' because I never had issues with my X300 seats) it's like the later XJ and XK modules, these usually fail due to a broken track on the circuit board. Instead of going for a replacement, you could open it up, look for and repair the break.
Graham
#4
#5
![Default](/forum/images/icons/icon1.gif)
Is there a straightforward aftermarket or home brewed substitute for my XK8 seat control modules?
I have 4 dead seat control modules and therefore 4 non-adjustable seats in 2 XK8's (not ideal). I've opened up all the modules and the circuit boards are generally in bad shape around the edges. I spotted a break in a trace (or so I thought) and tried to solder it together, but no success.
All I need is voltage to the motors, and I'd be happy with any simple arrangement of switches to route car voltage to seat motors.
Where can I find a schematic of the seat motor harness and pin assignments at the seat module connectors? Thanks, Mark
I have 4 dead seat control modules and therefore 4 non-adjustable seats in 2 XK8's (not ideal). I've opened up all the modules and the circuit boards are generally in bad shape around the edges. I spotted a break in a trace (or so I thought) and tried to solder it together, but no success.
All I need is voltage to the motors, and I'd be happy with any simple arrangement of switches to route car voltage to seat motors.
Where can I find a schematic of the seat motor harness and pin assignments at the seat module connectors? Thanks, Mark
#6
![Default](/forum/images/icons/icon1.gif)
You may not have enough posts to open pdf's on the forums, but you should be able to download the JTIS21 factory manual from the sticky near the top of the forum page. That has all the schematics and procedures, although it's clumsy to work with at first.
Also, go to jagrepair.com and you will find electrical schematics.
I expect your post may be moved to the XK8 forum, where you will find more support. I
Also, go to jagrepair.com and you will find electrical schematics.
I expect your post may be moved to the XK8 forum, where you will find more support. I
#7
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,878
Received 10,932 Likes
on
7,182 Posts
![Default](/forum/images/icons/icon1.gif)
I'd like to hear advice on this as well. I've never been able to figure it out
Cheers
DD
Trending Topics
#9
![Default](/forum/images/icons/icon1.gif)
Hi
I have the same question. The driver control popped out easily, and I was able to remove switch and module to clean. I'd like to do the same on the passenger seat, but it is proving more difficult to get out. It feels like there is some sort of internal rim holding it in place, and when i insert something as a lever, it seems i am only moving the fascia of the switch. Is there a trick to removing the switch? I can use brute force but am worried I amy damage swittch so have just left it for the moment.
I have the same question. The driver control popped out easily, and I was able to remove switch and module to clean. I'd like to do the same on the passenger seat, but it is proving more difficult to get out. It feels like there is some sort of internal rim holding it in place, and when i insert something as a lever, it seems i am only moving the fascia of the switch. Is there a trick to removing the switch? I can use brute force but am worried I amy damage swittch so have just left it for the moment.
#10
#11
![Default](/forum/images/icons/icon1.gif)
I removed my driver's side seat controls today. For future reference, here is how they are secured:
The trim pulls away. It's held on by four clips and, two of which (A, B) can be manually released if the lower two buttons are removed (these just pull off). There is also some glue, but it's very weak.
EDIT: The glue is perhaps not so weak. As you can see in the pictures, the glue had not made made very good contact in that case. I just tried to take off the passenger side and it was a completely different story. The trim piece was glued very firmly onto the switch box - so firmly that the trim and switch box came out as one piece, breaking one of the lever clips that holds the swich box to the seat. Be careful! It's a pity that they chose to glue this. Obviously it was designed to be removable. My guess is that they decided that the trim was not held firmly enough, and instead of revising the clip system they elected to go the cheap/easy way and glue it.
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31596-removing-seat-controls-y4pnx0c.jpg?dateline=1359426797)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31597-removing-seat-controls-y02jsga.jpg?dateline=1359426797)

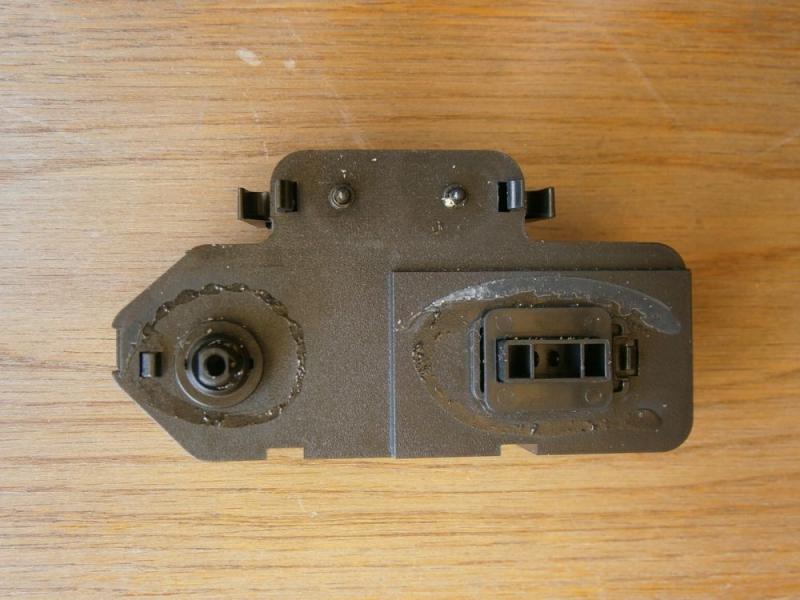

With the trim removed you have access to the switch box:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31598-removing-seat-controls-4r0cbjk.jpg?dateline=1359426797)

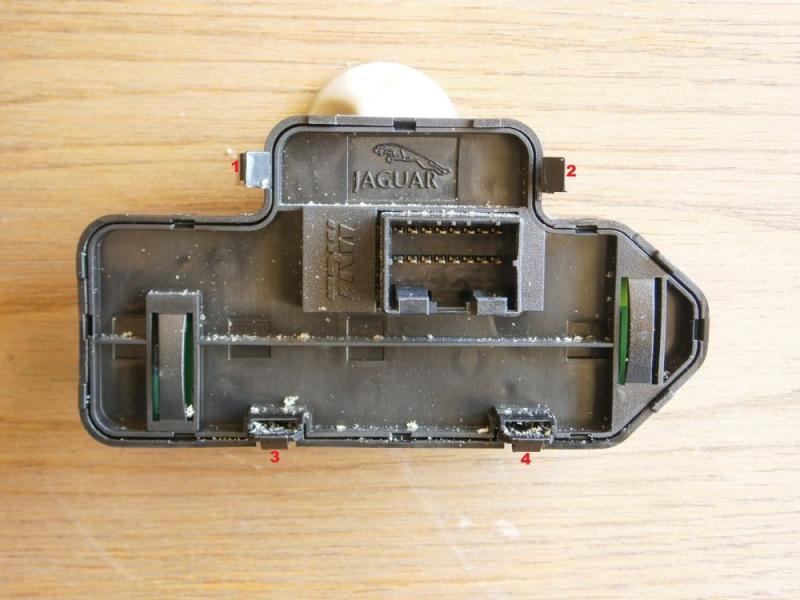

This is attached to the seat by another four clips
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31599-removing-seat-controls-whkukw8.jpg?dateline=1359426797)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31607-removing-seat-controls-ajcltbz.jpg?dateline=1359428972)
The upper two are released by pinching these levers inwards:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31601-removing-seat-controls-0qydiic.jpg?dateline=1359426797)
Then you can lift it off the lower two:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31602-removing-seat-controls-hpmkm0i.jpg?dateline=1359426797)

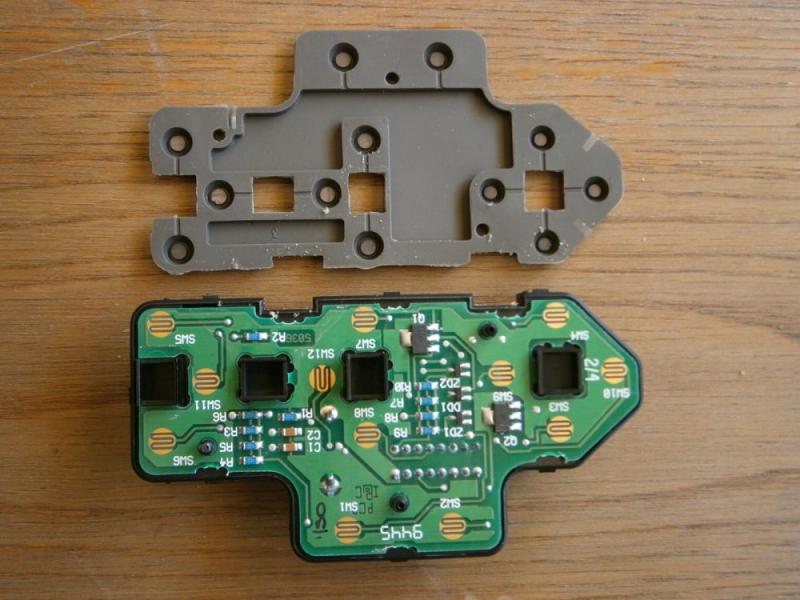

Interior shots:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31603-removing-seat-controls-2evewmp.jpg?dateline=1359426797)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31604-removing-seat-controls-lngyjg5.jpg?dateline=1359426797)
Open the switch box with care! There are tiny spring-loaded things in the plastic rockers (see second to last photo).
My seat was moving foward, but not backwards. As you can see, there isn't anything broken, nor are any of the contacts dirty. I cleaned them anyway, and just manually pressing the buttons in the rubber membrane, all functions work fine. However, when I put the casing back together some are again not working. I think the problem is a combination of general wear of the plastic parts and minor warping of the case preventing the rockers from depressing the buttons sufficiently - if I sqeeze the casing, they all seem to work.
EDIT: I seem to be having some success with putting spacers on the rocker that operates the seat foward/backward buttons. I stuck ~1.5mm rubber spacers on the rocker so that it pushes harder on the rubber button.
The trim pulls away. It's held on by four clips and, two of which (A, B) can be manually released if the lower two buttons are removed (these just pull off). There is also some glue, but it's very weak.
EDIT: The glue is perhaps not so weak. As you can see in the pictures, the glue had not made made very good contact in that case. I just tried to take off the passenger side and it was a completely different story. The trim piece was glued very firmly onto the switch box - so firmly that the trim and switch box came out as one piece, breaking one of the lever clips that holds the swich box to the seat. Be careful! It's a pity that they chose to glue this. Obviously it was designed to be removable. My guess is that they decided that the trim was not held firmly enough, and instead of revising the clip system they elected to go the cheap/easy way and glue it.
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31596-removing-seat-controls-y4pnx0c.jpg?dateline=1359426797)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31597-removing-seat-controls-y02jsga.jpg?dateline=1359426797)
With the trim removed you have access to the switch box:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31598-removing-seat-controls-4r0cbjk.jpg?dateline=1359426797)
This is attached to the seat by another four clips
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31599-removing-seat-controls-whkukw8.jpg?dateline=1359426797)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31607-removing-seat-controls-ajcltbz.jpg?dateline=1359428972)
The upper two are released by pinching these levers inwards:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31601-removing-seat-controls-0qydiic.jpg?dateline=1359426797)
Then you can lift it off the lower two:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31602-removing-seat-controls-hpmkm0i.jpg?dateline=1359426797)
Interior shots:
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31603-removing-seat-controls-2evewmp.jpg?dateline=1359426797)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31604-removing-seat-controls-lngyjg5.jpg?dateline=1359426797)
Open the switch box with care! There are tiny spring-loaded things in the plastic rockers (see second to last photo).
My seat was moving foward, but not backwards. As you can see, there isn't anything broken, nor are any of the contacts dirty. I cleaned them anyway, and just manually pressing the buttons in the rubber membrane, all functions work fine. However, when I put the casing back together some are again not working. I think the problem is a combination of general wear of the plastic parts and minor warping of the case preventing the rockers from depressing the buttons sufficiently - if I sqeeze the casing, they all seem to work.
EDIT: I seem to be having some success with putting spacers on the rocker that operates the seat foward/backward buttons. I stuck ~1.5mm rubber spacers on the rocker so that it pushes harder on the rubber button.
Last edited by Oubadah; 01-28-2013 at 10:42 PM.
The following users liked this post:
Nitronick (01-28-2013)
#12
#13
![Default](/forum/images/icons/icon1.gif)
![](https://www.jaguarforums.com/forum/attachments/xj-xj6-xjr6-x300-26/31688-removing-seat-controls-iycomv5.jpg?dateline=1359507822)
The seat back/fowards work perfectly now with those spacers, and they're not hair-trigger either - they feel just right, (but I'm still paranoid about the seat moving it'self while I'm driving
![Embarrassment](https://www.jaguarforums.com/forum/images/smilies/redface.gif)
#14
![Thumbs up](https://www.jaguarforums.com/forum/images/icons/icon14.gif)
pfnewheart8@gmail.com I big THANKS to you for the excellent repair notes and pictures. Mine work well now but for future troubles in this area will be a great help.
Paul
Paul
