Default Removing Switch-Pack from the Driver's seat?

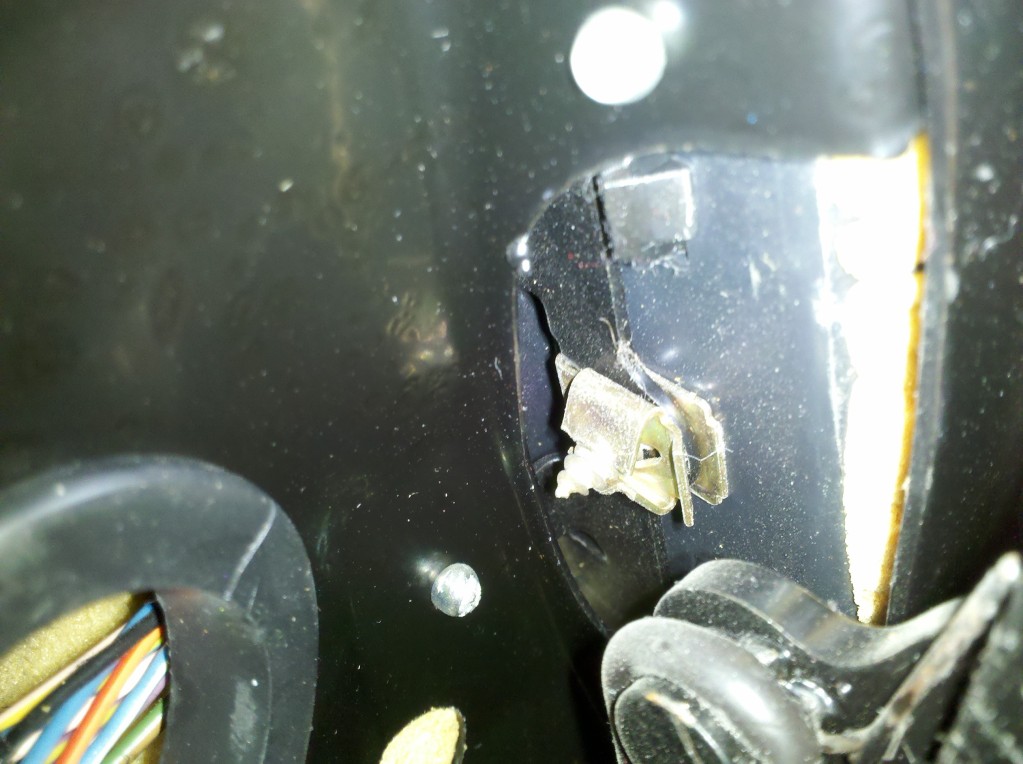

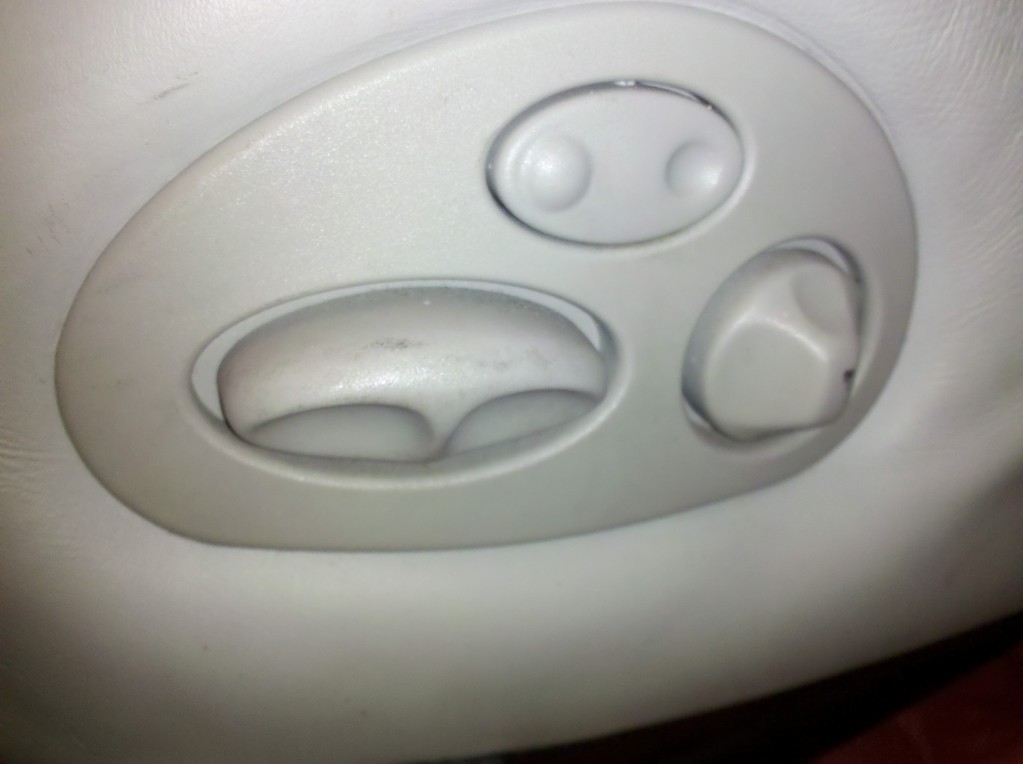

Anyone know how to remove it:




and the back side: (that screw "feels" like it is under the fore/aft switch)


Attached Thumbnails Removing Switch-Pack from the Driver's seat?-img_20130821_211928_zpsf195347d.jpg   Removing Switch-Pack from the Driver's seat?-img_20130821_212008_zpsc73d289b.jpg
  #2
Old 08-22-2013 | 10:52 AM
mgb4tim's Avatar
Senior Member
Joined: Apr 2012
Posts: 722
Likes: 91
From: Pittsburgh, PA
Default

pull.... you can prise it away a little and see where a long, thin screwdriver might help, but just pull

The following users liked this post:
aholbro1 (08-22-2013)
  #3
Old 08-22-2013 | 11:40 PM
aholbro1's Avatar
Thread Starter
|
Veteran Member
Joined: Aug 2010
Posts: 4,616
Likes: 1,645
From: Decatur, TX
Default

Props to Tim

Near as I can make out, it's retained by the clips adjacent to the buttons....

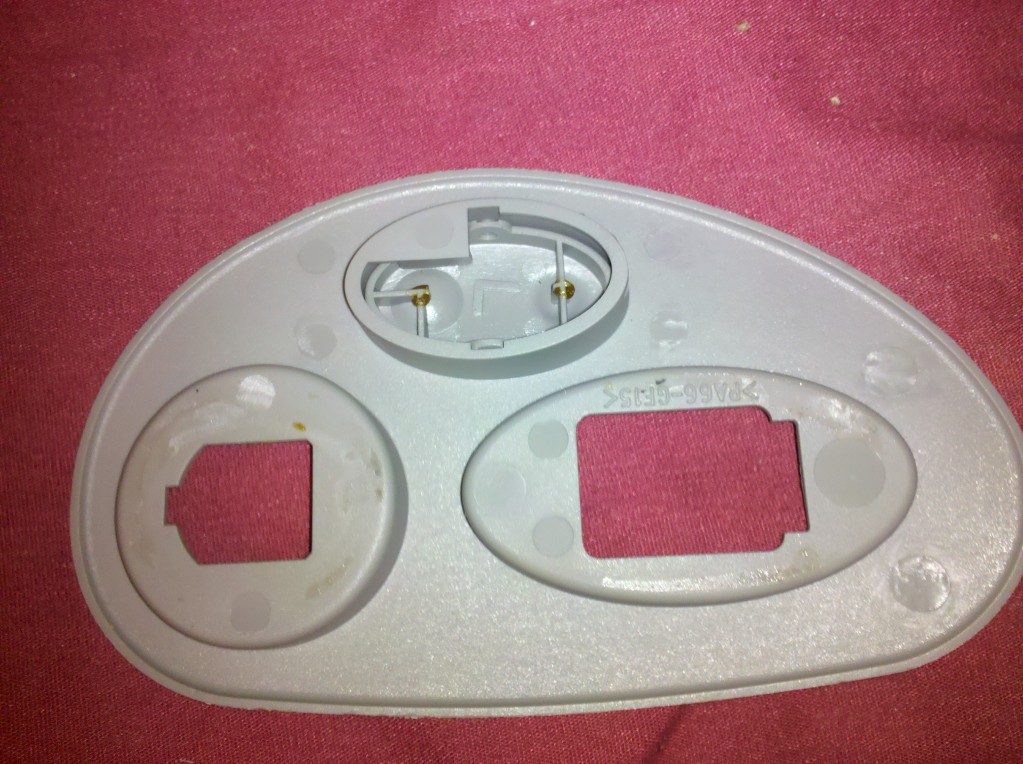

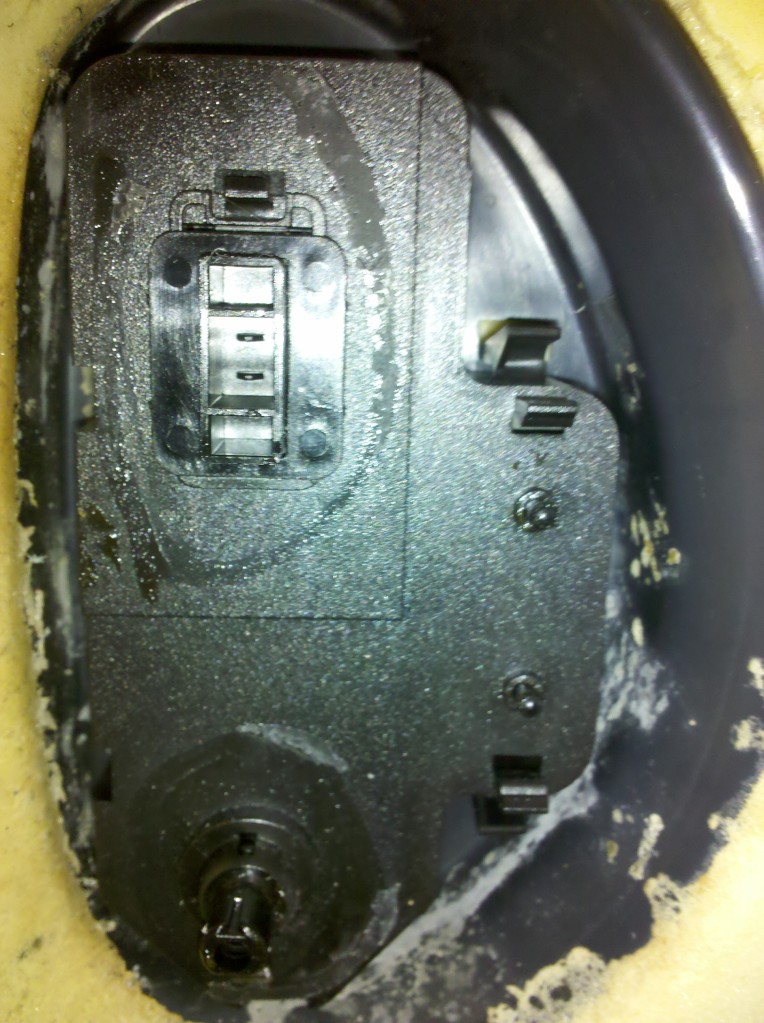

Next question: How do you remove these head-rest collars?


Attached Thumbnails Removing Switch-Pack from the Driver's seat?-img_20130822_203220_zps763010c4.jpg   Removing Switch-Pack from the Driver's seat?-img_20130822_203205_zps76d1e80c.jpg   Removing Switch-Pack from the Driver's seat?-img_20130822_205941_zps017c6c25.jpg

Last edited by aholbro1; 08-22-2013 at 11:42 PM.
  #4
Old 08-23-2013 | 09:42 PM
aholbro1's Avatar
Thread Starter
|
Veteran Member
Joined: Aug 2010
Posts: 4,616
Likes: 1,645
From: Decatur, TX
Default

Figured it out - will post later in case anyone else has occasion to remove the headrest collars

  #5
Old 08-23-2013 | 10:18 PM
motorcarman's Avatar
Joined: Dec 2009
Posts: 12,478
Likes: 8,430
From: Wise County,TX
Default

You need to squeeze the 2 tabs at the top inside.
They can be done one-at-a-time but it looks like you broke the faceplate off the switch.

I have several old switches you can look at to see how they are held in place but it looks like you already have it opened.

I can't remember if my XJ8 training guide has the switch removal instructions in the interior soft trim section.
I don't have the X300 guide but the seats are very similar.

Let me know if I can help.

bob gauff

The following users liked this post:
Offshore-Angel (05-16-2015)
  #6
Old 08-24-2013 | 12:50 AM
aholbro1's Avatar
Thread Starter
|
Veteran Member
Joined: Aug 2010
Posts: 4,616
Likes: 1,645
From: Decatur, TX
Default

Originally Posted by motorcarman
You need to squeeze the 2 tabs at the top inside.
They can be done one-at-a-time but it looks like you broke the faceplate off the switch.

Let me know if I can help.

bob gauff

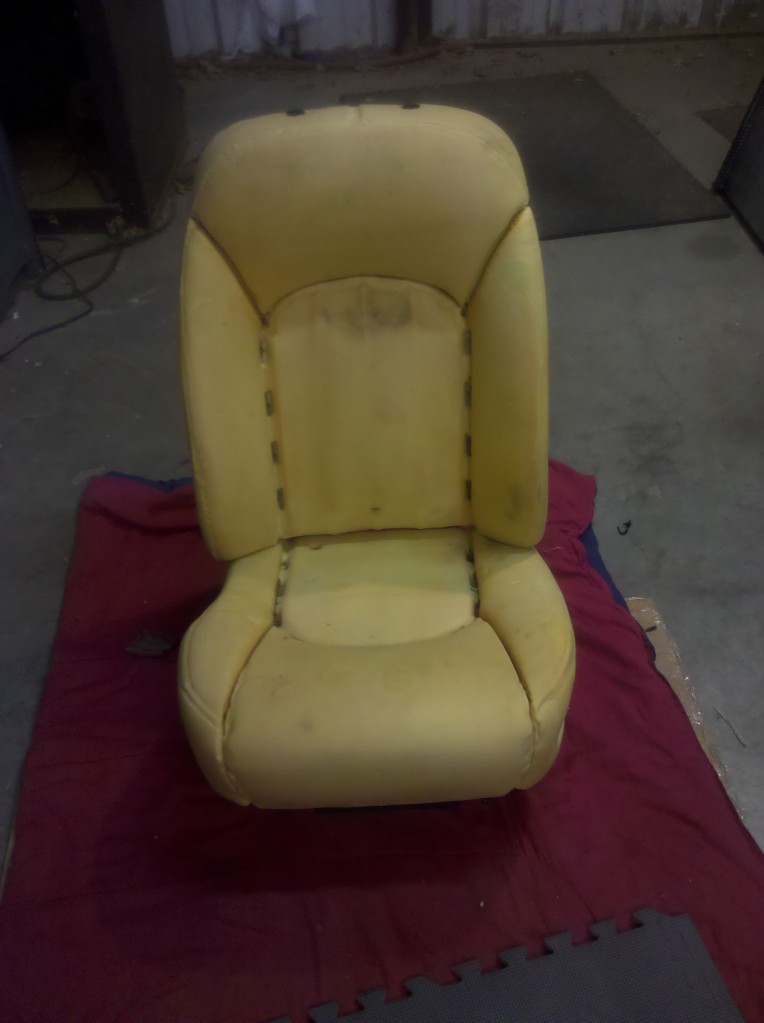

Thanks much Bob. I'm not sure if your first statement is directed at the switchplate or the headrest collars - but it is spot-on for the headrest collars. I finally got it skinned and now know why my seat heaters never worked - seems I don't have any!



Well, despite buttons and lights on the dash (and I could swear I've heard relays click in two different areas when I've turned on the pax htr and the driver htr) but anyway...nothing between leather and seat foam with wires protruding from it.
I had expected to find something like this:

95 96 97 Jaguar XJ6 Heated Seat Coil S Blanket LFT Back | eBay

95 96 97 Jaguar XJ6 Heated Seat Coil S Blanket Bottom L | eBay

But found only this:

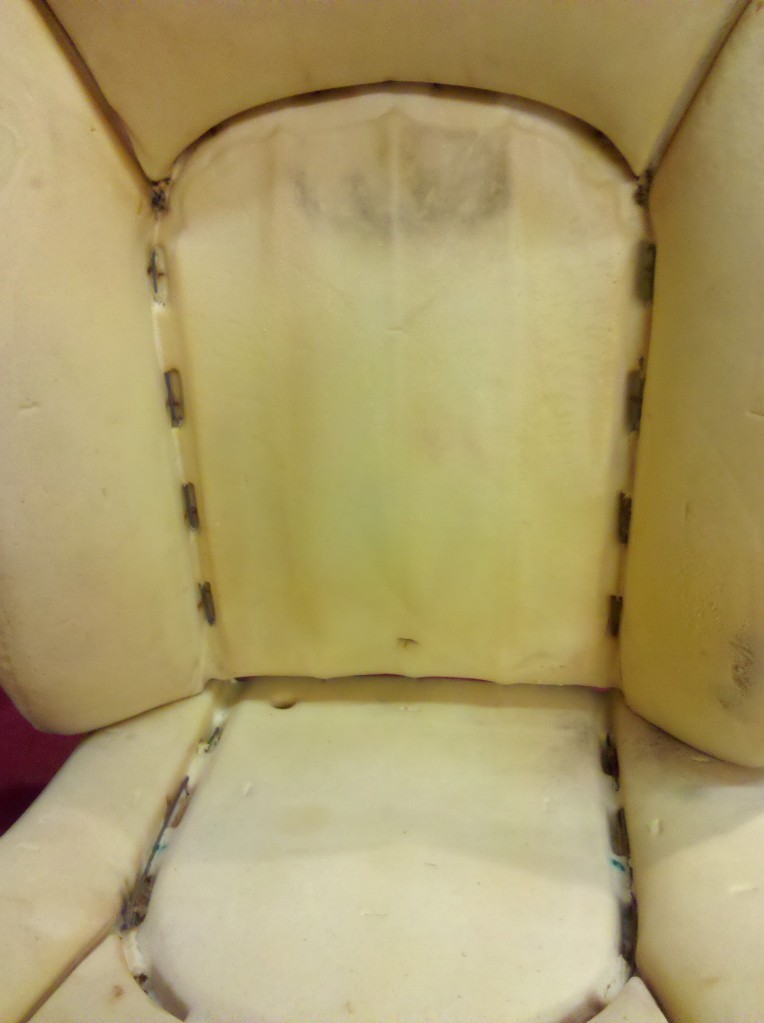

and this:



No blanky with wires in cushion nor seatback

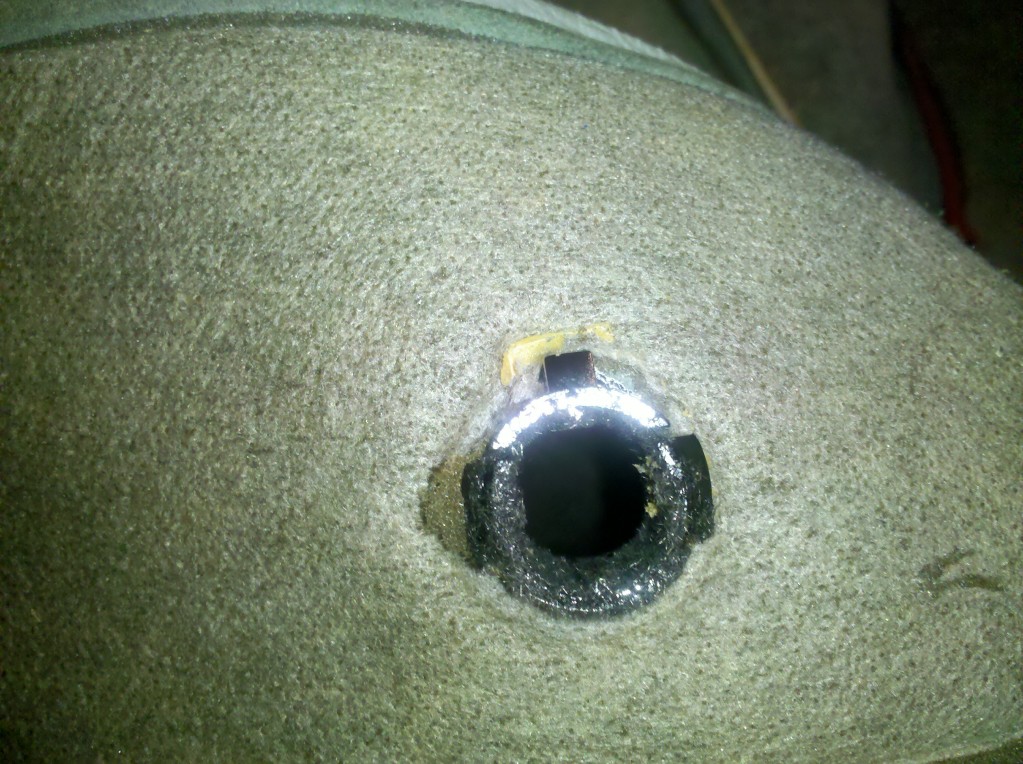

Here's the tabs on the headrest collars:



THe tabs are on the sides. What looks like a locking tab at about the 12 o'clock position is a keying/clocking device, insuring that the locking tabs are on the sides when installed. If you have the back off the seat, you can pinch the locking tabs on this part of the headrest mechanism and slide it up enough to get at the back side of the collar-locking tabs:



Like so:

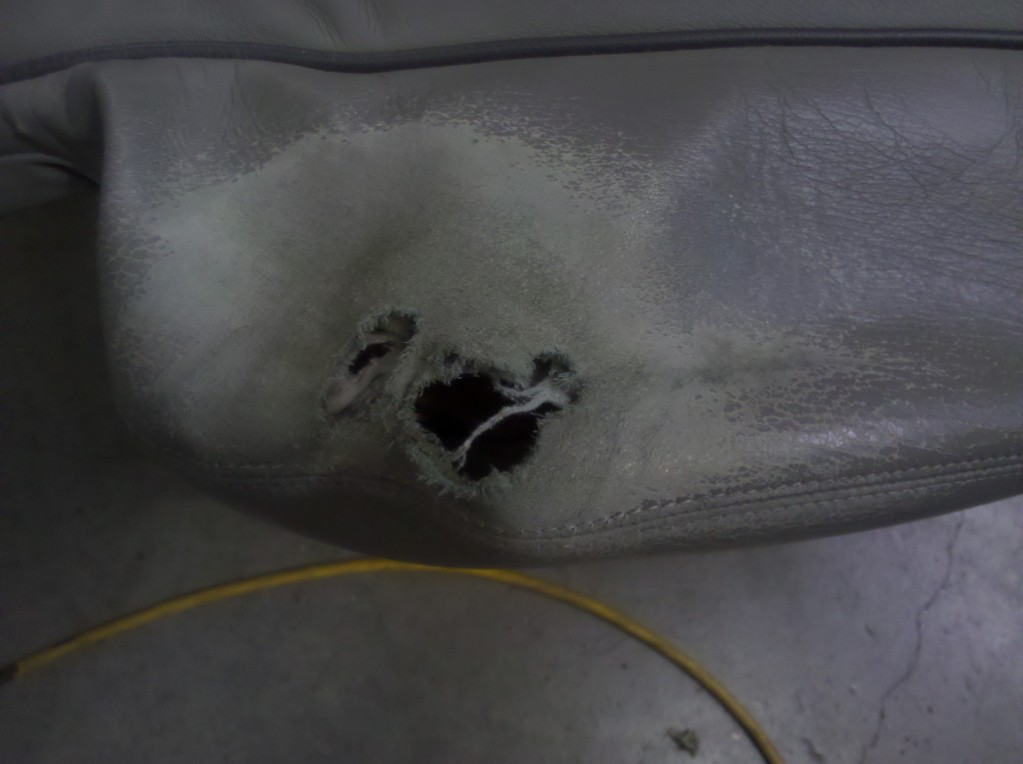

I do hope I've not broken the faceplate on the switchpack, but wouldn't be surprised if I have. The only loose pieces that went tumbling when I got it off were the switch buttons, and I recovered all of them intact. At least now I can take the seatback cover with the hole in the side-bolster



to someone who can hopefully sew in a new panel and dye to match. Then...I'm a bit pessimistic about my chances...but I do have newly arrived hog-ring pliers and I'll go buy some rings.....I hope I can string it all back together but may well wind up dragging it all off to a professional, with tail tucked neatly between my legs and begging him to fix what I've done....

Meanwhile, my timing cover seal and seal-puller tool have both arrived, so I reckon I can go back to greasy work, and the Damper Doctor has charged my credit card a couple of days ago - and according to him, that would mean he has completed the rebuild (it may mean he's already shipped it back - but all I recall is him saying he wouldn't charge me prior to fixing it. So I've got plenty to keep busy with to keep me from worrying about whether or not I'll ever have a proper driver's seat again....researching the unused yellow two-pin plug with red wires to see if that is the heater circuit notwithstanding.......

Attached Thumbnails Removing Switch-Pack from the Driver's seat?-img_20130823_213718_zpscd752447.jpg   Removing Switch-Pack from the Driver's seat?-img_20130823_213853_zps6b5ba0eb.jpg   Removing Switch-Pack from the Driver's seat?-img_20130823_215214_zps4fea528d.jpg   Removing Switch-Pack from the Driver's seat?-img_20130823_214335_zps0056c2e1.jpg   Removing Switch-Pack from the Driver's seat?-img_20130823_214529_zps7f538471.jpg

Removing Switch-Pack from the Driver's seat?-img_20130823_214458_zps841a228f.jpg   Removing Switch-Pack from the Driver's seat?-img_20130823_213924_zps6252fd40.jpg
  #7
Old 08-24-2013 | 08:29 AM
Maraud's Avatar
Senior Member
Joined: Nov 2012
Posts: 286
Likes: 59
From: The Netherlands
Default

Nice project!

I am interested in the way the head rest is connected. My headrest from drivers seat is not going up/down anymore. When I use the switch I hear the electric motor engaging. Can you post some photo's of the back for me while you are at it? I would really appreciate that, thanks!

  #8
Old 08-24-2013 | 10:23 AM
aholbro1's Avatar
Thread Starter
|
Veteran Member
Joined: Aug 2010
Posts: 4,616
Likes: 1,645
From: Decatur, TX
Default

If it won't go up or down, I'd think maybe the threads in the plastic piece. If it will go up, but not down til you push it, probably not gripping the post ends. My Front cushion does the same thing, motor whirs..no movement. Still haven't found that culprit yet.

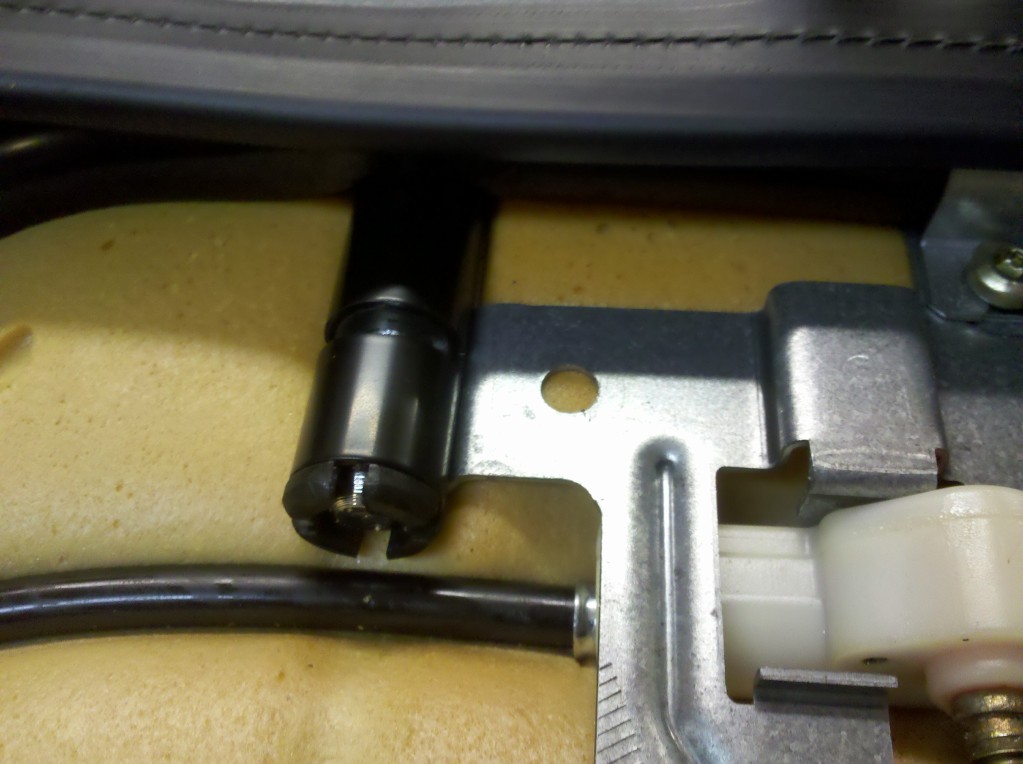

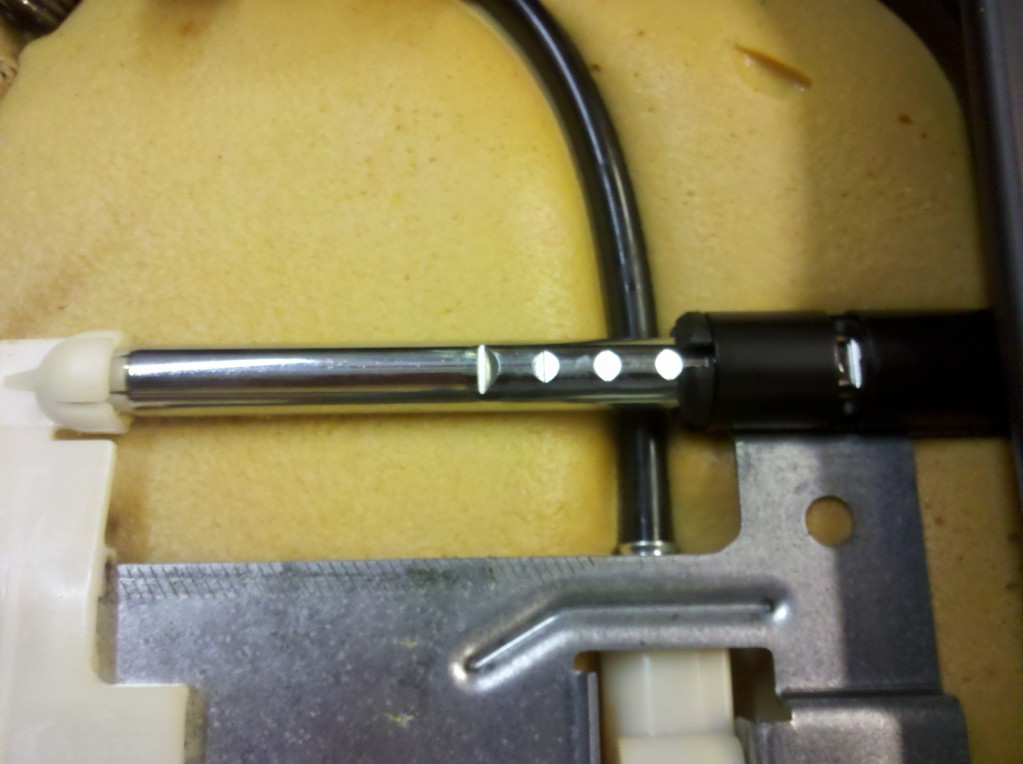

Here is one after I gave the headrest a "sharp pull" to remove it, then slid it back in until it had not quite engaged the clips. You can see the chrome post from the headrest peeking thru the black plastic:

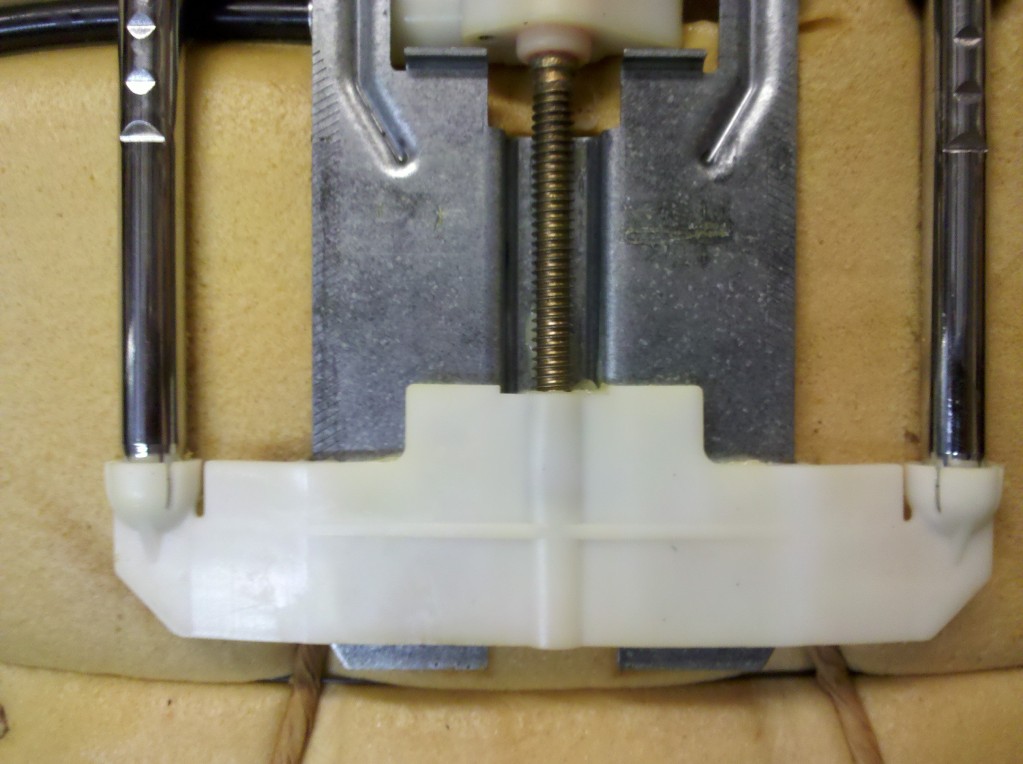

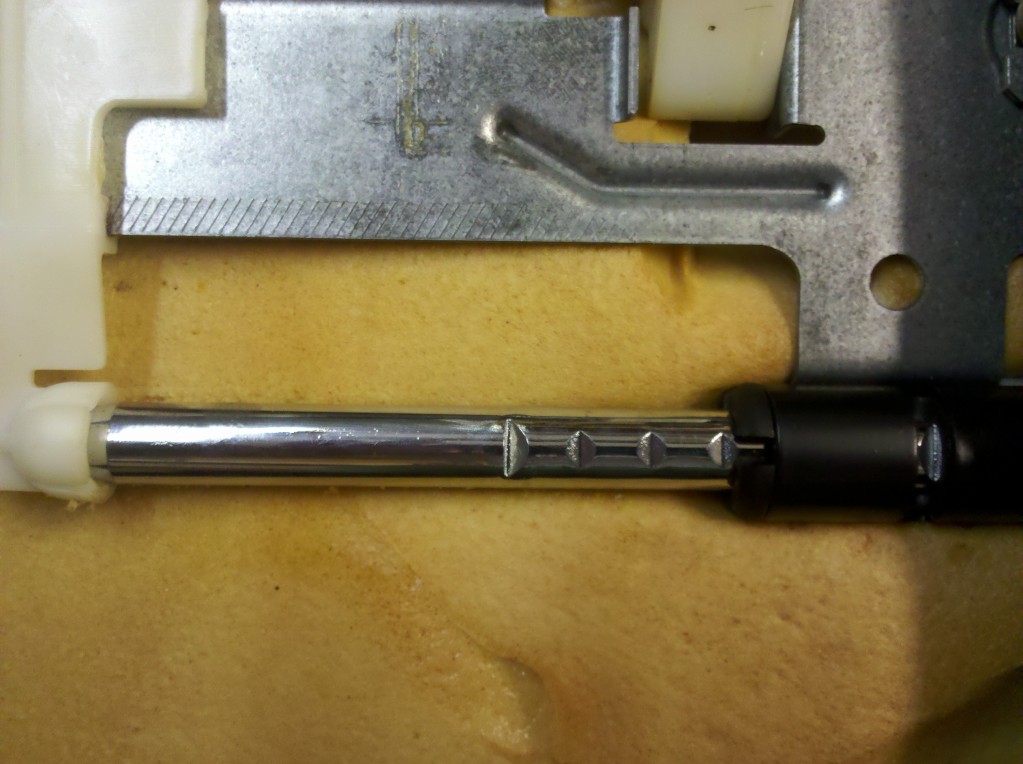

It bottoms into these white plastic anchors, which may be the root of your problem if you've pushed it down and locked it in and it still won't move:





Or the threads could be stripped:

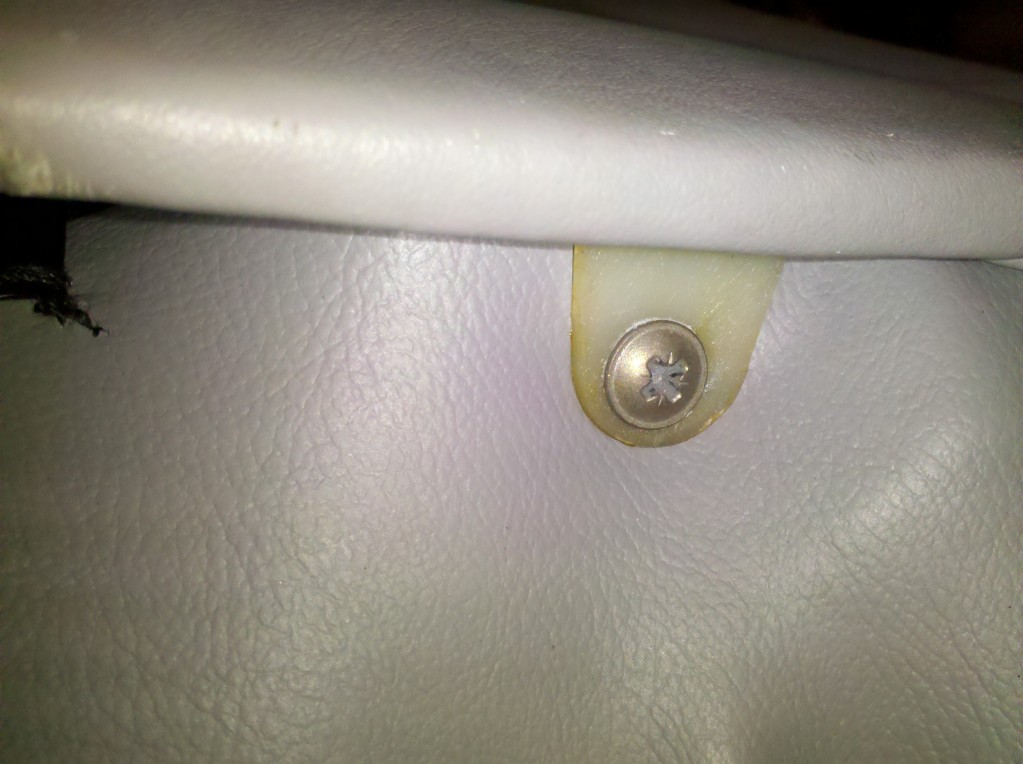

THere were 6 screws fixing my squab cover on -Holes for 4 can be seen in the last pic - they held the tray-table on as well. 2 down low, then beware the clips low on each side - didn't know about them and seems I've broken one and perhaps lost the other: (don't seem to have a picture of them but will snap you one later this morning.


Attached Thumbnails Removing Switch-Pack from the Driver's seat?-img_20130822_204441_zpsf826bbfa.jpg   Removing Switch-Pack from the Driver's seat?-img_20130822_204258_zps0af0398b.jpg   Removing Switch-Pack from the Driver's seat?-img_20130822_204251_zps5729a229.jpg   Removing Switch-Pack from the Driver's seat?-img_20130822_204244_zpsdecb7466.jpg   Removing Switch-Pack from the Driver's seat?-img_20130822_204153_zps563965bc.jpg

Removing Switch-Pack from the Driver's seat?-img_20130821_211132_zpsca7120f2.jpg
The following 2 users liked this post by aholbro1:
littlelic69 (08-27-2013), Maraud (08-24-2013)
  #9
Old 08-24-2013 | 10:42 AM
Maraud's Avatar
Senior Member
Joined: Nov 2012
Posts: 286
Likes: 59
From: The Netherlands
Default

Big thanks for these great pics!

Do I need to remove the chair to remove the plate at the back?

  #10
Old 08-24-2013 | 11:02 AM
aholbro1's Avatar
Thread Starter
|
Veteran Member
Joined: Aug 2010
Posts: 4,616
Likes: 1,645
From: Decatur, TX
Default

No, I think if you move it forward and tilt the backrest forward you should have plenty of room, though those lower screws will be a challenge - probably raise the back seat cushion to full-up to help with that.

  #11
Old 08-24-2013 | 09:34 PM
aholbro1's Avatar
Thread Starter
|
Veteran Member
Joined: Aug 2010
Posts: 4,616
Likes: 1,645
From: Decatur, TX
Default

Sorry, I got busy and just now got back in the house to post these:

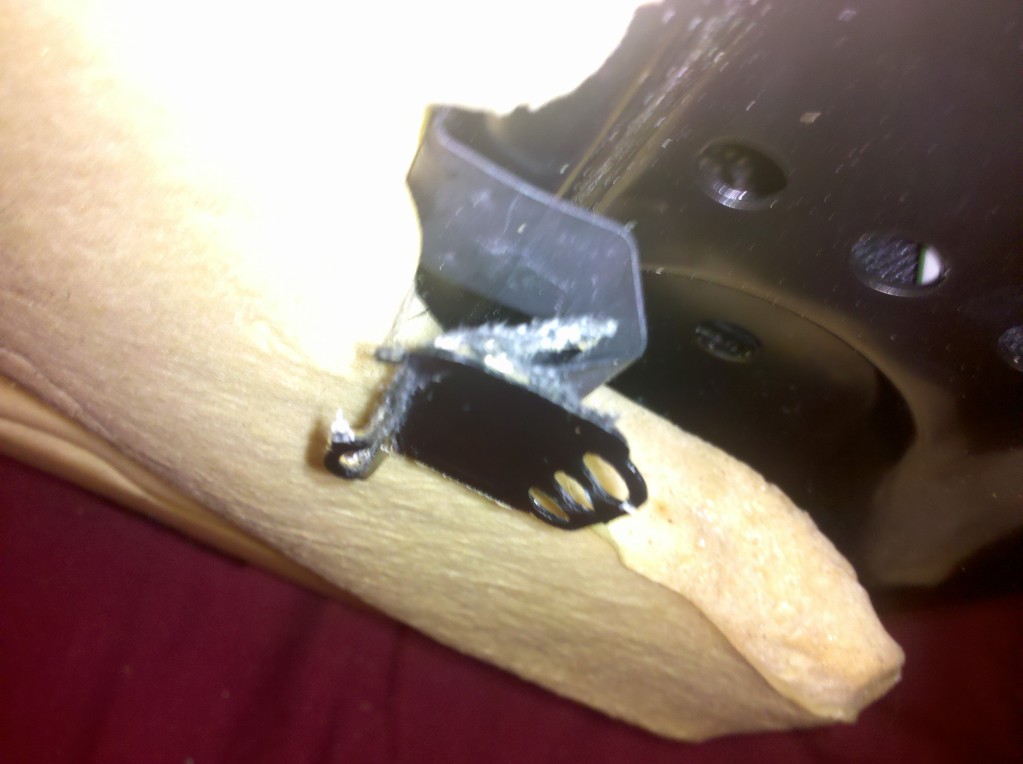

Here's the clip, and you can see I sort of mangled it:

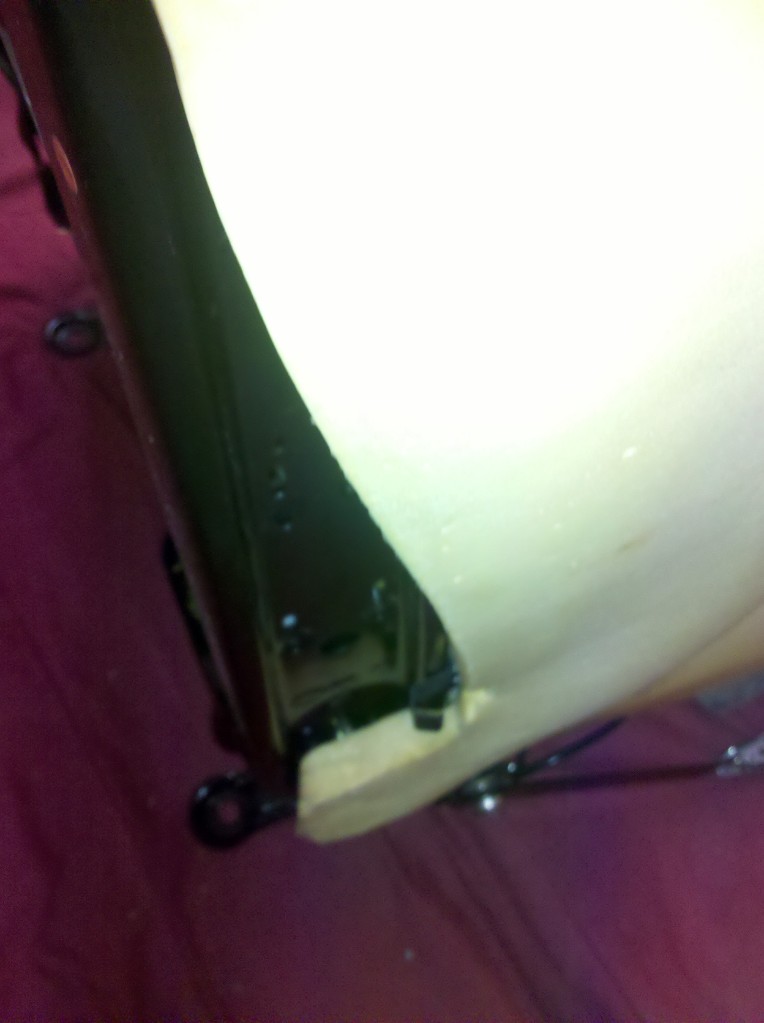

The only one I found, but it was on the left side, low, here:



There was another similar tab on the opposite side, but I never found another clip


Attached Thumbnails Removing Switch-Pack from the Driver's seat?-img_20130824_201125_zpsb5eb0355.jpg   Removing Switch-Pack from the Driver's seat?-img_20130824_201157_zps8fe61600.jpg   Removing Switch-Pack from the Driver's seat?-img_20130824_201040_zpsd77c36cc.jpg
