What electrical stuff inside driver's door?
#22
Dear Grant,
I am afraid that you are right.
I can't find any door modules in any of my books neither.
But the mystery remains:
Where are the contacts that turn on the interior lights when we ooen a door ? I do not see any physical contacts
Where is the memory module for the seat, steering wheel and outer mirror memory ?
Unfortunatelly the solution proposed by Steve was too good!
I al still in the dark !
Claude
I am afraid that you are right.
I can't find any door modules in any of my books neither.
But the mystery remains:
Where are the contacts that turn on the interior lights when we ooen a door ? I do not see any physical contacts
Where is the memory module for the seat, steering wheel and outer mirror memory ?
Unfortunatelly the solution proposed by Steve was too good!
I al still in the dark !
Claude
#23
Steve,
No such thing as a waste of time, just more time to drink some more whilst we ponder the possibilities.
Claude,
That 'contacts" as you ask, is a TINY, and I mean TINY, micro switch hidden in the depths of the lock, and when the lock cam rotates as you open the door the heel of it touches the button and closes the contacts, which turns ON the lights, and STARTS the timer. When the door is closed, the heel moves away from the button, the switch opens the contacts, BUT the timer still has control, hence the dimming of the interior lights some seconds after closing the last door. SOOO, my theory is, that if the contacts of that switch are stuck "closed" the circuit is being kept active, (as in a door open), and the timer has done its "max time" of 5 minutes, and put the lights to "sleep", (normal) and they stay that way until a door is reopened, BUT, the contacts being stuck closed prevents the timer from "re-arming", and also the lights coming back on.
I have attached an Adobe doc for the interior lights, that may make sense to you??.

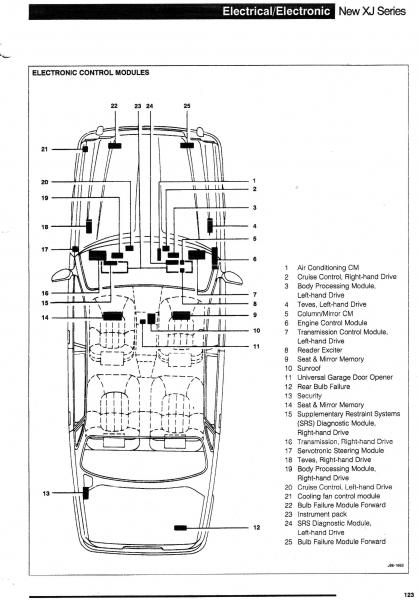

Also the second Adobe is showing where modules are in your car, and is on page 128 of that doc, and shows the "column/mirror CM" as item 5 and may also be of assistance to you. Plan B, file tooooo big, so printed/scanned, and attached as a stand alone.
X300 lighting wiring.pdf
No such thing as a waste of time, just more time to drink some more whilst we ponder the possibilities.
Claude,
That 'contacts" as you ask, is a TINY, and I mean TINY, micro switch hidden in the depths of the lock, and when the lock cam rotates as you open the door the heel of it touches the button and closes the contacts, which turns ON the lights, and STARTS the timer. When the door is closed, the heel moves away from the button, the switch opens the contacts, BUT the timer still has control, hence the dimming of the interior lights some seconds after closing the last door. SOOO, my theory is, that if the contacts of that switch are stuck "closed" the circuit is being kept active, (as in a door open), and the timer has done its "max time" of 5 minutes, and put the lights to "sleep", (normal) and they stay that way until a door is reopened, BUT, the contacts being stuck closed prevents the timer from "re-arming", and also the lights coming back on.
I have attached an Adobe doc for the interior lights, that may make sense to you??.
Also the second Adobe is showing where modules are in your car, and is on page 128 of that doc, and shows the "column/mirror CM" as item 5 and may also be of assistance to you. Plan B, file tooooo big, so printed/scanned, and attached as a stand alone.
X300 lighting wiring.pdf
Last edited by Grant Francis; 06-28-2012 at 03:08 AM.
#24
Here's a guide that gives step by step instructions on how to disassemble the door.
https://www.jaguarforums.com/forum/x...-panels-52150/
https://www.jaguarforums.com/forum/x...-panels-52150/
#26
master door control
I own a 1995 xj6 sedan
having an issue with the master control on the drivers door
got a new one, installed it but am having the same issue
drivers side front door window wont work, electric seats, and electric mirrors do not work
have 3 wiring connectors , 2 white and 1 black, the 2 white fit in the module , where does the black one fit into
cell phone is 7574491634
having an issue with the master control on the drivers door
got a new one, installed it but am having the same issue
drivers side front door window wont work, electric seats, and electric mirrors do not work
have 3 wiring connectors , 2 white and 1 black, the 2 white fit in the module , where does the black one fit into
cell phone is 7574491634
