1998 XJR Knock Sensor location?
#1
![Default](/forum/images/icons/icon1.gif)
Hello all,
I have researched in this forum for pictures or exact location for this part and have not seen any. I have to replace my knock sensor to pass AZ inspection. I read that the sc version V8 is much easier than the NA version, but still cannot see the sensor on top of motor (as opposed to under intake mantifold).
Is this an easy install for a novice?
I have researched in this forum for pictures or exact location for this part and have not seen any. I have to replace my knock sensor to pass AZ inspection. I read that the sc version V8 is much easier than the NA version, but still cannot see the sensor on top of motor (as opposed to under intake mantifold).
Is this an easy install for a novice?
#3
The following users liked this post:
gocallahan (12-11-2011)
The following users liked this post:
gocallahan (12-11-2011)
#6
#8
![Default](/forum/images/icons/icon1.gif)
Well, no. In context (ie: Is this an easy install for a novice) the location question was secondary to ta question of effort and skill to do the job. And the SC is different.
However, the link is a great write up for the NA engine and thanks for posting it.
However, the link is a great write up for the NA engine and thanks for posting it.
Last edited by sparkenzap; 12-11-2011 at 01:46 PM.
The following users liked this post:
DavidN (12-12-2011)
#9
#11
#12
![Default](/forum/images/icons/icon1.gif)
Merry Christmas!
Thougfht I'd drop a line on how I'm doing on this repair. I almost have the SC removed (am stuck on how to remove intake elbow).
Question: once teh SC is removed, will that allow me to remove and replace knock sensors? Or will I need to remove more components?
This is a big job! See my pics of project so far...
Thougfht I'd drop a line on how I'm doing on this repair. I almost have the SC removed (am stuck on how to remove intake elbow).
Question: once teh SC is removed, will that allow me to remove and replace knock sensors? Or will I need to remove more components?
This is a big job! See my pics of project so far...

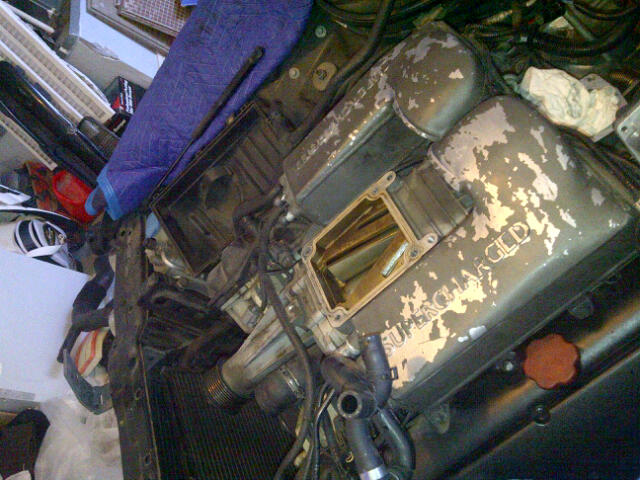

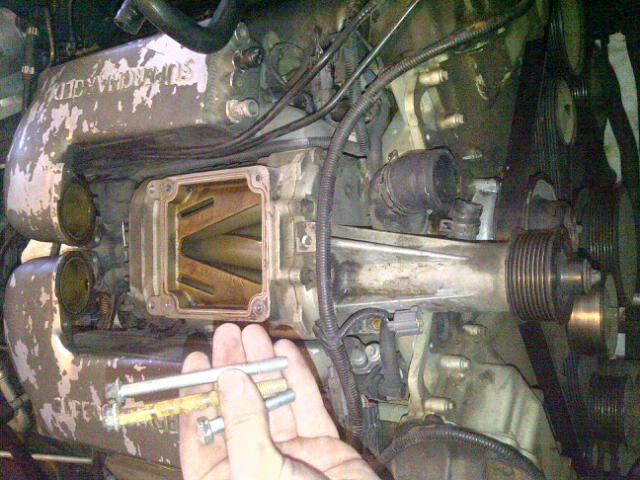

![1998 XJR Knock Sensor location?-stuck-xjr-supercharger-removal.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/15295d1480966289t-1998-xjr-knock-sensor-location-stuck-xjr-supercharger-removal.jpg)
#13
![Default](/forum/images/icons/icon1.gif)
Update:
I missed the pdf that jimlomardi posted on how to remove SC the intake elbow removal. So I finally removed the SC and changed out the knock sensors! Teh left one was teh bad one, it was melted over on right side. I replaced both.
Unfortunately, I am not done ...
... when I was pullig out the SC, I broke the hose connecting the left and right fuel rails. My job just got bigger. I guess I need to now remove the intake manafolds and remove the fuel rail to replace the piece I broke.
I"ll post 3 pictures of what I broke. I wonder if I have to remove the intake mantifolds and the fuel rail for this job? Anyone know?
I missed the pdf that jimlomardi posted on how to remove SC the intake elbow removal. So I finally removed the SC and changed out the knock sensors! Teh left one was teh bad one, it was melted over on right side. I replaced both.
Unfortunately, I am not done ...
![Icon Doh](https://www.jaguarforums.com/forum/images/smilies/icon_doh.gif)
... when I was pullig out the SC, I broke the hose connecting the left and right fuel rails. My job just got bigger. I guess I need to now remove the intake manafolds and remove the fuel rail to replace the piece I broke.
I"ll post 3 pictures of what I broke. I wonder if I have to remove the intake mantifolds and the fuel rail for this job? Anyone know?
#14
![Default](/forum/images/icons/icon1.gif)
Hi Greg
I received your email and I started a new thread for the Fuel Rails removal and install:
Here is the weblink to the new thread:
https://www.jaguarforums.com/forum/x...ils-r-i-65505/
Hope the information helps.
Jim Lombardi
I received your email and I started a new thread for the Fuel Rails removal and install:
Here is the weblink to the new thread:
https://www.jaguarforums.com/forum/x...ils-r-i-65505/
Hope the information helps.
Jim Lombardi
Last edited by jimlombardi; 12-26-2011 at 08:39 AM.
The following users liked this post:
gocallahan (12-26-2011)
#15
#16
![Default](/forum/images/icons/icon1.gif)
Update:
I hope I haven't totaled out my car here on this project ... all thi started with just needing to replace my knock-sensors.
So, a few weeks ago while removing the super charger, I broke the fuel rail hose connecting left and right fuel rails. I had sticker shock on the OEM part ($160 - Jaguar - North Scottsdale , AZ), so I went to carepartsestore.com and purchased the part for $125 shipped (not the best website to buy parts, super slow shipping and terrible communication - I will not be going back even to even save 20% off wholesale). I installed the fuel rail hose no problem and began putting the motor back together ....
Didn't get far ... When I was installing the passenger side bolt on supercharger, I was torquing down the bolt to 18 - 24 Nm when the unthinkable happened; the bolt broke off inside the engine block. See Picture.
DISASTER!
I went to harbor freight tools to get a bolt extractor kit to see if I could take bolt out myself, to no avail. My bits keep braking off.
Gentlemen, be straight with me ... did I just total out my car? Or is there a another way to get that bolt out with out hurting the engine block?
I hope I haven't totaled out my car here on this project ... all thi started with just needing to replace my knock-sensors.
So, a few weeks ago while removing the super charger, I broke the fuel rail hose connecting left and right fuel rails. I had sticker shock on the OEM part ($160 - Jaguar - North Scottsdale , AZ), so I went to carepartsestore.com and purchased the part for $125 shipped (not the best website to buy parts, super slow shipping and terrible communication - I will not be going back even to even save 20% off wholesale). I installed the fuel rail hose no problem and began putting the motor back together ....
Didn't get far ... When I was installing the passenger side bolt on supercharger, I was torquing down the bolt to 18 - 24 Nm when the unthinkable happened; the bolt broke off inside the engine block. See Picture.
DISASTER!
I went to harbor freight tools to get a bolt extractor kit to see if I could take bolt out myself, to no avail. My bits keep braking off.
Gentlemen, be straight with me ... did I just total out my car? Or is there a another way to get that bolt out with out hurting the engine block?
#17
#18
![Default](/forum/images/icons/icon1.gif)
I have often found that once a bolt breaks, the remaining part of it will back out easily. Obviously not in your situation.
Are you using an "easy-out" to retract the bolt and breaking drill bits? I am sure you will get it out if you go carefully. What bits are breaking? If it is drill bits, perhaps go out and get a couple high quality ones. There are lots of junk drill bits out there.
Keep us posted
Are you using an "easy-out" to retract the bolt and breaking drill bits? I am sure you will get it out if you go carefully. What bits are breaking? If it is drill bits, perhaps go out and get a couple high quality ones. There are lots of junk drill bits out there.
Keep us posted
#19
![Default](/forum/images/icons/icon1.gif)
You have not "totaled the car" YET!, at least according to the picture.
GET THE FIRST HOLE YOU DRILL IN THE CENTER OF THE BOLT! Here's how.
First, get a center punch and carefully punch the bolt end exactly in the center. Then get a set of good quality drill buts . Left hand screw would be best. use a variable speed drill motor and be very careful to hold the drill vertical to the work. measure the hole depth of the hole on the opposite side and mark the drill bit with some tape wrapped around it so you do not drill too deep. Do this for all the drills you use.
Start with a bit about 3/32" inch or a little smaller and drill a hole using the center punched hole as a guide. Drill to just less than the depth marked with the tape. Use a little oil as you drill. Now drill the same hole with a 5/32" bit. Drill with your third bit to the size recommended by the e-z out manufacturer. If you use left hand drill bits, the bolt will probably start turning out by now.. If not, use the easy out.
Since you say you broke it going in, either you were cross threaded or you overtorqued. If you overtorqued, then removal should be easy now that the bolt broke. If you are cross threaded, you have probably stripped the threads. If that is the case, then you will need to install a helicoil repair thread. You should either get some help with that, or carefully research what to do, It is relatively simple, but there is little room for error on that one!
I will say it again.
GET THE FIRST HOLE YOU DRILL IN THE CENTER OF THE BOLT. That will keep disaster from occurring, especially if you have to helicoil.
GET THE FIRST HOLE YOU DRILL IN THE CENTER OF THE BOLT! Here's how.
First, get a center punch and carefully punch the bolt end exactly in the center. Then get a set of good quality drill buts . Left hand screw would be best. use a variable speed drill motor and be very careful to hold the drill vertical to the work. measure the hole depth of the hole on the opposite side and mark the drill bit with some tape wrapped around it so you do not drill too deep. Do this for all the drills you use.
Start with a bit about 3/32" inch or a little smaller and drill a hole using the center punched hole as a guide. Drill to just less than the depth marked with the tape. Use a little oil as you drill. Now drill the same hole with a 5/32" bit. Drill with your third bit to the size recommended by the e-z out manufacturer. If you use left hand drill bits, the bolt will probably start turning out by now.. If not, use the easy out.
Since you say you broke it going in, either you were cross threaded or you overtorqued. If you overtorqued, then removal should be easy now that the bolt broke. If you are cross threaded, you have probably stripped the threads. If that is the case, then you will need to install a helicoil repair thread. You should either get some help with that, or carefully research what to do, It is relatively simple, but there is little room for error on that one!
I will say it again.
GET THE FIRST HOLE YOU DRILL IN THE CENTER OF THE BOLT. That will keep disaster from occurring, especially if you have to helicoil.
Last edited by sparkenzap; 01-15-2012 at 02:01 AM.
The following users liked this post:
gocallahan (01-15-2012)
#20
![Default](/forum/images/icons/icon1.gif)
All,
Thank you all for your help! Extracting the bolt was a beast. It actually got much easier when I shot a little WD-40 down in the housing. Came right out. Phew!
I replaced knock-sensors, re-installed the supercharger, intake elbow, and ERG unit. I'm about to install the throttle body however, ran into another question ....
The vacuum lines. I do not remember the set up or where they go. Hind sight, I should have taken better notes or a picture before I pulled all teh hoses apart.
Can anyone direct me on where these ends go? along with the "T" piece too? I have a picture below that I have labelled A. B.C. & D. I also drew red lines that show where the other ends of the vacuum hoses are that I did not remove for this job.
Can anyone help with these locations?
Thank you all for your help! Extracting the bolt was a beast. It actually got much easier when I shot a little WD-40 down in the housing. Came right out. Phew!
I replaced knock-sensors, re-installed the supercharger, intake elbow, and ERG unit. I'm about to install the throttle body however, ran into another question ....
The vacuum lines. I do not remember the set up or where they go. Hind sight, I should have taken better notes or a picture before I pulled all teh hoses apart.
Can anyone direct me on where these ends go? along with the "T" piece too? I have a picture below that I have labelled A. B.C. & D. I also drew red lines that show where the other ends of the vacuum hoses are that I did not remove for this job.
Can anyone help with these locations?
Thread
Thread Starter
Forum
Replies
Last Post
