Default 2003 XJR TPS & vacuum lines

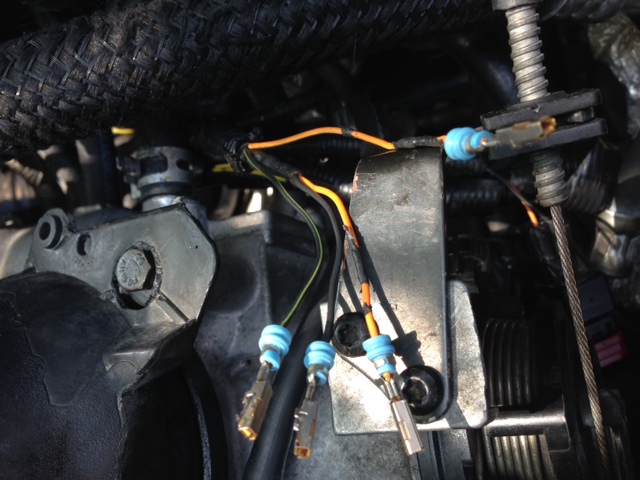

Hello, I was on a road trip for quite a while and I recently got back to finish the x308 XJR. I forgot how the tps wire routes inside the plug if someone can kindly post a diagram or picture It would really help. There's a vacuum line I cant seem to figure out where it goes.




Attached Thumbnails 2003 XJR TPS & vacuum lines-1zmpemr.jpg   2003 XJR TPS & vacuum lines-v4m001.jpg
