anyone know which cyl should be tdc while cam flats are parallel?
#1
![Default](/forum/images/icons/icon1.gif)
a friend of a friend had his mechanic leave while doing this motor and he didnt use any of the lockdown tools or mark everything while taking them off to do a head gasket. i know the cam flats have to be facing up and parallel but i cant seem to get the crank in the right spot cause i cant get it to turn over by hand. i need to know which cyl has to be at tdc so i can get this timing set so they can get this thing back in the car and send it on its way....
#2
![Default](/forum/images/icons/icon1.gif)
Can't get it to turn it to turn over by hand ? ? ? ?
I don't think that is how timing is set. I don't think the cam flats are associated with a TDC of any piston. You are going to have to find the crank alignment hole in the flex plate then align the cams from there
First thing you might address is getting the crank to turn.
I don't think that is how timing is set. I don't think the cam flats are associated with a TDC of any piston. You are going to have to find the crank alignment hole in the flex plate then align the cams from there
First thing you might address is getting the crank to turn.
Last edited by test point; 08-24-2010 at 08:47 PM.
#3
#4
![Default](/forum/images/icons/icon1.gif)
yeah i tried setting the two front cyls at tdc one at a time and turning the motor by hand is a no go, its locking up. ill try lining up the flexplate to where the tool is supposed to go. thanks. btw the shop owner doesnt want to buy the tools so im doing this the hard way
I think the problem with getting the correct cylinder to TDC and going from there is that you don't have a way to fine tune the timing like you would with a distributor type ignition. Since the timing is all electronic it will rely on the cams and crank being in the right orientation at the right time. Where do you live? I made a set of cam lock down tools that I lent out before for the cost of shipping. I don't have a crank lock down tool.
Also, I'm sure some will have an alternative idea to get the timing right.
#5
![Default](/forum/images/icons/icon1.gif)
It has been often enough reported that the cam position does not correspond to a particular tdc that I believe it. In any case, I cannot imagine anyone believing they can get true tdc easier than alignining the "special hole" with the crank position hole.
And I hope that none of us ever have the misfortune to land at this hack shop you work at!
And I hope that none of us ever have the misfortune to land at this hack shop you work at!
#6
#7
![Default](/forum/images/icons/icon1.gif)
Finding TDC is not part of the solution for you. Start with all chains off and rotate the cams until they are not pushing on any valves. Then rotate the crankshaft bolt until you can insert the locking tool. Don't shortcut this step!
If you can't rotate the crank with the cams at the free point then you have some serious mechanical problem - bent valve, broken ring, etc - that must be addressed before going further.
With the crank in position, then turn the cams until flats line up and lock them down. Remove the sprockets and install the chains. Tension the drive side of the exhaust sprocket and tighten it down, wind back the VVT and then tighten the intake. Your timing will be right on. You can do one side at a time no problem. Rent the tools for $50 and do it right.
If you can't rotate the crank with the cams at the free point then you have some serious mechanical problem - bent valve, broken ring, etc - that must be addressed before going further.
With the crank in position, then turn the cams until flats line up and lock them down. Remove the sprockets and install the chains. Tension the drive side of the exhaust sprocket and tighten it down, wind back the VVT and then tighten the intake. Your timing will be right on. You can do one side at a time no problem. Rent the tools for $50 and do it right.
Trending Topics
#8
#9
![Default](/forum/images/icons/icon1.gif)
Finding TDC is not part of the solution for you. Start with all chains off and rotate the cams until they are not pushing on any valves. Then rotate the crankshaft bolt until you can insert the locking tool. Don't shortcut this step!
If you can't rotate the crank with the cams at the free point then you have some serious mechanical problem - bent valve, broken ring, etc - that must be addressed before going further.
With the crank in position, then turn the cams until flats line up and lock them down. Remove the sprockets and install the chains. Tension the drive side of the exhaust sprocket and tighten it down, wind back the VVT and then tighten the intake. Your timing will be right on. You can do one side at a time no problem. Rent the tools for $50 and do it right.
If you can't rotate the crank with the cams at the free point then you have some serious mechanical problem - bent valve, broken ring, etc - that must be addressed before going further.
With the crank in position, then turn the cams until flats line up and lock them down. Remove the sprockets and install the chains. Tension the drive side of the exhaust sprocket and tighten it down, wind back the VVT and then tighten the intake. Your timing will be right on. You can do one side at a time no problem. Rent the tools for $50 and do it right.
#10
![Default](/forum/images/icons/icon1.gif)
It has been often enough reported that the cam position does not correspond to a particular tdc that I believe it. In any case, I cannot imagine anyone believing they can get true tdc easier than alignining the "special hole" with the crank position hole.
And I hope that none of us ever have the misfortune to land at this hack shop you work at!
And I hope that none of us ever have the misfortune to land at this hack shop you work at!
#11
#12
#14
![Default](/forum/images/icons/icon1.gif)
There is a special tool that has two small pins at the end of a tube with a handle (you will see this tool in pics of the complete timing tool sets). The tube slides into the center of the sprocket and the pins engage two small holes. Rotate counterclockwise until you hit stop point to unwind. Mine only needed an eighth rotation or so and no real force is needed.
That is for my XJ8 - someone who has done an S-type could confirm it is the same deal.
That is for my XJ8 - someone who has done an S-type could confirm it is the same deal.
#15
![Default](/forum/images/icons/icon1.gif)
If you are attempting to complete what your mechanic started without manuals or instructions you are going to have some challenges. Overall the job is not to difficult as long as you have the right tools and instructions.

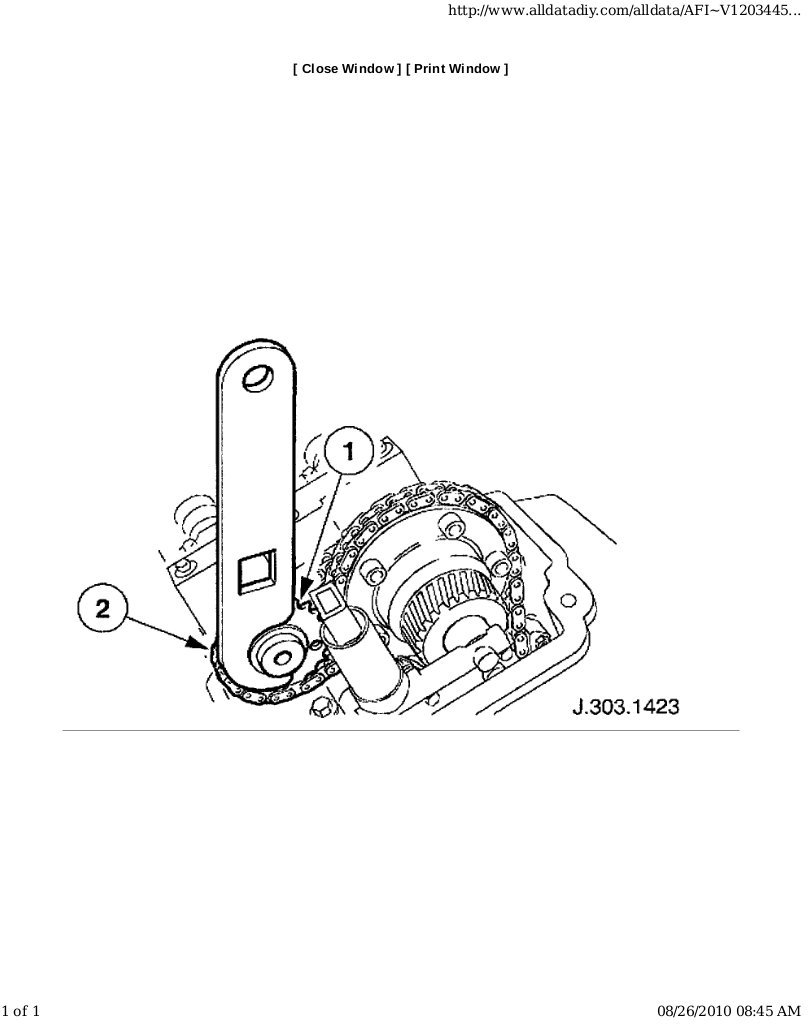

Also, the motor you have is the same as the 4.0's in the XJ8's WRT the chain tensioners. If you have not already done so, you might subscribe to AllData. The write-up on the chain tensioners is great and has all the tools and details you will need to get the Cams and Crank back in order. JTIS is also good, but might not work correctly on windows 7, it does work with Win XP.
All the info you received in this thread is correct. You will not be able to get everything back together correctly without the use of the cam and crank lockdowns and the chain tensioner wrench.
#17
![Default](/forum/images/icons/icon1.gif)
and to everyone else that keeps saying get the tools...id like to but the shop owner refuses too and im not spending a dime out of my pocket for a job that i was brought into for help. so get the tool thing out of you're heads. there's ways around that if need be and you have the experiance that i have. i do very much appreciate all of the helful info though. thank you all!
#18
![Default](/forum/images/icons/icon1.gif)
Take a look at the tools. The alignment tool can be made with a piece of angle iron and some washers and bolts. For the amount of time spent fabricating something you probably could have rented a set. They show up on eBay all the time but not at the moment. Buy a set, use them, sell them.
#19
![Default](/forum/images/icons/icon1.gif)
and to everyone else that keeps saying get the tools...id like to but the shop owner refuses too and im not spending a dime out of my pocket for a job that i was brought into for help. so get the tool thing out of you're heads. there's ways around that if need be and you have the experiance that i have. i do very much appreciate all of the helful info though. thank you all!
Last edited by NorCalDiesel; 08-26-2010 at 04:25 PM.
#20
![Default](/forum/images/icons/icon1.gif)
Here is a link to the full set of alignment tools. By the time you pay shipping both ways you will have about $100 in it. How many hours of labor is that?
http://cgi.ebay.com/ebaymotors/JAGUA...motiveQ5fTools
http://cgi.ebay.com/ebaymotors/JAGUA...motiveQ5fTools
