Bit of an emergency. Need help
#1
Bit of an emergency. Need help

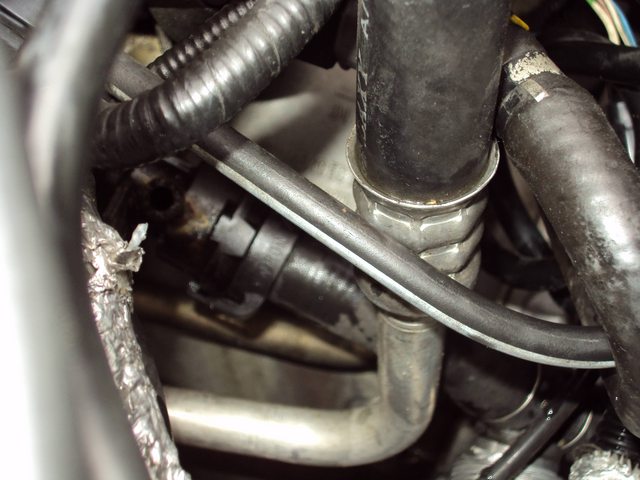

I noticed coolant under the car and I was able to trace it back to a hose that looks like it goes into the engine. A plastic tube that the hose connects to has completely crumbled. I cleaned all of the old tube out of the pipe, but I have absolutely no idea what this part is.
I only have this weekend to try and fix this before I have to go to work on monday. Here are the pictures I have.
I only have this weekend to try and fix this before I have to go to work on monday. Here are the pictures I have.
#2
Need more info - like where in engine compartment
Hi
If you can point me to where the hoses & plastic tubing is located on the engine, then I probably will be able to find a parts diagiam with the parts illustrated and their part numbers. Take another photo of the engine, but this time show where the broken parts are located in a photo of the right side or left side of the entire engine compartment.
Jim Lombardi
If you can point me to where the hoses & plastic tubing is located on the engine, then I probably will be able to find a parts diagiam with the parts illustrated and their part numbers. Take another photo of the engine, but this time show where the broken parts are located in a photo of the right side or left side of the entire engine compartment.
Jim Lombardi
#3

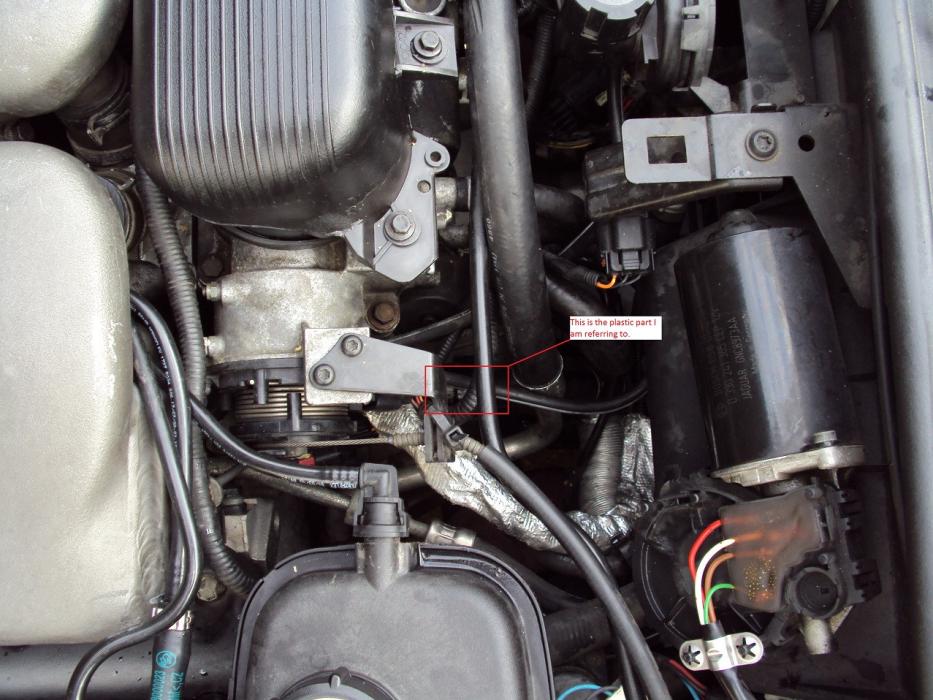

Taking a picture now, but here is some addtl info. It's on the drivers side of the engine compartment right under the throttlebody. It's a plastic part that has two larger hoses connected to it and that little plastic tube that comes out that the third hose connects to.
Link to original and larger image:
http://imgur.com/CfsIi
Link to original and larger image:
http://imgur.com/CfsIi
Last edited by Rickcusaf; 05-13-2011 at 05:56 PM. Reason: Added Picture
#4
Looks like Air & Fuel Delivery System
Hi
I think this is the Diagram with the same parts illustrated as your photo: To get the best view of diagram - left click on image 3 times
Look at Elbow (#9), T-piece (10), Vacuum hose (11), and Bypass hose (12)
Jim Lombardi
I think this is the Diagram with the same parts illustrated as your photo: To get the best view of diagram - left click on image 3 times
Look at Elbow (#9), T-piece (10), Vacuum hose (11), and Bypass hose (12)
Jim Lombardi
Last edited by jimlombardi; 05-13-2011 at 07:38 PM.
#6
ac/heating/ventilation hoses diagram
Hello again

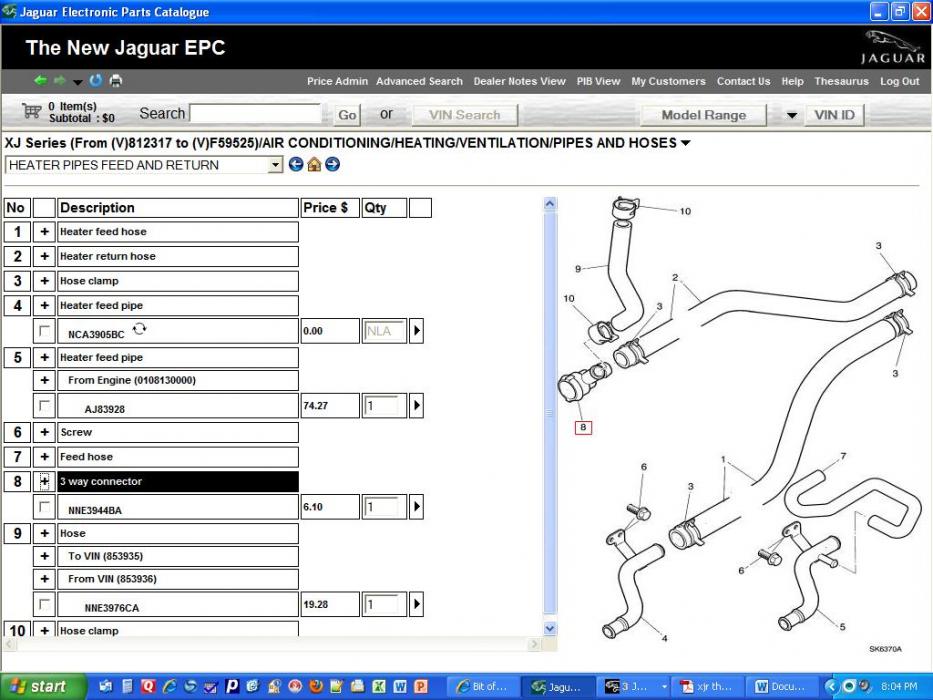

Look at this Parts diagram of AC/Heating/Ventilation Hoses:
Also look at this thread: go to post #1
https://www.jaguarforums.com/forum/x...t-fixed-47636/
This is one of the paragraphs in the posting:
First, the small one - a coolant leak on the driver side, below the throttle, there is a TEE that goes up to the throttle body on the branch, yet the runs are the heater hose assembly (octoupus) to a metal engine coolant pipe. That tee (part no. NNE3944BA) had cracked. $5 part + 1 hour labor = $95
Jim Lombardi
Look at this Parts diagram of AC/Heating/Ventilation Hoses:
Also look at this thread: go to post #1
https://www.jaguarforums.com/forum/x...t-fixed-47636/
This is one of the paragraphs in the posting:
First, the small one - a coolant leak on the driver side, below the throttle, there is a TEE that goes up to the throttle body on the branch, yet the runs are the heater hose assembly (octoupus) to a metal engine coolant pipe. That tee (part no. NNE3944BA) had cracked. $5 part + 1 hour labor = $95
Jim Lombardi
Last edited by jimlombardi; 05-13-2011 at 08:26 PM.
#7
Trending Topics
#10
The following 2 users liked this post by motorcarman:
jimlombardi (05-20-2011),
rwilli (05-23-2011)
#11
#12
I got this info when I worked at a Jaguar Dealer until 2006. The info was only available in electronic form from the late 1990s onward. Before that it was ALL paper. I downloaded alot of info when I worked at the dealer and I have hundreds (thousands??) of paper TSBs and dozens of coarse study and tech guides.
bob gauff
bob gauff
