Corvette GS wheels on my XJR
#1
![Default](/forum/images/icons/icon1.gif)
Hello all!
Sorry, I promised a while back to post some pics of my new wheels. Things got ugly for me a while back, so I haven't been on here in a bit, but things are straightening out again, so I'm back.

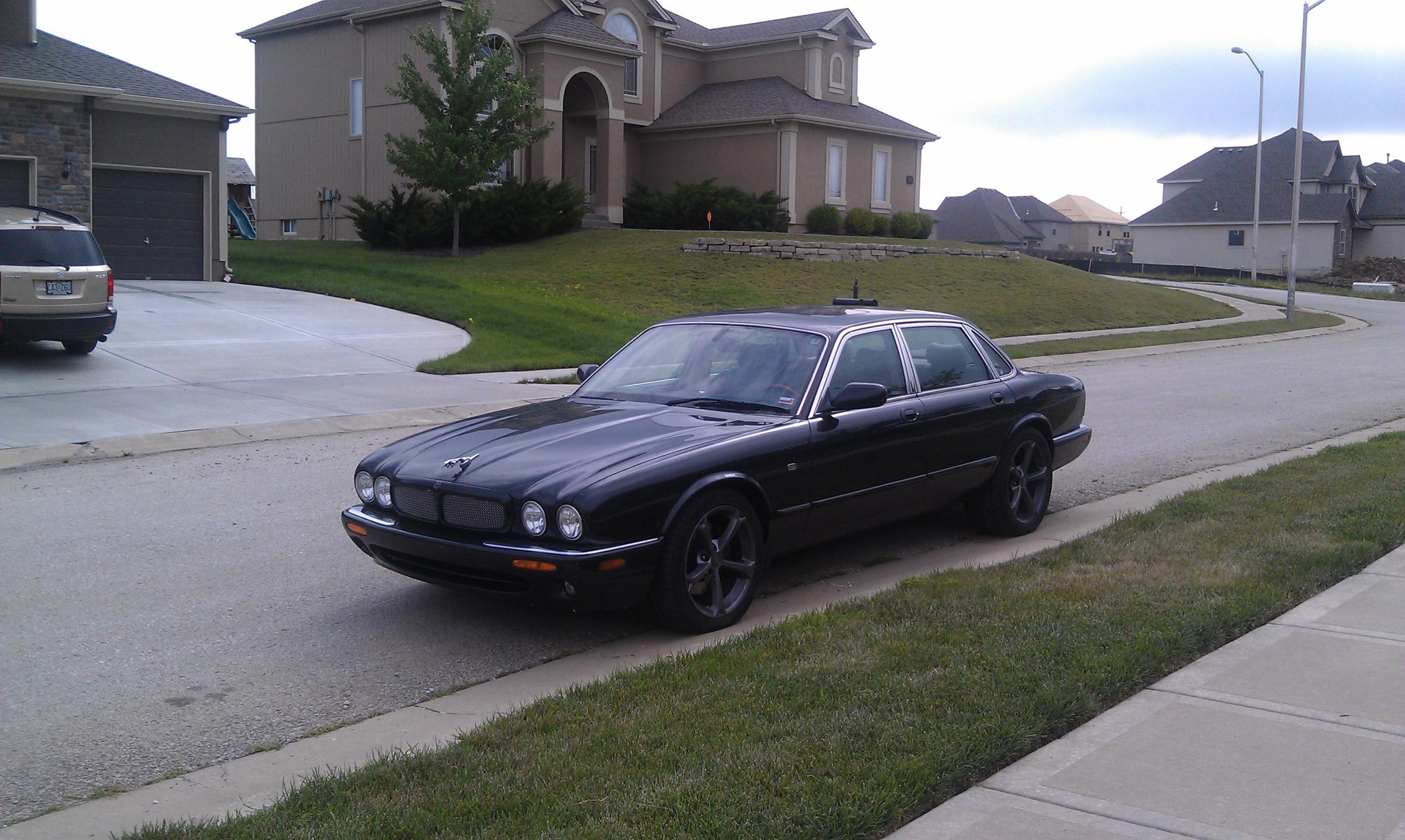

Wheels are OEM C6 Corvette Grand Sport wheels. The GS comes with 18x9.5 wheels on the front, and 19x12s on the back. Obviously the rears don't fit. I think they'd look amazing under there, but they WILL NOT fit without flares and some mini-tubs, as the 9.5s are pushing it. So I'm running a pair of fronts from 2 different sets on either side, which is why they're different colors![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
The X308 is on the old Chevy 5x4.75/5x120.65 pattern surprisingly enough. So the Vette pattern is already perfect. The only mounting hiccup is that the wheels have a (very large) 72mm center bore, but the Jag has a massive 73.2mm hub. So I had the center bores expanded to 74mm by a machine shop.
They charged me $25 a wheel, 95% of which was time to get it fixtured up, as it's a big, oddly shaped piece of aluminum.
The stock Asteroids are 18x8.5 with a +33 offset. This gives them a front spacing of ~2.95 inches and a backspacing of about 5.55 inches. The C6 GS (and Z06 coincidentally) front wheels are 18x9.5 +42, so a front spacing of about 3.1 inches and a back spacing of about 6.4 inches. So very slightly further towards the wheel well lip on the front side, and almost an inch to the inside.
This presented a significant problem on both ends. On the front, the inside edge of the wheels was contacting the A-arm at full dynamic lock. On the rear, the inner edge was maybe 1mm from the pinch weld of the frame in the rear wheel well and was in full interference with the rear bump-stops.
There was still plenty of space to the outside though and I was looking for a more aggressive stance anyway, so spacers it was. I originally wanted to run some 3/8" spacers, which I tried, and ran into another problem. The Jag wheels use shank or "cannon" nuts, which go through a bore in the wheel and actually almost mate with the rotor surface. This means that the lug bolts are VERY short, barely over an inch.
This means the with standard conical nuts that the Vette wheels use, with the 3/8" spacers I was only getting about 4 full turns of thread engagement, which is completely unsafe. The X308 uses 1/2-20 lugs and lug nuts (Ford standard lug thread), so minimum safe engagement is 6-7 full turns. So I tried some 3 mm (~1/8") spacers, available at about any wheel shop.
This solved the rubbing issue in the front, and with the removal of half the thickness of the bump-stops in the rear (I cut them in half with a band saw), in the rear as well. It also yielded just shy of 8 full turns of engagement, pretty solid and enough that I don't worry about them. I plan in the future to investigate some longer lug studs so I can run some thicker spacers (1/4"?) and get the stance perfect.
On the tire front I'm running 275/40/18s on the back and 265/40/18s on the front. As an added bonus, even though the Vette wheels are much larger, they're slightly lighter than the Asteroids, as the Asteroids are 25-26 lbs and the GS wheels weigh in at 23 lbs. And 2-3 lbs a corner of rotational, unsprung weight is nothing to sneeze at![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Hope this helps anyone else looking to get some different wheels on their XJ!
