fuel pump saga - required fix #1
#1
fuel pump saga - required fix #1
Branched off from:
https://www.jaguarforums.com/forum/x...e3/#post442955
The fuel tank ground strap is missing. It was attached to the tank when it was on the "bench". Now it is nowhere to be seen.
The ground strap is important with respect to discharging static electricity, especially when in motion and even more so during refueling.
So ...
Where are the two endpoints?
One is at the left top of the tank towards the rear seat? There is a hole in the tank flange that looks like it would be for a heavy ground wire. Correct?
The other end would be where?
Memory says it is about 10 inches long, maybe 10AWG.
You would think that an 8 hour tab would cover this.
Additionally, was there not a thick closed cell foam pad on top of the tank almost from side to side?
https://www.jaguarforums.com/forum/x...e3/#post442955
The fuel tank ground strap is missing. It was attached to the tank when it was on the "bench". Now it is nowhere to be seen.
The ground strap is important with respect to discharging static electricity, especially when in motion and even more so during refueling.
So ...
Where are the two endpoints?
One is at the left top of the tank towards the rear seat? There is a hole in the tank flange that looks like it would be for a heavy ground wire. Correct?
The other end would be where?
Memory says it is about 10 inches long, maybe 10AWG.
You would think that an 8 hour tab would cover this.
Additionally, was there not a thick closed cell foam pad on top of the tank almost from side to side?
Last edited by plums; 12-20-2011 at 03:26 AM.
#2
Hey Plums, some progress at least.
Bit late now, but I had made a note of this thread from earlier in the year.
Look at the post with the video from Test Point (don't think it was his video).
Scroll to 11.12 and you will see the ground strap (top left of the tank leading towards the rear firewall.)
XJ8 fuel tank removal video.
Ignore the thread title and forum section. The video is XJR.
Hope it helps a little, you know we are thinking about you.
Bit late now, but I had made a note of this thread from earlier in the year.
Look at the post with the video from Test Point (don't think it was his video).
Scroll to 11.12 and you will see the ground strap (top left of the tank leading towards the rear firewall.)
XJ8 fuel tank removal video.
Ignore the thread title and forum section. The video is XJR.
Hope it helps a little, you know we are thinking about you.
#3
Hi Plums
I viewed the video and saved 2 screen shots. I also used JTIS and found the Fuel tank R&I that shows the fuel tank ground cable to be removed.
Here is the screen shot of the fuel tank with the foam pad (the foam pad is also missing on our 2001 xj8 fuel tank):
Here are the screen shot of the fuel tank ground cable:

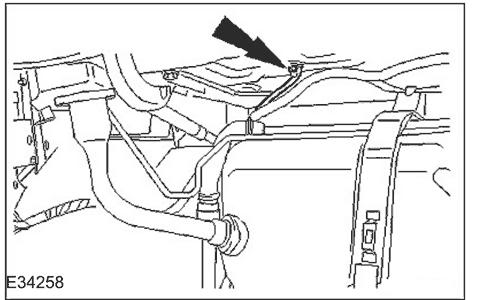

Here is the fuel tank ground cable image in the JTIS21:

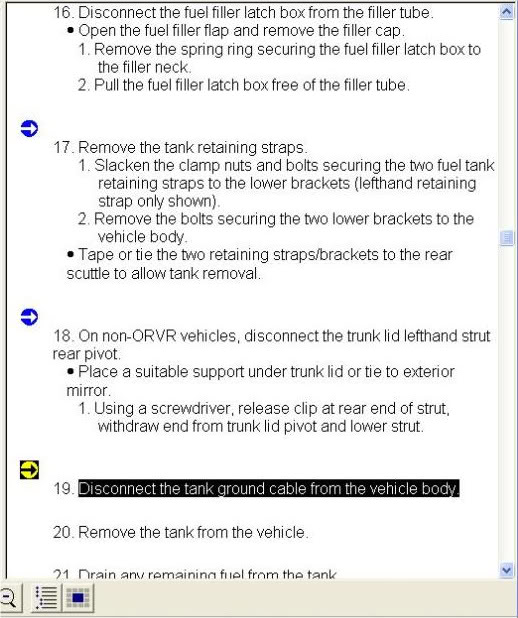

Page copied from JTIS21 Fuel tank removal/install:
Try calling Nalley Jaguar to see if you can get the fuel tank ground cable.
Also try some of the auto wrecking yards in your area.
Sorry about all the trouble this repair shop has caused you.
Jim Lombardi
I viewed the video and saved 2 screen shots. I also used JTIS and found the Fuel tank R&I that shows the fuel tank ground cable to be removed.
Here is the screen shot of the fuel tank with the foam pad (the foam pad is also missing on our 2001 xj8 fuel tank):
Here are the screen shot of the fuel tank ground cable:
Here is the fuel tank ground cable image in the JTIS21:
Page copied from JTIS21 Fuel tank removal/install:
Try calling Nalley Jaguar to see if you can get the fuel tank ground cable.
Also try some of the auto wrecking yards in your area.
Sorry about all the trouble this repair shop has caused you.
Jim Lombardi
Last edited by jimlombardi; 12-20-2011 at 07:52 AM.
#4
#5
Join Date: Sep 2008
Location: Damon /Houston, Texas
Posts: 7,254
Received 2,191 Likes
on
1,357 Posts
#6
The pad is missing because it's a pain in the XXXX to put it back on.
On top of that, the pad is NLA from jaguar.
BTW, the pad is not foam but rather lile a short pile carpet with a wax type of backing.
Some were black (later) and some gray (earlier)_
Also the picture is from an early XJ8 with the fuel sender/wiring in the center.
later model had the sender/wiring on the top and cam buckle instead of rods and bolts for the fuel tank straps
On top of that, the pad is NLA from jaguar.
BTW, the pad is not foam but rather lile a short pile carpet with a wax type of backing.
Some were black (later) and some gray (earlier)_
Also the picture is from an early XJ8 with the fuel sender/wiring in the center.
later model had the sender/wiring on the top and cam buckle instead of rods and bolts for the fuel tank straps
Last edited by luc; 12-24-2011 at 06:12 PM.
#7
Hi Plums
I viewed the video and saved 2 screen shots. I also used JTIS and found the Fuel tank R&I that shows the fuel tank ground cable to be removed.
Here is the screen shot of the fuel tank with the foam pad (the foam pad is also missing on our 2001 xj8 fuel tank):
Here are the screen shot of the fuel tank ground cable:
Here is the fuel tank ground cable image in the JTIS21:
Page copied from JTIS21 Fuel tank removal/install:
Try calling Nalley Jaguar to see if you can get the fuel tank ground cable.
Also try some of the auto wrecking yards in your area.
Sorry about all the trouble this repair shop has caused you.
Jim Lombardi
I viewed the video and saved 2 screen shots. I also used JTIS and found the Fuel tank R&I that shows the fuel tank ground cable to be removed.
Here is the screen shot of the fuel tank with the foam pad (the foam pad is also missing on our 2001 xj8 fuel tank):
Here are the screen shot of the fuel tank ground cable:
Here is the fuel tank ground cable image in the JTIS21:
Page copied from JTIS21 Fuel tank removal/install:
Try calling Nalley Jaguar to see if you can get the fuel tank ground cable.
Also try some of the auto wrecking yards in your area.
Sorry about all the trouble this repair shop has caused you.
Jim Lombardi
Trending Topics
#8
The pad is missing because it's a pain in the XXXX to put it back on.
On top of that, the pad is NLA from jaguar.
BTW, the pad is not foam but rather lile a short pile carpet with a wax type of backing.
Some were black (later) and some gray (earlier)_
Also the picture is from an early XJ8 with the fuel sender/wiring in the center.
later model had the sender/wiring on the top and cam buckle instead of rods and bolts for the fuel tank straps
On top of that, the pad is NLA from jaguar.
BTW, the pad is not foam but rather lile a short pile carpet with a wax type of backing.
Some were black (later) and some gray (earlier)_
Also the picture is from an early XJ8 with the fuel sender/wiring in the center.
later model had the sender/wiring on the top and cam buckle instead of rods and bolts for the fuel tank straps
Anyhow, when the pad is present and someone is paying for the job, difficulty should not be an excuse for not putting it back.
