Hi Roy
Here is a photo of the back of the Instrument Cluster (old one we replaced with a used good one):
https://www.dropbox.com/s/ehjetryco7...%20Cluster.JPG
There are 4 large bulbs and 4 smaller bulbs. You need to turn the bulbs counter clockwize to remove them. I show 1 bulb turned counter clockwise in the photo (the large bulb in near center right part of the photo).
You just turn the bulbs and they release and come straight out.
I used needle nose pliers to remove the smaller bulbs.
Jim Lombardi
Here is a photo of the back of the Instrument Cluster (old one we replaced with a used good one):
https://www.dropbox.com/s/ehjetryco7...%20Cluster.JPG
There are 4 large bulbs and 4 smaller bulbs. You need to turn the bulbs counter clockwize to remove them. I show 1 bulb turned counter clockwise in the photo (the large bulb in near center right part of the photo).
You just turn the bulbs and they release and come straight out.
I used needle nose pliers to remove the smaller bulbs.
Jim Lombardi
Last edited by jimlombardi; 12-21-2012 at 12:54 PM.
#5
![Default](/forum/images/icons/icon1.gif)
Not sure this information is of any help, but this is what I found out:
The small bulbs are for the odometer and warning lights - Jaguar part# LJA4390AA Superceded by XR83865 (Osram part# 2351MFX6) 1.2w -- Looks like these part numbers are for the bulb holder & bulb?
I will bring my old instrument cluster into advance auto parts and ask them if they have a replacement for these bulbs.
Jim Lombardi
The small bulbs are for the odometer and warning lights - Jaguar part# LJA4390AA Superceded by XR83865 (Osram part# 2351MFX6) 1.2w -- Looks like these part numbers are for the bulb holder & bulb?
I will bring my old instrument cluster into advance auto parts and ask them if they have a replacement for these bulbs.
Jim Lombardi
Last edited by jimlombardi; 12-21-2012 at 09:55 PM.
#6
![Default](/forum/images/icons/icon1.gif)
Not sure this information is of any help, but this is what I found out:
The small bulbs are for the odometer and warning lights - Jaguar part# LJA4390AA Superceded by XR83865 (Osram part# 2351MFX6) 1.2w -- Looks like these part numbers are for the bulb holder & bulb?
I will bring my old instrument cluster into advance auto parts and ask them if they have a replacement for these bulbs.
Jim Lombardi
The small bulbs are for the odometer and warning lights - Jaguar part# LJA4390AA Superceded by XR83865 (Osram part# 2351MFX6) 1.2w -- Looks like these part numbers are for the bulb holder & bulb?
I will bring my old instrument cluster into advance auto parts and ask them if they have a replacement for these bulbs.
Jim Lombardi
Brighter Instrument Lights – My Solution - Alfa Romeo Bulletin Board & Forums
Not that X308s have the same lighting issues (Alfa dashes are practically blacked out at night), but would be nice to get a crisper back lighting.
#7
![Default](/forum/images/icons/icon1.gif)

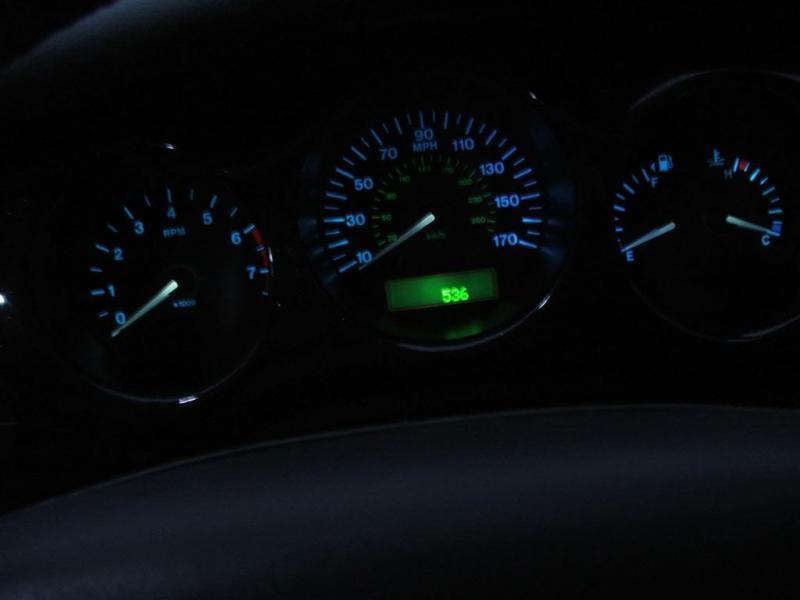

The one warning light I've got missing is the side/marker light, I think it's a burnt out led, not a replacement bulb I didn't look when I had it apart to install my Realgauge...something I might address...
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/28470-instrument-cluster-dscf5727large.jpg?dateline=1356191336)
Last edited by Sean B; 12-22-2012 at 09:52 AM.
The following users liked this post:
Tirefriar (12-23-2012)
Trending Topics
#8
![Default](/forum/images/icons/icon1.gif)
When you do get the cluster out, it is a good idea to remove and reinstall each bulb, even if it was OK before. I had to remove mine twice due to a dodgy electrical connection on bulbs.
