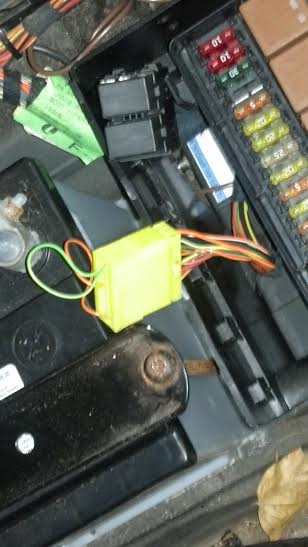

Hello everybody and thank you in advance for being a wealth of knowledge and quite clever as well. I have a 2003 XJR and love it. But the guy who sold it to me hosed me pretty good. I'm in the process of working on the electronics and have come across something i've yet to see on here. What the heck is this yellow jumper or whatever it is? And for what devious reason would it be in here? ![Love the troubleshooting-xjr-mystery-1.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/75460d1480971592t-love-troubleshooting-xjr-mystery-1.jpg)
![Love the troubleshooting-xjr-mystery-1.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/75460d1480971592t-love-troubleshooting-xjr-mystery-1.jpg)
![Love the troubleshooting-xjr-mystery-2.jpg](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/75461d1480971592t-love-troubleshooting-xjr-mystery-2.jpg)
#2
![Default](/forum/images/icons/icon1.gif)
Hello everybody and thank you in advance for being a wealth of knowledge and quite clever as well. I have a 2003 XJR and love it. But the guy who sold it to me hosed me pretty good. I'm in the process of working on the electronics and have come across something i've yet to see on here. What the heck is this yellow jumper or whatever it is? And for what devious reason would it be in here? Attachment 75460
Attachment 75461
Attachment 75461
Last edited by luc; 03-11-2014 at 10:29 AM.
The following 2 users liked this post by luc:
FirstJag7979 (03-12-2014),
fredd60 (03-14-2014)
The following users liked this post:
FirstJag7979 (03-12-2014)
#4
![Default](/forum/images/icons/icon1.gif)
One devious reason would be to bypass the security control and locking module (SCLM). Maybe the PO had a problem with the taillights and jumpered the trailer connection to get them to work. Just thinking like a devious PO here. Have you tried taking the jumpers out to see what happens ?
Don't.
The wires are part of the female connector that need to be there when the female connector for the towing harness is not plugged in
#5
#6
#7
![Default](/forum/images/icons/icon1.gif)
One devious reason would be to bypass the security control and locking module (SCLM). Maybe the PO had a problem with the taillights and jumpered the trailer connection to get them to work. Just thinking like a devious PO here. Have you tried taking the jumpers out to see what happens ?
Trending Topics
#8
#10
![Default](/forum/images/icons/icon1.gif)
There is nothing suspicious here. There are factory jumpers on the factory female electrical connector needed when the towing harness is not connected.
The Orange/white is for rear fog lights and the green/white is a grounded signal to the bulb failure module.
Unplug it and your rear fog light will not work and you will have a bulb out warning
