P1722 , but no tranny shops gonna get all my money!
#1
![Default](/forum/images/icons/icon1.gif)
Wife got the infamous limp error and said the car was acting funny not shifting right, I said DO NOT drive anywhere, that's the important part of this story as you read on. So after dragging the car back home I did some extensive research and these zf5hp24's all are gonna go, its just a matter of time. The A-drum is crap and is known to fail, BUT it first might crack and be causing low pressure . To verify this you can drop the pan and check for debris. If you see pieces of metal the drum already has fallen apart and you need to take the whole trans apart and rebuild. BUT if there's no chunks then you have hope. (as ours was) .So I got me a shop manual,(found on Ebay see pics) dropped it and opened her up and sure enough the damn thing was just starting to split apart right at the snap ring like all of the ones before had done that I read about online. (see pics) This was also because if she would have kept driving it would have finally broke apart. I was so relieved! This is easily fixable. There's NO other damage to the unit, but a trans place would take you for a ride for 3K. I'm thinking new drum which I had priced @ around 250.00 then...
Better yet a place near by I found on Ebay is repairing these by re welding them to be stronger than OEM for 150 bucks, so I'm gonna have this thing back on the road for no more than a few hundred (less if it doesn't need new clutches ) not like 3K.
Guys, this stuff is not brain surgery. I'm not a prof. wrench. either but if you don't have the cash (or even if you do why waste it) you can get your car going again yourself w/o going broke.
Cheers
ukcat
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
Better yet a place near by I found on Ebay is repairing these by re welding them to be stronger than OEM for 150 bucks, so I'm gonna have this thing back on the road for no more than a few hundred (less if it doesn't need new clutches ) not like 3K.
Guys, this stuff is not brain surgery. I'm not a prof. wrench. either but if you don't have the cash (or even if you do why waste it) you can get your car going again yourself w/o going broke.
Cheers
ukcat
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
The following users liked this post:
bobnuttall1 (12-27-2013)
#2
![Default](/forum/images/icons/icon1.gif)

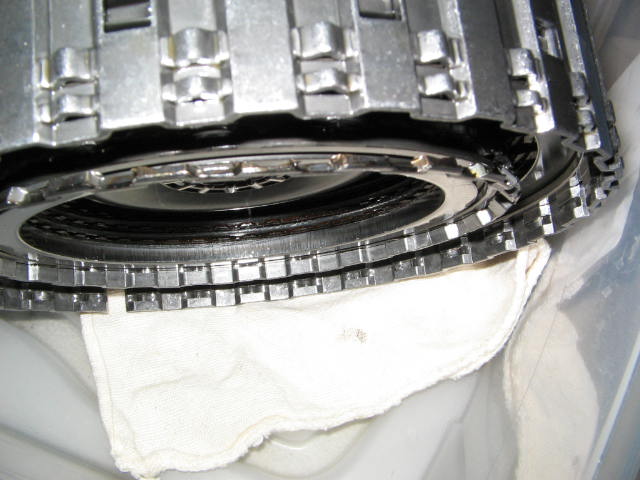

Here's a couple closer pics of A-drum that is the cause of our great cats (and beemers & audi's ....) being brought to their knees ( as well as most checkbooks!)
Once the trans was out it took only 10 mins to get to this part, not complicated at all.
If I would have know about these like I did the chain tensioners I would have done this as soon as I got the car, Oh well live and learn I always say at least now I have some money for the holidays!
ukcat90
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
Once the trans was out it took only 10 mins to get to this part, not complicated at all.
If I would have know about these like I did the chain tensioners I would have done this as soon as I got the car, Oh well live and learn I always say at least now I have some money for the holidays!
ukcat90
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
The following users liked this post:
bobnuttall1 (12-28-2013)
#5
![Default](/forum/images/icons/icon1.gif)
Only 70 flippin thou, I believe from readings and own experience now that these are close to 100% all destine for implosion, its only a matter of when... where oh where is a recall when you really need one.....
Notice: I did hear slight squeal upon start up in the morning(s) leading up to total limp mode ( which I was thinking was a belt idler bearing or such, I'll get to it soon, yeah right) so there are maybe warning signs but otherwise I think each needs to be addressed, period.
For those who are wrench turners wonder what a trans shop (if even they would touch it) would charge for a drum replacement, should not be too bad since your not replacing all the intermal gaskets, bearing, etc. I've hear some getting labor as low as 500.00 to r & r trans , add the price of the drum and fluid and maybe you could keep this around 1K (not 3K) like its eventualy going to be!
ukcat90
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
Notice: I did hear slight squeal upon start up in the morning(s) leading up to total limp mode ( which I was thinking was a belt idler bearing or such, I'll get to it soon, yeah right) so there are maybe warning signs but otherwise I think each needs to be addressed, period.
For those who are wrench turners wonder what a trans shop (if even they would touch it) would charge for a drum replacement, should not be too bad since your not replacing all the intermal gaskets, bearing, etc. I've hear some getting labor as low as 500.00 to r & r trans , add the price of the drum and fluid and maybe you could keep this around 1K (not 3K) like its eventualy going to be!
ukcat90
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
#6
![Default](/forum/images/icons/icon1.gif)
Got the repaired A-drum back already (pic below) and it looks great. Its been reinforced as to be stronger than OEM, and set me back just a bit more than originally quoted but @ 225.00 its still big money ahead of a rebuild.
Tech at the shop also agreed that I should have no trouble just re-installing this and driving w/o any other work since the original did not disintegrate and contaminate the entire trans
Can you say Whoo Hoo!
ukcat90
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
Tech at the shop also agreed that I should have no trouble just re-installing this and driving w/o any other work since the original did not disintegrate and contaminate the entire trans
Can you say Whoo Hoo!
ukcat90
00 XJ8
'90 XJS V12
'02 X-type
72 mustang fastback
#7
![Default](/forum/images/icons/icon1.gif)
We be rolling again. Had a chance to put it all back together (no rush, it one of our 3 Jags)
but still not that time consuming if one was under a more timely situation.
The cost:
New A-drum-225.00
ZF manual-65.00
Trans pan gasket 25.00
Esso fluid 160.00
Couple o-rings- 6.00
Few cups o' Dunkin- 10.00
So for about 500.00-ish I got it done.... not 2,000 , or 3,0000, or 4,000 which any trans place would have been robbery. To this day I cannot understand why so many people buy used cars (especially Jags) then don't have the slightest clue about them. I just saw a recent post for someone asking where to add coolant, or why the mirror was not darkening? and don't gimme that "oh you were a newbie once and probibly asked these kind of questions... Gimme a break!
Cheers
ukcat90
'90 xjs coupe
'00 xj8
'02 x-type
'72 mustang fastback
but still not that time consuming if one was under a more timely situation.
The cost:
New A-drum-225.00
ZF manual-65.00
Trans pan gasket 25.00
Esso fluid 160.00
Couple o-rings- 6.00
Few cups o' Dunkin- 10.00
So for about 500.00-ish I got it done.... not 2,000 , or 3,0000, or 4,000 which any trans place would have been robbery. To this day I cannot understand why so many people buy used cars (especially Jags) then don't have the slightest clue about them. I just saw a recent post for someone asking where to add coolant, or why the mirror was not darkening? and don't gimme that "oh you were a newbie once and probibly asked these kind of questions... Gimme a break!
Cheers
ukcat90
'90 xjs coupe
'00 xj8
'02 x-type
'72 mustang fastback
The following 2 users liked this post by ukcat90:
Armoredguy1235 (09-16-2012),
xjay8 (04-28-2013)
Trending Topics
#9
The following 2 users liked this post by ukcat90:
Armoredguy1235 (09-16-2012),
King Charles (03-28-2014)
#13
![Default](/forum/images/icons/icon1.gif)
We be rolling again. Had a chance to put it all back together (no rush, it one of our 3 Jags)
but still not that time consuming if one was under a more timely situation.
The cost:
New A-drum-225.00
ZF manual-65.00
Trans pan gasket 25.00
Esso fluid 160.00
Couple o-rings- 6.00
Few cups o' Dunkin- 10.00
So for about 500.00-ish I got it done.... not 2,000 , or 3,0000, or 4,000 which any trans place would have been robbery. To this day I cannot understand why so many people buy used cars (especially Jags) then don't have the slightest clue about them. I just saw a recent post for someone asking where to add coolant, or why the mirror was not darkening? and don't gimme that "oh you were a newbie once and probibly asked these kind of questions... Gimme a break!
Cheers
ukcat90
'90 xjs coupe
'00 xj8
'02 x-type
'72 mustang fastback
but still not that time consuming if one was under a more timely situation.
The cost:
New A-drum-225.00
ZF manual-65.00
Trans pan gasket 25.00
Esso fluid 160.00
Couple o-rings- 6.00
Few cups o' Dunkin- 10.00
So for about 500.00-ish I got it done.... not 2,000 , or 3,0000, or 4,000 which any trans place would have been robbery. To this day I cannot understand why so many people buy used cars (especially Jags) then don't have the slightest clue about them. I just saw a recent post for someone asking where to add coolant, or why the mirror was not darkening? and don't gimme that "oh you were a newbie once and probibly asked these kind of questions... Gimme a break!
Cheers
ukcat90
'90 xjs coupe
'00 xj8
'02 x-type
'72 mustang fastback
I also had the A drum replaced on my transmission. The problem is my shop charged me $2k to remove and replace the transmission and fix the drum!
I agree with the newbie questions. I'm waiting for someone to ask "How do you start the car with a key?"
The following users liked this post:
Slackmack (08-31-2023)
#14
![Default](/forum/images/icons/icon1.gif)
This write-up is AMAZING! Got the transmission fault code as well recently. Figured rather than spendin the 2000 for a rebuilt, id crack it open and try to fix it myself. EASY AS PIE! The broken part was right behind the bellhousing. I didnt even need any special tools. Bought the Forward A drum from ebay (some company by Chicago) then went up to Erickson Industries in Old Saybrook CT for some seals and gaskets... Total job cost me about 350 bucks! Works better than ever.
Thanks for the pictures and awesome write up. Also took the engine out w/ it.... Gonna do a timing chain/tensioner update. Should get another few miles out of my XJ8L. This site is the $h*t!
Thanks for the pictures and awesome write up. Also took the engine out w/ it.... Gonna do a timing chain/tensioner update. Should get another few miles out of my XJ8L. This site is the $h*t!
#16
Join Date: Sep 2008
Location: Damon /Houston, Texas
Posts: 7,254
Received 2,193 Likes
on
1,359 Posts
![Default](/forum/images/icons/icon1.gif)
good info and trans kits arent that expensive either, its when you break hard parts. But youll never find a shop/person willing to go as cheap as you. And no one paying someone else will only replace a couple parts. you go in you replace all expendable items and any damaged or updated parts. afterall you have to warranty youre work. I can build my own GM trannies for the suburban and race car TH400, and 700R4, and 4L60E's with hipo clutches and steels for less than $250. Hard parts extra, and on the 700R4, and 4L60's the thing that goes out is the 3-4 clutch pack which is right behind the front pump and is $60 to replace with a commercial app. 9 pack from the regular 6 pack for even more holding power. Yes trans arent hard with the right tools and manual. You dont ever tear apart the valve body(unless there are problem with it like shift solenoids and theyre easily replaceable, you can buy complete rebuilt VB and use yours as a core if concerned) and all the rest is just clutches, drums, pistons etc.....
