Pic or Diag of Brake Cooling Ducts? RESOLVED
#1
![Default](/forum/images/icons/icon1.gif)
Does anyone have a diagram or a photo of the brake cooling ducts and how they're supposed to be installed and all the parts that are needed? I have one duct (passenger side) that was hanging loose (it was attached to the bumper but hanging loose at the rear end of it) so I took it off and put it in the trunk for safe-keeping! I don't know if it's supposed to somehow attach to the piece hanging down near the wheel or not. I have nothing on the driver's side. I'm very interested to see how it's supposed to look. I know I need some parts (including the splash guard!) but I can't seem to find any diagram in my JTIS to help me.
Thanks.
Thanks.
#2
![Default](/forum/images/icons/icon1.gif)

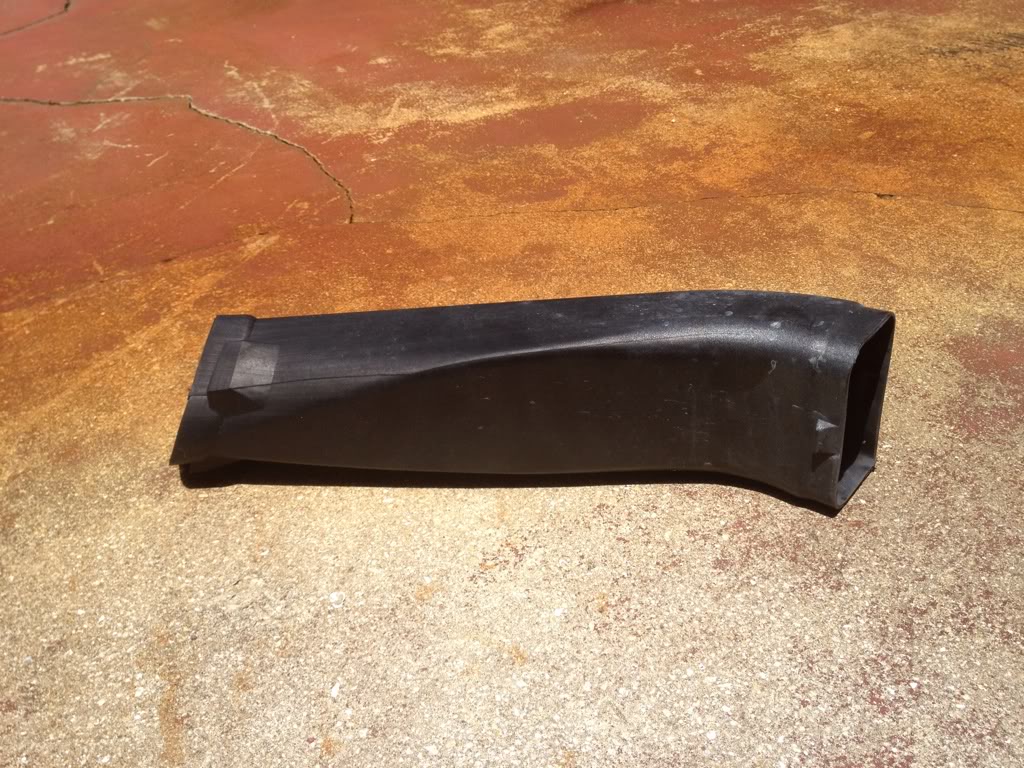

I have what I think are called the wheelarch liners on both sides -- this is the passenger side. The driver's side, of course, looks almost identical. The second photo is the one cooling tube that I have, it was attached on the passenger side of the inside of the bumper (left side of tube in pic) -- looks to me like there should be some kind of piece that fits in the big window of the wheelarch liner and then the tube would fit into that piece. Is this correct, or does the tube just "sit" in the window?
![Name: 4f57f9ab.jpg
Views: 879
Size: 81.7 KB](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/162673d1501269526-pic-diag-brake-cooling-ducts-resolved-4f57f9ab.jpg)
![Name: 4f57f9ab.jpg
Views: 879
Size: 81.7 KB](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/162673d1501269526-pic-diag-brake-cooling-ducts-resolved-4f57f9ab.jpg)
![Name: 38138d67.jpg
Views: 811
Size: 206.5 KB](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/162674d1501269526-pic-diag-brake-cooling-ducts-resolved-38138d67.jpg)
Last edited by OldMike; 07-28-2012 at 01:23 PM.
#3
The following users liked this post:
JimC64 (07-28-2012)
#4
#5
#6
![Default](/forum/images/icons/icon1.gif)

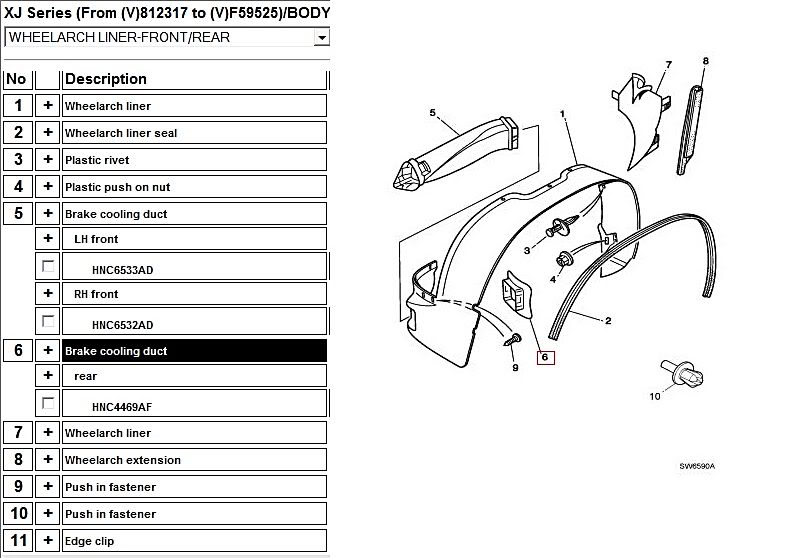

The part number is HNC4469AF (Brake Cooling Duct - Rear):
Look like item#5 Brake Cooling Duct goes into the front part of the Wheel Arch Liner and item# 6 Brake Cooling Duct - Rear must hold it in place on the Wheel Arch Liner.
![Name: XJX308WheelarchLinerpartslisting.jpg
Views: 1177
Size: 65.0 KB](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/162655d1501269492-pic-diag-brake-cooling-ducts-resolved-xjx308wheelarchlinerpartslisting.jpg)
The retail price at Jaguar Dealership is $12.55 discount down to $10.19
Jim Lombardi
Look like item#5 Brake Cooling Duct goes into the front part of the Wheel Arch Liner and item# 6 Brake Cooling Duct - Rear must hold it in place on the Wheel Arch Liner.
![Name: XJX308WheelarchLinerpartslisting.jpg
Views: 1177
Size: 65.0 KB](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/162655d1501269492-pic-diag-brake-cooling-ducts-resolved-xjx308wheelarchlinerpartslisting.jpg)
The retail price at Jaguar Dealership is $12.55 discount down to $10.19
Jim Lombardi
Last edited by jimlombardi; 07-28-2012 at 07:43 PM.
#7
![Default](/forum/images/icons/icon1.gif)
I took this picture before I sold the XJ Sport...
my XJR has both ducts in place luckily, but also make
sure you aren't missing the lower tray that conceals them.
It should screw on to the painted surface, and
have a 1ft rubber lip in the centre. A lot of the
XJs I have looked at are missing the ducts, and
the lower tray as well.
Me having this photo is such a coincidence. I
don't even have an XJ with me at the moment.
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Ian
my XJR has both ducts in place luckily, but also make
sure you aren't missing the lower tray that conceals them.
It should screw on to the painted surface, and
have a 1ft rubber lip in the centre. A lot of the
XJs I have looked at are missing the ducts, and
the lower tray as well.
Me having this photo is such a coincidence. I
don't even have an XJ with me at the moment.
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Ian
The following users liked this post:
JimC64 (07-28-2012)
Trending Topics
#8
#9
Join Date: Nov 2006
Location: Glasgow, Scotland UK
Posts: 47,302
Received 9,010 Likes
on
4,113 Posts
#10
#11
![Default](/forum/images/icons/icon1.gif)
Mike....save yourself the trouble and just remove entirely and blank of fthe openings.
In most driving situations they are not needed....unless you do a lot of mountain carving or track days ;o))
They are a PIA!
I blanked off the entries under the bumper with a shaped piece of plastic and gaffer tape .
At the wheel arch, I shaped some more plastic to cover the hole and pop rivetted them in place.
Stops a lot of mess and if you run ordinary brake pads, not as much dust.
Nothing to come adrift and nothing to rattle.
In most driving situations they are not needed....unless you do a lot of mountain carving or track days ;o))
They are a PIA!
I blanked off the entries under the bumper with a shaped piece of plastic and gaffer tape .
At the wheel arch, I shaped some more plastic to cover the hole and pop rivetted them in place.
Stops a lot of mess and if you run ordinary brake pads, not as much dust.
Nothing to come adrift and nothing to rattle.
#13
#14
![Default](/forum/images/icons/icon1.gif)
My pipe and skid/splash came off in the snow. Tabs in the front clip that hold the pipe in place also broke off. Anyone know if this stuff by 3M would be recommended for repair on the bumper holes?
On-line Product Catalog: 3M
Or should I just zip tie the pipes in or something?
On-line Product Catalog: 3M
Or should I just zip tie the pipes in or something?
#15
#17
#18
![Default](/forum/images/icons/icon1.gif)
I chucked mine about five years ago and blocked over the holes with some panels pop riveted in place.
It's not as if you are running on a race track....these things are useless and i have never had any brake over heating problems.
I run standard discs with Akebono ceramic pads.
#19
![Default](/forum/images/icons/icon1.gif)
Is the splash guard also known as the skid plate? One single piece that attaches to the bumper?
#20
![Default](/forum/images/icons/icon1.gif)
I use stainless self tappers to mount mine.....far more secure than those useless factory rivett things called 'scrivetts' ;o]
The following 2 users liked this post by xjay8:
jimlombardi (05-08-2014),
Palmyra (05-08-2014)
