Please help me identify this part

So after putting the car together I have this one left over part and I can't figure out where it goes...Help please...

Reply Like

11-13-2011 | 06:41 PM

Sean B

Veteran Member

Joined: Oct 2008

Posts: 4,796

Likes: 1,373

From: Sunny Southport UK

Alternator cooler air duct.

Reply Like

11-13-2011 | 10:23 PM

jimlombardi

Veteran Member

Joined: Aug 2010

Posts: 2,635

Likes: 1,625

From: Southington CT

Sean
Very well done.

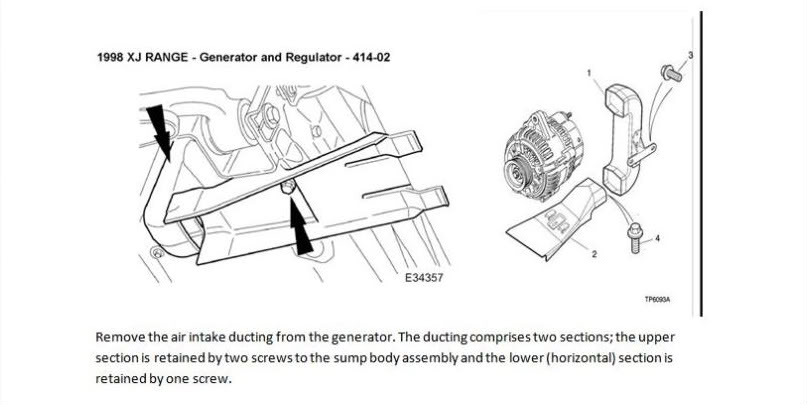

I found these diagrams showing the Alternator Cooling Duct in the Jaguar Electronics Parts Catalog and the JTIS21 Shop Repair Manual:

Name: XJRAlternatorCoolingDuct.jpg
Views: 471
Size: 47.9 KB

Name: XJRAlternatorCoolingDuct.jpg
Views: 471
Size: 47.9 KB

Last edited by jimlombardi; 11-13-2011 at 10:25 PM.

Reply Like

11-13-2011 | 11:14 PM

adam699

Thread Starter

Senior Member

Joined: Aug 2011

Posts: 824

Likes: 84

From: Chicagoland

Thanks guys. looks like I'm missing the scoop piece.

Reply Like

11-14-2011 | 08:40 AM

jimlombardi

Veteran Member

Joined: Aug 2010

Posts: 2,635

Likes: 1,625

From: Southington CT

The alternator lower cooling duct is part# HNC4477AA. List price is about $30.

The 2 flange head screws for the upper cooling duct are part# JFS10616F (M6 x 16mm) about $2 each.

Screw/washer for lower cooling duct is part# JSH10816EXC list price is about $3. Total should be somewhere near $40.

Try calling Nalley Jaguar (one of the forum sponsors). They give a 15% discount and free shipping for purchases over $25 to jaguar forum members. They are located in Roswell, GA - Parts (1-800-246-0030).

Jim lombardi
