Hello all,
I know there are a few threads(many?) on the lower shock bushings. I wanted to relay what symptoms I had and what I looked for.
I have had a knock/rattle from the front end since I don't know when. I had the end links replaced under warranty some years ago at 60k miles(the car now has 89k). When I had the lower ball joints replaced 8 months ago the mechanic said the end links were bad and needed replacing and everything else looked great. Needless to say I have taken way too long to address something that has been driving me nuts.
SO, I put the car up on jackstands and removed the wheels as I have mentioned in other posts to see this...
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86405-replaced-lower-shock-bushings-wow-887e55ca-96e8-445c-9baa-9e49c91b41e7.jpg?dateline=1401654849)
Wow, I cant believe what I see. So I ordered new bushing from Patrick Jaguar and get them the next day.
After seeing this thread https://www.jaguarforums.com/forum/x...estion-117507/
I make my own "press". It worked like a charm. Just as an FYI the above photo is with the wheel removed and the car on a jackstand. If you were to look at the shock under normal compression/ride height, you would not see any reason to replace it as you would not see any void.

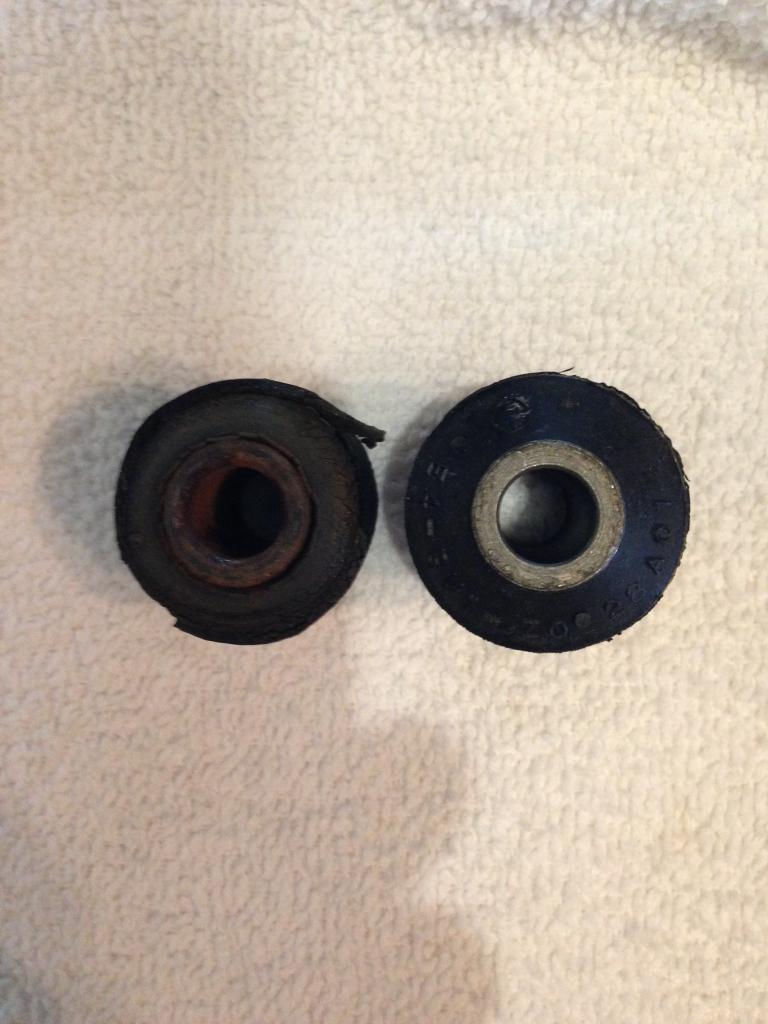

This is what a new bushing and the old one looked like..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86406-replaced-lower-shock-bushings-wow-47b21871-d3c7-49a0-bb41-4c36583fe1ca.jpg?dateline=1401654849)
It took about a 1/2 hour to replace each one on the car. I also checked the sway bar links. They are fine.

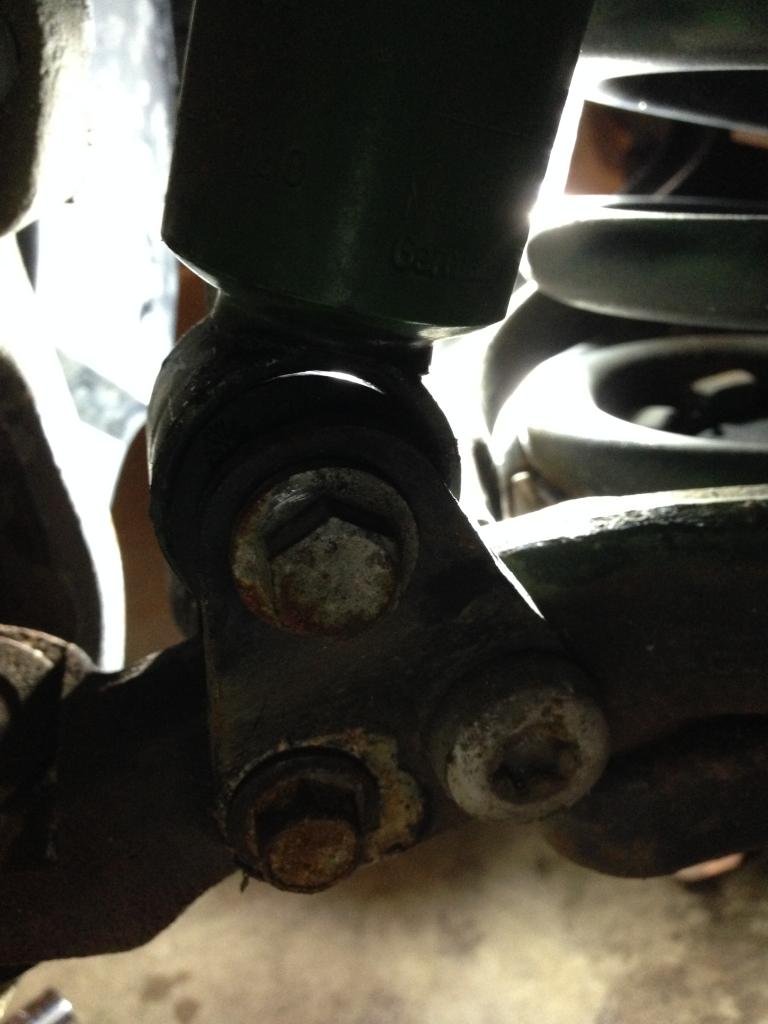

This is what a new one look like under the same condition(essentially being the limiter of the spring and suspension)..It looks worse than it is because I had to put a light behind it to show there is still more deflection than I would like but must be there for some comfort factor..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86407-replaced-lower-shock-bushings-wow-5fe33cfa-3b3a-4ed1-b2e2-d52f3e48eaf2.jpg?dateline=1401654849)
Once it was back together, I am in AWE how much of a difference it made. NO MORE NOISE!!
Too the handling has improved quite a bit. If you have not done it yet, I know a lot of you already have, take a look at yours. This was an easy and cheap repair that made a world of difference($33 including the "customer puller/press". ![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Chris
I know there are a few threads(many?) on the lower shock bushings. I wanted to relay what symptoms I had and what I looked for.
I have had a knock/rattle from the front end since I don't know when. I had the end links replaced under warranty some years ago at 60k miles(the car now has 89k). When I had the lower ball joints replaced 8 months ago the mechanic said the end links were bad and needed replacing and everything else looked great. Needless to say I have taken way too long to address something that has been driving me nuts.
SO, I put the car up on jackstands and removed the wheels as I have mentioned in other posts to see this...
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86405-replaced-lower-shock-bushings-wow-887e55ca-96e8-445c-9baa-9e49c91b41e7.jpg?dateline=1401654849)
Wow, I cant believe what I see. So I ordered new bushing from Patrick Jaguar and get them the next day.
After seeing this thread https://www.jaguarforums.com/forum/x...estion-117507/
I make my own "press". It worked like a charm. Just as an FYI the above photo is with the wheel removed and the car on a jackstand. If you were to look at the shock under normal compression/ride height, you would not see any reason to replace it as you would not see any void.
This is what a new bushing and the old one looked like..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86406-replaced-lower-shock-bushings-wow-47b21871-d3c7-49a0-bb41-4c36583fe1ca.jpg?dateline=1401654849)
It took about a 1/2 hour to replace each one on the car. I also checked the sway bar links. They are fine.
This is what a new one look like under the same condition(essentially being the limiter of the spring and suspension)..It looks worse than it is because I had to put a light behind it to show there is still more deflection than I would like but must be there for some comfort factor..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86407-replaced-lower-shock-bushings-wow-5fe33cfa-3b3a-4ed1-b2e2-d52f3e48eaf2.jpg?dateline=1401654849)
Once it was back together, I am in AWE how much of a difference it made. NO MORE NOISE!!
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Chris
Last edited by Badbenz94; 06-01-2014 at 08:08 PM. Reason: Added additional explanation
The following 5 users liked this post by Badbenz94:
DJ-Roy (06-01-2014),
Graham Royls (06-02-2014),
jaguarcraver (06-01-2014),
JimC64 (06-01-2014),
Porsche407 (06-02-2014)
#2
#3
![Default](/forum/images/icons/icon1.gif)
Hello all,
I know there are a few threads(many?) on the lower shock bushings. I wanted to relay what symptoms I had and what I looked for.
I have had a knock/rattle from the front end since I don't know when. I had the end links replaced under warranty some years ago at 60k miles(the car now has 89k). When I had the lower ball joints replaced 8 months ago the mechanic said the end links were bad and needed replacing and everything else looked great. Needless to say I have taken way too long to address something that has been driving me nuts.
SO, I put the car up on jackstands and removed the wheels as I have mentioned in other posts to see this...
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86405-replaced-lower-shock-bushings-wow-887e55ca-96e8-445c-9baa-9e49c91b41e7.jpg?dateline=1401654849)
Wow, I cant believe what I see. So I ordered new bushing from Patrick Jaguar and get them the next day.
After seeing this thread https://www.jaguarforums.com/forum/x...estion-117507/
I make my own "press". It worked like a charm. Just as an FYI the above photo is with the wheel removed and the car on a jackstand. If you were to look at the shock under normal compression/ride height, you would not see any reason to replace it as you would not see any void.
This is what a new bushing and the old one looked like..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86406-replaced-lower-shock-bushings-wow-47b21871-d3c7-49a0-bb41-4c36583fe1ca.jpg?dateline=1401654849)
It took about a 1/2 hour to replace each one on the car. I also checked the sway bar links. They are fine.
This is what a new one look like under the same condition(essentially being the limiter of the spring and suspension)..It looks worse than it is because I had to put a light behind it to show there is still more deflection than I would like but must be there for some comfort factor..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86407-replaced-lower-shock-bushings-wow-5fe33cfa-3b3a-4ed1-b2e2-d52f3e48eaf2.jpg?dateline=1401654849)
Once it was back together, I am in AWE how much of a difference it made. NO MORE NOISE!!
Too the handling has improved quite a bit. If you have not done it yet, I know a lot of you already have, take a look at yours. This was an easy and cheap repair that made a world of difference($33 including the "customer puller/press". ![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Chris
I know there are a few threads(many?) on the lower shock bushings. I wanted to relay what symptoms I had and what I looked for.
I have had a knock/rattle from the front end since I don't know when. I had the end links replaced under warranty some years ago at 60k miles(the car now has 89k). When I had the lower ball joints replaced 8 months ago the mechanic said the end links were bad and needed replacing and everything else looked great. Needless to say I have taken way too long to address something that has been driving me nuts.
SO, I put the car up on jackstands and removed the wheels as I have mentioned in other posts to see this...
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86405-replaced-lower-shock-bushings-wow-887e55ca-96e8-445c-9baa-9e49c91b41e7.jpg?dateline=1401654849)
Wow, I cant believe what I see. So I ordered new bushing from Patrick Jaguar and get them the next day.
After seeing this thread https://www.jaguarforums.com/forum/x...estion-117507/
I make my own "press". It worked like a charm. Just as an FYI the above photo is with the wheel removed and the car on a jackstand. If you were to look at the shock under normal compression/ride height, you would not see any reason to replace it as you would not see any void.
This is what a new bushing and the old one looked like..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86406-replaced-lower-shock-bushings-wow-47b21871-d3c7-49a0-bb41-4c36583fe1ca.jpg?dateline=1401654849)
It took about a 1/2 hour to replace each one on the car. I also checked the sway bar links. They are fine.
This is what a new one look like under the same condition(essentially being the limiter of the spring and suspension)..It looks worse than it is because I had to put a light behind it to show there is still more deflection than I would like but must be there for some comfort factor..
![](https://www.jaguarforums.com/forum/attachments/xj-xj8-xjr-x308-27/86407-replaced-lower-shock-bushings-wow-5fe33cfa-3b3a-4ed1-b2e2-d52f3e48eaf2.jpg?dateline=1401654849)
Once it was back together, I am in AWE how much of a difference it made. NO MORE NOISE!!
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Chris
#4
![Default](/forum/images/icons/icon1.gif)
Here you go! I can't take credit for this novel idea, I did link where I stole someone else's idea.
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)

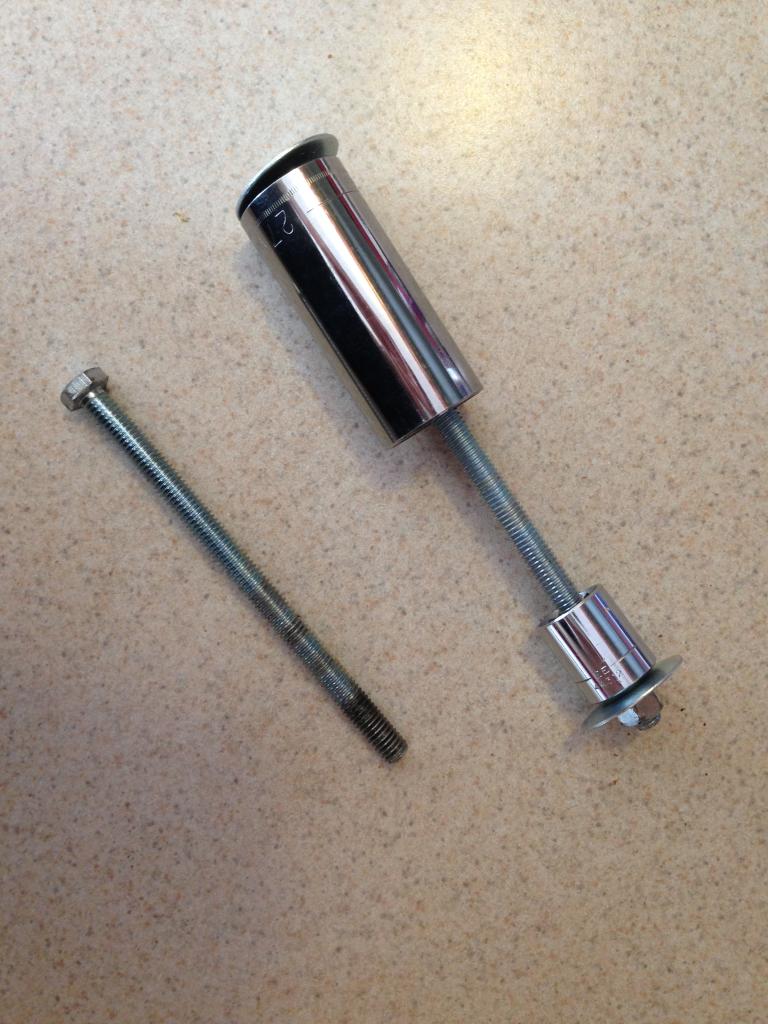

Here is all I grabbed, a 5" and 6 1/2" 3/8 bolt(you will need the longer bolt for pressing in the new bushing), two large washers and a nut. I used a 12pt 27MM Craftsman socket(I think if it were a 6 point, the bushing may go in and never come out lol) and a 18mm Craftsman socket.
